inet::queueing::PacketProcessorBase Class Reference

#include <PacketProcessorBase.h>

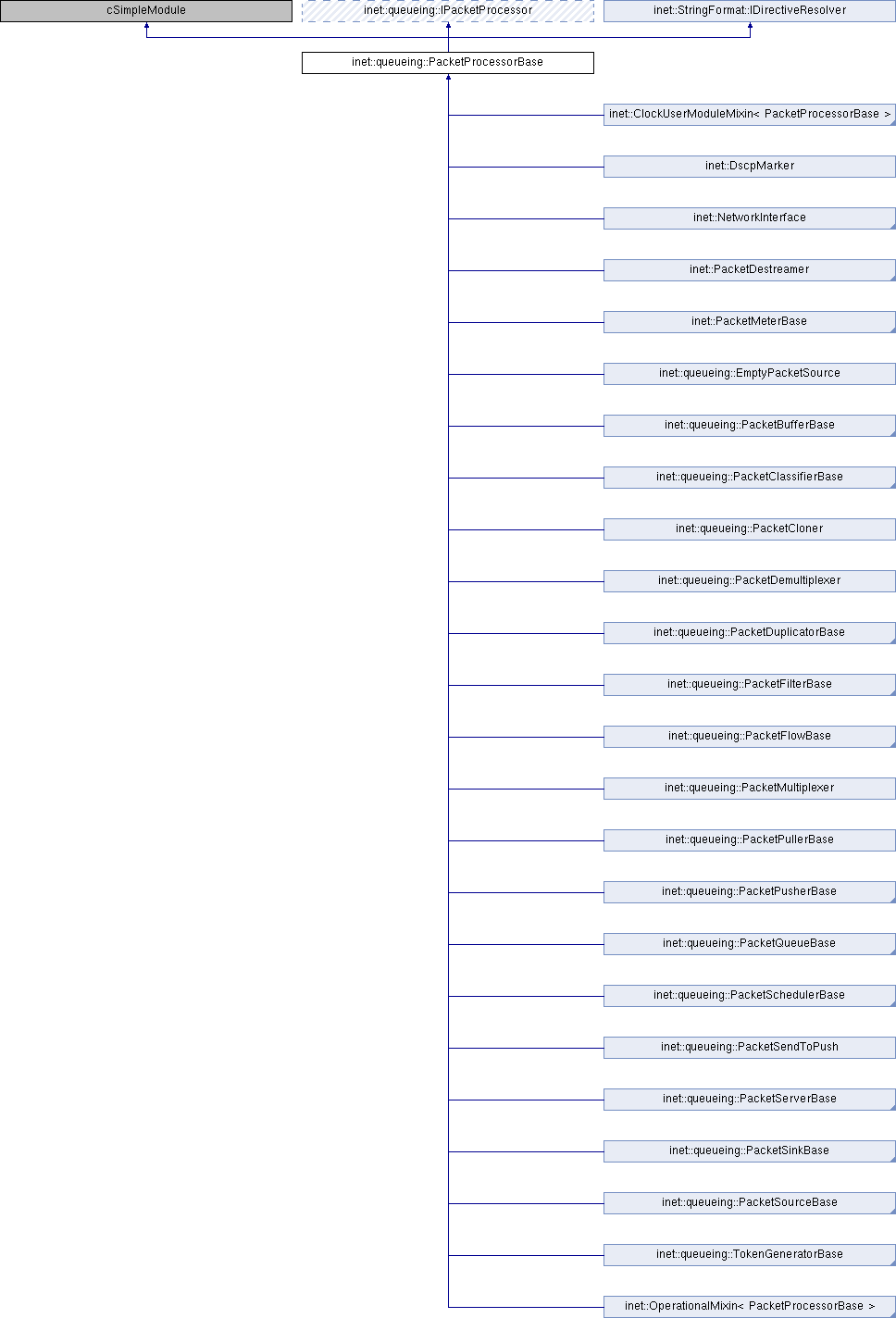

Inheritance diagram for inet::queueing::PacketProcessorBase:

Public Member Functions
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...
virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...
virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...
virtual const char *	resolveDirective (char directive) const override
Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()
virtual bool	supportsPacketPushing (cGate *gate) const =0
	Returns true if the processor supports pushing packets at the given gate. More...
virtual bool	supportsPacketPulling (cGate *gate) const =0
	Returns true if the processor supports pulling packets at the given gate. More...

Protected Types
enum	Action { PUSH, PULL }

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	refreshDisplay () const override
virtual void	handlePacketProcessed (Packet *packet)
virtual void	checkPacketOperationSupport (cGate *gate) const
virtual void	checkPacketOperationSupport (cGate *startGate, cGate *endGate) const
virtual void	animate (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacket (Packet *packet, cGate *gate, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, long transmissionId, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const
virtual void	pushOrSendPacket (Packet *packet, cGate *gate, IPassivePacketSink *consumer)
virtual void	pushOrSendPacketStart (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)
virtual void	pushOrSendPacketEnd (Packet *packet, cGate *gate, IPassivePacketSink *consumer, int transmissionId)
virtual void	pushOrSendPacketProgress (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)
virtual void	animatePush (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacket (Packet *packet, cGate *gate) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	animatePull (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacket (Packet *packet, cGate *gate) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)
virtual void	updateDisplayString () const

Protected Attributes
const char *	displayStringTextFormat = nullptr
int	numProcessedPackets = -1
b	processedTotalLength = b(-1)

Member Enumeration Documentation

Action

enum inet::queueing::PacketProcessorBase::Action

protected

Enumerator
PUSH
PULL

                {
        PUSH,
        PULL,
    };

Member Function Documentation

animate()

void inet::queueing::PacketProcessorBase::animate ( Packet *  packet, cGate *  gate, const SendOptions &  sendOptions, Action  action  ) const

protectedvirtual

{
    packet->setIsUpdate(sendOptions.isUpdate);
    packet->setTransmissionId(sendOptions.transmissionId_);
    if (sendOptions.isUpdate && sendOptions.transmissionId_ == -1)
        throw cRuntimeError("No transmissionId specified in SendOptions for a transmission update");
    packet->setDuration(SIMTIME_ZERO);
    packet->setRemainingDuration(SIMTIME_ZERO);
    auto endGate = gate->getPathEndGate();
    packet->setArrival(endGate->getOwnerModule()->getId(), endGate->getId(), simTime());
    packet->setSentFrom(gate->getOwnerModule(), gate->getId(), simTime());

#ifdef INET_WITH_SELFDOC
    if (SelfDoc::generateSelfdoc) {
        auto from = gate->getOwnerModule();
        auto to = endGate->getOwnerModule();
        auto ctrl = packet->getControlInfo();
        {
            std::ostringstream os;
            os << "=SelfDoc={ " << SelfDoc::keyVal("module", from->getComponentType()->getFullName())
                    << ", " << SelfDoc::keyVal("action", action == PUSH ? "PUSH_OUT" : "PULLED_OUT")
                    << ", " << SelfDoc::val("details") << " : {"
                    << SelfDoc::keyVal("gate", SelfDoc::gateInfo(gate))
                    << ", "<< SelfDoc::keyVal("msg", opp_typename(typeid(*packet)))
                    << ", " << SelfDoc::keyVal("kind", SelfDoc::kindToStr(packet->getKind(), gate->getProperties(), "messageKinds", endGate->getProperties(), "messageKinds"))
                    << ", " << SelfDoc::keyVal("ctrl", ctrl ? opp_typename(typeid(*ctrl)) : "")
                    << ", " << SelfDoc::tagsToJson("tags", packet)
                    << " } }"
                    ;
            globalSelfDoc.insert(os.str());
        }
        {
            std::ostringstream os;
            os << "=SelfDoc={ " << SelfDoc::keyVal("module", to->getComponentType()->getFullName())
                    << ", " << SelfDoc::keyVal("action", action == PUSH ? "PUSHED_IN" : "PULL_IN")
                    << ", " << SelfDoc::val("details") << " : {"
                    << SelfDoc::keyVal("gate", SelfDoc::gateInfo(endGate))
                    << ", " << SelfDoc::keyVal("msg", opp_typename(typeid(*packet)))
                    << ", " << SelfDoc::keyVal("kind", SelfDoc::kindToStr(packet->getKind(), endGate->getProperties(), "messageKinds", gate->getProperties(), "messageKinds"))
                    << ", " << SelfDoc::keyVal("ctrl", ctrl ? opp_typename(typeid(*ctrl)) : "")
                    << ", " << SelfDoc::tagsToJson("tags", packet)
                    << " } }"
                    ;
            globalSelfDoc.insert(os.str());
        }
    }
#endif // INET_WITH_SELFDOC

    auto envir = getEnvir();
    if (gate->getNextGate() != nullptr) {
        envir->beginSend(packet, sendOptions);
        while (gate->getNextGate() != nullptr) {
            ChannelResult result;
            result.duration = sendOptions.duration_;
            result.remainingDuration = sendOptions.remainingDuration;
            envir->messageSendHop(packet, gate, result);
            gate = gate->getNextGate();
        }
        envir->endSend(packet);
    }
    envir->pausePoint();
}

Referenced by animatePacket(), animatePacketEnd(), animatePacketProgress(), animatePacketStart(), animatePull(), and animatePush().

animatePacket()

void inet::queueing::PacketProcessorBase::animatePacket ( Packet *  packet, cGate *  gate, Action  action  ) const

protectedvirtual

{
    SendOptions sendOptions;
    sendOptions.duration_ = 0;
    sendOptions.remainingDuration = 0;
    animate(packet, gate, sendOptions, action);
}

Referenced by animatePullPacket(), and animatePushPacket().

animatePacketEnd() [1/2]

void inet::queueing::PacketProcessorBase::animatePacketEnd ( Packet *  packet, cGate *  gate, const SendOptions &  sendOptions, Action  action  ) const

protectedvirtual

{
    animate(packet, gate, sendOptions, action);
}

animatePacketEnd() [2/2]

void inet::queueing::PacketProcessorBase::animatePacketEnd ( Packet *  packet, cGate *  gate, long  transmissionId, Action  action  ) const

protectedvirtual

{
    SendOptions sendOptions;
    sendOptions.updateTx(transmissionId, 0);
    animatePacketEnd(packet, gate, sendOptions, action);
}

Referenced by animatePullPacketEnd(), and animatePushPacketEnd().

animatePacketProgress() [1/2]

void inet::queueing::PacketProcessorBase::animatePacketProgress ( Packet *  packet, cGate *  gate, bps  datarate, b  position, b  extraProcessableLength, const SendOptions &  sendOptions, Action  action  ) const

protectedvirtual

{
    animate(packet, gate, sendOptions, action);
}

animatePacketProgress() [2/2]

void inet::queueing::PacketProcessorBase::animatePacketProgress ( Packet *  packet, cGate *  gate, bps  datarate, b  position, b  extraProcessableLength, long  transmissionId, Action  action  ) const

protectedvirtual

{
    SendOptions sendOptions;
    sendOptions.transmissionId(transmissionId);
    animatePacketProgress(packet, gate, datarate, position, extraProcessableLength, sendOptions, action);
}

Referenced by animatePullPacketProgress(), and animatePushPacketProgress().

animatePacketStart() [1/2]

void inet::queueing::PacketProcessorBase::animatePacketStart ( Packet *  packet, cGate *  gate, bps  datarate, const SendOptions &  sendOptions, Action  action  ) const

protectedvirtual

{
    animate(packet, gate, sendOptions, action);
}

animatePacketStart() [2/2]

void inet::queueing::PacketProcessorBase::animatePacketStart ( Packet *  packet, cGate *  gate, bps  datarate, long  transmissionId, Action  action  ) const

protectedvirtual

{
    simtime_t duration = s(packet->getDataLength() / datarate).get();
    SendOptions sendOptions;
    sendOptions.duration_ = duration;
    sendOptions.remainingDuration = duration;
    sendOptions.transmissionId(transmissionId);
    animatePacketStart(packet, gate, datarate, sendOptions, action);
}

Referenced by animatePullPacketStart(), and animatePushPacketStart().

animatePull()

void inet::queueing::PacketProcessorBase::animatePull ( Packet *  packet, cGate *  gate, const SendOptions &  sendOptions  ) const

protectedvirtual

{
    animate(packet, gate, sendOptions, PULL);
}

animatePullPacket()

void inet::queueing::PacketProcessorBase::animatePullPacket ( Packet *  packet, cGate *  gate  ) const

protectedvirtual

{
    animatePacket(packet, gate, PULL);
}

Referenced by inet::queueing::PacketDemultiplexer::pullPacket(), inet::queueing::PassivePacketSource::pullPacket(), inet::queueing::MarkovClassifier::pullPacket(), inet::PacketDestreamer::pullPacket(), inet::queueing::PacketFlowBase::pullPacket(), inet::queueing::PacketQueue::pullPacket(), inet::queueing::PacketSchedulerBase::pullPacket(), and inet::queueing::PacketFilterBase::pullPacket().

animatePullPacketEnd() [1/2]

void inet::queueing::PacketProcessorBase::animatePullPacketEnd ( Packet *  packet, cGate *  gate, const SendOptions &  sendOptions  ) const

protectedvirtual

{
    animatePacketEnd(packet, gate, sendOptions, PULL);
}

animatePullPacketEnd() [2/2]

void inet::queueing::PacketProcessorBase::animatePullPacketEnd ( Packet *  packet, cGate *  gate, long  transmissionId  ) const

protectedvirtual

{
    animatePacketEnd(packet, gate, transmissionId, PULL);
}

Referenced by inet::queueing::PacketFlowBase::pullPacketEnd(), inet::PacketStreamer::pullPacketEnd(), inet::queueing::PacketSchedulerBase::pullPacketEnd(), and inet::PreemptableStreamer::pullPacketEnd().

animatePullPacketProgress() [1/2]

void inet::queueing::PacketProcessorBase::animatePullPacketProgress ( Packet *  packet, cGate *  gate, bps  datarate, b  position, b  extraProcessableLength, const SendOptions &  sendOptions  ) const

protectedvirtual

{
    animatePacketProgress(packet, gate, datarate, position, extraProcessableLength, sendOptions, PULL);
}

animatePullPacketProgress() [2/2]

void inet::queueing::PacketProcessorBase::animatePullPacketProgress ( Packet *  packet, cGate *  gate, bps  datarate, b  position, b  extraProcessableLength, long  transmissionId  ) const

protectedvirtual

{
    animatePacketProgress(packet, gate, datarate, position, extraProcessableLength, transmissionId, PULL);
}

Referenced by inet::queueing::PacketFlowBase::pullPacketProgress(), inet::PacketStreamer::pullPacketProgress(), inet::queueing::PacketSchedulerBase::pullPacketProgress(), and inet::PreemptableStreamer::pullPacketProgress().

animatePullPacketStart() [1/2]

void inet::queueing::PacketProcessorBase::animatePullPacketStart ( Packet *  packet, cGate *  gate, bps  datarate, const SendOptions &  sendOptions  ) const

protectedvirtual

{
    animatePacketStart(packet, gate, datarate, sendOptions, PULL);
}

animatePullPacketStart() [2/2]

void inet::queueing::PacketProcessorBase::animatePullPacketStart ( Packet *  packet, cGate *  gate, bps  datarate, long  transmissionId  ) const

protectedvirtual

{
    animatePacketStart(packet, gate, datarate, transmissionId, PULL);
}

Referenced by inet::queueing::PacketFlowBase::pullPacketStart(), inet::PacketStreamer::pullPacketStart(), inet::queueing::PacketSchedulerBase::pullPacketStart(), and inet::PreemptableStreamer::pullPacketStart().

animatePush()

void inet::queueing::PacketProcessorBase::animatePush ( Packet *  packet, cGate *  gate, const SendOptions &  sendOptions  ) const

protectedvirtual

{
    animate(packet, gate, sendOptions, PUSH);
}

animatePushPacket()

void inet::queueing::PacketProcessorBase::animatePushPacket ( Packet *  packet, cGate *  gate  ) const

protectedvirtual

{
    animatePacket(packet, gate, PUSH);
}

Referenced by pushOrSendPacket().

animatePushPacketEnd() [1/2]

void inet::queueing::PacketProcessorBase::animatePushPacketEnd ( Packet *  packet, cGate *  gate, const SendOptions &  sendOptions  ) const

protectedvirtual

{
    animatePacketEnd(packet, gate, sendOptions, PUSH);
}

animatePushPacketEnd() [2/2]

void inet::queueing::PacketProcessorBase::animatePushPacketEnd ( Packet *  packet, cGate *  gate, long  transmissionId  ) const

protectedvirtual

{
    animatePacketEnd(packet, gate, transmissionId, PUSH);
}

Referenced by pushOrSendPacketEnd(), and pushOrSendPacketProgress().

animatePushPacketProgress() [1/2]

void inet::queueing::PacketProcessorBase::animatePushPacketProgress ( Packet *  packet, cGate *  gate, bps  datarate, b  position, b  extraProcessableLength, const SendOptions &  sendOptions  ) const

protectedvirtual

{
    animatePacketProgress(packet, gate, datarate, position, extraProcessableLength, sendOptions, PUSH);
}

animatePushPacketProgress() [2/2]

void inet::queueing::PacketProcessorBase::animatePushPacketProgress ( Packet *  packet, cGate *  gate, bps  datarate, b  position, b  extraProcessableLength, long  transmissionId  ) const

protectedvirtual

{
    animatePacketProgress(packet, gate, datarate, position, extraProcessableLength, transmissionId, PUSH);
}

Referenced by pushOrSendPacketProgress().

animatePushPacketStart() [1/2]

void inet::queueing::PacketProcessorBase::animatePushPacketStart ( Packet *  packet, cGate *  gate, bps  datarate, const SendOptions &  sendOptions  ) const

protectedvirtual

{
    animatePacketStart(packet, gate, datarate, sendOptions, PUSH);
}

animatePushPacketStart() [2/2]

void inet::queueing::PacketProcessorBase::animatePushPacketStart ( Packet *  packet, cGate *  gate, bps  datarate, long  transmissionId  ) const

protectedvirtual

{
    animatePacketStart(packet, gate, datarate, transmissionId, PUSH);
}

Referenced by pushOrSendPacketProgress(), and pushOrSendPacketStart().

checkPacketOperationSupport() [1/2]

void inet::queueing::PacketProcessorBase::checkPacketOperationSupport ( cGate *  gate ) const

protectedvirtual

{
    auto startGate = findConnectedGate<IPacketProcessor>(gate, -1);
    auto endGate = findConnectedGate<IPacketProcessor>(gate, 1);
    if (gate->getPreviousGate() != nullptr)
        checkPacketOperationSupport(startGate, gate);
    if (gate->getNextGate() != nullptr)
        checkPacketOperationSupport(gate, endGate);
}

Referenced by inet::queueing::ActivePacketSinkBase::initialize(), inet::queueing::ActivePacketSourceBase::initialize(), inet::queueing::EmptyPacketSource::initialize(), inet::queueing::PacketSendToPush::initialize(), inet::queueing::PassivePacketSinkBase::initialize(), inet::queueing::PassivePacketSourceBase::initialize(), inet::queueing::PcapFilePacketConsumer::initialize(), inet::queueing::PassivePacketSink::initialize(), inet::queueing::PacketDuplicatorBase::initialize(), inet::PacketMeterBase::initialize(), inet::queueing::PacketDemultiplexer::initialize(), inet::queueing::PacketServerBase::initialize(), inet::queueing::PacketPusherBase::initialize(), inet::queueing::PacketPullerBase::initialize(), inet::queueing::MarkovScheduler::initialize(), inet::queueing::CompoundPacketQueueBase::initialize(), inet::queueing::MarkovClassifier::initialize(), inet::queueing::PacketFlowBase::initialize(), inet::queueing::PacketMultiplexer::initialize(), inet::PacketDestreamer::initialize(), inet::queueing::PacketSchedulerBase::initialize(), inet::queueing::PacketClassifierBase::initialize(), inet::PacketReceiverBase::initialize(), inet::queueing::PacketQueue::initialize(), inet::queueing::PacketFilterBase::initialize(), inet::PacketStreamer::initialize(), inet::PreemptableStreamer::initialize(), and inet::PacketTransmitterBase::initialize().

checkPacketOperationSupport() [2/2]

void inet::queueing::PacketProcessorBase::checkPacketOperationSupport ( cGate *  startGate, cGate *  endGate  ) const

protectedvirtual

{
    auto startElement = startGate == nullptr ? nullptr : check_and_cast<IPacketProcessor *>(startGate->getOwnerModule());
    auto endElement = endGate == nullptr ? nullptr : check_and_cast<IPacketProcessor *>(endGate->getOwnerModule());
    if (startElement != nullptr && endElement != nullptr) {
        bool startSending = startElement->supportsPacketSending(startGate);
        bool startPushing = startElement->supportsPacketPushing(startGate);
        bool startPulling = startElement->supportsPacketPulling(startGate);
        bool startPassing = startElement->supportsPacketPassing(startGate);
        bool startStreaming = startElement->supportsPacketStreaming(startGate);
        bool startOnlySending = startSending && !startPushing && !startPulling;
        bool endSending = endElement->supportsPacketSending(endGate);
        bool endPushing = endElement->supportsPacketPushing(endGate);
        bool endPulling = endElement->supportsPacketPulling(endGate);
        bool endPassing = endElement->supportsPacketPassing(endGate);
        bool endStreaming = endElement->supportsPacketStreaming(endGate);
        bool endOnlySending = endSending && !endPushing && !endPulling;
        bool bothPushing = startPushing && endPushing;
        bool bothPulling = startPulling && endPulling;
        bool bothPassing = startPassing && endPassing;
        bool bothStreaming = startStreaming && endStreaming;
        bool eitherPushing = startPushing || endPushing;
        bool eitherPulling = startPulling || endPulling;
        bool eitherPassing = startPassing || endPassing;
        bool eitherStreaming = startStreaming || endStreaming;
        if (startOnlySending || endOnlySending) {
            if (!startSending)
                throw cRuntimeError(startGate->getOwnerModule(), "doesn't support packet sending on gate %s", startGate->getFullPath().c_str());
            if (!endSending)
                throw cRuntimeError(endGate->getOwnerModule(), "doesn't support packet sending on gate %s", endGate->getFullPath().c_str());
        }
        else if (!bothPushing && !bothPulling) {
            if (eitherPushing) {
                if (startPushing)
                    throw cRuntimeError(endGate->getOwnerModule(), "doesn't support packet pushing on gate %s", endGate->getFullPath().c_str());
                if (endPushing)
                    throw cRuntimeError(startGate->getOwnerModule(), "doesn't support packet pushing on gate %s", startGate->getFullPath().c_str());
            }
            else if (eitherPulling) {
                if (startPulling)
                    throw cRuntimeError(endGate->getOwnerModule(), "doesn't support packet pulling on gate %s", endGate->getFullPath().c_str());
                if (endPulling)
                    throw cRuntimeError(startGate->getOwnerModule(), "doesn't support packet pulling on gate %s", startGate->getFullPath().c_str());
            }
            else
                throw cRuntimeError(endGate->getOwnerModule(), "neither supports packet pushing nor packet pulling on gates %s - %s", startGate->getFullPath().c_str(), endGate->getFullPath().c_str());
        }
        if (!bothPassing && !bothStreaming) {
            if (eitherPassing) {
                if (startPassing)
                    throw cRuntimeError(endGate->getOwnerModule(), "doesn't support packet passing on gate %s", endGate->getFullPath().c_str());
                if (endPassing)
                    throw cRuntimeError(startGate->getOwnerModule(), "doesn't support packet passing on gate %s", startGate->getFullPath().c_str());
            }
            else if (eitherStreaming) {
                if (startStreaming)
                    throw cRuntimeError(endGate->getOwnerModule(), "doesn't support packet streaming on gate %s", endGate->getFullPath().c_str());
                if (endStreaming)
                    throw cRuntimeError(startGate->getOwnerModule(), "doesn't support packet streaming on gate %s", startGate->getFullPath().c_str());
            }
            else
                throw cRuntimeError(endGate->getOwnerModule(), "neither supports packet passing nor packet streaming on gates %s - %s", startGate->getFullPath().c_str(), endGate->getFullPath().c_str());
        }
    }
    else if (startElement != nullptr && endElement == nullptr) {
        if (!startElement->supportsPacketSending(startGate))
            throw cRuntimeError(startGate->getOwnerModule(), "doesn't support packet sending on gate %s", startGate->getFullPath().c_str());
    }
    else if (startElement == nullptr && endElement != nullptr) {
        if (!endElement->supportsPacketSending(endGate))
            throw cRuntimeError(endGate->getOwnerModule(), "doesn't support packet sending on gate %s", endGate->getFullPath().c_str());
    }
    else
        throw cRuntimeError("Cannot check packet operation support on gates %s - %s", startGate->getFullPath().c_str(), endGate->getFullPath().c_str());
}

dropPacket()

void inet::queueing::PacketProcessorBase::dropPacket ( Packet *  packet, PacketDropReason  reason, int  limit = -1  )

protectedvirtual

Reimplemented in inet::queueing::PacketFilterBase.

{
    PacketDropDetails details;
    details.setReason(reason);
    details.setLimit(limit);
    emit(packetDroppedSignal, packet, &details);
    delete packet;
}

Referenced by inet::queueing::PacketBuffer::addPacket(), inet::queueing::ActivePacketSink::collectPacket(), inet::queueing::PassivePacketSink::consumePacket(), inet::queueing::PacketFilterBase::dropPacket(), inet::queueing::CompoundPacketQueueBase::pushPacket(), inet::queueing::PacketQueue::pushPacket(), inet::NetworkInterface::pushPacket(), inet::NetworkInterface::pushPacketEnd(), and inet::NetworkInterface::pushPacketStart().

handlePacketProcessed()

void inet::queueing::PacketProcessorBase::handlePacketProcessed ( Packet *  packet )

protectedvirtual

Reimplemented in inet::EthernetFragmentFcsInserter, and inet::physicallayer::EthernetFragmentPhyHeaderInserter.

{
    numProcessedPackets++;
    processedTotalLength += packet->getDataLength();
}

Referenced by inet::StreamingTransmitter::abortTx(), inet::StreamThroughTransmitter::abortTx(), inet::queueing::PacketFlowBase::endPacketStreaming(), inet::queueing::PacketMultiplexer::endPacketStreaming(), inet::queueing::PacketFilterBase::endPacketStreaming(), inet::queueing::PacketSchedulerBase::endPacketStreaming(), inet::queueing::PacketClassifierBase::endPacketStreaming(), inet::StreamingTransmitter::endTx(), inet::PacketTransmitter::endTx(), inet::StreamThroughTransmitter::endTx(), inet::queueing::PacketSendToPush::handleMessage(), inet::InterpacketGapInserter::handleMessage(), inet::EthernetFragmentFcsInserter::handlePacketProcessed(), inet::StreamIdentifier::processPacket(), inet::StreamDecoder::processPacket(), inet::PacketDestreamer::pullPacket(), inet::queueing::PacketFlowBase::pullPacket(), inet::queueing::PacketSchedulerBase::pullPacket(), inet::queueing::PacketFilterBase::pullPacket(), inet::PacketStreamer::pullPacketEnd(), inet::PreemptableStreamer::pullPacketEnd(), inet::InterpacketGapInserter::pushOrSendOrSchedulePacketProgress(), inet::queueing::PacketPushToSend::pushPacket(), inet::queueing::PacketDuplicator::pushPacket(), inet::StreamSplitter::pushPacket(), inet::queueing::PacketDelayer::pushPacket(), inet::EthernetSocketPacketProcessor::pushPacket(), inet::Ieee8021qSocketPacketProcessor::pushPacket(), inet::queueing::PacketCloner::pushPacket(), inet::InterpacketGapInserter::pushPacket(), inet::queueing::PacketMultiplexer::pushPacket(), inet::queueing::PacketFlowBase::pushPacket(), inet::queueing::PacketClassifierBase::pushPacket(), inet::queueing::PacketFilterBase::pushPacket(), inet::StreamThroughReceiver::receivePacketEnd(), inet::DestreamingReceiver::receivePacketEnd(), inet::PacketReceiver::receiveSignal(), and inet::queueing::PreemptingServer::startStreaming().

initialize()

void inet::queueing::PacketProcessorBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented in inet::NetworkInterface, inet::MultiFieldClassifier, inet::BehaviorAggregateClassifier, inet::DscpMarker, inet::VirtualTunnel, inet::TwoRateThreeColorMeter, inet::queueing::RedDropper, inet::SingleRateThreeColorMeter, inet::PacketTransmitterBase, inet::PreemptableStreamer, inet::OperationalMixin< PacketProcessorBase >, inet::StreamDecoder, inet::queueing::CreditBasedGate, inet::queueing::FlowMeasurementRecorder, inet::PacketStreamer, inet::queueing::MultiTokenBucketMixin< PacketMeterBase >, inet::queueing::MultiTokenBucketMixin< PacketClassifierBase >, inet::TokenBucketMeter, inet::PacketReceiverBase, inet::queueing::PacketFilterBase, inet::queueing::PacketQueue, inet::queueing::PacketClassifierBase, inet::queueing::PacketSchedulerBase, inet::PacketDestreamer, inet::EthernetCutthroughSource, inet::queueing::PacketFlowBase, inet::queueing::PacketGateBase, inet::queueing::PacketMultiplexer, inet::queueing::FlowMeasurementStarter, inet::queueing::MarkovClassifier, inet::queueing::CompoundPacketQueueBase, inet::RelayInterfaceSelector, inet::InterpacketGapInserter, inet::StreamEncoder, inet::EligibilityTimeMeter, inet::queueing::MarkovScheduler, inet::EligibilityTimeGate, inet::queueing::OrdinalBasedDuplicator, inet::queueing::OrdinalBasedDropper, inet::queueing::PacketBasedTokenGenerator, inet::PacketEmitter, inet::StreamThroughTransmitter, inet::queueing::PacketQueueBase, inet::queueing::PacketTaggerBase, inet::queueing::PacketBuffer, inet::queueing::PacketPullerBase, inet::queueing::PacketPusherBase, inet::queueing::TokenGeneratorBase, inet::queueing::WrrClassifier, inet::queueing::PeriodicGate, inet::queueing::WrrScheduler, inet::queueing::PreemptingServer, inet::RelayInterfaceLearner, inet::Ieee8021qTagEpdHeaderInserter, inet::Ieee8021qTagTpidHeaderInserter, inet::AggregatorBase, inet::queueing::PacketServerBase, inet::queueing::PacketSourceBase, inet::queueing::PacketCloner, inet::queueing::PacketDemultiplexer, inet::queueing::SlidingWindowRateMeter, inet::queueing::TokenBasedServer, inet::queueing::TokenBucketMixin< PacketMeterBase >, inet::queueing::TokenBucketMixin< PacketClassifierBase >, inet::ExtInterface, inet::VlanIndFilter, inet::VlanReqFilter, inet::VlanReqMapper, inet::PacketMeterBase, inet::Resending, inet::StreamIdentifier, inet::StreamMerger, inet::queueing::PacketDuplicatorBase, inet::queueing::ExponentialRateMeter, inet::queueing::PassivePacketSource, inet::queueing::QueueBasedTokenGenerator, inet::queueing::TokenBucketMeterMixin< MultiTokenBucketMixin< PacketMeterBase > >, inet::queueing::TokenBucketMeterMixin< TokenBucketMixin< PacketMeterBase > >, inet::EthernetAddressChecker, inet::EthernetCutthroughInterface, inet::EthernetCutthroughSink, inet::EthernetMacHeaderChecker, inet::Ieee8021qTagEpdHeaderChecker, inet::SendWithAcknowledge, inet::PaddingInserter, inet::DefragmenterBase, inet::queueing::DynamicClassifier, inet::queueing::PacketGate, inet::queueing::PassivePacketSink, inet::queueing::PcapFilePacketConsumer, inet::queueing::TimeBasedTokenGenerator, inet::EthernetAddressInserter, inet::EthernetMacHeaderInserter, inet::EthernetSocketCommandProcessor, inet::Ieee8021qSocketCommandProcessor, inet::Ieee8022LlcSocketCommandProcessor, inet::FragmenterBase, inet::EligibilityTimeFilter, inet::queueing::PacketBufferBase, inet::queueing::PassivePacketSinkBase, inet::queueing::PassivePacketSourceBase, inet::queueing::LabelScheduler, inet::queueing::ActivePacketSink, inet::queueing::ActivePacketSource, inet::EthernetSocketPacketProcessor, inet::Ieee8021qSocketPacketProcessor, inet::Ieee8021qTagTpidHeaderChecker, inet::Ieee8021rTagEpdHeaderChecker, inet::Ieee8021rTagEpdHeaderInserter, inet::Ieee8022LlcSocketPacketProcessor, inet::CrcInserterBase, inet::FcsInserterBase, inet::CrcHeaderChecker, inet::CrcHeaderInserter, inet::FcsHeaderChecker, inet::FcsHeaderInserter, inet::ProtocolChecker, inet::Forwarding, inet::FragmentNumberHeaderBasedDefragmenter, inet::FragmentNumberHeaderBasedFragmenter, inet::FragmentNumberHeaderChecker, inet::FragmentNumberHeaderInserter, inet::Reordering, inet::StreamClassifier, inet::StreamFilter, inet::StreamSplitter, inet::ReceiveAtL3Address, inet::SendToL3Address, inet::SendToMacAddress, inet::queueing::ActivePacketSinkBase, inet::queueing::ActivePacketSourceBase, inet::queueing::ContentBasedClassifier, inet::queueing::PacketSendToPush, inet::queueing::LabelFilter, inet::queueing::StatisticalRateLimiter, inet::queueing::MultiTokenBucketMeter, inet::queueing::TokenBucketMeter, inet::queueing::ContentBasedScheduler, inet::queueing::PacketServer, inet::queueing::EmptyPacketSource, inet::queueing::TokenBucketClassifierMixin< TokenBucketMixin< PacketClassifierBase > >, inet::queueing::TokenBucketClassifierMixin< MultiTokenBucketMixin< PacketClassifierBase > >, inet::PcpClassifier, inet::PcpTrafficClassClassifier, inet::Ieee8022SnapChecker, inet::Ieee8022SnapInserter, inet::DeaggregatorBase, inet::SendWithHopLimit, inet::DuplicateRemoval, inet::ReceiveAtMacAddress, inet::ReceiveAtPort, inet::SendToPort, inet::queueing::PacketLabelerBase, inet::queueing::LabelClassifier, inet::queueing::PacketClassifier, inet::queueing::ContentBasedFilter, inet::queueing::PacketFilter, inet::queueing::ContentBasedLabeler, inet::queueing::ContentBasedTagger, inet::queueing::PacketLabeler, inet::queueing::PacketTagger, inet::queueing::PacketScheduler, inet::queueing::PriorityScheduler, inet::queueing::PcapFilePacketProducer, inet::Ieee8022LlcChecker, inet::Ieee8022LlcInserter, inet::queueing::SignalBasedTokenGenerator, inet::StreamingReceiverBase, inet::StreamingTransmitterBase, inet::queueing::MultiTokenBucketClassifier, inet::queueing::TokenBucketClassifier, inet::PacketDirectionReverser, inet::EthernetTypeOrLengthInserter, inet::Ieee8021aeTagEpdHeaderInserter, inet::ReceiveWithAcknowledge, inet::SubpacketLengthHeaderBasedDeaggregator, inet::ReceiveWithHopLimit, inet::queueing::InteractiveGate, inet::DestreamingReceiver, and inet::StreamThroughReceiver.

{
    if (stage == INITSTAGE_LOCAL) {
        displayStringTextFormat = par("displayStringTextFormat");
        numProcessedPackets = 0;
        processedTotalLength = b(0);
        WATCH(numProcessedPackets);
        WATCH(processedTotalLength);
    }
    else if (stage == INITSTAGE_LAST)
        updateDisplayString();
}

Referenced by inet::queueing::ActivePacketSinkBase::initialize(), inet::queueing::PacketSendToPush::initialize(), inet::queueing::EmptyPacketSource::initialize(), inet::queueing::PacketBufferBase::initialize(), inet::queueing::PassivePacketSinkBase::initialize(), inet::queueing::PacketDuplicatorBase::initialize(), inet::queueing::PacketDemultiplexer::initialize(), inet::queueing::PacketServerBase::initialize(), inet::queueing::PacketSourceBase::initialize(), inet::queueing::PacketCloner::initialize(), inet::queueing::TokenGeneratorBase::initialize(), inet::queueing::PacketPusherBase::initialize(), inet::queueing::PacketPullerBase::initialize(), inet::queueing::PacketQueueBase::initialize(), inet::queueing::PacketFlowBase::initialize(), inet::queueing::PacketMultiplexer::initialize(), inet::PacketDestreamer::initialize(), inet::queueing::PacketSchedulerBase::initialize(), inet::queueing::PacketClassifierBase::initialize(), inet::PacketReceiverBase::initialize(), inet::queueing::PacketFilterBase::initialize(), inet::DscpMarker::initialize(), and inet::MessageDispatcher::initialize().

numInitStages()

virtual int inet::queueing::PacketProcessorBase::numInitStages ( ) const

inlineoverrideprotectedvirtual

Reimplemented in inet::NetworkInterface, inet::MultiFieldClassifier, inet::VirtualTunnel, inet::TwoRateThreeColorMeter, inet::SingleRateThreeColorMeter, inet::TokenBucketMeter, inet::ExtInterface, and inet::PacketMeterBase.

{ return NUM_INIT_STAGES; }

pushOrSendPacket()

void inet::queueing::PacketProcessorBase::pushOrSendPacket ( Packet *  packet, cGate *  gate, IPassivePacketSink *  consumer  )

protectedvirtual

{
    if (consumer != nullptr) {
        animatePushPacket(packet, gate);
        consumer->pushPacket(packet, findConnectedGate<IPacketProcessor>(gate));
    }
    else
        send(packet, gate);
}

Referenced by inet::DefragmenterBase::defragmentPacket(), inet::queueing::PacketServer::endProcessingPacket(), inet::queueing::PacketDelayer::handleMessage(), inet::queueing::PacketSendToPush::handleMessage(), inet::queueing::PcapFilePacketProducer::handleMessage(), inet::Resending::handleMessage(), inet::InterpacketGapInserter::handleMessage(), inet::Resending::handlePushPacketProcessed(), inet::queueing::InstantServer::processPacket(), inet::SendWithHopLimit::processPacket(), inet::queueing::TokenBasedServer::processPackets(), inet::queueing::ActivePacketSource::producePacket(), inet::queueing::PacketDuplicator::pushPacket(), inet::StreamSplitter::pushPacket(), inet::DuplicateRemoval::pushPacket(), inet::DeaggregatorBase::pushPacket(), inet::EthernetSocketPacketProcessor::pushPacket(), inet::Reordering::pushPacket(), inet::Forwarding::pushPacket(), inet::Ieee8021qSocketPacketProcessor::pushPacket(), inet::FragmenterBase::pushPacket(), inet::queueing::PacketDuplicatorBase::pushPacket(), inet::AggregatorBase::pushPacket(), inet::queueing::PacketCloner::pushPacket(), inet::queueing::MarkovScheduler::pushPacket(), inet::InterpacketGapInserter::pushPacket(), inet::queueing::PacketMultiplexer::pushPacket(), inet::queueing::PacketFlowBase::pushPacket(), inet::queueing::PacketClassifierBase::pushPacket(), inet::queueing::PacketFilterBase::pushPacket(), inet::NetworkInterface::pushPacket(), inet::PacketDestreamer::pushPacketEnd(), inet::PacketReceiver::receiveSignal(), inet::RelayInterfaceSelector::sendPacket(), and inet::DestreamingReceiver::sendToUpperLayer().

pushOrSendPacketEnd()

void inet::queueing::PacketProcessorBase::pushOrSendPacketEnd ( Packet *  packet, cGate *  gate, IPassivePacketSink *  consumer, int  transmissionId  )

protectedvirtual

{
    // NOTE: duration is unknown due to arbitrarily changing datarate
    SendOptions sendOptions;
    sendOptions.updateTx(transmissionId, 0);
    if (consumer != nullptr) {
        animatePushPacketEnd(packet, gate, sendOptions);
        consumer->pushPacketEnd(packet, findConnectedGate<IPacketProcessor>(gate));
    }
    else {
        auto progressTag = packet->addTagIfAbsent<ProgressTag>();
        progressTag->setDatarate(bps(NaN));
        progressTag->setPosition(packet->getTotalLength());
        send(packet, sendOptions, gate);
    }
}

Referenced by inet::queueing::PreemptingServer::endStreaming(), inet::PacketStreamer::endStreaming(), inet::PreemptableStreamer::endStreaming(), inet::EthernetCutthroughSink::pushPacketEnd(), inet::EthernetCutthroughSource::pushPacketEnd(), inet::queueing::PacketFlowBase::pushPacketEnd(), inet::queueing::PacketMultiplexer::pushPacketEnd(), inet::queueing::PacketClassifierBase::pushPacketEnd(), inet::queueing::PacketFilterBase::pushPacketEnd(), inet::NetworkInterface::pushPacketEnd(), inet::queueing::PacketFlowBase::pushPacketProgress(), inet::StreamThroughReceiver::receivePacketEnd(), and inet::InterpacketGapInserter::receivePacketEnd().

pushOrSendPacketProgress()

void inet::queueing::PacketProcessorBase::pushOrSendPacketProgress ( Packet *  packet, cGate *  gate, IPassivePacketSink *  consumer, bps  datarate, b  position, b  extraProcessableLength, int  transmissionId  )

protectedvirtual

{
    // NOTE: duration is unknown due to arbitrarily changing datarate
    simtime_t remainingDuration = s((packet->getTotalLength() - position) / datarate).get();
    SendOptions sendOptions;
    sendOptions.updateTx(transmissionId, remainingDuration);
    if (consumer != nullptr) {
        if (position == b(0)) {
            animatePushPacketStart(packet, gate, datarate, sendOptions);
            consumer->pushPacketStart(packet, gate->getPathEndGate(), datarate);
        }
        else if (position == packet->getTotalLength()) {
            animatePushPacketEnd(packet, gate, sendOptions);
            consumer->pushPacketEnd(packet, gate->getPathEndGate());
        }
        else {
            animatePushPacketProgress(packet, gate, datarate, position, extraProcessableLength, sendOptions);
            consumer->pushPacketProgress(packet, gate->getPathEndGate(), datarate, position, extraProcessableLength);
        }
    }
    else {
        auto progressTag = packet->addTagIfAbsent<ProgressTag>();
        progressTag->setDatarate(datarate);
        progressTag->setPosition(position);
        progressTag->setExtraProcessableLength(extraProcessableLength);
        send(packet, sendOptions, gate);
    }
}

Referenced by inet::InterpacketGapInserter::handleMessage(), inet::InterpacketGapInserter::pushOrSendOrSchedulePacketProgress(), inet::queueing::PacketMultiplexer::pushPacketProgress(), inet::queueing::PacketFlowBase::pushPacketProgress(), inet::queueing::PacketClassifierBase::pushPacketProgress(), inet::queueing::PacketFilterBase::pushPacketProgress(), inet::physicallayer::EthernetPhyHeaderInserter::pushPacketStart(), inet::physicallayer::EthernetFragmentPhyHeaderInserter::pushPacketStart(), and inet::InterpacketGapInserter::receivePacketProgress().

pushOrSendPacketStart()

void inet::queueing::PacketProcessorBase::pushOrSendPacketStart ( Packet *  packet, cGate *  gate, IPassivePacketSink *  consumer, bps  datarate, int  transmissionId  )

protectedvirtual

{
    simtime_t duration = s(packet->getTotalLength() / datarate).get();
    SendOptions sendOptions;
    sendOptions.duration(duration);
    sendOptions.updateTx(transmissionId, duration);
    if (consumer != nullptr) {
        animatePushPacketStart(packet, gate, datarate, sendOptions);
        consumer->pushPacketStart(packet, findConnectedGate<IPacketProcessor>(gate), datarate);
    }
    else {
        auto progressTag = packet->addTagIfAbsent<ProgressTag>();
        progressTag->setDatarate(datarate);
        progressTag->setPosition(b(0));
        send(packet, sendOptions, gate);
    }
}

Referenced by inet::EthernetCutthroughSource::handleMessage(), inet::PacketStreamer::pushPacket(), inet::PreemptableStreamer::pushPacket(), inet::EthernetCutthroughSink::pushPacketStart(), inet::queueing::PacketMultiplexer::pushPacketStart(), inet::queueing::PacketFlowBase::pushPacketStart(), inet::queueing::PacketClassifierBase::pushPacketStart(), inet::queueing::PacketFilterBase::pushPacketStart(), inet::NetworkInterface::pushPacketStart(), inet::StreamThroughReceiver::receivePacketStart(), inet::InterpacketGapInserter::receivePacketStart(), and inet::queueing::PreemptingServer::startStreaming().

refreshDisplay()

void inet::queueing::PacketProcessorBase::refreshDisplay ( ) const

overrideprotectedvirtual

Reimplemented in inet::NetworkInterface, inet::MultiFieldClassifier, inet::BehaviorAggregateClassifier, inet::DscpMarker, inet::TwoRateThreeColorMeter, inet::SingleRateThreeColorMeter, inet::queueing::CreditBasedGate, and inet::TokenBucketMeter.

{
    updateDisplayString();
}

resolveDirective()

const char * inet::queueing::PacketProcessorBase::resolveDirective ( char  directive ) const

overridevirtual

Implements inet::StringFormat::IDirectiveResolver.

Reimplemented in inet::NetworkInterface, inet::queueing::MultiTokenBucketMixin< PacketMeterBase >, inet::queueing::MultiTokenBucketMixin< PacketClassifierBase >, inet::queueing::TokenBucketMixin< PacketMeterBase >, inet::queueing::TokenBucketMixin< PacketClassifierBase >, inet::queueing::MarkovClassifier, inet::queueing::CreditBasedGate, inet::queueing::MarkovScheduler, inet::queueing::PacketFilterBase, inet::InterpacketGapInserter, inet::queueing::TokenBasedServer, inet::queueing::PacketBasedTokenGenerator, inet::queueing::PacketServer, inet::queueing::PacketQueueBase, inet::queueing::TokenGeneratorBase, and inet::queueing::PacketBufferBase.

{
    static std::string result;
    switch (directive) {
        case 'p':
            result = std::to_string(numProcessedPackets);
            break;
        case 'l':
            result = processedTotalLength.str();
            break;
        default:
            throw cRuntimeError("Unknown directive: %c", directive);
    }
    return result.c_str();
}

Referenced by inet::queueing::PacketBufferBase::resolveDirective(), inet::queueing::TokenGeneratorBase::resolveDirective(), inet::queueing::PacketQueueBase::resolveDirective(), inet::queueing::PacketServer::resolveDirective(), inet::queueing::PacketBasedTokenGenerator::resolveDirective(), inet::queueing::TokenBasedServer::resolveDirective(), inet::InterpacketGapInserter::resolveDirective(), inet::queueing::PacketFilterBase::resolveDirective(), inet::queueing::CreditBasedGate::resolveDirective(), inet::queueing::MarkovScheduler::resolveDirective(), and inet::queueing::MarkovClassifier::resolveDirective().

supportsPacketPassing()

virtual bool inet::queueing::PacketProcessorBase::supportsPacketPassing ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports passing packets as a whole at the given gate.

A passed packet is handed over from one module to another by either the standard OMNeT++ handleMessage() mechanism, or by directly calling pushPacket() or pullPacket().

For example, packets are passed as a whole to and from a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(pass) in the NED file.

Implements inet::queueing::IPacketProcessor.

Reimplemented in inet::NetworkInterface, inet::PreemptableStreamer, inet::PacketStreamer, and inet::PacketDestreamer.

{ return true; }

supportsPacketSending()

virtual bool inet::queueing::PacketProcessorBase::supportsPacketSending ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports sending packets at the given gate.

Sending a packet is an asynchronous operation that is initiated by the source module. A sent packet is always passed as a whole using standard handleMessage().

For output gates, true means that this module can send packets into the connected module. For input gates, true means that the connected module can send packets into this module. For example, a standard OMNeT++ module can send packets to an INET packet processor module, or an INET packet processor module can send packets to a standard OMNeT++ module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(send) in the NED file.

Implements inet::queueing::IPacketProcessor.

Reimplemented in inet::NetworkInterface.

{ return true; }

supportsPacketStreaming()

virtual bool inet::queueing::PacketProcessorBase::supportsPacketStreaming ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports streaming packets at the given gate.

A streamed packet is handed over from one module to another using several method calls and potentially exending to a non-zero simulation duration.

For example, packets are streamed to a preemptable signal transmitter module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(stream) in the NED file.

Implements inet::queueing::IPacketProcessor.

Reimplemented in inet::NetworkInterface, inet::queueing::PacketFilterBase, inet::PreemptableStreamer, inet::queueing::PacketClassifierBase, inet::queueing::PacketSchedulerBase, inet::PacketStreamer, inet::queueing::PacketFlowBase, inet::PacketDestreamer, inet::queueing::PacketMultiplexer, inet::StreamThroughTransmitter, inet::DestreamingReceiver, inet::StreamingTransmitter, and inet::StreamThroughReceiver.

{ return false; }

updateDisplayString()

void inet::queueing::PacketProcessorBase::updateDisplayString ( ) const

protectedvirtual

Reimplemented in inet::NetworkInterface, and inet::queueing::PacketGateBase.

{
    if (getEnvir()->isGUI() && displayStringTextFormat != nullptr) {
        auto text = StringFormat::formatString(displayStringTextFormat, this);
        getDisplayString().setTagArg("t", 0, text);
    }
}

Referenced by inet::queueing::PacketBuffer::addPacket(), inet::queueing::TokenBasedServer::addTokens(), inet::queueing::PacketFilterBase::canPullPacket(), inet::queueing::ActivePacketSink::collectPacket(), inet::queueing::PassivePacketSink::consumePacket(), inet::DefragmenterBase::defragmentPacket(), inet::queueing::PreemptingServer::endStreaming(), inet::PacketStreamer::endStreaming(), inet::PreemptableStreamer::endStreaming(), inet::queueing::SignalBasedTokenGenerator::generateTokens(), inet::queueing::QueueBasedTokenGenerator::generateTokens(), inet::queueing::TokenBasedServer::handleCanPullPacketChanged(), inet::queueing::PacketSendToPush::handleMessage(), inet::queueing::PacketServer::handleMessage(), inet::queueing::TimeBasedTokenGenerator::handleMessage(), inet::InterpacketGapInserter::handleMessage(), inet::EthernetCutthroughSource::handleMessage(), inet::PacketReceiver::handleMessageWhenUp(), inet::PacketTransmitter::handleMessageWhenUp(), inet::StreamingTransmitter::handleMessageWhenUp(), inet::StreamThroughReceiver::handleMessageWhenUp(), inet::DestreamingReceiver::handleMessageWhenUp(), inet::StreamThroughTransmitter::handleMessageWhenUp(), inet::queueing::PacketQueue::handlePacketRemoved(), inet::queueing::TokenBasedServer::initialize(), inet::queueing::PacketBuffer::initialize(), inet::queueing::CompoundPacketQueueBase::initialize(), initialize(), inet::queueing::PacketQueue::initialize(), inet::StreamIdentifier::processPacket(), inet::StreamDecoder::processPacket(), inet::queueing::InstantServer::processPackets(), inet::queueing::TokenBasedServer::processPackets(), inet::queueing::ActivePacketSource::producePacket(), inet::queueing::PassivePacketSource::providePacket(), inet::queueing::PacketDemultiplexer::pullPacket(), inet::queueing::PassivePacketSource::pullPacket(), inet::queueing::MarkovClassifier::pullPacket(), inet::queueing::CompoundPacketQueueBase::pullPacket(), inet::PacketDestreamer::pullPacket(), inet::queueing::PacketQueue::pullPacket(), inet::queueing::PacketFlowBase::pullPacket(), inet::queueing::PacketSchedulerBase::pullPacket(), inet::queueing::PacketFilterBase::pullPacket(), inet::queueing::PacketFlowBase::pullPacketEnd(), inet::PacketStreamer::pullPacketEnd(), inet::queueing::PacketSchedulerBase::pullPacketEnd(), inet::PreemptableStreamer::pullPacketEnd(), inet::queueing::PacketFlowBase::pullPacketProgress(), inet::PacketStreamer::pullPacketProgress(), inet::queueing::PacketSchedulerBase::pullPacketProgress(), inet::PreemptableStreamer::pullPacketProgress(), inet::queueing::PacketFlowBase::pullPacketStart(), inet::PacketStreamer::pullPacketStart(), inet::queueing::PacketSchedulerBase::pullPacketStart(), inet::PreemptableStreamer::pullPacketStart(), inet::queueing::PacketPushToSend::pushPacket(), inet::queueing::PacketDuplicator::pushPacket(), inet::queueing::PacketDelayer::pushPacket(), inet::StreamSplitter::pushPacket(), inet::EthernetSocketPacketProcessor::pushPacket(), inet::DeaggregatorBase::pushPacket(), inet::PacketTransmitter::pushPacket(), inet::Ieee8021qSocketPacketProcessor::pushPacket(), inet::StreamingTransmitter::pushPacket(), inet::FragmenterBase::pushPacket(), inet::RelayInterfaceSelector::pushPacket(), inet::AggregatorBase::pushPacket(), inet::queueing::PacketBasedTokenGenerator::pushPacket(), inet::queueing::PacketCloner::pushPacket(), inet::queueing::MarkovScheduler::pushPacket(), inet::queueing::CompoundPacketQueueBase::pushPacket(), inet::InterpacketGapInserter::pushPacket(), inet::queueing::PacketMultiplexer::pushPacket(), inet::queueing::PacketFlowBase::pushPacket(), inet::queueing::PacketQueue::pushPacket(), inet::queueing::PacketClassifierBase::pushPacket(), inet::queueing::PacketFilterBase::pushPacket(), inet::EthernetCutthroughSink::pushPacketEnd(), inet::EthernetCutthroughSource::pushPacketEnd(), inet::StreamThroughTransmitter::pushPacketEnd(), inet::PacketDestreamer::pushPacketEnd(), inet::InterpacketGapInserter::pushPacketEnd(), inet::queueing::PacketFlowBase::pushPacketEnd(), inet::queueing::PacketMultiplexer::pushPacketEnd(), inet::queueing::PacketClassifierBase::pushPacketEnd(), inet::queueing::PacketFilterBase::pushPacketEnd(), inet::StreamThroughTransmitter::pushPacketProgress(), inet::queueing::PacketMultiplexer::pushPacketProgress(), inet::queueing::PacketFlowBase::pushPacketProgress(), inet::InterpacketGapInserter::pushPacketProgress(), inet::queueing::PacketClassifierBase::pushPacketProgress(), inet::queueing::PacketFilterBase::pushPacketProgress(), inet::physicallayer::EthernetPhyHeaderInserter::pushPacketStart(), inet::physicallayer::EthernetFragmentPhyHeaderInserter::pushPacketStart(), inet::EthernetCutthroughSink::pushPacketStart(), inet::EthernetCutthroughSource::pushPacketStart(), inet::StreamThroughTransmitter::pushPacketStart(), inet::queueing::PacketFlowBase::pushPacketStart(), inet::queueing::PacketMultiplexer::pushPacketStart(), inet::InterpacketGapInserter::pushPacketStart(), inet::queueing::PacketClassifierBase::pushPacketStart(), inet::queueing::PacketFilterBase::pushPacketStart(), inet::queueing::CompoundPacketQueueBase::receiveSignal(), refreshDisplay(), inet::queueing::PacketBuffer::removeAllPackets(), inet::queueing::CompoundPacketQueueBase::removeAllPackets(), inet::queueing::PacketQueue::removeAllPackets(), inet::queueing::PacketBuffer::removePacket(), inet::queueing::CompoundPacketQueueBase::removePacket(), inet::queueing::PacketQueue::removePacket(), inet::queueing::PreemptingServer::startStreaming(), and inet::queueing::PacketGateBase::updateDisplayString().

Member Data Documentation

displayStringTextFormat

const char* inet::queueing::PacketProcessorBase::displayStringTextFormat = nullptr

protected

Referenced by inet::queueing::PacketBufferBase::initialize(), inet::queueing::TokenBasedServer::initialize(), inet::queueing::TokenGeneratorBase::initialize(), inet::queueing::PacketBuffer::initialize(), inet::queueing::PacketQueueBase::initialize(), initialize(), inet::queueing::CreditBasedGate::initialize(), and updateDisplayString().

numProcessedPackets

int inet::queueing::PacketProcessorBase::numProcessedPackets = -1

protected

Referenced by inet::queueing::ActivePacketSink::collectPacket(), inet::queueing::PassivePacketSink::consumePacket(), inet::AggregatorBase::continueAggregation(), inet::DefragmenterBase::continueDefragmentation(), inet::queueing::PacketSourceBase::createPacket(), inet::queueing::PacketSourceBase::createPacketContent(), inet::queueing::PacketSourceBase::createPacketName(), inet::queueing::PacketServer::endProcessingPacket(), inet::PacketStreamer::endStreaming(), inet::PreemptableStreamer::endStreaming(), handlePacketProcessed(), initialize(), inet::queueing::InstantServer::processPacket(), inet::queueing::TokenBasedServer::processPackets(), inet::queueing::PacketDemultiplexer::pullPacket(), inet::queueing::MarkovClassifier::pullPacket(), inet::DeaggregatorBase::pushPacket(), inet::FragmenterBase::pushPacket(), inet::queueing::PcapFilePacketConsumer::pushPacket(), inet::queueing::PacketBasedTokenGenerator::pushPacket(), inet::queueing::MarkovScheduler::pushPacket(), inet::PacketDestreamer::pushPacketEnd(), and resolveDirective().

processedTotalLength

b inet::queueing::PacketProcessorBase::processedTotalLength = b(-1)

protected

Referenced by inet::queueing::ActivePacketSink::collectPacket(), inet::queueing::PassivePacketSink::consumePacket(), inet::AggregatorBase::continueAggregation(), inet::DefragmenterBase::continueDefragmentation(), inet::queueing::PacketSourceBase::createPacket(), inet::queueing::PacketServer::endProcessingPacket(), inet::PacketStreamer::endStreaming(), inet::PreemptableStreamer::endStreaming(), handlePacketProcessed(), initialize(), inet::queueing::InstantServer::processPacket(), inet::queueing::TokenBasedServer::processPackets(), inet::queueing::PacketDemultiplexer::pullPacket(), inet::queueing::MarkovClassifier::pullPacket(), inet::DeaggregatorBase::pushPacket(), inet::FragmenterBase::pushPacket(), inet::queueing::PcapFilePacketConsumer::pushPacket(), inet::queueing::PacketBasedTokenGenerator::pushPacket(), inet::queueing::MarkovScheduler::pushPacket(), inet::PacketDestreamer::pushPacketEnd(), and resolveDirective().

---

The documentation for this class was generated from the following files:

• PacketProcessorBase.h
• PacketProcessorBase.cc
