#include <EmptyPacketSource.h>

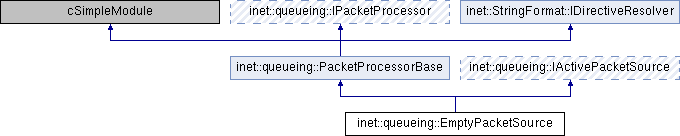

Inheritance diagram for inet::queueing::EmptyPacketSource:

Public Member Functions
virtual IPassivePacketSink *	getConsumer (cGate *gate) override
	Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface. More...

virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...

virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...

virtual void	handleCanPushPacketChanged (cGate *gate) override
	Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate. More...

virtual void	handlePushPacketProcessed (Packet packet, cGate gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed. More...

Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...

virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...

virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...

virtual const char *	resolveDirective (char directive) const override

Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()

Public Member Functions inherited from inet::queueing::IActivePacketSource
virtual	~IActivePacketSource ()

Protected Member Functions
virtual void	initialize (int stage) override

Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handlePacketProcessed (Packet *packet)

virtual void	checkPacketOperationSupport (cGate *gate) const

virtual void	checkPacketOperationSupport (cGate startGate, cGate endGate) const

virtual void	animate (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacket (Packet packet, cGate gate, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, long transmissionId, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, long transmissionId, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const

virtual void	pushOrSendPacket (Packet packet, cGate gate, IPassivePacketSink *consumer)

virtual void	pushOrSendPacketStart (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)

virtual void	pushOrSendPacketEnd (Packet packet, cGate gate, IPassivePacketSink *consumer, int transmissionId)

virtual void	pushOrSendPacketProgress (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)

virtual void	animatePush (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacket (Packet packet, cGate gate) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	animatePull (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacket (Packet packet, cGate gate) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)

virtual void	updateDisplayString () const

Protected Attributes
cGate *	outputGate = nullptr

IPassivePacketSink *	consumer = nullptr

Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr

int	numProcessedPackets = -1

b	processedTotalLength = b(-1)

Additional Inherited Members
Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Member Function Documentation

◆ getConsumer()

virtual IPassivePacketSink* inet::queueing::EmptyPacketSource::getConsumer ( cGate * gate )

inlineoverridevirtual

Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface.

The gate parameter must be a valid gate of this module.

Implements inet::queueing::IActivePacketSource.

27 { return consumer; }

◆ handleCanPushPacketChanged()

void inet::queueing::EmptyPacketSource::handleCanPushPacketChanged ( cGate * gate )

overridevirtual

Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate.

This method is called, for example, when a new packet can be inserted into a queue. It allows the source to push a new packet into the queue.

The gate parameter must be a valid gate of this module.

Implements inet::queueing::IActivePacketSource.

 {
     Enter_Method("handleCanPushPacketChanged");
 }

◆ handlePushPacketProcessed()

void inet::queueing::EmptyPacketSource::handlePushPacketProcessed	(	Packet *	packet,
		cGate *	gate,
		bool	successful
	)

overridevirtual

Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed.

This method is called, for example, when a previously pushed packet is failed to be processed successfully. It allows the source to retry the operation.

The gate parameter must be a valid gate of this module. The packet must not be nullptr.

Implements inet::queueing::IActivePacketSource.

 {
     Enter_Method("handlePushPacketProcessed");
 }

◆ initialize()

void inet::queueing::EmptyPacketSource::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::queueing::PacketProcessorBase.

 {
     PacketProcessorBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         outputGate = gate("out");
         consumer = findConnectedModule<IPassivePacketSink>(outputGate);
     }
     else if (stage == INITSTAGE_QUEUEING)
         checkPacketOperationSupport(outputGate);
 }

◆ supportsPacketPulling()

virtual bool inet::queueing::EmptyPacketSource::supportsPacketPulling ( cGate * gate ) const

inlineoverridevirtual

Returns true if the processor supports pulling packets at the given gate.

Pulling a packet is a synchronous operation that is initiated by the sink module. A pulled packet can be passed as a whole using pullPacket(), or it can be streamed from the source to the sink using pullPacketStart(), pullPacketEnd(), and pullPacketProgress().

For output gates, true means that the connected module can pull packets from this module. For input gates, true means that this module can pull packets from the connected module. For example, a packet server module can pull packets from a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(pull) in the NED file.

Implements inet::queueing::IPacketProcessor.

30 { return false; }

◆ supportsPacketPushing()

virtual bool inet::queueing::EmptyPacketSource::supportsPacketPushing ( cGate * gate ) const

inlineoverridevirtual

Returns true if the processor supports pushing packets at the given gate.

Pushing a packet is a synchronous operation that is initiated by the source module. A pushed packet can be passed as a whole using pushPacket(), or it can be streamed from the source to the sink using pushPacketStart(), pushPacketEnd(), and pushPacketProgress().

For output gates, true means that this module can push packets into the connected module. For input gates, true means that the connected module can push packets into this module. For example, a packet generator module can push packets into a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(push) in the NED file.

Implements inet::queueing::IPacketProcessor.

29 { return outputGate == gate; }

Member Data Documentation

◆ consumer

IPassivePacketSink* inet::queueing::EmptyPacketSource::consumer = nullptr

protected

Referenced by initialize().

◆ outputGate

cGate* inet::queueing::EmptyPacketSource::outputGate = nullptr

protected

Referenced by initialize().

The documentation for this class was generated from the following files:
