inet::queueing::IPassivePacketSink Class Referenceabstract

This class defines the interface for passive packet sinks. More...

#include <IPassivePacketSink.h>

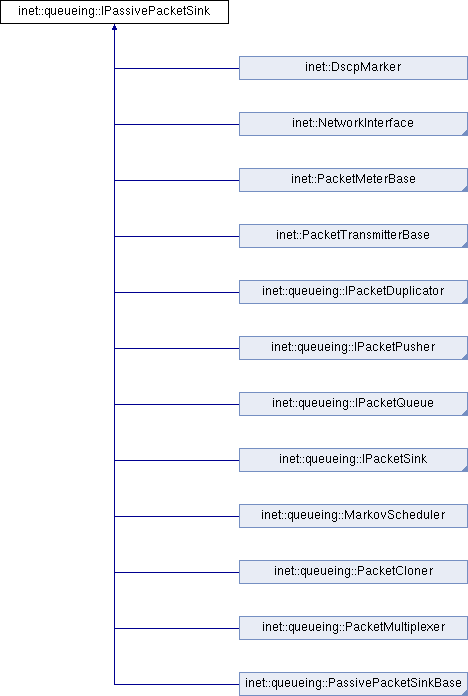

Inheritance diagram for inet::queueing::IPassivePacketSink:
inet::DscpMarker inet::NetworkInterface inet::PacketMeterBase inet::PacketTransmitterBase inet::queueing::IPacketDuplicator inet::queueing::IPacketPusher inet::queueing::IPacketQueue inet::queueing::IPacketSink inet::queueing::MarkovScheduler inet::queueing::PacketCloner inet::queueing::PacketMultiplexer inet::queueing::PassivePacketSinkBase

Public Member Functions

virtual ~IPassivePacketSink ()

virtual bool canPushSomePacket (cGate *gate) const =0
 Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error. More...

virtual bool canPushPacket (Packet *packet, cGate *gate) const =0
 Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error. More...

virtual void pushPacket (Packet *packet, cGate *gate)=0
 Pushes the packet into the packet sink at the given gate. More...

virtual void pushPacketStart (Packet *packet, cGate *gate, bps datarate)=0
 Starts pushing the packet into the packet sink at the given gate. More...

virtual void pushPacketEnd (Packet *packet, cGate *gate)=0
 Ends pushing the packet into the packet sink at the given gate. More...

virtual void pushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength=b(0))=0
 Progresses pushing the packet into the packet sink at the given gate. More...


Detailed Description

This class defines the interface for passive packet sinks.

See the corresponding NED file for more details.

Constructor & Destructor Documentation

◆ ~IPassivePacketSink()

virtual inet::queueing::IPassivePacketSink::~IPassivePacketSink ( )
inlinevirtual
23 {}

Member Function Documentation

◆ canPushPacket()

virtual bool inet::queueing::IPassivePacketSink::canPushPacket ( Packet *  packet,
cGate *  gate
) const
pure virtual

Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error.

The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing packets.

Implemented in inet::NetworkInterface, inet::PacketTransmitterBase, inet::queueing::PacketFilterBase, inet::PreemptableStreamer, inet::queueing::PacketQueue, inet::queueing::PacketClassifierBase, inet::queueing::PacketSchedulerBase, inet::queueing::PacketGateBase, inet::PacketStreamer, inet::queueing::PacketFlowBase, inet::queueing::CompoundPacketQueueBase, inet::InterpacketGapInserter, inet::PacketDestreamer, inet::queueing::PacketMultiplexer, inet::queueing::MarkovScheduler, inet::DscpMarker, inet::queueing::PacketPusherBase, inet::queueing::PassivePacketSink, inet::PacketMeterBase, inet::queueing::PacketCloner, inet::queueing::PacketBasedTokenGenerator, inet::queueing::PacketDuplicatorBase, inet::Resending, inet::queueing::PassivePacketSinkBase, inet::EthernetCutthroughSink, inet::SendToMacAddress, inet::queueing::PriorityClassifier, and inet::queueing::InProgressQueue.

Referenced by inet::queueing::InstantServer::canProcessPacket(), inet::EthernetCutthroughSink::canPushPacket(), inet::queueing::PacketPusherBase::canPushPacket(), inet::PacketDestreamer::canPushPacket(), inet::queueing::PacketMultiplexer::canPushPacket(), inet::InterpacketGapInserter::canPushPacket(), inet::PacketStreamer::canPushPacket(), inet::PreemptableStreamer::canPushPacket(), and inet::queueing::PcapFilePacketProducer::handleMessage().

◆ canPushSomePacket()

virtual bool inet::queueing::IPassivePacketSink::canPushSomePacket ( cGate *  gate) const
pure virtual

Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error.

The gate must be a valid gate of this module and it must support pushing packets.

Implemented in inet::NetworkInterface, inet::PacketTransmitterBase, inet::queueing::PacketFilterBase, inet::PreemptableStreamer, inet::queueing::PacketQueue, inet::queueing::PacketClassifierBase, inet::queueing::PacketSchedulerBase, inet::queueing::PacketGateBase, inet::PacketStreamer, inet::queueing::PacketFlowBase, inet::queueing::CompoundPacketQueueBase, inet::InterpacketGapInserter, inet::PacketDestreamer, inet::queueing::PacketMultiplexer, inet::queueing::MarkovScheduler, inet::DscpMarker, inet::queueing::PacketQueueBase, inet::queueing::PacketPusherBase, inet::queueing::PassivePacketSink, inet::PacketMeterBase, inet::queueing::PacketCloner, inet::queueing::PacketBasedTokenGenerator, inet::queueing::PacketDuplicatorBase, inet::Resending, inet::queueing::PassivePacketSinkBase, inet::StreamingTransmitterBase, inet::SendToMacAddress, inet::queueing::PriorityClassifier, and inet::queueing::InProgressQueue.

Referenced by inet::queueing::InstantServer::canProcessPacket(), inet::queueing::PacketPusherBase::canPushSomePacket(), inet::InterpacketGapInserter::canPushSomePacket(), inet::queueing::PacketMultiplexer::canPushSomePacket(), inet::PacketDestreamer::canPushSomePacket(), inet::PacketStreamer::canPushSomePacket(), inet::PreemptableStreamer::canPushSomePacket(), inet::queueing::PacketServer::canStartProcessingPacket(), inet::queueing::PreemptingServer::canStartStreaming(), inet::queueing::ActivePacketSource::handleCanPushPacketChanged(), inet::queueing::PacketMultiplexer::handleCanPushPacketChanged(), inet::queueing::ActivePacketSource::handleMessage(), and inet::queueing::ActivePacketSource::initialize().

◆ pushPacket()

virtual void inet::queueing::IPassivePacketSink::pushPacket ( Packet *  packet,
cGate *  gate
)
pure virtual

Pushes the packet into the packet sink at the given gate.

This operation pushes the packet as a whole. The onwership of the packet is transferred to the sink.

This method is called, for example, when a packet source module pushes a packet into a queue module.

The sink must not be full at the gate. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and passing packets.

Implemented in inet::NetworkInterface, inet::MultiFieldClassifier, inet::queueing::PacketFilterBase, inet::PreemptableStreamer, inet::queueing::PacketClassifierBase, inet::queueing::PacketQueue, inet::DscpMarker, inet::queueing::PacketSchedulerBase, inet::BehaviorAggregateClassifier, inet::PacketStreamer, inet::queueing::PacketFlowBase, inet::InterpacketGapInserter, inet::queueing::PacketMultiplexer, inet::queueing::CompoundPacketQueueBase, inet::PacketDestreamer, inet::queueing::MarkovScheduler, inet::VirtualTunnel, inet::SingleRateThreeColorMeter, inet::TwoRateThreeColorMeter, inet::StreamThroughTransmitter, inet::queueing::PacketPusherBase, inet::queueing::PacketCloner, inet::queueing::PassivePacketSink, inet::AggregatorBase, inet::queueing::PacketBasedTokenGenerator, inet::TokenBucketMeter, inet::PacketEmitter, inet::queueing::PacketDuplicatorBase, inet::Resending, inet::RelayInterfaceSelector, inet::queueing::PcapFilePacketConsumer, inet::FragmenterBase, inet::SendToMacAddress, inet::Ieee8021qSocketPacketProcessor, inet::Ieee8022LlcSocketPacketProcessor, inet::Forwarding, inet::StreamingTransmitter, inet::PacketTransmitter, inet::EthernetSocketPacketProcessor, inet::Reordering, inet::DuplicateRemoval, inet::StreamSplitter, inet::queueing::PacketDelayer, inet::ReceiveWithAcknowledge, inet::ReceiveWithProtocol, inet::queueing::PacketDuplicator, inet::queueing::PacketPushToSend, inet::FragmentNumberHeaderBasedDefragmenter, inet::FragmentTagBasedDefragmenter, and inet::DeaggregatorBase.

Referenced by inet::queueing::PacketQueueBase::enqueuePacket(), inet::queueing::PassivePacketSinkBase::handleMessage(), inet::PacketMeterBase::handleMessage(), inet::queueing::PacketQueueBase::handleMessage(), inet::PacketTransmitterBase::handleMessageWhenUp(), inet::queueing::PacketProcessorBase::pushOrSendPacket(), inet::queueing::CompoundPacketQueueBase::pushPacket(), and inet::queueing::PacketSchedulerBase::pushPacket().

◆ pushPacketEnd()

virtual void inet::queueing::IPassivePacketSink::pushPacketEnd ( Packet *  packet,
cGate *  gate
)
pure virtual

Ends pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, when a preemption supporting server module ends streaming a packet to the sink.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Implemented in inet::NetworkInterface, inet::PacketTransmitterBase, inet::queueing::PacketFilterBase, inet::PreemptableStreamer, inet::queueing::PacketClassifierBase, inet::queueing::PacketSchedulerBase, inet::PacketStreamer, inet::queueing::PacketMultiplexer, inet::InterpacketGapInserter, inet::queueing::PacketFlowBase, inet::PacketDestreamer, inet::queueing::MarkovScheduler, inet::StreamThroughTransmitter, inet::DscpMarker, inet::queueing::PacketQueueBase, inet::PacketMeterBase, inet::queueing::PacketPusherBase, inet::queueing::PacketCloner, inet::EthernetCutthroughSource, inet::queueing::PacketDuplicatorBase, inet::PacketEmitter, inet::queueing::PassivePacketSinkBase, inet::EthernetCutthroughSink, and inet::EthernetCutthroughInterface.

Referenced by inet::queueing::PacketProcessorBase::pushOrSendPacketEnd(), inet::queueing::PacketProcessorBase::pushOrSendPacketProgress(), and inet::EthernetCutthroughInterface::pushPacketEnd().

◆ pushPacketProgress()

virtual void inet::queueing::IPassivePacketSink::pushPacketProgress ( Packet *  packet,
cGate *  gate,
bps  datarate,
b  position,
b  extraProcessableLength = b(0)
)
pure virtual

Progresses pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The position specifies where the packet streaming is at the moment. The extra length parameter partially fixes the future of the packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, to notify the sink about a change in the packet data when a preemption occurs.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Implemented in inet::NetworkInterface, inet::PacketTransmitterBase, inet::queueing::PacketFilterBase, inet::PreemptableStreamer, inet::queueing::PacketClassifierBase, inet::queueing::PacketSchedulerBase, inet::PacketStreamer, inet::InterpacketGapInserter, inet::queueing::PacketFlowBase, inet::PacketDestreamer, inet::queueing::PacketMultiplexer, inet::queueing::MarkovScheduler, inet::StreamThroughTransmitter, inet::DscpMarker, inet::queueing::PacketQueueBase, inet::PacketMeterBase, inet::queueing::PacketPusherBase, inet::queueing::PacketCloner, inet::queueing::PacketDuplicatorBase, inet::queueing::PassivePacketSinkBase, and inet::PacketTransmitter.

Referenced by inet::queueing::PacketProcessorBase::pushOrSendPacketProgress().

◆ pushPacketStart()

virtual void inet::queueing::IPassivePacketSink::pushPacketStart ( Packet *  packet,
cGate *  gate,
bps  datarate
)
pure virtual

Starts pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, when a preemption supporting server module starts streaming a packet to the sink.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Implemented in inet::NetworkInterface, inet::PacketTransmitterBase, inet::queueing::PacketFilterBase, inet::PreemptableStreamer, inet::queueing::PacketClassifierBase, inet::queueing::PacketSchedulerBase, inet::PacketStreamer, inet::InterpacketGapInserter, inet::queueing::PacketFlowBase, inet::queueing::PacketMultiplexer, inet::PacketDestreamer, inet::queueing::MarkovScheduler, inet::StreamThroughTransmitter, inet::DscpMarker, inet::queueing::PacketQueueBase, inet::PacketMeterBase, inet::queueing::PacketPusherBase, inet::queueing::PacketCloner, inet::EthernetCutthroughSource, inet::queueing::PacketDuplicatorBase, inet::queueing::PassivePacketSinkBase, inet::EthernetCutthroughSink, inet::physicallayer::EthernetFragmentPhyHeaderInserter, inet::EthernetCutthroughInterface, and inet::physicallayer::EthernetPhyHeaderInserter.

Referenced by inet::queueing::PacketProcessorBase::pushOrSendPacketProgress(), inet::queueing::PacketProcessorBase::pushOrSendPacketStart(), and inet::EthernetCutthroughInterface::pushPacketStart().
