inet::queueing::ActivePacketSource Class Reference

#include <ActivePacketSource.h>

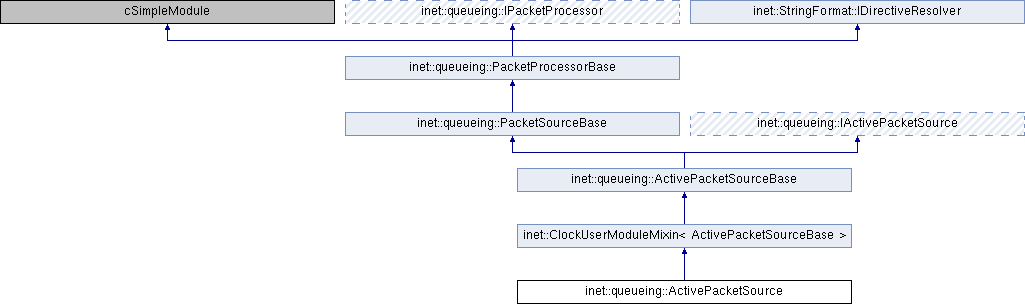

Inheritance diagram for inet::queueing::ActivePacketSource:

Public Member Functions
virtual	~ActivePacketSource ()
virtual void	handleCanPushPacketChanged (cGate *gate) override
	Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate. More...
virtual void	handlePushPacketProcessed (Packet *packet, cGate *gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed. More...
Public Member Functions inherited from inet::ClockUserModuleMixin< ActivePacketSourceBase >
virtual void	scheduleClockEventAt (clocktime_t time, ClockEvent *msg)
virtual void	scheduleClockEventAfter (clocktime_t delay, ClockEvent *msg)
virtual cMessage *	cancelClockEvent (ClockEvent *msg)
virtual void	cancelAndDeleteClockEvent (ClockEvent *msg)
virtual void	rescheduleClockEventAt (clocktime_t time, ClockEvent *msg)
virtual void	rescheduleClockEventAfter (clocktime_t time, ClockEvent *msg)
virtual clocktime_t	computeClockTimeFromSimTime (simtime_t time) const
virtual simtime_t	computeSimTimeFromClockTime (clocktime_t time) const
virtual clocktime_t	getClockTime () const
virtual clocktime_t	getArrivalClockTime (ClockEvent *msg) const
Public Member Functions inherited from inet::queueing::ActivePacketSourceBase
virtual IPassivePacketSink *	getConsumer (cGate *gate) override
	Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface. More...
virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...
virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...
Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...
virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...
virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...
virtual const char *	resolveDirective (char directive) const override
Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()
Public Member Functions inherited from inet::queueing::IActivePacketSource
virtual	~IActivePacketSource ()

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *message) override
virtual void	scheduleProductionTimer (double delay)
virtual void	producePacket ()
Protected Member Functions inherited from inet::queueing::PacketSourceBase
virtual const char *	createPacketName (const Ptr< const Chunk > &data) const
virtual Ptr< Chunk >	createPacketContent () const
virtual Packet *	createPacket ()
virtual const cModule *	findContainingApplication () const
virtual const cModule *	getContainingApplication () const
Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handlePacketProcessed (Packet *packet)
virtual void	checkPacketOperationSupport (cGate *gate) const
virtual void	checkPacketOperationSupport (cGate *startGate, cGate *endGate) const
virtual void	animate (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacket (Packet *packet, cGate *gate, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, long transmissionId, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const
virtual void	pushOrSendPacket (Packet *packet, cGate *gate, IPassivePacketSink *consumer)
virtual void	pushOrSendPacketStart (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)
virtual void	pushOrSendPacketEnd (Packet *packet, cGate *gate, IPassivePacketSink *consumer, int transmissionId)
virtual void	pushOrSendPacketProgress (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)
virtual void	animatePush (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacket (Packet *packet, cGate *gate) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	animatePull (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacket (Packet *packet, cGate *gate) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)
virtual void	updateDisplayString () const

Protected Attributes
cPar *	productionIntervalParameter = nullptr
ClockEvent *	productionTimer = nullptr
bool	scheduleForAbsoluteTime = false
Protected Attributes inherited from inet::queueing::ActivePacketSourceBase
cGate *	outputGate = nullptr
IPassivePacketSink *	consumer = nullptr
Protected Attributes inherited from inet::queueing::PacketSourceBase
const char *	packetNameFormat = nullptr
const char *	packetRepresentation = nullptr
cPar *	packetLengthParameter = nullptr
cPar *	packetDataParameter = nullptr
bool	attachCreationTimeTag = false
bool	attachIdentityTag = false
bool	attachDirectionTag = false
Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr
int	numProcessedPackets = -1
b	processedTotalLength = b(-1)

Additional Inherited Members
Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Constructor & Destructor Documentation

~ActivePacketSource()

virtual inet::queueing::ActivePacketSource::~ActivePacketSource ( )

inlinevirtual

{ cancelAndDeleteClockEvent(productionTimer); }

Member Function Documentation

handleCanPushPacketChanged()

void inet::queueing::ActivePacketSource::handleCanPushPacketChanged ( cGate *  gate )

overridevirtual

Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate.

This method is called, for example, when a new packet can be inserted into a queue. It allows the source to push a new packet into the queue.

The gate parameter must be a valid gate of this module.

Implements inet::queueing::IActivePacketSource.

{
    Enter_Method("handleCanPushPacketChanged");
    if (!productionTimer->isScheduled() && (consumer == nullptr || consumer->canPushSomePacket(outputGate->getPathEndGate()))) {
        double offset = par("initialProductionOffset");
        if (offset != 0)
            scheduleProductionTimer(offset);
        else {
            scheduleProductionTimer(productionIntervalParameter->doubleValue());
            producePacket();
        }
    }
}

handleMessage()

void inet::queueing::ActivePacketSource::handleMessage ( cMessage *  message )

overrideprotectedvirtual

{
    if (message == productionTimer) {
        if (consumer == nullptr || consumer->canPushSomePacket(outputGate->getPathEndGate())) {
            scheduleProductionTimer(productionIntervalParameter->doubleValue());
            producePacket();
        }
    }
    else
        throw cRuntimeError("Unknown message");
}

handlePushPacketProcessed()

void inet::queueing::ActivePacketSource::handlePushPacketProcessed ( Packet *  packet, cGate *  gate, bool  successful  )

overridevirtual

Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed.

This method is called, for example, when a previously pushed packet is failed to be processed successfully. It allows the source to retry the operation.

The gate parameter must be a valid gate of this module. The packet must not be nullptr.

Implements inet::queueing::IActivePacketSource.

{
    Enter_Method("handlePushPacketProcessed");
}

initialize()

void inet::queueing::ActivePacketSource::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::queueing::ActivePacketSourceBase.

{
    ClockUserModuleMixin::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        productionIntervalParameter = &par("productionInterval");
        productionTimer = new ClockEvent("ProductionTimer");
        scheduleForAbsoluteTime = par("scheduleForAbsoluteTime");
    }
    else if (stage == INITSTAGE_QUEUEING) {
        if (!productionTimer->isScheduled() && (consumer == nullptr || consumer->canPushSomePacket(outputGate->getPathEndGate()))) {
            double offset = par("initialProductionOffset");
            if (offset != 0)
                scheduleProductionTimer(offset);
            else {
                scheduleProductionTimer(productionIntervalParameter->doubleValue());
                producePacket();
            }
        }
    }
}

producePacket()

void inet::queueing::ActivePacketSource::producePacket ( )

protectedvirtual

{
    auto packet = createPacket();
    EV_INFO << "Producing packet" << EV_FIELD(packet) << EV_ENDL;
    emit(packetPushedSignal, packet);
    pushOrSendPacket(packet, outputGate, consumer);
    updateDisplayString();
}

Referenced by handleCanPushPacketChanged(), handleMessage(), and initialize().

scheduleProductionTimer()

void inet::queueing::ActivePacketSource::scheduleProductionTimer ( double  delay )

protectedvirtual

{
    if (scheduleForAbsoluteTime)
        scheduleClockEventAt(getClockTime() + delay, productionTimer);
    else
        scheduleClockEventAfter(delay, productionTimer);
}

Referenced by handleCanPushPacketChanged(), handleMessage(), and initialize().

Member Data Documentation

productionIntervalParameter

cPar* inet::queueing::ActivePacketSource::productionIntervalParameter = nullptr

protected

Referenced by handleCanPushPacketChanged(), handleMessage(), and initialize().

productionTimer

ClockEvent* inet::queueing::ActivePacketSource::productionTimer = nullptr

protected

Referenced by handleCanPushPacketChanged(), handleMessage(), initialize(), and scheduleProductionTimer().

scheduleForAbsoluteTime

bool inet::queueing::ActivePacketSource::scheduleForAbsoluteTime = false

protected

Referenced by initialize(), and scheduleProductionTimer().

---

The documentation for this class was generated from the following files:

• ActivePacketSource.h
• ActivePacketSource.cc
