#include <PacketSourceBase.h>

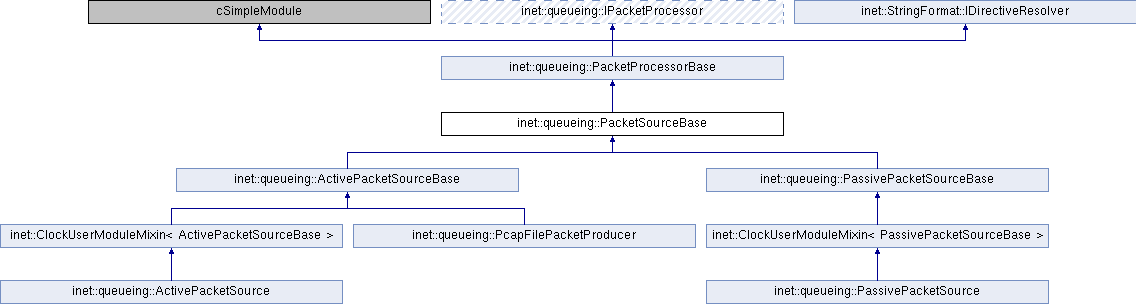

Inheritance diagram for inet::queueing::PacketSourceBase:

Protected Member Functions
virtual void	initialize (int stage) override

virtual const char *	createPacketName (const Ptr< const Chunk > &data) const

virtual Ptr< Chunk >	createPacketContent () const

virtual Packet *	createPacket ()

virtual const cModule *	findContainingApplication () const

virtual const cModule *	getContainingApplication () const

Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handlePacketProcessed (Packet *packet)

virtual void	checkPacketOperationSupport (cGate *gate) const

virtual void	checkPacketOperationSupport (cGate startGate, cGate endGate) const

virtual void	animate (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacket (Packet packet, cGate gate, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, long transmissionId, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, long transmissionId, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const

virtual void	pushOrSendPacket (Packet packet, cGate gate, IPassivePacketSink *consumer)

virtual void	pushOrSendPacketStart (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)

virtual void	pushOrSendPacketEnd (Packet packet, cGate gate, IPassivePacketSink *consumer, int transmissionId)

virtual void	pushOrSendPacketProgress (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)

virtual void	animatePush (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacket (Packet packet, cGate gate) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	animatePull (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacket (Packet packet, cGate gate) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)

virtual void	updateDisplayString () const

Protected Attributes
const char *	packetNameFormat = nullptr

const char *	packetRepresentation = nullptr

cPar *	packetLengthParameter = nullptr

cPar *	packetDataParameter = nullptr

bool	attachCreationTimeTag = false

bool	attachIdentityTag = false

bool	attachDirectionTag = false

Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr

int	numProcessedPackets = -1

b	processedTotalLength = b(-1)

Additional Inherited Members
Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...

virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...

virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...

virtual const char *	resolveDirective (char directive) const override

Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()

virtual bool	supportsPacketPushing (cGate *gate) const =0
	Returns true if the processor supports pushing packets at the given gate. More...

virtual bool	supportsPacketPulling (cGate *gate) const =0
	Returns true if the processor supports pulling packets at the given gate. More...

Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Member Function Documentation

◆ createPacket()

Packet * inet::queueing::PacketSourceBase::createPacket ( )

protectedvirtual

 {
     auto packetContent = createPacketContent();
     if (attachCreationTimeTag)
         packetContent->addTag<CreationTimeTag>()->setCreationTime(simTime());
     if (attachIdentityTag) {
         auto identityStart = IdentityTag::getNextIdentityStart(packetContent->getChunkLength());
         packetContent->addTag<IdentityTag>()->setIdentityStart(identityStart);
     }
     auto packetName = createPacketName(packetContent);
     auto packet = new Packet(packetName, packetContent);
     if (attachDirectionTag)
         packet->addTagIfAbsent<DirectionTag>()->setDirection(DIRECTION_OUTBOUND);
     numProcessedPackets++;
     processedTotalLength += packet->getDataLength();
     emit(packetCreatedSignal, packet);
     return packet;
 }

Referenced by inet::queueing::PassivePacketSource::canPullPacket(), inet::queueing::ActivePacketSource::producePacket(), and inet::queueing::PassivePacketSource::providePacket().

◆ createPacketContent()

Ptr< Chunk > inet::queueing::PacketSourceBase::createPacketContent ( ) const

protectedvirtual

 {
     auto packetLength = b(packetLengthParameter->intValue());
     if (!strcmp(packetRepresentation, "bitCount")) {
         int packetData = packetDataParameter->intValue();
         return packetData == -1 ? makeShared<BitCountChunk>(packetLength) : makeShared<BitCountChunk>(packetLength, packetData);
     }
     else if (!strcmp(packetRepresentation, "bits")) {
         static int total = 0;
         const auto& packetContent = makeShared<BitsChunk>();
         std::vector<bool> bits;
         bits.resize(b(packetLength).get());
         for (int i = 0; i < (int)bits.size(); i++) {
             int packetData = packetDataParameter->intValue();
             bits[i] = packetData == -1 ? (total + i) % 2 == 0 : packetData;
         }
         total += bits.size();
         packetContent->setBits(bits);
         return packetContent;
     }
     else if (!strcmp(packetRepresentation, "byteCount")) {
         int packetData = packetDataParameter->intValue();
         return packetData == -1 ? makeShared<ByteCountChunk>(packetLength) : makeShared<ByteCountChunk>(packetLength, packetData);
     }
     else if (!strcmp(packetRepresentation, "bytes")) {
         static int total = 0;
         const auto& packetContent = makeShared<BytesChunk>();
         std::vector<uint8_t> bytes;
         bytes.resize(B(packetLength).get());
         for (int i = 0; i < (int)bytes.size(); i++) {
             int packetData = packetDataParameter->intValue();
             bytes[i] = packetData == -1 ? (total + i) % 256 : packetData;
         }
         total += bytes.size();
         packetContent->setBytes(bytes);
         return packetContent;
     }
     else if (!strcmp(packetRepresentation, "applicationPacket")) {
         const auto& packetContent = makeShared<ApplicationPacket>();
         packetContent->setChunkLength(B(packetLength));
         packetContent->setSequenceNumber(numProcessedPackets);
         return packetContent;
     }
     else
         throw cRuntimeError("Unknown representation");
 }

Referenced by createPacket().

◆ createPacketName()

const char * inet::queueing::PacketSourceBase::createPacketName ( const Ptr< const Chunk > & data ) const

protectedvirtual

 {
     return StringFormat::formatString(packetNameFormat, [&] (char directive) {
         static std::string result;
         switch (directive) {
             case 'a': {
                 auto application = findContainingApplication();
                 if (application != nullptr)
                     result = application->getDisplayName() != nullptr ? application->getDisplayName() : application->getFullName();
                 else
                     result = getDisplayName() != nullptr ? getDisplayName() :  getFullName();
                 break;
             }
             case 'n':
                 result = getDisplayName() != nullptr ? getDisplayName() : getFullName();
                 break;
             case 'm': {
                 auto application = getContainingApplication();
                 result = application->getDisplayName() != nullptr ? application->getDisplayName() : application->getFullName();
                 break;
             }
             case 'M': {
                 auto networkNode = getContainingNode(this);
                 result = networkNode->getDisplayName() != nullptr ? networkNode->getDisplayName() : networkNode->getFullName();
                 break;
             }
             case 'p':

                 result = getFullPath();
                 break;
             case 'h':
                 result = getContainingApplication()->getFullPath();
                 break;
             case 'H':
                 result = getContainingNode(this)->getFullPath();
                 break;
             case 'c':
                 result = std::to_string(numProcessedPackets);
                 break;
             case 'l':
                 result = data->getChunkLength().str();
                 break;
             case 'd':
                 if (auto byteCountChunk = dynamicPtrCast<const ByteCountChunk>(data))
                     result = std::to_string(byteCountChunk->getData());
                 else if (auto bitCountChunk = dynamicPtrCast<const BitCountChunk>(data))
                     result = std::to_string(bitCountChunk->getData());
                 break;
             case 't':
                 result = simTime().str();
                 break;
             case 'e':
                 result = std::to_string(getSimulation()->getEventNumber());
                 break;
             default:
                 throw cRuntimeError("Unknown directive: %c", directive);
         }
         return result.c_str();
     });
 }

Referenced by createPacket().

◆ findContainingApplication()

const cModule * inet::queueing::PacketSourceBase::findContainingApplication ( ) const

protectedvirtual

 {
     for (const cModule *module = this; module != nullptr; module = module->getParentModule()) {
         if (isApplication(module))
             return module;
     }
     return nullptr;
 }

Referenced by createPacketName(), and getContainingApplication().

◆ getContainingApplication()

const cModule * inet::queueing::PacketSourceBase::getContainingApplication ( ) const

protectedvirtual

 {
     auto application = findContainingApplication();
     if (application == nullptr)
         throw cRuntimeError("Application not found");
     else
         return application;
 }

Referenced by createPacketName().

◆ initialize()

void inet::queueing::PacketSourceBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::queueing::PacketProcessorBase.

Reimplemented in inet::queueing::PassivePacketSource, inet::queueing::PassivePacketSourceBase, inet::queueing::ActivePacketSource, inet::queueing::ActivePacketSourceBase, and inet::queueing::PcapFilePacketProducer.

 {
     PacketProcessorBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         packetNameFormat = par("packetNameFormat");
         packetRepresentation = par("packetRepresentation");
         packetLengthParameter = &par("packetLength");
         packetDataParameter = &par("packetData");
         attachCreationTimeTag = par("attachCreationTimeTag");
         attachIdentityTag = par("attachIdentityTag");
         attachDirectionTag = par("attachDirectionTag");
     }
 }
