inet::queueing::PassivePacketSource Class Reference

#include <PassivePacketSource.h>

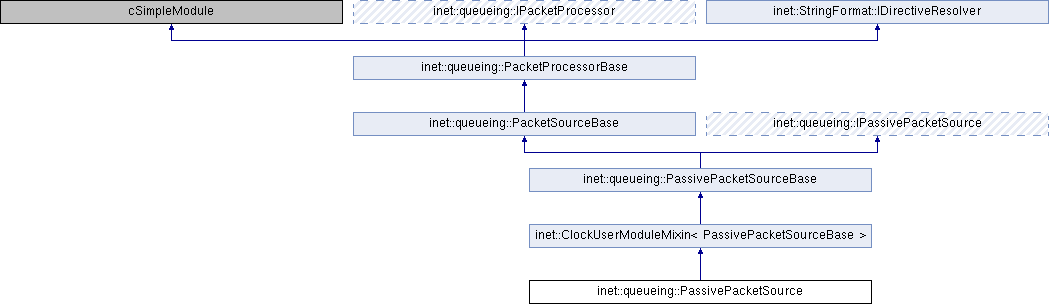

Inheritance diagram for inet::queueing::PassivePacketSource:

Public Member Functions
virtual	~PassivePacketSource ()
virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...
virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...
virtual bool	canPullSomePacket (cGate *gate) const override
	Returns false if the packet source is empty at the given gate and no more packets can be pulled from it without raising an error. More...
virtual Packet *	canPullPacket (cGate *gate) const override
	Returns the packet that can be pulled at the given gate. More...
virtual Packet *	pullPacket (cGate *gate) override
	Pulls the packet from the packet source at the given gate. More...
virtual Packet *	pullPacketStart (cGate *gate, bps datarate) override
	Starts pulling the packet from the packet source at the given gate. More...
virtual Packet *	pullPacketEnd (cGate *gate) override
	Ends pulling the packet from the packet source at the given gate. More...
virtual Packet *	pullPacketProgress (cGate *gate, bps datarate, b position, b extraProcessableLength) override
	Progresses pulling the packet from the packet source at the given gate. More...
Public Member Functions inherited from inet::ClockUserModuleMixin< PassivePacketSourceBase >
virtual void	scheduleClockEventAt (clocktime_t time, ClockEvent *msg)
virtual void	scheduleClockEventAfter (clocktime_t delay, ClockEvent *msg)
virtual cMessage *	cancelClockEvent (ClockEvent *msg)
virtual void	cancelAndDeleteClockEvent (ClockEvent *msg)
virtual void	rescheduleClockEventAt (clocktime_t time, ClockEvent *msg)
virtual void	rescheduleClockEventAfter (clocktime_t time, ClockEvent *msg)
virtual clocktime_t	computeClockTimeFromSimTime (simtime_t time) const
virtual simtime_t	computeSimTimeFromClockTime (clocktime_t time) const
virtual clocktime_t	getClockTime () const
virtual clocktime_t	getArrivalClockTime (ClockEvent *msg) const
Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...
virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...
virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...
virtual const char *	resolveDirective (char directive) const override
Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()
Public Member Functions inherited from inet::queueing::IPassivePacketSource
virtual	~IPassivePacketSource ()

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *message) override
virtual void	scheduleProvidingTimer ()
virtual Packet *	providePacket (cGate *gate)
Protected Member Functions inherited from inet::queueing::PacketSourceBase
virtual const char *	createPacketName (const Ptr< const Chunk > &data) const
virtual Ptr< Chunk >	createPacketContent () const
virtual Packet *	createPacket ()
virtual const cModule *	findContainingApplication () const
virtual const cModule *	getContainingApplication () const
Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handlePacketProcessed (Packet *packet)
virtual void	checkPacketOperationSupport (cGate *gate) const
virtual void	checkPacketOperationSupport (cGate *startGate, cGate *endGate) const
virtual void	animate (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacket (Packet *packet, cGate *gate, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, long transmissionId, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const
virtual void	pushOrSendPacket (Packet *packet, cGate *gate, IPassivePacketSink *consumer)
virtual void	pushOrSendPacketStart (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)
virtual void	pushOrSendPacketEnd (Packet *packet, cGate *gate, IPassivePacketSink *consumer, int transmissionId)
virtual void	pushOrSendPacketProgress (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)
virtual void	animatePush (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacket (Packet *packet, cGate *gate) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	animatePull (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacket (Packet *packet, cGate *gate) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)
virtual void	updateDisplayString () const

Protected Attributes
cPar *	providingIntervalParameter = nullptr
ClockEvent *	providingTimer = nullptr
bool	scheduleForAbsoluteTime = false
Packet *	nextPacket = nullptr
Protected Attributes inherited from inet::queueing::PassivePacketSourceBase
cGate *	outputGate = nullptr
IActivePacketSink *	collector = nullptr
Protected Attributes inherited from inet::queueing::PacketSourceBase
const char *	packetNameFormat = nullptr
const char *	packetRepresentation = nullptr
cPar *	packetLengthParameter = nullptr
cPar *	packetDataParameter = nullptr
bool	attachCreationTimeTag = false
bool	attachIdentityTag = false
bool	attachDirectionTag = false
Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr
int	numProcessedPackets = -1
b	processedTotalLength = b(-1)

Additional Inherited Members
Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Constructor & Destructor Documentation

~PassivePacketSource()

virtual inet::queueing::PassivePacketSource::~PassivePacketSource ( )

inlinevirtual

{ delete nextPacket; cancelAndDeleteClockEvent(providingTimer); }

Member Function Documentation

canPullPacket()

Packet * inet::queueing::PassivePacketSource::canPullPacket ( cGate *  gate ) const

overridevirtual

Returns the packet that can be pulled at the given gate.

The returned value is nullptr if there is no such packet.

The gate must be a valid gate of this module and it must support pushing packets.

Implements inet::queueing::IPassivePacketSource.

{
    Enter_Method("canPullPacket");
    if (providingTimer->isScheduled())
        return nullptr;
    else {
        if (nextPacket == nullptr)
            // KLUDGE
            nextPacket = const_cast<PassivePacketSource *>(this)->createPacket();
        return nextPacket;
    }
}

canPullSomePacket()

virtual bool inet::queueing::PassivePacketSource::canPullSomePacket ( cGate *  gate ) const

inlineoverridevirtual

Returns false if the packet source is empty at the given gate and no more packets can be pulled from it without raising an error.

The gate must be a valid gate of this module and it must support pulling packets.

Reimplemented from inet::queueing::PassivePacketSourceBase.

{ return !providingTimer->isScheduled(); }

handleMessage()

void inet::queueing::PassivePacketSource::handleMessage ( cMessage *  message )

overrideprotectedvirtual

{
    if (message == providingTimer) {
        if (collector != nullptr)
            collector->handleCanPullPacketChanged(outputGate->getPathEndGate());
    }
    else
        throw cRuntimeError("Unknown message");
}

initialize()

void inet::queueing::PassivePacketSource::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::queueing::PassivePacketSourceBase.

{
    ClockUserModuleMixin::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        providingIntervalParameter = &par("providingInterval");
        providingTimer = new ClockEvent("ProvidingTimer");
        scheduleForAbsoluteTime = par("scheduleForAbsoluteTime");
        WATCH_PTR(nextPacket);
    }
    else if (stage == INITSTAGE_QUEUEING) {
        if (collector != nullptr)
            collector->handleCanPullPacketChanged(outputGate->getPathEndGate());
    }
}

providePacket()

Packet * inet::queueing::PassivePacketSource::providePacket ( cGate *  gate )

protectedvirtual

{
    Packet *packet;
    if (nextPacket == nullptr)
        packet = createPacket();
    else {
        packet = nextPacket;
        nextPacket = nullptr;
    }
    EV_INFO << "Providing packet" << EV_FIELD(packet) << EV_ENDL;
    updateDisplayString();
    return packet;
}

Referenced by pullPacket().

pullPacket()

Packet * inet::queueing::PassivePacketSource::pullPacket ( cGate *  gate )

overridevirtual

Pulls the packet from the packet source at the given gate.

This operation pulls the packet as a whole. The onwership of the packet is transferred to the sink.

The source must not be empty at the given gate. The returned packet must not be nullptr. The gate must be a valid gate of this module and it must support pulling and passing packets.

Implements inet::queueing::IPassivePacketSource.

{
    Enter_Method("pullPacket");
    if (providingTimer->isScheduled() && providingTimer->getArrivalTime() > simTime())
        throw cRuntimeError("Another packet is already being provided");
    else {
        auto packet = providePacket(gate);
        animatePullPacket(packet, outputGate);
        emit(packetPulledSignal, packet);
        scheduleProvidingTimer();
        updateDisplayString();
        return packet;
    }
}

pullPacketEnd()

virtual Packet* inet::queueing::PassivePacketSource::pullPacketEnd ( cGate *  gate )

inlineoverridevirtual

Ends pulling the packet from the packet source at the given gate.

This is a packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, when a preemption supporting server module ends streaming a packet from the the source.

The source must not be empty at the gate and no other packet streaming can be in progress. The gate must be a valid gate of this module and it must support pulling and streaming packets. The returned packet must not be nullptr.

Reimplemented from inet::queueing::PassivePacketSourceBase.

{ throw cRuntimeError("Invalid operation"); }

pullPacketProgress()

virtual Packet* inet::queueing::PassivePacketSource::pullPacketProgress ( cGate *  gate, bps  datarate, b  position, b  extraProcessableLength  )

inlineoverridevirtual

Progresses pulling the packet from the packet source at the given gate.

This is a packet streaming operation. The position specifies where the packet streaming is at the moment. The extra length parameter partially fixes the future of the packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, to notify the source about a change in the packet data when a preemption occurs.

The source must not be empty at the gate and no other packet streaming can be in progress. The gate must be a valid gate of this module and it must support pulling and streaming packets. The returned packet must not be nullptr.

Reimplemented from inet::queueing::PassivePacketSourceBase.

{ throw cRuntimeError("Invalid operation"); }

pullPacketStart()

virtual Packet* inet::queueing::PassivePacketSource::pullPacketStart ( cGate *  gate, bps  datarate  )

inlineoverridevirtual

Starts pulling the packet from the packet source at the given gate.

This is a packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, when a preemption supporting server module starts streaming a packet from the source.

The source must not be empty at the gate and no other packet streaming can be in progress. The gate must be a valid gate of this module and it must support pulling and streaming packets. The returned packet must not be nullptr.

Reimplemented from inet::queueing::PassivePacketSourceBase.

{ throw cRuntimeError("Invalid operation"); }

scheduleProvidingTimer()

void inet::queueing::PassivePacketSource::scheduleProvidingTimer ( )

protectedvirtual

{
    clocktime_t interval = providingIntervalParameter->doubleValue();
    if (interval != 0 || providingTimer->getArrivalModule() == nullptr) {
        if (scheduleForAbsoluteTime)
            scheduleClockEventAt(getClockTime() + interval, providingTimer);
        else
            scheduleClockEventAfter(interval, providingTimer);
    }
}

Referenced by pullPacket().

supportsPacketPulling()

virtual bool inet::queueing::PassivePacketSource::supportsPacketPulling ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports pulling packets at the given gate.

Pulling a packet is a synchronous operation that is initiated by the sink module. A pulled packet can be passed as a whole using pullPacket(), or it can be streamed from the source to the sink using pullPacketStart(), pullPacketEnd(), and pullPacketProgress().

For output gates, true means that the connected module can pull packets from this module. For input gates, true means that this module can pull packets from the connected module. For example, a packet server module can pull packets from a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(pull) in the NED file.

Reimplemented from inet::queueing::PassivePacketSourceBase.

{ return outputGate == gate; }

supportsPacketPushing()

virtual bool inet::queueing::PassivePacketSource::supportsPacketPushing ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports pushing packets at the given gate.

Pushing a packet is a synchronous operation that is initiated by the source module. A pushed packet can be passed as a whole using pushPacket(), or it can be streamed from the source to the sink using pushPacketStart(), pushPacketEnd(), and pushPacketProgress().

For output gates, true means that this module can push packets into the connected module. For input gates, true means that the connected module can push packets into this module. For example, a packet generator module can push packets into a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(push) in the NED file.

Reimplemented from inet::queueing::PassivePacketSourceBase.

{ return false; }

Member Data Documentation

nextPacket

Packet* inet::queueing::PassivePacketSource::nextPacket = nullptr

mutableprotected

Referenced by canPullPacket(), initialize(), and providePacket().

providingIntervalParameter

cPar* inet::queueing::PassivePacketSource::providingIntervalParameter = nullptr

protected

Referenced by initialize(), and scheduleProvidingTimer().

providingTimer

ClockEvent* inet::queueing::PassivePacketSource::providingTimer = nullptr

protected

Referenced by canPullPacket(), handleMessage(), initialize(), pullPacket(), and scheduleProvidingTimer().

scheduleForAbsoluteTime

bool inet::queueing::PassivePacketSource::scheduleForAbsoluteTime = false

protected

Referenced by initialize(), and scheduleProvidingTimer().

---

The documentation for this class was generated from the following files:

• PassivePacketSource.h
• PassivePacketSource.cc
