inet::IdentityTag Class Reference

Class generated from inet/common/IdentityTag.msg:25 by opp_msgtool. More...

#include <IdentityTag_m.h>

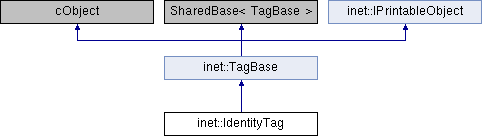

Inheritance diagram for inet::IdentityTag:

Public Member Functions
	IdentityTag ()
	IdentityTag (const IdentityTag &other)
virtual	~IdentityTag ()
IdentityTag &	operator= (const IdentityTag &other)
virtual IdentityTag *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual uint64_t	getIdentityStart () const
virtual void	setIdentityStart (uint64_t identityStart)
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const override
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Static Public Member Functions
static int64_t	getNextIdentityStart (b length)

Static Public Attributes
static int64_t	nextIdentityStart

Protected Member Functions
bool	operator== (const IdentityTag &)=delete

Protected Attributes
uint64_t	identityStart = -1

Private Member Functions
void	copy (const IdentityTag &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/common/IdentityTag.msg:25 by opp_msgtool.

//
// This tag provides a bit level identity for binary data. It must attached to
// a packet or chunk as a region tag. The identity of a bit in the region can be
// calculated by adding the offset of said bit to the identityStart field of the
// tag.
//
// The tag is split and merged automatically when the data is split or merged.
// This allows one to have an effective globally unique identity for each bit
// in the simulation. This tag allows following the bits in the network through
// the whole lifetime of the simulation.
//
class IdentityTag extends TagBase
{
    uint64_t identityStart = -1;
}

Constructor & Destructor Documentation

IdentityTag() [1/2]

inet::IdentityTag::IdentityTag

(

)

IdentityTag() [2/2]

inet::IdentityTag::IdentityTag

(

const IdentityTag &

other

)

~IdentityTag()

virtual inet::IdentityTag::~IdentityTag ( )

virtual

Member Function Documentation

changeRegion()

virtual const Ptr<TagBase> inet::IdentityTag::changeRegion ( b  offsetDelta, b  lengthDelta  ) const

inlineoverridevirtual

Reimplemented from inet::TagBase.

                                                                                         {
        if (offsetDelta == b(0))
            return const_cast<IdentityTag *>(this)->shared_from_this();
        else {
            const auto& result = staticPtrCast<IdentityTag>(dupShared());
            result->identityStart += b(offsetDelta).get();
            return result;
        }
    }

copy()

void inet::IdentityTag::copy ( const IdentityTag &  other )

private

dup()

virtual IdentityTag* inet::IdentityTag::dup ( ) const

inlineoverridevirtual

{return new IdentityTag(*this);}

getIdentityStart()

virtual uint64_t inet::IdentityTag::getIdentityStart ( ) const

virtual

getNextIdentityStart()

static int64_t inet::IdentityTag::getNextIdentityStart ( b  length )

inlinestatic

{ auto result = nextIdentityStart; nextIdentityStart += b(length).get(); return result; }

Referenced by inet::queueing::PacketSourceBase::createPacket().

operator=()

IdentityTag& inet::IdentityTag::operator=

(

const IdentityTag &

other

)

operator==()

bool inet::IdentityTag::operator== ( const IdentityTag &  )

protecteddelete

parsimPack()

virtual void inet::IdentityTag::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::IdentityTag::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Referenced by inet::doParsimUnpacking().

setIdentityStart()

virtual void inet::IdentityTag::setIdentityStart ( uint64_t  identityStart )

virtual

Member Data Documentation

identityStart

uint64_t inet::IdentityTag::identityStart = -1

protected

nextIdentityStart

int64_t inet::IdentityTag::nextIdentityStart

static

---

The documentation for this class was generated from the following file:

• IdentityTag_m.h
