#include <StreamThroughTransmitter.h>

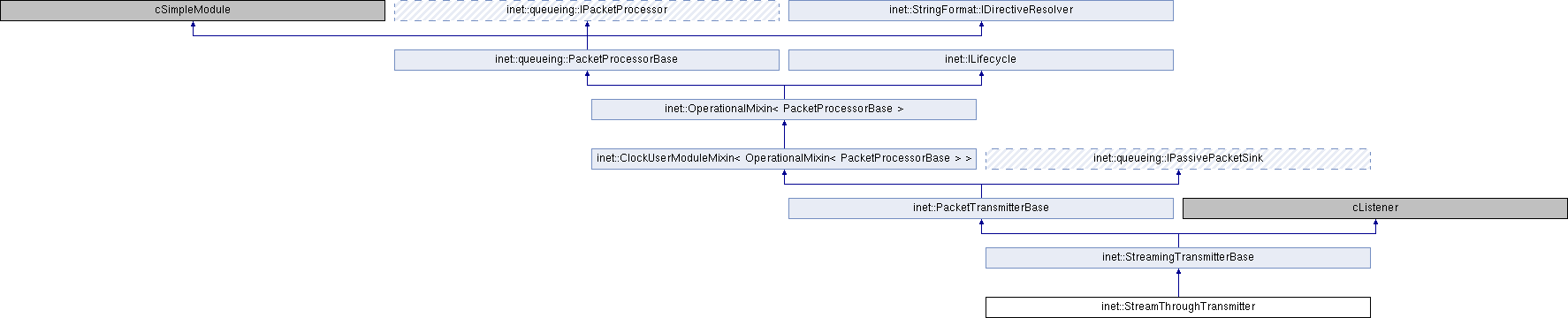

Inheritance diagram for inet::StreamThroughTransmitter:

Public Member Functions
virtual	~StreamThroughTransmitter ()

virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...

virtual void	pushPacket (Packet packet, cGate gate) override
	Pushes the packet into the packet sink at the given gate. More...

virtual void	pushPacketStart (Packet packet, cGate gate, bps datarate) override
	Starts pushing the packet into the packet sink at the given gate. More...

virtual void	pushPacketEnd (Packet packet, cGate gate) override
	Ends pushing the packet into the packet sink at the given gate. More...

virtual void	pushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength=b(0)) override
	Progresses pushing the packet into the packet sink at the given gate. More...

Public Member Functions inherited from inet::StreamingTransmitterBase
virtual bool	canPushSomePacket (cGate *gate) const override
	Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error. More...

virtual void	receiveSignal (cComponent source, simsignal_t signal, cObject object, cObject *details) override

Public Member Functions inherited from inet::PacketTransmitterBase
virtual	~PacketTransmitterBase ()

virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...

virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...

virtual bool	canPushPacket (Packet packet, cGate gate) const override
	Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error. More...

Public Member Functions inherited from inet::ClockUserModuleMixin< OperationalMixin< PacketProcessorBase > >
virtual void	scheduleClockEventAt (clocktime_t time, ClockEvent *msg)

virtual void	scheduleClockEventAfter (clocktime_t delay, ClockEvent *msg)

virtual cMessage *	cancelClockEvent (ClockEvent *msg)

virtual void	cancelAndDeleteClockEvent (ClockEvent *msg)

virtual void	rescheduleClockEventAt (clocktime_t time, ClockEvent *msg)

virtual void	rescheduleClockEventAfter (clocktime_t time, ClockEvent *msg)

virtual clocktime_t	computeClockTimeFromSimTime (simtime_t time) const

virtual simtime_t	computeSimTimeFromClockTime (clocktime_t time) const

virtual clocktime_t	getClockTime () const

virtual clocktime_t	getArrivalClockTime (ClockEvent *msg) const

Public Member Functions inherited from inet::OperationalMixin< PacketProcessorBase >
virtual	~OperationalMixin ()
	}@ More...

Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...

virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...

virtual const char *	resolveDirective (char directive) const override

Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()

Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Public Member Functions inherited from inet::queueing::IPassivePacketSink
virtual	~IPassivePacketSink ()

Protected Member Functions
virtual void	initialize (int stage) override

virtual void	handleMessageWhenUp (cMessage *message) override

virtual void	handleStopOperation (LifecycleOperation *operation) override

virtual void	handleCrashOperation (LifecycleOperation *operation) override

virtual void	startTx (Packet *packet, bps datarate, b position)

virtual void	progressTx (Packet *packet, bps datarate, b position)

virtual void	endTx ()

virtual void	abortTx () override

virtual void	scheduleBufferUnderrunTimer ()

Protected Member Functions inherited from inet::StreamingTransmitterBase
virtual void	scheduleAt (simtime_t t, cMessage *message) override

virtual void	scheduleTxEndTimer (Signal *signal)

Protected Member Functions inherited from inet::PacketTransmitterBase
virtual void	finish () override

virtual bool	isInitializeStage (int stage) const override

virtual bool	isModuleStartStage (int stage) const override

virtual bool	isModuleStopStage (int stage) const override

virtual void	handleStartOperation (LifecycleOperation *operation) override

virtual Signal *	encodePacket (Packet *packet)

virtual void	prepareSignal (Signal *signal)

virtual void	sendSignalStart (Signal *signal, int transmissionId)

virtual void	sendSignalProgress (Signal *signal, int transmissionId, b bitPosition, clocktime_t timePosition)

virtual void	sendSignalEnd (Signal *signal, int transmissionId)

virtual clocktime_t	calculateClockTimeDuration (const Packet *packet) const

virtual simtime_t	calculateDuration (clocktime_t clockTimeDuration) const

virtual bool	isTransmitting () const

Protected Member Functions inherited from inet::OperationalMixin< PacketProcessorBase >
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handleMessage (cMessage *msg) override

virtual void	handleMessageWhenDown (cMessage *msg)

virtual bool	handleOperationStage (LifecycleOperation operation, IDoneCallback doneCallback) override
	Perform one stage of a lifecycle operation. More...

virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...

virtual void	handleActiveOperationTimeout (cMessage *message)

virtual bool	isUp () const
	utility functions More...

virtual bool	isDown () const

virtual void	setOperationalState (State newState)

virtual void	scheduleOperationTimeout (simtime_t timeout)

virtual void	setupActiveOperation (LifecycleOperation operation, IDoneCallback doneCallback, State)

virtual void	delayActiveOperationFinish (simtime_t timeout)

virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)

virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)

virtual void	finishActiveOperation ()

Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handlePacketProcessed (Packet *packet)

virtual void	checkPacketOperationSupport (cGate *gate) const

virtual void	checkPacketOperationSupport (cGate startGate, cGate endGate) const

virtual void	animate (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacket (Packet packet, cGate gate, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, long transmissionId, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, long transmissionId, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const

virtual void	pushOrSendPacket (Packet packet, cGate gate, IPassivePacketSink *consumer)

virtual void	pushOrSendPacketStart (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)

virtual void	pushOrSendPacketEnd (Packet packet, cGate gate, IPassivePacketSink *consumer, int transmissionId)

virtual void	pushOrSendPacketProgress (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)

virtual void	animatePush (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacket (Packet packet, cGate gate) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	animatePull (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacket (Packet packet, cGate gate) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)

virtual void	updateDisplayString () const

Protected Attributes
simtime_t	lastTxProgressTime = -1

b	lastTxProgressPosition = b(-1)

bps	lastInputDatarate = bps(NaN)

simtime_t	lastInputProgressTime = -1

b	lastInputProgressPosition = b(-1)

cMessage *	bufferUnderrunTimer = nullptr

Protected Attributes inherited from inet::StreamingTransmitterBase
cChannel *	transmissionChannel = nullptr

Protected Attributes inherited from inet::PacketTransmitterBase
cPar *	dataratePar = nullptr

cGate *	inputGate = nullptr

cGate *	outputGate = nullptr

ModuleRef< IActivePacketSource >	producer

bps	txDatarate = bps(NaN)

Signal *	txSignal = nullptr

ClockEvent *	txEndTimer = nullptr

simtime_t	txStartTime = -1

clocktime_t	txStartClockTime = -1

clocktime_t	txDurationClockTime = -1

Protected Attributes inherited from inet::OperationalMixin< PacketProcessorBase >
State	operationalState

simtime_t	lastChange

Operation	activeOperation

cMessage *	activeOperationTimeout

cMessage *	activeOperationExtraTimer

Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr

int	numProcessedPackets = -1

b	processedTotalLength = b(-1)

Additional Inherited Members
Protected Types inherited from inet::OperationalMixin< PacketProcessorBase >
enum	State

Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Constructor & Destructor Documentation

◆ ~StreamThroughTransmitter()

virtual inet::StreamThroughTransmitter::~StreamThroughTransmitter ( )

inlinevirtual

43 { cancelAndDelete(bufferUnderrunTimer); }

Member Function Documentation

◆ abortTx()

void inet::StreamThroughTransmitter::abortTx ( )

overrideprotectedvirtual

Implements inet::StreamingTransmitterBase.

 {
     // 1. check current state
     ASSERT(isTransmitting());
     // 2. create new truncated signal
     auto packet = check_and_cast<Packet *>(txSignal->decapsulate());
     // TODO we can't just simply cut the packet proportionally with time because it's not always the case (modulation, scrambling, etc.)
     simtime_t timePosition = simTime() - txStartTime;
     b dataPosition = b(std::floor(txDatarate.get() * timePosition.dbl()));
     packet->eraseAtBack(packet->getTotalLength() - dataPosition);
     packet->setBitError(true);
     auto signal = encodePacket(packet);
     signal->setDuration(timePosition);
     // 3. delete old signal
     delete txSignal;
     txSignal = nullptr;
     // 4. send signal end to receiver and notify subscribers
     EV_INFO << "Aborting transmission" << EV_FIELD(packet) << EV_FIELD(datarate, txDatarate) << EV_ENDL;
     handlePacketProcessed(packet);
     emit(transmissionEndedSignal, signal);
     sendSignalEnd(signal, packet->getTransmissionId());
     // 5. clear internal state
     txDatarate = bps(NaN);
     txStartTime = -1;
     txStartClockTime = -1;
     lastTxProgressTime = -1;
     lastTxProgressPosition = b(-1);
     lastInputDatarate = bps(NaN);
     lastInputProgressTime = -1;
     lastInputProgressPosition = b(-1);
     // 6. notify producer
     auto gate = inputGate->getPathStartGate();
     if (producer != nullptr) {
         producer->handlePushPacketProcessed(packet, gate, true);
         producer->handleCanPushPacketChanged(gate);
     }
 }

Referenced by handleCrashOperation(), and handleStopOperation().

◆ endTx()

void inet::StreamThroughTransmitter::endTx ( )

protectedvirtual

 {
     // 1. check current state
     ASSERT(isTransmitting());
     // 2. send signal end to receiver and notify subscribers
     auto packet = check_and_cast<Packet *>(txSignal->getEncapsulatedPacket());
     EV_INFO << "Ending transmission" << EV_FIELD(packet) << EV_FIELD(datarate, txDatarate) << EV_ENDL;
     handlePacketProcessed(packet);
     emit(transmissionEndedSignal, txSignal);
     sendSignalEnd(txSignal, packet->getTransmissionId());
     // 3. clear internal state
     txSignal = nullptr;
     txDatarate = bps(NaN);
     txStartTime = -1;
     txStartClockTime = -1;
     lastTxProgressTime = -1;
     lastTxProgressPosition = b(-1);
     lastInputDatarate = bps(NaN);
     lastInputProgressTime = -1;
     lastInputProgressPosition = b(-1);
     // 4. notify producer
     auto gate = inputGate->getPathStartGate();
     if (producer != nullptr) {
         producer->handlePushPacketProcessed(packet, gate, true);
         producer->handleCanPushPacketChanged(gate);
     }
 }

Referenced by handleMessageWhenUp().

◆ handleCrashOperation()

void inet::StreamThroughTransmitter::handleCrashOperation ( LifecycleOperation * operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< PacketProcessorBase >.

 {
     if (isTransmitting())
         abortTx();
 }

◆ handleMessageWhenUp()

void inet::StreamThroughTransmitter::handleMessageWhenUp ( cMessage * message )

overrideprotectedvirtual

Reimplemented from inet::PacketTransmitterBase.

 {
     if (message == txEndTimer)
         endTx();
     else if (message == bufferUnderrunTimer)
         throw cRuntimeError("Buffer underrun during transmission");
     else
         StreamingTransmitterBase::handleMessageWhenUp(message);
     updateDisplayString();
 }

◆ handleStopOperation()

void inet::StreamThroughTransmitter::handleStopOperation ( LifecycleOperation * operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< PacketProcessorBase >.

 {
     if (isTransmitting())
         abortTx();
 }

◆ initialize()

void inet::StreamThroughTransmitter::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::StreamingTransmitterBase.

 {
     StreamingTransmitterBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL)
         bufferUnderrunTimer = new cMessage("BufferUnderrunTimer");
 }

◆ progressTx()

void inet::StreamThroughTransmitter::progressTx	(	Packet *	packet,
		bps	datarate,
		b	position
	)

protectedvirtual

 {
     // 1. check current state
     ASSERT(isTransmitting());
     // 2. store input progress
     b inputProgressPosition = lastInputProgressPosition + b(std::floor((simTime() - lastInputProgressTime).dbl() * lastInputDatarate.get()));
     auto txPacket = check_and_cast<Packet *>(txSignal->getEncapsulatedPacket());
     bool isInputProgressAtEnd = inputProgressPosition == packet->getTotalLength() && packet->getTotalLength() == txPacket->getTotalLength();
     bool isPacketUnchangedSinceLastProgress = isInputProgressAtEnd || packet->peekAll()->containsSameData(*txPacket->peekAll().get());
     lastInputDatarate = datarate;
     lastInputProgressTime = simTime();
     lastInputProgressPosition = position;
     // 3. store transmission progress
     clocktime_t timePosition = getClockTime() - txStartClockTime;
     lastTxProgressTime = simTime();
     lastTxProgressPosition = b(std::floor(txDatarate.get() * timePosition.dbl()));
     if (isPacketUnchangedSinceLastProgress)
         delete packet;
     else {
         // 4. create progress signal
         auto signal = encodePacket(packet);
         delete txSignal;
         txSignal = signal->dup();
         // 5. send signal progress
         EV_INFO << "Progressing transmission" << EV_FIELD(packet) << EV_FIELD(datarate, txDatarate) << EV_ENDL;
         sendSignalProgress(signal, packet->getTransmissionId(), lastTxProgressPosition, timePosition);
     }
     // 6. reschedule timers
     scheduleTxEndTimer(txSignal);
     scheduleBufferUnderrunTimer();
 }

Referenced by pushPacketEnd(), and pushPacketProgress().

◆ pushPacket()

virtual void inet::StreamThroughTransmitter::pushPacket	(	Packet *	packet,
		cGate *	gate
	)

inlineoverridevirtual

Pushes the packet into the packet sink at the given gate.

This operation pushes the packet as a whole. The onwership of the packet is transferred to the sink.

This method is called, for example, when a packet source module pushes a packet into a queue module.

The sink must not be full at the gate. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and passing packets.

Implements inet::queueing::IPassivePacketSink.

47 { throw cRuntimeError("Invalid operation"); }

◆ pushPacketEnd()

void inet::StreamThroughTransmitter::pushPacketEnd	(	Packet *	packet,
		cGate *	gate
	)

overridevirtual

Ends pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, when a preemption supporting server module ends streaming a packet to the sink.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Reimplemented from inet::PacketTransmitterBase.

 {
     Enter_Method("pushPacketEnd");
     ASSERT(txSignal != nullptr);
     take(packet);
     progressTx(packet, bps(NaN), packet->getTotalLength());
     updateDisplayString();
 }

◆ pushPacketProgress()

void inet::StreamThroughTransmitter::pushPacketProgress	(	Packet *	packet,
		cGate *	gate,
		bps	datarate,
		b	position,
		b	extraProcessableLength = `b(0)`
	)

overridevirtual

Progresses pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The position specifies where the packet streaming is at the moment. The extra length parameter partially fixes the future of the packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, to notify the sink about a change in the packet data when a preemption occurs.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Reimplemented from inet::PacketTransmitterBase.

 {
     Enter_Method("pushPacketProgress");
     take(packet);
     if (isTransmitting())
         progressTx(packet, datarate, position);
     else
         startTx(packet, datarate, position);
     updateDisplayString();
 }

◆ pushPacketStart()

void inet::StreamThroughTransmitter::pushPacketStart	(	Packet *	packet,
		cGate *	gate,
		bps	datarate
	)

overridevirtual

Starts pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, when a preemption supporting server module starts streaming a packet to the sink.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Reimplemented from inet::PacketTransmitterBase.

 {
     Enter_Method("pushPacketStart");
     take(packet);
     startTx(packet, datarate, b(0));
     updateDisplayString();
 }

◆ scheduleBufferUnderrunTimer()

void inet::StreamThroughTransmitter::scheduleBufferUnderrunTimer ( )

protectedvirtual

 {
     cancelEvent(bufferUnderrunTimer);
     if (lastInputDatarate < txDatarate) {
         // Underrun occurs when the following two values become equal:
         // inputProgressPosition = lastInputProgressPosition + inputDatarate * (simTime() - lastInputProgressTime)
         // txProgressPosition = lastTxProgressPosition + txDatarate * (simTime() - lastTxProgressTime)
         simtime_t bufferUnderrunTime = s((-lastInputProgressPosition + lastInputDatarate * s(lastInputProgressTime.dbl()) + lastTxProgressPosition - txDatarate * s(lastTxProgressTime.dbl())) / (lastInputDatarate - txDatarate)).get();
         EV_INFO << "Scheduling buffer underrun timer" << EV_FIELD(at, bufferUnderrunTime.ustr()) << EV_ENDL;
         scheduleAt(bufferUnderrunTime, bufferUnderrunTimer);
     }
 }

Referenced by progressTx(), and startTx().

◆ startTx()

void inet::StreamThroughTransmitter::startTx	(	Packet *	packet,
		bps	datarate,
		b	position
	)

protectedvirtual

 {
     // 1. check current state
     ASSERT(!isTransmitting());
     // 2. store input progress
     lastInputDatarate = datarate;
     lastInputProgressTime = simTime();
     lastInputProgressPosition = position;
     // 3. store transmission progress
     txDatarate = bps(*dataratePar);
     txStartTime = simTime();
     txStartClockTime = getClockTime();
     lastTxProgressTime = simTime();
     lastTxProgressPosition = b(0);
     // 4. create signal
     auto signal = encodePacket(packet);
     txSignal = signal->dup();
     // 5. send signal start and notify subscribers
     EV_INFO << "Starting transmission" << EV_FIELD(packet) << EV_FIELD(datarate, txDatarate) << EV_ENDL;
     emit(transmissionStartedSignal, signal);
     sendSignalStart(signal, packet->getTransmissionId());
     // 6. schedule transmission end timer and buffer underrun timer
     scheduleTxEndTimer(txSignal);
     scheduleBufferUnderrunTimer();
 }

Referenced by pushPacketProgress(), and pushPacketStart().

◆ supportsPacketStreaming()

virtual bool inet::StreamThroughTransmitter::supportsPacketStreaming ( cGate * gate ) const

inlineoverridevirtual

Returns true if the processor supports streaming packets at the given gate.

A streamed packet is handed over from one module to another using several method calls and potentially exending to a non-zero simulation duration.

For example, packets are streamed to a preemptable signal transmitter module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(stream) in the NED file.

Reimplemented from inet::queueing::PacketProcessorBase.

45 { return true; }

Member Data Documentation

◆ bufferUnderrunTimer

cMessage* inet::StreamThroughTransmitter::bufferUnderrunTimer = nullptr

protected

Referenced by handleMessageWhenUp(), initialize(), and scheduleBufferUnderrunTimer().

◆ lastInputDatarate

bps inet::StreamThroughTransmitter::lastInputDatarate = bps(NaN)

protected

Referenced by abortTx(), endTx(), progressTx(), scheduleBufferUnderrunTimer(), and startTx().

◆ lastInputProgressPosition

b inet::StreamThroughTransmitter::lastInputProgressPosition = b(-1)

protected

Referenced by abortTx(), endTx(), progressTx(), scheduleBufferUnderrunTimer(), and startTx().

◆ lastInputProgressTime

simtime_t inet::StreamThroughTransmitter::lastInputProgressTime = -1

protected

Referenced by abortTx(), endTx(), progressTx(), scheduleBufferUnderrunTimer(), and startTx().

◆ lastTxProgressPosition

b inet::StreamThroughTransmitter::lastTxProgressPosition = b(-1)

protected

Referenced by abortTx(), endTx(), progressTx(), scheduleBufferUnderrunTimer(), and startTx().

◆ lastTxProgressTime

simtime_t inet::StreamThroughTransmitter::lastTxProgressTime = -1

protected

Referenced by abortTx(), endTx(), progressTx(), scheduleBufferUnderrunTimer(), and startTx().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ ~StreamThroughTransmitter()

Member Function Documentation

◆ abortTx()

◆ endTx()

◆ handleCrashOperation()

◆ handleMessageWhenUp()

◆ handleStopOperation()

◆ initialize()

◆ progressTx()

◆ pushPacket()

◆ pushPacketEnd()

◆ pushPacketProgress()

◆ pushPacketStart()

◆ scheduleBufferUnderrunTimer()

◆ startTx()

◆ supportsPacketStreaming()

Member Data Documentation

◆ bufferUnderrunTimer

◆ lastInputDatarate

◆ lastInputProgressPosition

◆ lastInputProgressTime

◆ lastTxProgressPosition

◆ lastTxProgressTime
