inet::physicallayer::Signal Class Reference

#include <Signal.h>

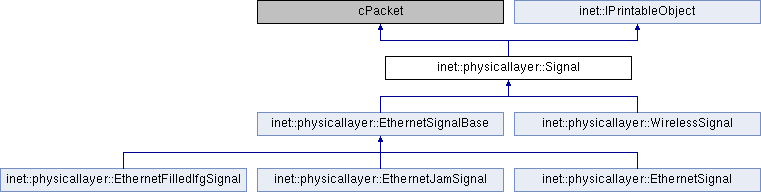

Inheritance diagram for inet::physicallayer::Signal:

Public Member Functions
	Signal (const char *name=nullptr, short kind=0, int64_t bitLength=0)
	Signal (const Signal &other)
virtual Signal *	dup () const override
virtual const char *	getFullName () const override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Signal() [1/2]

inet::physicallayer::Signal::Signal ( const char *  name = nullptr, short  kind = 0, int64_t  bitLength = 0  )

explicit

                                                              :
    cPacket(name, kind, bitLength)
{
}

Signal() [2/2]

inet::physicallayer::Signal::Signal

(

const Signal &

other

)

                                  :
    cPacket(other)
{
}

Member Function Documentation

dup()

virtual Signal* inet::physicallayer::Signal::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::physicallayer::EthernetFilledIfgSignal, inet::physicallayer::EthernetJamSignal, inet::physicallayer::EthernetSignal, inet::physicallayer::EthernetSignalBase, and inet::physicallayer::WirelessSignal.

{ return new Signal(*this); }

Referenced by inet::StreamThroughTransmitter::progressTx(), inet::StreamingTransmitterBase::scheduleAt(), inet::StreamingTransmitter::startTx(), inet::PacketTransmitter::startTx(), and inet::StreamThroughTransmitter::startTx().

getFullName()

const char * inet::physicallayer::Signal::getFullName ( ) const

overridevirtual

{
    if (!isUpdate())
        return getName();
    else {
        const char *suffix;
        if (getRemainingDuration().isZero())
            suffix = ":end";
        else if (getRemainingDuration() == getDuration())
            suffix = ":start";
        else
            suffix = ":progress";
        static std::set<std::string> pool;
        std::string fullname = std::string(getName()) + suffix;
        auto it = pool.insert(fullname).first;
        return it->c_str();
    }
}

printToStream()

std::ostream & inet::physicallayer::Signal::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::WirelessSignal.

{
    std::string className = getClassName();
    auto index = className.rfind("::");
    if (index != std::string::npos)
        className = className.substr(index + 2);
    if (level <= PRINT_LEVEL_DETAIL)
        stream << EV_FAINT << "(" << className << ")" << EV_NORMAL;
    stream << EV_ITALIC << getName() << EV_NORMAL << " (" << simsec(getDuration()) << " " << b(getBitLength()) << ")";
    auto packet = check_and_cast<Packet *>(getEncapsulatedPacket());
    packet->printToStream(stream, level + 1, evFlags);
    return stream;
}

str()

std::string inet::physicallayer::Signal::str ( ) const

overridevirtual

{
    std::stringstream stream;
    stream << "(" << simsec(getDuration()) << " " << b(getBitLength()) << ")";
    if (auto packet = getEncapsulatedPacket())
        stream << " " << packet;
    return stream.str();
}

---

The documentation for this class was generated from the following files:

• Signal.h
• Signal.cc
