inet::physicallayer::WirelessSignal Class Reference

#include <WirelessSignal.h>

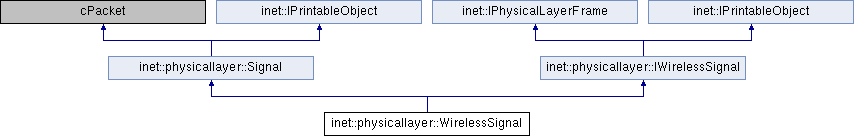

Inheritance diagram for inet::physicallayer::WirelessSignal:

Public Member Functions
	WirelessSignal (const ITransmission *transmission)
	WirelessSignal (const WirelessSignal &other)
virtual WirelessSignal *	dup () const override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const IRadio *	getTransmitter () const
virtual const IRadio *	getReceiver () const
virtual const ITransmission *	getTransmission () const override
	Returns the radio signal transmission that this signal represents. More...
virtual const IArrival *	getArrival () const override
	This function may return nullptr if this is not yet computed. More...
virtual const IListening *	getListening () const override
	This function may return nullptr if this is not yet computed. More...
virtual const IReception *	getReception () const override
	This function may return nullptr if this is not yet computed. More...
Public Member Functions inherited from inet::physicallayer::Signal
	Signal (const char *name=nullptr, short kind=0, int64_t bitLength=0)
	Signal (const Signal &other)
virtual const char *	getFullName () const override
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const
Public Member Functions inherited from inet::IPhysicalLayerFrame
virtual	~IPhysicalLayerFrame ()

Protected Member Functions
bool	isDup () const

Protected Attributes
const int	transmissionId
const ITransmission *	transmission
const IRadioMedium *	radioMedium
const IRadio *	receiver = nullptr
const IArrival *	arrival = nullptr
const IListening *	listening = nullptr
const IReception *	reception = nullptr

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

WirelessSignal() [1/2]

inet::physicallayer::WirelessSignal::WirelessSignal

(

const ITransmission *

transmission

)

                                                                :
    transmissionId(transmission->getId()),
    transmission(transmission),
    radioMedium(transmission->getTransmitter()->getMedium())
{
}

WirelessSignal() [2/2]

inet::physicallayer::WirelessSignal::WirelessSignal

(

const WirelessSignal &

other

)

                                                          :
    Signal(other),
    transmissionId(other.transmissionId),
    transmission(nullptr),
    radioMedium(other.radioMedium)
{
}

Member Function Documentation

dup()

virtual WirelessSignal* inet::physicallayer::WirelessSignal::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::physicallayer::Signal.

{ return new WirelessSignal(*this); }

getArrival()

const IArrival * inet::physicallayer::WirelessSignal::getArrival ( ) const

overridevirtual

This function may return nullptr if this is not yet computed.

Implements inet::physicallayer::IWirelessSignal.

{
    if (!isDup()) {
        if (arrival == nullptr)
            arrival = radioMedium->getArrival(getReceiver(), transmission);
        return arrival;
    }
    else {
        auto transmission = getTransmission();
        return transmission != nullptr ? radioMedium->getArrival(getReceiver(), transmission) : nullptr;
    }
}

Referenced by inet::physicallayer::Radio::continueReception(), inet::physicallayer::Radio::endReception(), and inet::physicallayer::Radio::startReception().

getListening()

const IListening * inet::physicallayer::WirelessSignal::getListening ( ) const

overridevirtual

This function may return nullptr if this is not yet computed.

Implements inet::physicallayer::IWirelessSignal.

{
    if (!isDup()) {
        if (listening == nullptr)
            listening = radioMedium->getListening(getReceiver(), transmission);
        return listening;
    }
    else {
        auto transmission = getTransmission();
        return transmission != nullptr ? radioMedium->getListening(getReceiver(), transmission) : nullptr;
    }
}

getReceiver()

const IRadio * inet::physicallayer::WirelessSignal::getReceiver ( ) const

virtual

{
    if (receiver == nullptr)
        receiver = check_and_cast<const IRadio *>(getArrivalModule());
    return receiver;
}

Referenced by getArrival(), getListening(), and getReception().

getReception()

const IReception * inet::physicallayer::WirelessSignal::getReception ( ) const

overridevirtual

This function may return nullptr if this is not yet computed.

Implements inet::physicallayer::IWirelessSignal.

{
    if (!isDup()) {
        if (reception == nullptr)
            reception = radioMedium->getReception(getReceiver(), transmission);
        return reception;
    }
    else {
        auto transmission = getTransmission();
        return transmission != nullptr ? radioMedium->getReception(getReceiver(), transmission) : nullptr;
    }
}

Referenced by inet::physicallayer::Radio::abortReception().

getTransmission()

const ITransmission * inet::physicallayer::WirelessSignal::getTransmission ( ) const

overridevirtual

Returns the radio signal transmission that this signal represents.

This function never returns nullptr.

Implements inet::physicallayer::IWirelessSignal.

{
    if (!isDup())
        return transmission;
    else
        return radioMedium->getTransmission(transmissionId);
}

Referenced by inet::physicallayer::Radio::abortTransmission(), inet::physicallayer::Radio::continueTransmission(), inet::physicallayer::Radio::endTransmission(), getArrival(), getListening(), getReception(), getTransmitter(), and inet::physicallayer::NoiseSource::startTransmission().

getTransmitter()

const IRadio * inet::physicallayer::WirelessSignal::getTransmitter ( ) const

virtual

{
    auto transmission = getTransmission();
    return transmission != nullptr ? transmission->getTransmitter() : nullptr;
}

isDup()

bool inet::physicallayer::WirelessSignal::isDup ( ) const

inlineprotected

{ return transmission == nullptr; }

Referenced by getArrival(), getListening(), getReception(), and getTransmission().

printToStream()

std::ostream & inet::physicallayer::WirelessSignal::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::Signal.

{
    return stream << (cPacket *)this;
}

Member Data Documentation

arrival

const IArrival* inet::physicallayer::WirelessSignal::arrival = nullptr

mutableprotected

Referenced by getArrival().

listening

const IListening* inet::physicallayer::WirelessSignal::listening = nullptr

mutableprotected

Referenced by getListening().

radioMedium

const IRadioMedium* inet::physicallayer::WirelessSignal::radioMedium

protected

Referenced by getArrival(), getListening(), getReception(), and getTransmission().

receiver

const IRadio* inet::physicallayer::WirelessSignal::receiver = nullptr

mutableprotected

Referenced by getReceiver().

reception

const IReception* inet::physicallayer::WirelessSignal::reception = nullptr

mutableprotected

Referenced by getReception().

transmission

const ITransmission* inet::physicallayer::WirelessSignal::transmission

protected

Referenced by getArrival(), getListening(), getReception(), getTransmission(), and getTransmitter().

transmissionId

const int inet::physicallayer::WirelessSignal::transmissionId

protected

Referenced by getTransmission().

---

The documentation for this class was generated from the following files:

• WirelessSignal.h
• WirelessSignal.cc
