This interface represents a physical device that is capable of transmitting and receiving radio signals. More...

#include <IRadio.h>

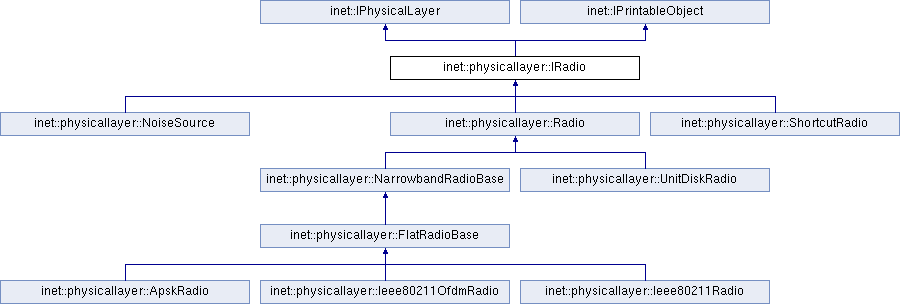

Inheritance diagram for inet::physicallayer::IRadio:

Public Types
enum	RadioMode { RADIO_MODE_OFF, RADIO_MODE_SLEEP, RADIO_MODE_RECEIVER, RADIO_MODE_TRANSMITTER, RADIO_MODE_TRANSCEIVER, RADIO_MODE_SWITCHING }
	This enumeration specifies the requested operational mode of the radio. More...

enum	ReceptionState { RECEPTION_STATE_UNDEFINED, RECEPTION_STATE_IDLE, RECEPTION_STATE_BUSY, RECEPTION_STATE_RECEIVING }
	This enumeration specifies the reception state of the radio. More...

enum	TransmissionState { TRANSMISSION_STATE_UNDEFINED, TRANSMISSION_STATE_IDLE, TRANSMISSION_STATE_TRANSMITTING }
	This enumeration specifies the transmission state of the radio. More...

Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Public Member Functions
virtual const cGate *	getRadioGate () const =0
	Returns the gate of the radio that receives incoming signals. More...

virtual RadioMode	getRadioMode () const =0
	Returns the current radio mode, This is the same mode as the one emitted with the last radioModeChangedSignal. More...

virtual void	setRadioMode (RadioMode radioMode)=0
	Changes the current radio mode. More...

virtual ReceptionState	getReceptionState () const =0
	Returns the current radio reception state. More...

virtual TransmissionState	getTransmissionState () const =0
	Returns the current radio transmission state. More...

virtual int	getId () const =0
	Returns an identifier for this radio which is globally unique for the whole lifetime of the simulation among all radios. More...

virtual const IAntenna *	getAntenna () const =0
	Returns the antenna used by the transceiver of this radio. More...

virtual const ITransmitter *	getTransmitter () const =0
	Returns the transmitter part of this radio. More...

virtual const IReceiver *	getReceiver () const =0
	Returns the receiver part of this radio. More...

virtual const IRadioMedium *	getMedium () const =0
	Returns the radio medium where this radio is transmitting and receiving radio signals. More...

virtual const ITransmission *	getTransmissionInProgress () const =0
	Returns the ongoing transmission that the transmitter is currently transmitting or nullptr. More...

virtual const ITransmission *	getReceptionInProgress () const =0
	Returns the ongoing reception that the receiver is currently receiving or nullptr. More...

virtual IRadioSignal::SignalPart	getTransmittedSignalPart () const =0
	Returns the signal part of the ongoing transmission that the transmitter is currently transmitting or -1 if no transmission is in progress. More...

virtual IRadioSignal::SignalPart	getReceivedSignalPart () const =0
	Returns the signal part of the ongoing reception that the receiver is currently receiving or -1 if no reception is in progress. More...

Public Member Functions inherited from inet::IPhysicalLayer
virtual	~IPhysicalLayer ()

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Static Public Member Functions
static const char *	getRadioModeName (RadioMode radioMode)
	Returns the name of the provided radio mode. More...

static const char *	getRadioReceptionStateName (ReceptionState receptionState)
	Returns the name of the provided radio reception state. More...

static const char *	getRadioTransmissionStateName (TransmissionState transmissionState)
	Returns the name of the provided radio transmission state. More...

Static Public Attributes
static simsignal_t	radioModeChangedSignal = cComponent::registerSignal("radioModeChanged")
	This signal is emitted when the radio mode of the radio is changed. More...

static simsignal_t	listeningChangedSignal = cComponent::registerSignal("listeningChanged")
	This signal is emitted when the radio listening of the radio is changed. More...

static simsignal_t	receptionStateChangedSignal = cComponent::registerSignal("receptionStateChanged")
	This signal is emitted when the radio reception state of the radio is changed. More...

static simsignal_t	transmissionStateChangedSignal = cComponent::registerSignal("transmissionStateChanged")
	This signal is emitted when the radio transmission state of the radio is changed. More...

static simsignal_t	receivedSignalPartChangedSignal = cComponent::registerSignal("receivedSignalPartChanged")
	This signal is emitted when the received part is changed by the radio. More...

static simsignal_t	transmittedSignalPartChangedSignal = cComponent::registerSignal("transmittedSignalPartChanged")
	This signal is emitted when the transmitted part is changed by the radio. More...

Static Protected Attributes
static int	nextId = 0

static cEnum *	radioModeEnum = nullptr
	The enumeration registered for radio mode. More...

static cEnum *	receptionStateEnum = nullptr
	The enumeration registered for radio reception state. More...

static cEnum *	transmissionStateEnum = nullptr
	The enumeration registered for radio transmission state. More...

Detailed Description

This interface represents a physical device that is capable of transmitting and receiving radio signals.

Simultaneous reception and transmission is also supported. The radio has an operation mode and it provides the state of the radio medium at its position.

Member Enumeration Documentation

◆ RadioMode

enum inet::physicallayer::IRadio::RadioMode

This enumeration specifies the requested operational mode of the radio.

NOTE: Some parts of the code base may be sensitive to the order of the enum items because they may be used as an array index.

Enumerator
RADIO_MODE_OFF	The radio is turned off, frame reception or transmission is not possible, power consumption is zero, radio mode switching is slow.
RADIO_MODE_SLEEP	The radio is sleeping, frame reception or transmission is not possible, power consumption is minimal, radio mode switching is fast.
RADIO_MODE_RECEIVER	The radio is prepared for frame reception, frame transmission is not possible, power consumption is low when receiver is idle and medium when receiving.
RADIO_MODE_TRANSMITTER	The radio is prepared for frame transmission, frame reception is not possible, power consumption is low when transmitter is idle and high when transmitting.
RADIO_MODE_TRANSCEIVER	The radio is prepared for simultaneous frame reception and transmission, power consumption is low when transceiver is idle, medium when receiving and high when transmitting.
RADIO_MODE_SWITCHING	The radio is switching from one mode to another, frame reception or transmission is not possible, power consumption is minimal.

                    {
         RADIO_MODE_OFF,

         RADIO_MODE_SLEEP,

         RADIO_MODE_RECEIVER,

         RADIO_MODE_TRANSMITTER,

         RADIO_MODE_TRANSCEIVER,

         RADIO_MODE_SWITCHING // this radio mode must be the very last
     };

◆ ReceptionState

enum inet::physicallayer::IRadio::ReceptionState

This enumeration specifies the reception state of the radio.

This also determines the state of the radio medium.

Enumerator
RECEPTION_STATE_UNDEFINED	The radio medium state is unknown, reception state is meaningless, signal detection is not possible. (e.g. the radio mode is off, sleep or transmitter)
RECEPTION_STATE_IDLE	The radio medium is free, no signal is detected. (e.g. the RSSI is below the energy detection threshold)
RECEPTION_STATE_BUSY	The radio medium is busy, a signal is detected but it is not strong enough to receive. (e.g. the RSSI is above the energy detection threshold but below the reception threshold)
RECEPTION_STATE_RECEIVING	The radio medium is busy, a signal strong enough to receive is detected. (e.g. the SNIR was above the reception threshold)

                         {
         RECEPTION_STATE_UNDEFINED,

         RECEPTION_STATE_IDLE,

         RECEPTION_STATE_BUSY,

         RECEPTION_STATE_RECEIVING
     };

◆ TransmissionState

enum inet::physicallayer::IRadio::TransmissionState

This enumeration specifies the transmission state of the radio.

Enumerator

TRANSMISSION_STATE_UNDEFINED

The transmission state is undefined or meaningless.

(e.g. the radio mode is off, sleep or receiver)

TRANSMISSION_STATE_IDLE

The radio is not transmitting a signal on the radio medium.

(e.g. the last transmission has been completed)

TRANSMISSION_STATE_TRANSMITTING

The radio medium is busy, the radio is currently transmitting a signal.

                            {
         TRANSMISSION_STATE_UNDEFINED,

         TRANSMISSION_STATE_IDLE,

         TRANSMISSION_STATE_TRANSMITTING
     };

Member Function Documentation

◆ getAntenna()

virtual const IAntenna* inet::physicallayer::IRadio::getAntenna ( ) const

pure virtual

Returns the antenna used by the transceiver of this radio.

This function never returns nullptr.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

◆ getId()

virtual int inet::physicallayer::IRadio::getId ( ) const

pure virtual

Returns an identifier for this radio which is globally unique for the whole lifetime of the simulation among all radios.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

◆ getMedium()

virtual const IRadioMedium* inet::physicallayer::IRadio::getMedium ( ) const

pure virtual

Returns the radio medium where this radio is transmitting and receiving radio signals.

This function never returns nullptr.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

Referenced by inet::physicallayer::ReceiverBase::computeIsReceptionAttempted(), inet::physicallayer::FlatReceiverBase::computeListeningDecision(), inet::physicallayer::ApskLayeredReceiver::computeListeningDecision(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::computeListeningDecision(), inet::physicallayer::UnitDiskAnalogModel::computeReception(), inet::physicallayer::DimensionalAnalogModelBase::computeReceptionPower(), inet::physicallayer::ScalarAnalogModelBase::computeReceptionPower(), inet::L3NetworkConfiguratorBase::computeWirelessLinkWeight(), and inet::L3NetworkConfiguratorBase::getWirelessId().

◆ getRadioGate()

virtual const cGate* inet::physicallayer::IRadio::getRadioGate ( ) const

pure virtual

Returns the gate of the radio that receives incoming signals.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

Referenced by inet::physicallayer::RadioMedium::pickUpSignals(), and inet::physicallayer::RadioMedium::sendToRadio().

◆ getRadioMode()

virtual RadioMode inet::physicallayer::IRadio::getRadioMode ( ) const

pure virtual

Returns the current radio mode, This is the same mode as the one emitted with the last radioModeChangedSignal.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

◆ getRadioModeName()

const char * inet::physicallayer::IRadio::getRadioModeName ( RadioMode radioMode )

static

Returns the name of the provided radio mode.

 {
     if (!radioModeEnum)
         radioModeEnum = cEnum::get(opp_typename(typeid(IRadio::RadioMode)));
     return radioModeEnum->getStringFor(radioMode) + 11;
 }

Referenced by inet::physicallayer::Radio::completeRadioModeSwitch(), and inet::physicallayer::Radio::startRadioModeSwitch().

◆ getRadioReceptionStateName()

const char * inet::physicallayer::IRadio::getRadioReceptionStateName ( ReceptionState receptionState )

static

Returns the name of the provided radio reception state.

 {
     if (!receptionStateEnum)
         receptionStateEnum = cEnum::get(opp_typename(typeid(IRadio::ReceptionState)));
     return receptionStateEnum->getStringFor(receptionState) + 16;
 }

Referenced by inet::physicallayer::Radio::updateTransceiverState().

◆ getRadioTransmissionStateName()

const char * inet::physicallayer::IRadio::getRadioTransmissionStateName ( TransmissionState transmissionState )

static

Returns the name of the provided radio transmission state.

 {
     if (!transmissionStateEnum)
         transmissionStateEnum = cEnum::get(opp_typename(typeid(IRadio::TransmissionState)));
     return transmissionStateEnum->getStringFor(transmissionState) + 19;
 }

Referenced by inet::physicallayer::Radio::updateTransceiverState().

◆ getReceivedSignalPart()

virtual IRadioSignal::SignalPart inet::physicallayer::IRadio::getReceivedSignalPart ( ) const

pure virtual

Returns the signal part of the ongoing reception that the receiver is currently receiving or -1 if no reception is in progress.

This is the same part as the one emitted with the last receivedPartChangedSignal.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

◆ getReceiver()

virtual const IReceiver* inet::physicallayer::IRadio::getReceiver ( ) const

pure virtual

Returns the receiver part of this radio.

This function never returns nullptr.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

◆ getReceptionInProgress()

virtual const ITransmission* inet::physicallayer::IRadio::getReceptionInProgress ( ) const

pure virtual

Returns the ongoing reception that the receiver is currently receiving or nullptr.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

Referenced by inet::physicallayer::ReceiverBase::computeIsReceptionAttempted().

◆ getReceptionState()

virtual ReceptionState inet::physicallayer::IRadio::getReceptionState ( ) const

pure virtual

Returns the current radio reception state.

This is the same state as the one emitted with the last receptionStateChangedSignal.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

◆ getTransmissionInProgress()

virtual const ITransmission* inet::physicallayer::IRadio::getTransmissionInProgress ( ) const

pure virtual

Returns the ongoing transmission that the transmitter is currently transmitting or nullptr.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

◆ getTransmissionState()

virtual TransmissionState inet::physicallayer::IRadio::getTransmissionState ( ) const

pure virtual

Returns the current radio transmission state.

This is the same state as the one emitted with the last transmissionStateChangedSignal.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

◆ getTransmittedSignalPart()

virtual IRadioSignal::SignalPart inet::physicallayer::IRadio::getTransmittedSignalPart ( ) const

pure virtual

Returns the signal part of the ongoing transmission that the transmitter is currently transmitting or -1 if no transmission is in progress.

This is the same part as the one emitted with the last transmittedPartChangedSignal.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

◆ getTransmitter()

virtual const ITransmitter* inet::physicallayer::IRadio::getTransmitter ( ) const

pure virtual

Returns the transmitter part of this radio.

This function never returns nullptr.

Implemented in inet::physicallayer::Radio, inet::physicallayer::NoiseSource, and inet::physicallayer::ShortcutRadio.

Referenced by inet::L3NetworkConfiguratorBase::computeWirelessLinkWeight(), inet::physicallayer::RadioMedium::createTransmitterSignal(), inet::physicallayer::MediumLimitCache::getMaxCommunicationRange(), and inet::physicallayer::MediumLimitCache::getMaxInterferenceRange().

◆ setRadioMode()

virtual void inet::physicallayer::IRadio::setRadioMode ( RadioMode radioMode )

pure virtual

Changes the current radio mode.

The actual change may take zero or more time. The new radio mode will be emitted with a radioModeChangedSignal.

Implemented in inet::physicallayer::NoiseSource, and inet::physicallayer::Radio.

Member Data Documentation

◆ listeningChangedSignal

simsignal_t inet::physicallayer::IRadio::listeningChangedSignal = cComponent::registerSignal("listeningChanged")

static

This signal is emitted when the radio listening of the radio is changed.

The source is the radio and the emitted value is the new listening.

Referenced by inet::physicallayer::RadioMedium::addRadio(), inet::physicallayer::RadioMedium::receiveSignal(), inet::physicallayer::RadioMedium::removeRadio(), inet::physicallayer::Ieee80211Radio::setBand(), inet::physicallayer::Ieee80211Radio::setChannel(), inet::physicallayer::Ieee80211Radio::setChannelNumber(), inet::physicallayer::Ieee80211Radio::setMode(), and inet::physicallayer::Ieee80211Radio::setModeSet().

◆ nextId

int inet::physicallayer::IRadio::nextId = 0

staticprotected

◆ radioModeChangedSignal

simsignal_t inet::physicallayer::IRadio::radioModeChangedSignal = cComponent::registerSignal("radioModeChanged")

static

This signal is emitted when the radio mode of the radio is changed.

The source is the radio and the emitted value is the new radio mode.

Referenced by inet::physicallayer::RadioMedium::addRadio(), inet::physicallayer::Radio::completeRadioModeSwitch(), inet::physicallayer::StateBasedEpEnergyConsumer::initialize(), inet::physicallayer::StateBasedCcEnergyConsumer::initialize(), inet::ieee80211::Ieee80211Mac::initialize(), inet::BMac::initialize(), inet::XMac::initialize(), inet::LMac::initialize(), inet::physicallayer::StateBasedEpEnergyConsumer::receiveSignal(), inet::physicallayer::StateBasedCcEnergyConsumer::receiveSignal(), inet::BMac::receiveSignal(), inet::visualizer::RadioVisualizerBase::receiveSignal(), inet::XMac::receiveSignal(), inet::LMac::receiveSignal(), inet::physicallayer::RadioMedium::receiveSignal(), inet::physicallayer::RadioMedium::removeRadio(), inet::physicallayer::Radio::startRadioModeSwitch(), inet::visualizer::RadioVisualizerBase::subscribe(), and inet::visualizer::RadioVisualizerBase::unsubscribe().

◆ radioModeEnum

cEnum * inet::physicallayer::IRadio::radioModeEnum = nullptr

staticprotected

The enumeration registered for radio mode.

Referenced by getRadioModeName().

◆ receivedSignalPartChangedSignal

simsignal_t inet::physicallayer::IRadio::receivedSignalPartChangedSignal = cComponent::registerSignal("receivedSignalPartChanged")

static

This signal is emitted when the received part is changed by the radio.

The source is the radio and the emitted value is the new received part.

Referenced by inet::physicallayer::StateBasedEpEnergyConsumer::initialize(), inet::physicallayer::StateBasedCcEnergyConsumer::initialize(), inet::ieee80211::Ieee80211Mac::initialize(), inet::physicallayer::StateBasedEpEnergyConsumer::receiveSignal(), inet::physicallayer::StateBasedCcEnergyConsumer::receiveSignal(), inet::ieee80211::Ieee80211Mac::receiveSignal(), and inet::physicallayer::Radio::updateTransceiverPart().

◆ receptionStateChangedSignal

simsignal_t inet::physicallayer::IRadio::receptionStateChangedSignal = cComponent::registerSignal("receptionStateChanged")

static

This signal is emitted when the radio reception state of the radio is changed.

The source is the radio and the emitted value is the new radio reception state.

Referenced by inet::physicallayer::StateBasedEpEnergyConsumer::initialize(), inet::physicallayer::StateBasedCcEnergyConsumer::initialize(), inet::ieee80211::Ieee80211Mac::initialize(), inet::CsmaCaMac::initialize(), inet::ieee80211::Ieee80211MgmtSta::processScanCommand(), inet::physicallayer::StateBasedEpEnergyConsumer::receiveSignal(), inet::physicallayer::StateBasedCcEnergyConsumer::receiveSignal(), inet::ieee80211::Ieee80211Mac::receiveSignal(), inet::visualizer::RadioVisualizerBase::receiveSignal(), inet::CsmaCaMac::receiveSignal(), inet::ieee80211::Ieee80211MgmtSta::receiveSignal(), inet::ieee80211::Ieee80211MgmtSta::scanNextChannel(), inet::visualizer::RadioVisualizerBase::subscribe(), inet::visualizer::RadioVisualizerBase::unsubscribe(), and inet::physicallayer::Radio::updateTransceiverState().

◆ receptionStateEnum

cEnum * inet::physicallayer::IRadio::receptionStateEnum = nullptr

staticprotected

The enumeration registered for radio reception state.

Referenced by getRadioReceptionStateName().

◆ transmissionStateChangedSignal

simsignal_t inet::physicallayer::IRadio::transmissionStateChangedSignal = cComponent::registerSignal("transmissionStateChanged")

static

This signal is emitted when the radio transmission state of the radio is changed.

The source is the radio and the emitted value is the new radio transmission state.

◆ transmissionStateEnum

cEnum * inet::physicallayer::IRadio::transmissionStateEnum = nullptr

staticprotected

The enumeration registered for radio transmission state.

Referenced by getRadioTransmissionStateName().

◆ transmittedSignalPartChangedSignal

simsignal_t inet::physicallayer::IRadio::transmittedSignalPartChangedSignal = cComponent::registerSignal("transmittedSignalPartChanged")

static

This signal is emitted when the transmitted part is changed by the radio.

The source is the radio and the emitted value is the new transmitted part.

Referenced by inet::physicallayer::StateBasedEpEnergyConsumer::initialize(), inet::physicallayer::StateBasedCcEnergyConsumer::initialize(), inet::physicallayer::StateBasedEpEnergyConsumer::receiveSignal(), inet::physicallayer::StateBasedCcEnergyConsumer::receiveSignal(), and inet::physicallayer::Radio::updateTransceiverPart().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ RadioMode

◆ ReceptionState

◆ TransmissionState

Member Function Documentation

◆ getAntenna()

◆ getId()

◆ getMedium()

◆ getRadioGate()

◆ getRadioMode()

◆ getRadioModeName()

◆ getRadioReceptionStateName()

◆ getRadioTransmissionStateName()

◆ getReceivedSignalPart()

◆ getReceiver()

◆ getReceptionInProgress()

◆ getReceptionState()

◆ getTransmissionInProgress()

◆ getTransmissionState()

◆ getTransmittedSignalPart()

◆ getTransmitter()

◆ setRadioMode()

Member Data Documentation

◆ listeningChangedSignal

◆ nextId

◆ radioModeChangedSignal

◆ radioModeEnum

◆ receivedSignalPartChangedSignal

◆ receptionStateChangedSignal

◆ receptionStateEnum

◆ transmissionStateChangedSignal

◆ transmissionStateEnum

◆ transmittedSignalPartChangedSignal
