inet::physicallayer::ReceptionBase Class Reference

#include <ReceptionBase.h>

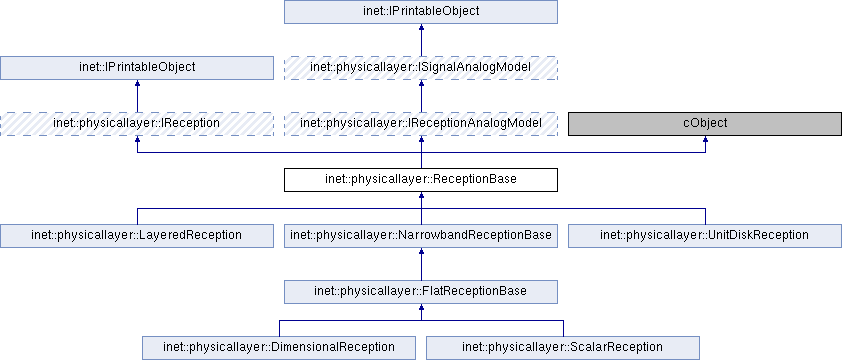

Inheritance diagram for inet::physicallayer::ReceptionBase:

Public Member Functions
	ReceptionBase (const IRadio *receiver, const ITransmission *transmission, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation)
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const IRadio *	getReceiver () const override
	Returns the receiver that received the corresponding transmission from the radio medium. More...
virtual const ITransmission *	getTransmission () const override
	Returns the transmission that corresponds to this reception at the receiver. More...
virtual const simtime_t	getStartTime () const override
	Returns the time when the receiver started to receive the corresponding transmission. More...
virtual const simtime_t	getEndTime () const override
	Returns the time when the receiver ended to receive the corresponding transmission. More...
virtual const simtime_t	getStartTime (IRadioSignal::SignalPart part) const override
virtual const simtime_t	getEndTime (IRadioSignal::SignalPart part) const override
virtual const simtime_t	getPreambleStartTime () const override
virtual const simtime_t	getPreambleEndTime () const override
virtual const simtime_t	getHeaderStartTime () const override
virtual const simtime_t	getHeaderEndTime () const override
virtual const simtime_t	getDataStartTime () const override
virtual const simtime_t	getDataEndTime () const override
virtual const simtime_t	getDuration () const override
	Returns the total length of this reception. More...
virtual const simtime_t	getDuration (IRadioSignal::SignalPart part) const override
	Returns the length of the provided part of this reception. More...
virtual const simtime_t	getPreambleDuration () const override
	Returns the length of the preamble part of this reception. More...
virtual const simtime_t	getHeaderDuration () const override
	Returns the length of the header part of this reception. More...
virtual const simtime_t	getDataDuration () const override
	Returns the length of the data part of this reception. More...
virtual const Coord &	getStartPosition () const override
	Returns the antenna's position when the receiver started to receive the corresponding transmission. More...
virtual const Coord &	getEndPosition () const override
	Returns the antenna's position when the receiver ended to receive the corresponding transmission. More...
virtual const Quaternion &	getStartOrientation () const override
	Returns the antenna's orientation when the receiver started to receive the corresponding transmission. More...
virtual const Quaternion &	getEndOrientation () const override
	Returns the antenna's orientation when the receiver ended to receive the corresponding transmission. More...
virtual const IReceptionAnalogModel *	getAnalogModel () const override
	Returns the analog model of the received signal. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const IRadio *	receiver
const ITransmission *	transmission
const simtime_t	startTime
const simtime_t	endTime
const simtime_t	preambleDuration
const simtime_t	headerDuration
const simtime_t	dataDuration
const Coord	startPosition
const Coord	endPosition
const Quaternion	startOrientation
const Quaternion	endOrientation

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

ReceptionBase()

inet::physicallayer::ReceptionBase::ReceptionBase	(	const IRadio *	receiver,
		const ITransmission *	transmission,
		const simtime_t	startTime,
		const simtime_t	endTime,
		const Coord &	startPosition,
		const Coord &	endPosition,
		const Quaternion &	startOrientation,
		const Quaternion &	endOrientation
	)

                                                                                                                                                                                                                                                                      :
    receiver(receiver),
    transmission(transmission),
    startTime(startTime),
    endTime(endTime),
    preambleDuration(transmission->getPreambleDuration()),
    headerDuration(transmission->getHeaderDuration()),
    dataDuration(transmission->getDataDuration()),
    startPosition(startPosition),
    endPosition(endPosition),
    startOrientation(startOrientation),
    endOrientation(endOrientation)
{
}

Member Function Documentation

getAnalogModel()

virtual const IReceptionAnalogModel* inet::physicallayer::ReceptionBase::getAnalogModel ( ) const

inlineoverridevirtual

Returns the analog model of the received signal.

Implements inet::physicallayer::IReception.

Reimplemented in inet::physicallayer::LayeredReception.

{ return check_and_cast<const IReceptionAnalogModel *>(this); }

getDataDuration()

virtual const simtime_t inet::physicallayer::ReceptionBase::getDataDuration ( ) const

inlineoverridevirtual

Returns the length of the data part of this reception.

Implements inet::physicallayer::IReception.

{ return dataDuration; }

Referenced by getDuration().

getDataEndTime()

virtual const simtime_t inet::physicallayer::ReceptionBase::getDataEndTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IReception.

{ return endTime; }

Referenced by getEndTime().

getDataStartTime()

virtual const simtime_t inet::physicallayer::ReceptionBase::getDataStartTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IReception.

{ return endTime - dataDuration; }

Referenced by getStartTime().

getDuration() [1/2]

virtual const simtime_t inet::physicallayer::ReceptionBase::getDuration ( ) const

inlineoverridevirtual

Returns the total length of this reception.

Implements inet::physicallayer::IReception.

{ return endTime - startTime; }

Referenced by getDuration().

getDuration() [2/2]

const simtime_t inet::physicallayer::ReceptionBase::getDuration ( IRadioSignal::SignalPart  part ) const

overridevirtual

Returns the length of the provided part of this reception.

Implements inet::physicallayer::IReception.

{
    switch (part) {
        case IRadioSignal::SIGNAL_PART_WHOLE:
            return getDuration();
        case IRadioSignal::SIGNAL_PART_PREAMBLE:
            return getPreambleDuration();
        case IRadioSignal::SIGNAL_PART_HEADER:
            return getHeaderDuration();
        case IRadioSignal::SIGNAL_PART_DATA:
            return getDataDuration();
        default:
            throw cRuntimeError("Unknown signal part: '%s'", IRadioSignal::getSignalPartName(part));
    }
}

getEndOrientation()

virtual const Quaternion& inet::physicallayer::ReceptionBase::getEndOrientation ( ) const

inlineoverridevirtual

Returns the antenna's orientation when the receiver ended to receive the corresponding transmission.

Implements inet::physicallayer::IReception.

{ return endOrientation; }

getEndPosition()

virtual const Coord& inet::physicallayer::ReceptionBase::getEndPosition ( ) const

inlineoverridevirtual

Returns the antenna's position when the receiver ended to receive the corresponding transmission.

Implements inet::physicallayer::IReception.

{ return endPosition; }

getEndTime() [1/2]

virtual const simtime_t inet::physicallayer::ReceptionBase::getEndTime ( ) const

inlineoverridevirtual

Returns the time when the receiver ended to receive the corresponding transmission.

It is the end of the last bit's reception.

Implements inet::physicallayer::IReception.

{ return endTime; }

Referenced by getEndTime().

getEndTime() [2/2]

const simtime_t inet::physicallayer::ReceptionBase::getEndTime ( IRadioSignal::SignalPart  part ) const

overridevirtual

Implements inet::physicallayer::IReception.

{
    switch (part) {
        case IRadioSignal::SIGNAL_PART_WHOLE:
            return getEndTime();
        case IRadioSignal::SIGNAL_PART_PREAMBLE:
            return getPreambleEndTime();
        case IRadioSignal::SIGNAL_PART_HEADER:
            return getHeaderEndTime();
        case IRadioSignal::SIGNAL_PART_DATA:
            return getDataEndTime();
        default:
            throw cRuntimeError("Unknown signal part: '%s'", IRadioSignal::getSignalPartName(part));
    }
}

getHeaderDuration()

virtual const simtime_t inet::physicallayer::ReceptionBase::getHeaderDuration ( ) const

inlineoverridevirtual

Returns the length of the header part of this reception.

Implements inet::physicallayer::IReception.

{ return headerDuration; }

Referenced by getDuration().

getHeaderEndTime()

virtual const simtime_t inet::physicallayer::ReceptionBase::getHeaderEndTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IReception.

{ return endTime - dataDuration; }

Referenced by getEndTime().

getHeaderStartTime()

virtual const simtime_t inet::physicallayer::ReceptionBase::getHeaderStartTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IReception.

{ return startTime + preambleDuration; }

Referenced by getStartTime().

getPreambleDuration()

virtual const simtime_t inet::physicallayer::ReceptionBase::getPreambleDuration ( ) const

inlineoverridevirtual

Returns the length of the preamble part of this reception.

Implements inet::physicallayer::IReception.

{ return preambleDuration; }

Referenced by getDuration().

getPreambleEndTime()

virtual const simtime_t inet::physicallayer::ReceptionBase::getPreambleEndTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IReception.

{ return startTime + preambleDuration; }

Referenced by getEndTime().

getPreambleStartTime()

virtual const simtime_t inet::physicallayer::ReceptionBase::getPreambleStartTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IReception.

{ return startTime; }

Referenced by getStartTime().

getReceiver()

virtual const IRadio* inet::physicallayer::ReceptionBase::getReceiver ( ) const

inlineoverridevirtual

Returns the receiver that received the corresponding transmission from the radio medium.

This function never returns nullptr.

Implements inet::physicallayer::IReception.

{ return receiver; }

getStartOrientation()

virtual const Quaternion& inet::physicallayer::ReceptionBase::getStartOrientation ( ) const

inlineoverridevirtual

Returns the antenna's orientation when the receiver started to receive the corresponding transmission.

Implements inet::physicallayer::IReception.

{ return startOrientation; }

getStartPosition()

virtual const Coord& inet::physicallayer::ReceptionBase::getStartPosition ( ) const

inlineoverridevirtual

Returns the antenna's position when the receiver started to receive the corresponding transmission.

Implements inet::physicallayer::IReception.

{ return startPosition; }

getStartTime() [1/2]

virtual const simtime_t inet::physicallayer::ReceptionBase::getStartTime ( ) const

inlineoverridevirtual

Returns the time when the receiver started to receive the corresponding transmission.

It is the start of the first bit's reception.

Implements inet::physicallayer::IReception.

{ return startTime; }

Referenced by getStartTime().

getStartTime() [2/2]

const simtime_t inet::physicallayer::ReceptionBase::getStartTime ( IRadioSignal::SignalPart  part ) const

overridevirtual

Implements inet::physicallayer::IReception.

{
    switch (part) {
        case IRadioSignal::SIGNAL_PART_WHOLE:
            return getStartTime();
        case IRadioSignal::SIGNAL_PART_PREAMBLE:
            return getPreambleStartTime();
        case IRadioSignal::SIGNAL_PART_HEADER:
            return getHeaderStartTime();
        case IRadioSignal::SIGNAL_PART_DATA:
            return getDataStartTime();
        default:
            throw cRuntimeError("Unknown signal part: '%s'", IRadioSignal::getSignalPartName(part));
    }
}

getTransmission()

virtual const ITransmission* inet::physicallayer::ReceptionBase::getTransmission ( ) const

inlineoverridevirtual

Returns the transmission that corresponds to this reception at the receiver.

This function never returns nullptr.

Implements inet::physicallayer::IReception.

{ return transmission; }

printToStream()

std::ostream & inet::physicallayer::ReceptionBase::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::UnitDiskReception, inet::physicallayer::LayeredReception, inet::physicallayer::NarrowbandReceptionBase, and inet::physicallayer::ScalarReception.

{
    if (level <= PRINT_LEVEL_DETAIL)
        stream << EV_FIELD(transmissionId, transmission->getId());
    if (level <= PRINT_LEVEL_TRACE)
        stream << EV_FIELD(receiverId, receiver->getId())
               << EV_FIELD(startTime)
               << EV_FIELD(endTime)
               << EV_FIELD(preambleDuration)
               << EV_FIELD(headerDuration)
               << EV_FIELD(dataDuration)
               << EV_FIELD(startPosition)
               << EV_FIELD(endPosition)
               << EV_FIELD(startOrientation)
               << EV_FIELD(endOrientation);
    return stream;
}

Referenced by inet::physicallayer::NarrowbandReceptionBase::printToStream(), inet::physicallayer::LayeredReception::printToStream(), and inet::physicallayer::UnitDiskReception::printToStream().

Member Data Documentation

dataDuration

const simtime_t inet::physicallayer::ReceptionBase::dataDuration

protected

Referenced by printToStream().

endOrientation

const Quaternion inet::physicallayer::ReceptionBase::endOrientation

protected

Referenced by printToStream().

endPosition

const Coord inet::physicallayer::ReceptionBase::endPosition

protected

Referenced by printToStream().

endTime

const simtime_t inet::physicallayer::ReceptionBase::endTime

protected

Referenced by inet::physicallayer::DimensionalReception::computeMinPower(), and printToStream().

headerDuration

const simtime_t inet::physicallayer::ReceptionBase::headerDuration

protected

Referenced by printToStream().

preambleDuration

const simtime_t inet::physicallayer::ReceptionBase::preambleDuration

protected

Referenced by printToStream().

receiver

const IRadio* inet::physicallayer::ReceptionBase::receiver

protected

Referenced by printToStream().

startOrientation

const Quaternion inet::physicallayer::ReceptionBase::startOrientation

protected

Referenced by printToStream().

startPosition

const Coord inet::physicallayer::ReceptionBase::startPosition

protected

Referenced by printToStream().

startTime

const simtime_t inet::physicallayer::ReceptionBase::startTime

protected

Referenced by inet::physicallayer::DimensionalReception::computeMinPower(), and printToStream().

transmission

const ITransmission* inet::physicallayer::ReceptionBase::transmission

protected

Referenced by printToStream().

---

The documentation for this class was generated from the following files:

• ReceptionBase.h
• ReceptionBase.cc
