This model characterizes receptions with a simplified reception power that falls into one of the categories: receivable, interfering, detectable, and undetectable. More...

#include <UnitDiskReception.h>

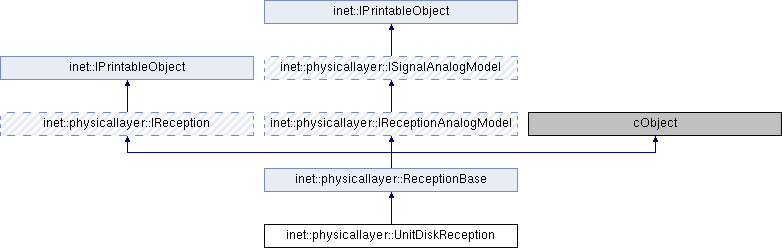

Inheritance diagram for inet::physicallayer::UnitDiskReception:

Public Types
enum	Power { POWER_UNDETECTABLE, POWER_DETECTABLE, POWER_INTERFERING, POWER_RECEIVABLE }

Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Public Member Functions
	UnitDiskReception (const IRadio radio, const ITransmission transmission, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation, const Power power)

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual Power	getPower () const

Public Member Functions inherited from inet::physicallayer::ReceptionBase
	ReceptionBase (const IRadio receiver, const ITransmission transmission, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation)

virtual const IRadio *	getReceiver () const override
	Returns the receiver that received the corresponding transmission from the radio medium. More...

virtual const ITransmission *	getTransmission () const override
	Returns the transmission that corresponds to this reception at the receiver. More...

virtual const simtime_t	getStartTime () const override
	Returns the time when the receiver started to receive the corresponding transmission. More...

virtual const simtime_t	getEndTime () const override
	Returns the time when the receiver ended to receive the corresponding transmission. More...

virtual const simtime_t	getStartTime (IRadioSignal::SignalPart part) const override

virtual const simtime_t	getEndTime (IRadioSignal::SignalPart part) const override

virtual const simtime_t	getPreambleStartTime () const override

virtual const simtime_t	getPreambleEndTime () const override

virtual const simtime_t	getHeaderStartTime () const override

virtual const simtime_t	getHeaderEndTime () const override

virtual const simtime_t	getDataStartTime () const override

virtual const simtime_t	getDataEndTime () const override

virtual const simtime_t	getDuration () const override
	Returns the total length of this reception. More...

virtual const simtime_t	getDuration (IRadioSignal::SignalPart part) const override
	Returns the length of the provided part of this reception. More...

virtual const simtime_t	getPreambleDuration () const override
	Returns the length of the preamble part of this reception. More...

virtual const simtime_t	getHeaderDuration () const override
	Returns the length of the header part of this reception. More...

virtual const simtime_t	getDataDuration () const override
	Returns the length of the data part of this reception. More...

virtual const Coord &	getStartPosition () const override
	Returns the antenna's position when the receiver started to receive the corresponding transmission. More...

virtual const Coord &	getEndPosition () const override
	Returns the antenna's position when the receiver ended to receive the corresponding transmission. More...

virtual const Quaternion &	getStartOrientation () const override
	Returns the antenna's orientation when the receiver started to receive the corresponding transmission. More...

virtual const Quaternion &	getEndOrientation () const override
	Returns the antenna's orientation when the receiver ended to receive the corresponding transmission. More...

virtual const IReceptionAnalogModel *	getAnalogModel () const override
	Returns the analog model of the received signal. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const Power	power

Protected Attributes inherited from inet::physicallayer::ReceptionBase
const IRadio *	receiver

const ITransmission *	transmission

const simtime_t	startTime

const simtime_t	endTime

const simtime_t	preambleDuration

const simtime_t	headerDuration

const simtime_t	dataDuration

const Coord	startPosition

const Coord	endPosition

const Quaternion	startOrientation

const Quaternion	endOrientation

Detailed Description

This model characterizes receptions with a simplified reception power that falls into one of the categories: receivable, interfering, detectable, and undetectable.

Member Enumeration Documentation

◆ Power

enum inet::physicallayer::UnitDiskReception::Power

Enumerator
POWER_UNDETECTABLE
POWER_DETECTABLE
POWER_INTERFERING
POWER_RECEIVABLE

                {
         POWER_UNDETECTABLE,
         POWER_DETECTABLE,
         POWER_INTERFERING,
         POWER_RECEIVABLE
     };

Constructor & Destructor Documentation

◆ UnitDiskReception()

inet::physicallayer::UnitDiskReception::UnitDiskReception	(	const IRadio *	radio,
		const ITransmission *	transmission,
		const simtime_t	startTime,
		const simtime_t	endTime,
		const Coord &	startPosition,
		const Coord &	endPosition,
		const Quaternion &	startOrientation,
		const Quaternion &	endOrientation,
		const Power	power
	)

                                                                                                                                                                                                                                                                                               :
     ReceptionBase(radio, transmission, startTime, endTime, startPosition, endPosition, startOrientation, endOrientation),
     power(power)
 {
 }

Member Function Documentation

◆ getPower()

virtual Power inet::physicallayer::UnitDiskReception::getPower ( ) const

inlinevirtual

39 { return power; }

◆ printToStream()

std::ostream & inet::physicallayer::UnitDiskReception::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::ReceptionBase.

 {
     stream << "UnitDiskReception";
     if (level <= PRINT_LEVEL_INFO)
         stream << EV_FIELD(power, cEnum::get(opp_typename(typeid(UnitDiskReception::Power)))->getStringFor(power) + 6);
     return ReceptionBase::printToStream(stream, level);
 }

Member Data Documentation

◆ power

const Power inet::physicallayer::UnitDiskReception::power

protected

Referenced by printToStream().

The documentation for this class was generated from the following files:
