#include <DimensionalReception.h>

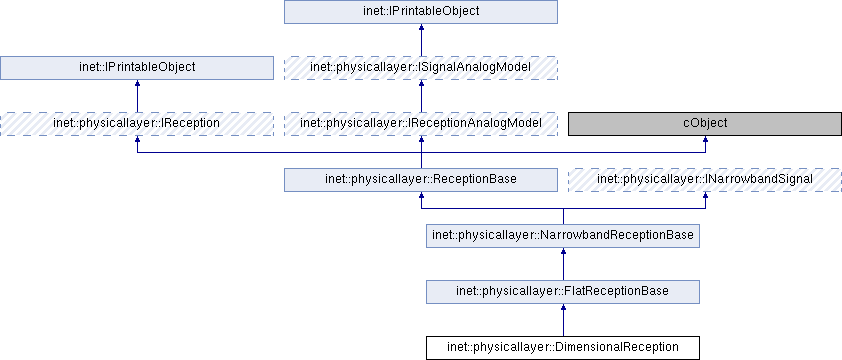

Inheritance diagram for inet::physicallayer::DimensionalReception:

Public Member Functions
	DimensionalReception (const IRadio radio, const ITransmission transmission, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation, Hz centerFrequency, Hz bandwidth, const Ptr< const IFunction< WpHz, Domain< simsec, Hz >>> &power)

virtual const Ptr< const IFunction< WpHz, Domain< simsec, Hz > > > &	getPower () const

virtual W	computeMinPower (simtime_t startTime, simtime_t endTime) const override

Public Member Functions inherited from inet::physicallayer::FlatReceptionBase
	FlatReceptionBase (const IRadio receiver, const ITransmission transmission, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation, Hz centerFrequency, Hz bandwidth)

Public Member Functions inherited from inet::physicallayer::NarrowbandReceptionBase
	NarrowbandReceptionBase (const IRadio receiver, const ITransmission transmission, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation, Hz centerFrequency, Hz bandwidth)

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual Hz	getCenterFrequency () const override

virtual Hz	getBandwidth () const override

Public Member Functions inherited from inet::physicallayer::ReceptionBase
	ReceptionBase (const IRadio receiver, const ITransmission transmission, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation)

virtual const IRadio *	getReceiver () const override
	Returns the receiver that received the corresponding transmission from the radio medium. More...

virtual const ITransmission *	getTransmission () const override
	Returns the transmission that corresponds to this reception at the receiver. More...

virtual const simtime_t	getStartTime () const override
	Returns the time when the receiver started to receive the corresponding transmission. More...

virtual const simtime_t	getEndTime () const override
	Returns the time when the receiver ended to receive the corresponding transmission. More...

virtual const simtime_t	getStartTime (IRadioSignal::SignalPart part) const override

virtual const simtime_t	getEndTime (IRadioSignal::SignalPart part) const override

virtual const simtime_t	getPreambleStartTime () const override

virtual const simtime_t	getPreambleEndTime () const override

virtual const simtime_t	getHeaderStartTime () const override

virtual const simtime_t	getHeaderEndTime () const override

virtual const simtime_t	getDataStartTime () const override

virtual const simtime_t	getDataEndTime () const override

virtual const simtime_t	getDuration () const override
	Returns the total length of this reception. More...

virtual const simtime_t	getDuration (IRadioSignal::SignalPart part) const override
	Returns the length of the provided part of this reception. More...

virtual const simtime_t	getPreambleDuration () const override
	Returns the length of the preamble part of this reception. More...

virtual const simtime_t	getHeaderDuration () const override
	Returns the length of the header part of this reception. More...

virtual const simtime_t	getDataDuration () const override
	Returns the length of the data part of this reception. More...

virtual const Coord &	getStartPosition () const override
	Returns the antenna's position when the receiver started to receive the corresponding transmission. More...

virtual const Coord &	getEndPosition () const override
	Returns the antenna's position when the receiver ended to receive the corresponding transmission. More...

virtual const Quaternion &	getStartOrientation () const override
	Returns the antenna's orientation when the receiver started to receive the corresponding transmission. More...

virtual const Quaternion &	getEndOrientation () const override
	Returns the antenna's orientation when the receiver ended to receive the corresponding transmission. More...

virtual const IReceptionAnalogModel *	getAnalogModel () const override
	Returns the analog model of the received signal. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const Ptr< const IFunction< WpHz, Domain< simsec, Hz > > >	power

Protected Attributes inherited from inet::physicallayer::NarrowbandReceptionBase
const Hz	centerFrequency

const Hz	bandwidth

Protected Attributes inherited from inet::physicallayer::ReceptionBase
const IRadio *	receiver

const ITransmission *	transmission

const simtime_t	startTime

const simtime_t	endTime

const simtime_t	preambleDuration

const simtime_t	headerDuration

const simtime_t	dataDuration

const Coord	startPosition

const Coord	endPosition

const Quaternion	startOrientation

const Quaternion	endOrientation

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ DimensionalReception()

inet::physicallayer::DimensionalReception::DimensionalReception	(	const IRadio *	radio,
		const ITransmission *	transmission,
		const simtime_t	startTime,
		const simtime_t	endTime,
		const Coord &	startPosition,
		const Coord &	endPosition,
		const Quaternion &	startOrientation,
		const Quaternion &	endOrientation,
		Hz	centerFrequency,
		Hz	bandwidth,
		const Ptr< const IFunction< WpHz, Domain< simsec, Hz >>> &	power
	)

                                                                                                                                                                                                                                                                                                                                                                                 :
     FlatReceptionBase(radio, transmission, startTime, endTime, startPosition, endPosition, startOrientation, endOrientation, centerFrequency, bandwidth),
     power(power)
 {
 }

Member Function Documentation

◆ computeMinPower()

W inet::physicallayer::DimensionalReception::computeMinPower	(	simtime_t	startTime,
		simtime_t	endTime
	)		const

overridevirtual

Implements inet::physicallayer::FlatReceptionBase.

 {
     Point<simsec> startPoint{ simsec(startTime) };
     Point<simsec> endPoint{ simsec(endTime) };
     W minPower = integrate<WpHz, Domain<simsec, Hz>, 0b10, W, Domain<simsec>>(power)->getMin(Interval<simsec>(startPoint, endPoint, 0b1, 0b1, 0b0));
     EV_DEBUG << "Computing minimum reception power" << EV_FIELD(startPoint) << EV_FIELD(endPoint) << EV_FIELD(minPower) << endl;
     return minPower;
 }

◆ getPower()

virtual const Ptr<const IFunction<WpHz, Domain<simsec, Hz> > >& inet::physicallayer::DimensionalReception::getPower ( ) const

inlinevirtual

28 { return power; }

Referenced by inet::physicallayer::DimensionalSnir::computeMax(), inet::physicallayer::DimensionalSnir::computeMean(), inet::physicallayer::DimensionalSnir::computeMin(), inet::physicallayer::DimensionalAnalogModelBase::computeNoise(), and inet::physicallayer::Ieee802154UwbIrReceiver::integrateWindow().

Member Data Documentation

◆ power

const Ptr<const IFunction<WpHz, Domain<simsec, Hz> > > inet::physicallayer::DimensionalReception::power

protected

Referenced by computeMinPower().

The documentation for this class was generated from the following files:
