inet::math::IFunction< R, D > Class Template Referenceabstract

This interface represents a mathematical function from domain D to range R. More...

#include <IFunction.h>

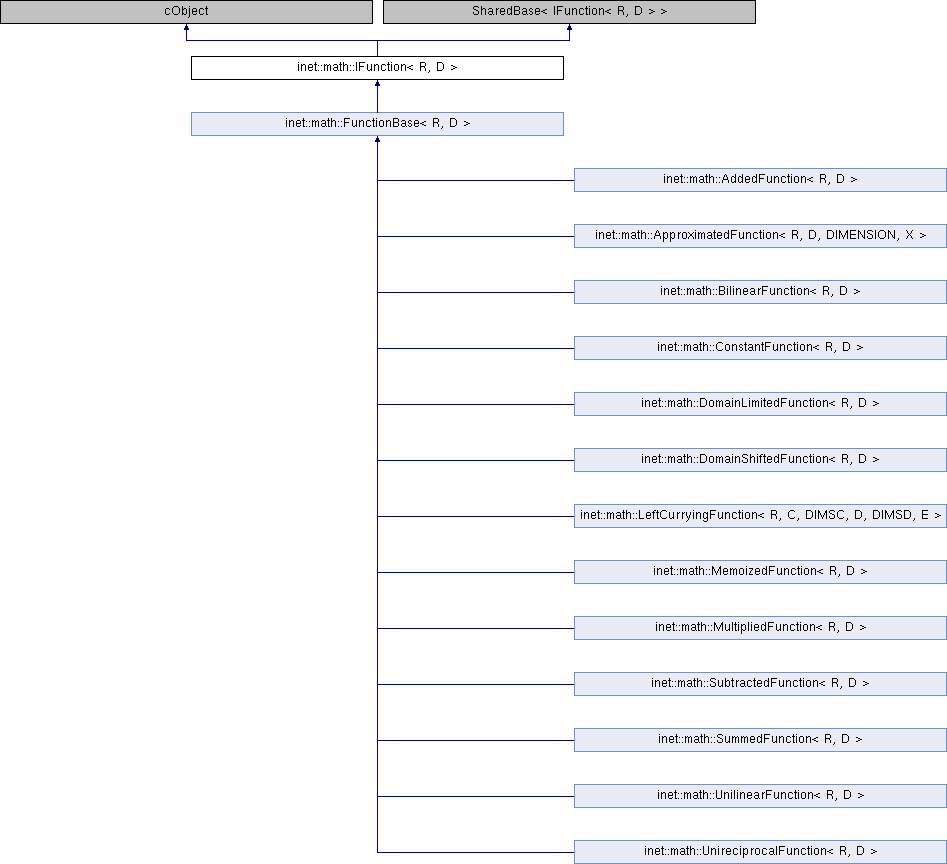

Inheritance diagram for inet::math::IFunction< R, D >:
inet::math::FunctionBase< R, D > inet::math::AddedFunction< R, D > inet::math::ApproximatedFunction< R, D, DIMENSION, X > inet::math::BilinearFunction< R, D > inet::math::ConstantFunction< R, D > inet::math::DomainLimitedFunction< R, D > inet::math::DomainShiftedFunction< R, D > inet::math::LeftCurryingFunction< R, C, DIMSC, D, DIMSD, E > inet::math::MemoizedFunction< R, D > inet::math::MultipliedFunction< R, D > inet::math::SubtractedFunction< R, D > inet::math::SummedFunction< R, D > inet::math::UnilinearFunction< R, D > inet::math::UnireciprocalFunction< R, D >

Public Member Functions

virtual ~IFunction ()

virtual Interval< R > getRange () const =0
 Returns the valid range of the function as an interval. More...

virtual Interval< R > getRange (const typename D::I &i) const =0
 Returns the valid range of the function as an interval for the given domain. More...

virtual D::I getDomain () const =0
 Returns the valid domain of the function as an interval. More...

virtual R getValue (const typename D::P &p) const =0
 Returns the value of the function at the given point. More...

virtual void partition (const typename D::I &i, const std::function< void(const typename D::I &, const IFunction< R, D > *)> f) const =0
 Subdivides the provided domain and calls back f with the subdomains and the corresponding potentially simpler domain limited functions. More...

virtual bool isFinite () const =0
 Returns true if the function value is finite in the whole domain. More...

virtual bool isFinite (const typename D::I &i) const =0
 Returns true if the function value is finite in the given domain. More...

virtual bool isNonZero () const =0
 Returns true if the function value is non-zero in the whole domain. More...

virtual bool isNonZero (const typename D::I &i) const =0
 Returns true if the function value is non-zero in the given domain. More...

virtual R getMin () const =0
 Returns the minimum value for the whole domain. More...

virtual R getMin (const typename D::I &i) const =0
 Returns the minimum value for the given domain. More...

virtual R getMax () const =0
 Returns the maximum value for the whole domain. More...

virtual R getMax (const typename D::I &i) const =0
 Returns the maximum value for the given domain. More...

virtual R getMean () const =0
 Returns the mean value for the whole domain. More...

virtual R getMean (const typename D::I &i) const =0
 Returns the mean value for the given domain. More...

virtual R getIntegral () const =0
 Returns the integral value for the whole domain. More...

virtual R getIntegral (const typename D::I &i) const =0
 Returns the integral value for the given domain. More...

virtual const Ptr< const IFunction< R, D > > add (const Ptr< const IFunction< R, D >> &o) const =0
 Adds the provided function to this function. More...

virtual const Ptr< const IFunction< R, D > > subtract (const Ptr< const IFunction< R, D >> &o) const =0
 Substracts the provided function from this function. More...

virtual const Ptr< const IFunction< R, D > > multiply (const Ptr< const IFunction< double, D >> &o) const =0
 Multiplies the provided function with this function. More...

virtual const Ptr< const IFunction< double, D > > divide (const Ptr< const IFunction< R, D >> &o) const =0
 Divides this function with the provided function. More...

virtual void print (std::ostream &os, int level=0) const =0
 Prints this function in human readable form to the provided stream for the whole domain. More...

virtual void print (std::ostream &os, const typename D::I &i, int level=0) const =0
 Prints this function in a human readable form to the provided stream for the given domain. More...

virtual void printPartitioning (std::ostream &os, const typename D::I &i, int level=0) const =0
 Prints the partitioning of this function in a human readable form to the provided stream for the given domain. More...

virtual void printPartition (std::ostream &os, const typename D::I &i, int level=0) const =0
 Prints a single partition of this function in a human readable form to the provided stream for the given domain. More...

virtual void printStructure (std::ostream &os, int level=0) const =0
 Prints the internal data structure of this function in a human readable form to the provided stream. More...


Detailed Description

template<typename R, typename D>
class inet::math::IFunction< R, D >

This interface represents a mathematical function from domain D to range R.

R is a scalar type (double, simtime_t, quantity, etc.) D is a Domain<>.

Constructor & Destructor Documentation

◆ ~IFunction()

template<typename R , typename D >
virtual inet::math::IFunction< R, D >::~IFunction ( )
inlinevirtual
29 {}

Member Function Documentation

◆ add()

template<typename R , typename D >
virtual const Ptr<const IFunction<R, D> > inet::math::IFunction< R, D >::add ( const Ptr< const IFunction< R, D >> &  o) const
pure virtual

Adds the provided function to this function.

Implemented in inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, and inet::math::FunctionBase< double, D >.

◆ divide()

template<typename R , typename D >
virtual const Ptr<const IFunction<double, D> > inet::math::IFunction< R, D >::divide ( const Ptr< const IFunction< R, D >> &  o) const
pure virtual

Divides this function with the provided function.

Implemented in inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, and inet::math::FunctionBase< double, D >.

◆ getDomain()

template<typename R , typename D >
virtual D::I inet::math::IFunction< R, D >::getDomain ( ) const
pure virtual

Returns the valid domain of the function as an interval.

Implemented in inet::math::SummedFunction< R, D >, inet::math::MultipliedFunction< R, D >, inet::math::SubtractedFunction< R, D >, inet::math::DomainShiftedFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, D >, inet::math::FunctionBase< R, Domain< X > >, inet::math::DomainLimitedFunction< R, D >, and inet::math::AddedFunction< R, D >.

◆ getIntegral() [1/2]

template<typename R , typename D >
virtual R inet::math::IFunction< R, D >::getIntegral ( ) const
pure virtual

Returns the integral value for the whole domain.

Implemented in inet::math::FunctionBase< R, D >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, Domain< X > >.

Referenced by inet::math::IntegratedFunction< R, D, DIMS, RI, DI >::getValue().

◆ getIntegral() [2/2]

template<typename R , typename D >
virtual R inet::math::IFunction< R, D >::getIntegral ( const typename D::I &  i) const
pure virtual

Returns the integral value for the given domain.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::UnireciprocalFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, inet::math::DomainLimitedFunction< R, D >, inet::math::ConstantFunction< R, D >, and inet::math::FunctionBase< R, C >.

◆ getMax() [1/2]

template<typename R , typename D >
virtual R inet::math::IFunction< R, D >::getMax ( ) const
pure virtual

Returns the maximum value for the whole domain.

Implemented in inet::math::FunctionBase< R, D >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, Domain< X > >.

Referenced by inet::math::FunctionBase< R, Domain< X > >::getMax().

◆ getMax() [2/2]

template<typename R , typename D >
virtual R inet::math::IFunction< R, D >::getMax ( const typename D::I &  i) const
pure virtual

Returns the maximum value for the given domain.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::UnireciprocalFunction< R, D >, inet::math::BilinearFunction< R, D >, inet::math::UnilinearFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, inet::math::DomainLimitedFunction< R, D >, inet::math::ConstantFunction< R, D >, and inet::math::FunctionBase< R, C >.

◆ getMean() [1/2]

template<typename R , typename D >
virtual R inet::math::IFunction< R, D >::getMean ( ) const
pure virtual

Returns the mean value for the whole domain.

Implemented in inet::math::FunctionBase< R, D >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, Domain< X > >.

Referenced by inet::math::FunctionBase< R, Domain< X > >::getIntegral().

◆ getMean() [2/2]

template<typename R , typename D >
virtual R inet::math::IFunction< R, D >::getMean ( const typename D::I &  i) const
pure virtual

Returns the mean value for the given domain.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::UnireciprocalFunction< R, D >, inet::math::BilinearFunction< R, D >, inet::math::UnilinearFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, inet::math::DomainLimitedFunction< R, D >, inet::math::ConstantFunction< R, D >, and inet::math::FunctionBase< R, C >.

◆ getMin() [1/2]

template<typename R , typename D >
virtual R inet::math::IFunction< R, D >::getMin ( ) const
pure virtual

Returns the minimum value for the whole domain.

Implemented in inet::math::FunctionBase< R, D >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, Domain< X > >.

Referenced by inet::math::FunctionBase< R, Domain< X > >::getMin().

◆ getMin() [2/2]

template<typename R , typename D >
virtual R inet::math::IFunction< R, D >::getMin ( const typename D::I &  i) const
pure virtual

Returns the minimum value for the given domain.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::UnireciprocalFunction< R, D >, inet::math::BilinearFunction< R, D >, inet::math::UnilinearFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, inet::math::DomainLimitedFunction< R, D >, inet::math::ConstantFunction< R, D >, and inet::math::FunctionBase< R, C >.

◆ getRange() [1/2]

template<typename R , typename D >
virtual Interval<R> inet::math::IFunction< R, D >::getRange ( ) const
pure virtual

Returns the valid range of the function as an interval.

Implemented in inet::math::BilinearFunction< R, D >, inet::math::UnilinearFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, D >, inet::math::FunctionBase< R, Domain< X > >, inet::math::DomainLimitedFunction< R, D >, and inet::math::ConstantFunction< R, D >.

◆ getRange() [2/2]

template<typename R , typename D >
virtual Interval<R> inet::math::IFunction< R, D >::getRange ( const typename D::I &  i) const
pure virtual

Returns the valid range of the function as an interval for the given domain.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, C >.

◆ getValue()

template<typename R , typename D >
virtual R inet::math::IFunction< R, D >::getValue ( const typename D::P &  p) const
pure virtual

Returns the value of the function at the given point.

The returned value falls into the range of the function. The provided point must fall into the domain of the function.

Implemented in inet::math::LeftCurryingFunction< R, C, DIMSC, D, DIMSD, E >, inet::math::SummedFunction< R, D >, inet::math::ApproximatedFunction< R, D, DIMENSION, X >, inet::math::DividedFunction< R, D >, inet::math::UnireciprocalFunction< R, D >, inet::math::MultipliedFunction< R, D >, inet::math::BilinearFunction< R, D >, inet::math::MemoizedFunction< R, D >, inet::math::SubtractedFunction< R, D >, inet::math::DomainShiftedFunction< R, D >, inet::math::UnilinearFunction< R, D >, inet::math::DomainLimitedFunction< R, D >, inet::math::AddedFunction< R, D >, and inet::math::ConstantFunction< R, D >.

◆ isFinite() [1/2]

template<typename R , typename D >
virtual bool inet::math::IFunction< R, D >::isFinite ( ) const
pure virtual

Returns true if the function value is finite in the whole domain.

Implemented in inet::math::FunctionBase< R, D >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, Domain< X > >.

Referenced by inet::math::FunctionBase< R, Domain< X > >::isFinite().

◆ isFinite() [2/2]

template<typename R , typename D >
virtual bool inet::math::IFunction< R, D >::isFinite ( const typename D::I &  i) const
pure virtual

Returns true if the function value is finite in the given domain.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::ApproximatedFunction< R, D, DIMENSION, X >, inet::math::SummedFunction< R, D >, inet::math::DividedFunction< R, D >, inet::math::MultipliedFunction< R, D >, inet::math::BilinearFunction< R, D >, inet::math::SubtractedFunction< R, D >, inet::math::AddedFunction< R, D >, inet::math::UnilinearFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, inet::math::ConstantFunction< R, D >, and inet::math::FunctionBase< R, C >.

◆ isNonZero() [1/2]

template<typename R , typename D >
virtual bool inet::math::IFunction< R, D >::isNonZero ( ) const
pure virtual

Returns true if the function value is non-zero in the whole domain.

Implemented in inet::math::FunctionBase< R, D >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, Domain< X > >.

Referenced by inet::math::FunctionBase< R, Domain< X > >::isNonZero().

◆ isNonZero() [2/2]

template<typename R , typename D >
virtual bool inet::math::IFunction< R, D >::isNonZero ( const typename D::I &  i) const
pure virtual

Returns true if the function value is non-zero in the given domain.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::BilinearFunction< R, D >, inet::math::UnilinearFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, inet::math::ConstantFunction< R, D >, and inet::math::FunctionBase< R, C >.

◆ multiply()

template<typename R , typename D >
virtual const Ptr<const IFunction<R, D> > inet::math::IFunction< R, D >::multiply ( const Ptr< const IFunction< double, D >> &  o) const
pure virtual

Multiplies the provided function with this function.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, C >.

◆ partition()

template<typename R , typename D >
virtual void inet::math::IFunction< R, D >::partition ( const typename D::I &  i,
const std::function< void(const typename D::I &, const IFunction< R, D > *)>  f
) const
pure virtual

Subdivides the provided domain and calls back f with the subdomains and the corresponding potentially simpler domain limited functions.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::LeftCurryingFunction< R, C, DIMSC, D, DIMSD, E >, inet::math::SummedFunction< R, D >, inet::math::UnireciprocalFunction< R, D >, inet::math::MultipliedFunction< R, D >, inet::math::BilinearFunction< R, D >, inet::math::SubtractedFunction< R, D >, inet::math::DomainShiftedFunction< R, D >, inet::math::UnilinearFunction< R, D >, inet::math::DomainLimitedFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::AddedFunction< R, D >, inet::math::ConstantFunction< R, D >, inet::math::DividedFunction< R, D >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, C >.

◆ print() [1/2]

template<typename R , typename D >
virtual void inet::math::IFunction< R, D >::print ( std::ostream &  os,
const typename D::I &  i,
int  level = 0
) const
pure virtual

Prints this function in a human readable form to the provided stream for the given domain.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, C >.

◆ print() [2/2]

template<typename R , typename D >
virtual void inet::math::IFunction< R, D >::print ( std::ostream &  os,
int  level = 0
) const
pure virtual

Prints this function in human readable form to the provided stream for the whole domain.

Implemented in inet::physicallayer::AntennaGainFunction, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, Domain< X > >.

◆ printPartition()

template<typename R , typename D >
virtual void inet::math::IFunction< R, D >::printPartition ( std::ostream &  os,
const typename D::I &  i,
int  level = 0
) const
pure virtual

Prints a single partition of this function in a human readable form to the provided stream for the given domain.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::UnireciprocalFunction< R, D >, inet::math::BilinearFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, inet::math::UnilinearFunction< R, D >, inet::math::ConstantFunction< R, D >, and inet::math::FunctionBase< R, C >.

Referenced by inet::math::FunctionBase< R, Domain< X > >::printPartitioning().

◆ printPartitioning()

template<typename R , typename D >
virtual void inet::math::IFunction< R, D >::printPartitioning ( std::ostream &  os,
const typename D::I &  i,
int  level = 0
) const
pure virtual

Prints the partitioning of this function in a human readable form to the provided stream for the given domain.

Implemented in inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< double, D >, and inet::math::FunctionBase< R, C >.

◆ printStructure()

template<typename R , typename D >
virtual void inet::math::IFunction< R, D >::printStructure ( std::ostream &  os,
int  level = 0
) const
pure virtual

Prints the internal data structure of this function in a human readable form to the provided stream.

Implemented in inet::math::IntegratedFunction< R, D, DIMS, RI, DI >, inet::math::Interpolated1DFunction< R, X >, inet::math::Extruded2DFunction< R, X, Y >, inet::math::ApproximatedFunction< R, D, DIMENSION, X >, inet::physicallayer::AntennaGainFunction, inet::math::Boxcar2DFunction< R, X, Y >, inet::math::SummedFunction< R, D >, inet::physicallayer::ObstacleLossFunction, inet::math::Boxcar1DFunction< R, X >, inet::physicallayer::PathLossFunction, inet::physicallayer::PropagatedTransmissionPowerFunction, inet::math::DividedFunction< R, D >, inet::physicallayer::BackgroundNoisePowerFunction, inet::math::Combined2DFunction< R, X, Y >, inet::math::MultipliedFunction< R, D >, inet::physicallayer::SpaceDependentAttenuationFunction, inet::math::SubtractedFunction< R, D >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, D >, inet::math::FunctionBase< R, Domain< X > >, inet::physicallayer::SpaceAndFrequencyDependentAttenuationFunction, inet::math::UnilinearFunction< R, D >, inet::math::DomainShiftedFunction< R, D >, inet::math::AddedFunction< R, D >, inet::math::DomainLimitedFunction< R, D >, inet::physicallayer::FrequencyDependentAttenuationFunction, and inet::math::ConstantFunction< R, D >.

◆ subtract()

template<typename R , typename D >
virtual const Ptr<const IFunction<R, D> > inet::math::IFunction< R, D >::subtract ( const Ptr< const IFunction< R, D >> &  o) const
pure virtual

Substracts the provided function from this function.

Implemented in inet::math::FunctionBase< WpHz, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< RI, Domain< X > >, inet::math::FunctionBase< RI, DI >, inet::math::FunctionBase< R, Domain< X, Y > >, inet::math::FunctionBase< R, Domain< X > >, inet::math::FunctionBase< R, D >, inet::math::FunctionBase< R, C >, inet::math::FunctionBase< double, Domain< simsec, Hz > >, inet::math::FunctionBase< double, Domain< mps, m, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, simsec, Hz > >, inet::math::FunctionBase< double, Domain< m, m, m, m, m, m, Hz > >, and inet::math::FunctionBase< double, D >.

The documentation for this class was generated from the following file:
