#include <CompoundFunctions.h>

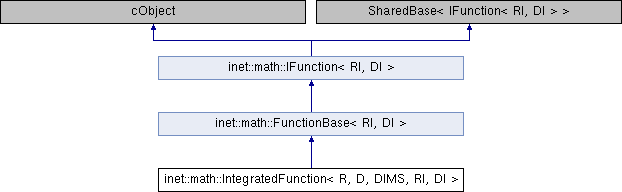

Inheritance diagram for inet::math::IntegratedFunction< R, D, DIMS, RI, DI >:

Public Member Functions
	IntegratedFunction (const Ptr< const IFunction< R, D >> &function)

virtual RI	getValue (const typename DI::P &p) const override

virtual void	partition (const typename DI::I &i, std::function< void(const typename DI::I &, const IFunction< RI, DI > *)> callback) const override

virtual void	printStructure (std::ostream &os, int level=0) const override
	Prints the internal data structure of this function in a human readable form to the provided stream. More...

Public Member Functions inherited from inet::math::FunctionBase< RI, DI >
virtual void	partition (const typename DI ::I &i, const std::function< void(const typename DI ::I &, const IFunction< RI, DI > *)> callback) const override
	Subdivides the provided domain and calls back f with the subdomains and the corresponding potentially simpler domain limited functions. More...

virtual Interval< RI >	getRange () const override
	Returns the valid range of the function as an interval. More...

virtual Interval< RI >	getRange (const typename DI ::I &i) const override
	Returns the valid range of the function as an interval for the given domain. More...

virtual DI ::I	getDomain () const override
	Returns the valid domain of the function as an interval. More...

virtual bool	isFinite () const override
	Returns true if the function value is finite in the whole domain. More...

virtual bool	isFinite (const typename DI ::I &i) const override
	Returns true if the function value is finite in the given domain. More...

virtual bool	isNonZero () const override
	Returns true if the function value is non-zero in the whole domain. More...

virtual bool	isNonZero (const typename DI ::I &i) const override
	Returns true if the function value is non-zero in the given domain. More...

virtual RI	getMin () const override
	Returns the minimum value for the whole domain. More...

virtual RI	getMin (const typename DI ::I &i) const override
	Returns the minimum value for the given domain. More...

virtual RI	getMax () const override
	Returns the maximum value for the whole domain. More...

virtual RI	getMax (const typename DI ::I &i) const override
	Returns the maximum value for the given domain. More...

virtual RI	getMean () const override
	Returns the mean value for the whole domain. More...

virtual RI	getMean (const typename DI ::I &i) const override
	Returns the mean value for the given domain. More...

virtual RI	getIntegral () const override
	Returns the integral value for the whole domain. More...

virtual RI	getIntegral (const typename DI ::I &i) const override
	Returns the integral value for the given domain. More...

virtual const Ptr< const IFunction< RI, DI > >	add (const Ptr< const IFunction< RI, DI >> &o) const override
	Adds the provided function to this function. More...

virtual const Ptr< const IFunction< RI, DI > >	subtract (const Ptr< const IFunction< RI, DI >> &o) const override
	Substracts the provided function from this function. More...

virtual const Ptr< const IFunction< RI, DI > >	multiply (const Ptr< const IFunction< double, DI >> &o) const override
	Multiplies the provided function with this function. More...

virtual const Ptr< const IFunction< double, DI > >	divide (const Ptr< const IFunction< RI, DI >> &o) const override
	Divides this function with the provided function. More...

virtual std::ostream &	printOn (std::ostream &os) const override

virtual void	print (std::ostream &os, int level=0) const override
	Prints this function in human readable form to the provided stream for the whole domain. More...

virtual void	print (std::ostream &os, const typename DI ::I &i, int level=0) const override
	Prints this function in a human readable form to the provided stream for the given domain. More...

virtual void	printPartitioning (std::ostream &os, const typename DI ::I &i, int level) const override
	Prints the partitioning of this function in a human readable form to the provided stream for the given domain. More...

virtual void	printPartition (std::ostream &os, const typename DI ::I &i, int level=0) const override
	Prints a single partition of this function in a human readable form to the provided stream for the given domain. More...

Public Member Functions inherited from inet::math::IFunction< RI, DI >
virtual	~IFunction ()

virtual RI	getValue (const typename DI ::P &p) const=0
	Returns the value of the function at the given point. More...

Private Attributes
const Ptr< const IFunction< R, D > >	function

Constructor & Destructor Documentation

◆ IntegratedFunction()

template<typename R , typename D , int DIMS, typename RI , typename DI >

inet::math::IntegratedFunction< R, D, DIMS, RI, DI >::IntegratedFunction ( const Ptr< const IFunction< R, D >> & function )

inline

822 : function(function) {}

Member Function Documentation

◆ getValue()

template<typename R , typename D , int DIMS, typename RI , typename DI >

virtual RI inet::math::IntegratedFunction< R, D, DIMS, RI, DI >::getValue ( const typename DI::P & p ) const

inlineoverridevirtual

                                                               {
         auto l1 = D::P::getLowerBounds();
         auto u1 = D::P::getUpperBounds();
         p.template copyTo<typename D::P, DIMS>(l1);
         p.template copyTo<typename D::P, DIMS>(u1);
         RI ri(0);
         typename D::I i1(l1, u1, DIMS, DIMS, DIMS);
         function->partition(i1, [&] (const typename D::I& i2, const IFunction<R, D> *f2) {
             R r = f2->getIntegral(i2);
             ri += RI(toDouble(r));
         });
         return ri;
     }

◆ partition()

template<typename R , typename D , int DIMS, typename RI , typename DI >

virtual void inet::math::IntegratedFunction< R, D, DIMS, RI, DI >::partition	(	const typename DI::I &	i,
		std::function< void(const typename DI::I &, const IFunction< RI, DI > *)>	callback
	)		const

inlineoverridevirtual

                                                                                                                                              {
         throw cRuntimeError("TODO");
     }

◆ printStructure()

template<typename R , typename D , int DIMS, typename RI , typename DI >

virtual void inet::math::IntegratedFunction< R, D, DIMS, RI, DI >::printStructure	(	std::ostream &	os,
		int	level = `0`
	)		const

inlineoverridevirtual

Prints the internal data structure of this function in a human readable form to the provided stream.

Reimplemented from inet::math::FunctionBase< RI, DI >.

                                                                               {
         os << "(Integrated\n" << std::string(level + 2, ' ');
         function->printStructure(os, level + 2);
         os << ")";
     }

Member Data Documentation

◆ function

template<typename R , typename D , int DIMS, typename RI , typename DI >

const Ptr<const IFunction<R, D> > inet::math::IntegratedFunction< R, D, DIMS, RI, DI >::function

private

The documentation for this class was generated from the following file:

CompoundFunctions.h
