inet::physicallayer::Ieee802154NarrowbandScalarTransmitter Class Reference

#include <Ieee802154NarrowbandScalarTransmitter.h>

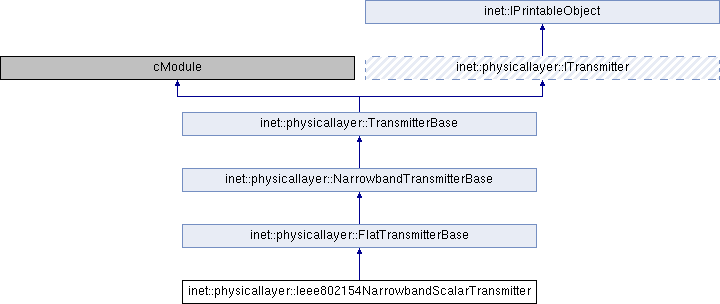

Inheritance diagram for inet::physicallayer::Ieee802154NarrowbandScalarTransmitter:

Public Member Functions
	Ieee802154NarrowbandScalarTransmitter ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const ITransmission *	createTransmission (const IRadio *radio, const Packet *packet, const simtime_t startTime) const override
	Returns a transmission which describes the radio signal corresponding to the provided packet. More...
Public Member Functions inherited from inet::physicallayer::FlatTransmitterBase
	FlatTransmitterBase ()
virtual b	getHeaderLength () const
virtual void	setHeaderLength (b headerLength)
virtual bps	getBitrate () const
virtual void	setBitrate (bps bitrate)
virtual W	getMaxPower () const override
	Returns the maximum transmission power above which no transmission is ever transmitted. More...
virtual W	getPower () const
virtual void	setPower (W power)
Public Member Functions inherited from inet::physicallayer::NarrowbandTransmitterBase
	NarrowbandTransmitterBase ()
virtual const IModulation *	getModulation () const
virtual void	setModulation (const IModulation *modulation)
virtual Hz	getCenterFrequency () const
virtual void	setCenterFrequency (Hz centerFrequency)
virtual Hz	getBandwidth () const
virtual void	setBandwidth (Hz bandwidth)
Public Member Functions inherited from inet::physicallayer::TransmitterBase
virtual m	getMaxCommunicationRange () const override
	Returns the maximum communication range. More...
virtual m	getMaxInterferenceRange () const override
	Returns the maximum interference range. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Member Functions inherited from inet::physicallayer::FlatTransmitterBase
virtual void	initialize (int stage) override
virtual bps	computeTransmissionPreambleBitrate (const Packet *packet) const
virtual bps	computeTransmissionHeaderBitrate (const Packet *packet) const
virtual bps	computeTransmissionDataBitrate (const Packet *packet) const
virtual W	computeTransmissionPower (const Packet *packet) const
Protected Member Functions inherited from inet::physicallayer::NarrowbandTransmitterBase
virtual Hz	computeCenterFrequency (const Packet *packet) const
virtual Hz	computeBandwidth (const Packet *packet) const
Protected Member Functions inherited from inet::physicallayer::TransmitterBase
virtual int	numInitStages () const override
Protected Attributes inherited from inet::physicallayer::FlatTransmitterBase
simtime_t	preambleDuration
b	headerLength
bps	bitrate
W	power
Protected Attributes inherited from inet::physicallayer::NarrowbandTransmitterBase
const IModulation *	modulation
Hz	centerFrequency
Hz	bandwidth

Constructor & Destructor Documentation

Ieee802154NarrowbandScalarTransmitter()

inet::physicallayer::Ieee802154NarrowbandScalarTransmitter::Ieee802154NarrowbandScalarTransmitter

(

)

                                                                             :
    FlatTransmitterBase()
{
}

Member Function Documentation

createTransmission()

const ITransmission * inet::physicallayer::Ieee802154NarrowbandScalarTransmitter::createTransmission ( const IRadio *  transmitter, const Packet *  packet, const simtime_t  startTime  ) const

overridevirtual

Returns a transmission which describes the radio signal corresponding to the provided packet.

This function never returns nullptr.

Implements inet::physicallayer::ITransmitter.

{
    W transmissionPower = computeTransmissionPower(packet);
    bps transmissionBitrate = computeTransmissionDataBitrate(packet);
    const simtime_t headerDuration = b(headerLength).get() / bps(transmissionBitrate).get();
    const simtime_t dataDuration = b(packet->getTotalLength()).get() / bps(transmissionBitrate).get();
    const simtime_t duration = preambleDuration + headerDuration + dataDuration;
    const simtime_t endTime = startTime + duration;
    IMobility *mobility = transmitter->getAntenna()->getMobility();
    const Coord& startPosition = mobility->getCurrentPosition();
    const Coord& endPosition = mobility->getCurrentPosition();
    const Quaternion& startOrientation = mobility->getCurrentAngularPosition();
    const Quaternion& endOrientation = mobility->getCurrentAngularPosition();
    return new ScalarTransmission(transmitter, packet, startTime, endTime, preambleDuration, headerDuration, dataDuration, startPosition, endPosition, startOrientation, endOrientation, modulation, headerLength, packet->getTotalLength(), centerFrequency, bandwidth, transmissionBitrate, transmissionPower);
}

printToStream()

std::ostream & inet::physicallayer::Ieee802154NarrowbandScalarTransmitter::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::FlatTransmitterBase.

{
    stream << "Ieee802154NarrowbandScalarTransmitter";
    return FlatTransmitterBase::printToStream(stream, level);
}

---

The documentation for this class was generated from the following files:

• Ieee802154NarrowbandScalarTransmitter.h
• Ieee802154NarrowbandScalarTransmitter.cc
