#include <FlatTransmitterBase.h>

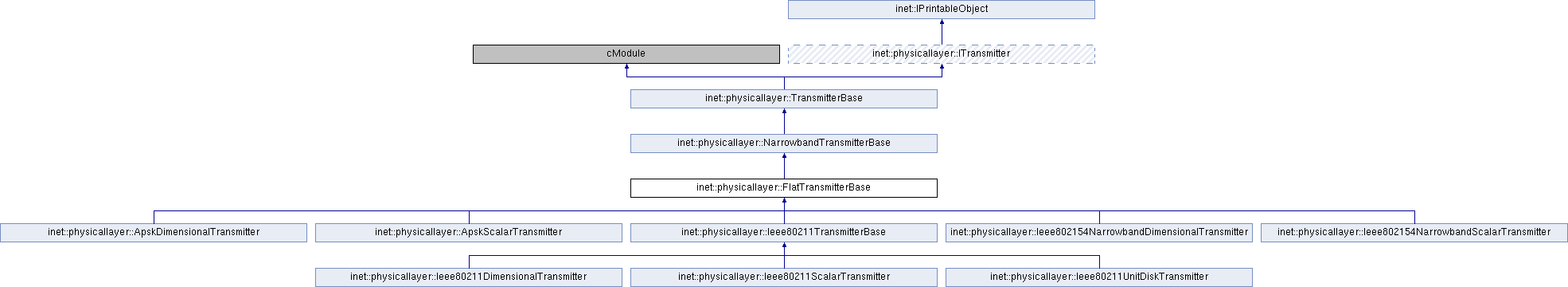

Inheritance diagram for inet::physicallayer::FlatTransmitterBase:

Public Member Functions
	FlatTransmitterBase ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual b	getHeaderLength () const

virtual void	setHeaderLength (b headerLength)

virtual bps	getBitrate () const

virtual void	setBitrate (bps bitrate)

virtual W	getMaxPower () const override
	Returns the maximum transmission power above which no transmission is ever transmitted. More...

virtual W	getPower () const

virtual void	setPower (W power)

Public Member Functions inherited from inet::physicallayer::NarrowbandTransmitterBase
	NarrowbandTransmitterBase ()

virtual const IModulation *	getModulation () const

virtual void	setModulation (const IModulation *modulation)

virtual Hz	getCenterFrequency () const

virtual void	setCenterFrequency (Hz centerFrequency)

virtual Hz	getBandwidth () const

virtual void	setBandwidth (Hz bandwidth)

Public Member Functions inherited from inet::physicallayer::TransmitterBase
virtual m	getMaxCommunicationRange () const override
	Returns the maximum communication range. More...

virtual m	getMaxInterferenceRange () const override
	Returns the maximum interference range. More...

Public Member Functions inherited from inet::physicallayer::ITransmitter
virtual const ITransmission *	createTransmission (const IRadio transmitter, const Packet packet, const simtime_t startTime) const =0
	Returns a transmission which describes the radio signal corresponding to the provided packet. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

virtual bps	computeTransmissionPreambleBitrate (const Packet *packet) const

virtual bps	computeTransmissionHeaderBitrate (const Packet *packet) const

virtual bps	computeTransmissionDataBitrate (const Packet *packet) const

virtual W	computeTransmissionPower (const Packet *packet) const

Protected Member Functions inherited from inet::physicallayer::NarrowbandTransmitterBase
virtual Hz	computeCenterFrequency (const Packet *packet) const

virtual Hz	computeBandwidth (const Packet *packet) const

Protected Member Functions inherited from inet::physicallayer::TransmitterBase
virtual int	numInitStages () const override

Protected Attributes
simtime_t	preambleDuration

b	headerLength

bps	bitrate

W	power

Protected Attributes inherited from inet::physicallayer::NarrowbandTransmitterBase
const IModulation *	modulation

Hz	centerFrequency

Hz	bandwidth

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ FlatTransmitterBase()

inet::physicallayer::FlatTransmitterBase::FlatTransmitterBase ( )

                                          :
     NarrowbandTransmitterBase(),
     preambleDuration(-1),
     headerLength(b(-1)),
     bitrate(bps(NaN)),
     power(W(NaN))
 {
 }

Member Function Documentation

◆ computeTransmissionDataBitrate()

bps inet::physicallayer::FlatTransmitterBase::computeTransmissionDataBitrate ( const Packet * packet ) const

protectedvirtual

 {
     const auto& signalBitrateReq = const_cast<Packet *>(packet)->findTag<SignalBitrateReq>();
     return signalBitrateReq != nullptr ? signalBitrateReq->getDataBitrate() : bitrate;
 }

Referenced by inet::physicallayer::ApskScalarTransmitter::createTransmission(), inet::physicallayer::Ieee802154NarrowbandScalarTransmitter::createTransmission(), inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter::createTransmission(), and inet::physicallayer::ApskDimensionalTransmitter::createTransmission().

◆ computeTransmissionHeaderBitrate()

bps inet::physicallayer::FlatTransmitterBase::computeTransmissionHeaderBitrate ( const Packet * packet ) const

protectedvirtual

 {
     const auto& signalBitrateReq = const_cast<Packet *>(packet)->findTag<SignalBitrateReq>();
     return signalBitrateReq != nullptr ? signalBitrateReq->getHeaderBitrate() : bitrate;
 }

◆ computeTransmissionPower()

W inet::physicallayer::FlatTransmitterBase::computeTransmissionPower ( const Packet * packet ) const

protectedvirtual

 {
     const auto& signalPowerReq = const_cast<Packet *>(packet)->findTag<SignalPowerReq>();
     return signalPowerReq != nullptr ? signalPowerReq->getPower() : power;
 }

Referenced by inet::physicallayer::ApskScalarTransmitter::createTransmission(), inet::physicallayer::Ieee802154NarrowbandScalarTransmitter::createTransmission(), inet::physicallayer::Ieee80211ScalarTransmitter::createTransmission(), inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter::createTransmission(), inet::physicallayer::ApskDimensionalTransmitter::createTransmission(), and inet::physicallayer::Ieee80211DimensionalTransmitter::createTransmission().

◆ computeTransmissionPreambleBitrate()

bps inet::physicallayer::FlatTransmitterBase::computeTransmissionPreambleBitrate ( const Packet * packet ) const

protectedvirtual

 {
     const auto& signalBitrateReq = const_cast<Packet *>(packet)->findTag<SignalBitrateReq>();
     return signalBitrateReq != nullptr ? signalBitrateReq->getPreambleBitrate() : bitrate;
 }

◆ getBitrate()

virtual bps inet::physicallayer::FlatTransmitterBase::getBitrate ( ) const

inlinevirtual

41 { return bitrate; }

Referenced by inet::L3NetworkConfiguratorBase::computeWirelessLinkWeight().

◆ getHeaderLength()

virtual b inet::physicallayer::FlatTransmitterBase::getHeaderLength ( ) const

inlinevirtual

38 { return headerLength; }

◆ getMaxPower()

virtual W inet::physicallayer::FlatTransmitterBase::getMaxPower ( ) const

inlineoverridevirtual

Returns the maximum transmission power above which no transmission is ever transmitted.

Returns a value in the range [0, +infinity] or NaN if unspecified.

Reimplemented from inet::physicallayer::TransmitterBase.

44 { return power; }

◆ getPower()

virtual W inet::physicallayer::FlatTransmitterBase::getPower ( ) const

inlinevirtual

45 { return power; }

◆ initialize()

void inet::physicallayer::FlatTransmitterBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::NarrowbandTransmitterBase.

Reimplemented in inet::physicallayer::Ieee80211TransmitterBase, inet::physicallayer::Ieee80211UnitDiskTransmitter, inet::physicallayer::Ieee80211DimensionalTransmitter, inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter, and inet::physicallayer::ApskDimensionalTransmitter.

 {
     NarrowbandTransmitterBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         preambleDuration = par("preambleDuration");
         headerLength = b(par("headerLength"));
         bitrate = bps(par("bitrate"));
         power = W(par("power"));
     }
 }

Referenced by inet::physicallayer::ApskDimensionalTransmitter::initialize(), inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter::initialize(), and inet::physicallayer::Ieee80211TransmitterBase::initialize().

◆ printToStream()

std::ostream & inet::physicallayer::FlatTransmitterBase::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::NarrowbandTransmitterBase.

Reimplemented in inet::physicallayer::Ieee80211TransmitterBase, inet::physicallayer::Ieee80211UnitDiskTransmitter, inet::physicallayer::Ieee80211DimensionalTransmitter, inet::physicallayer::ApskDimensionalTransmitter, inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter, inet::physicallayer::ApskScalarTransmitter, inet::physicallayer::Ieee80211ScalarTransmitter, and inet::physicallayer::Ieee802154NarrowbandScalarTransmitter.

 {
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(preambleDuration)
                << EV_FIELD(headerLength)
                << EV_FIELD(bitrate)
                << EV_FIELD(power);
     return NarrowbandTransmitterBase::printToStream(stream, level);
 }

Referenced by inet::physicallayer::ApskScalarTransmitter::printToStream(), inet::physicallayer::Ieee802154NarrowbandScalarTransmitter::printToStream(), inet::physicallayer::ApskDimensionalTransmitter::printToStream(), and inet::physicallayer::Ieee80211TransmitterBase::printToStream().

◆ setBitrate()

virtual void inet::physicallayer::FlatTransmitterBase::setBitrate ( bps bitrate )

inlinevirtual

42 { this->bitrate = bitrate; }

Referenced by inet::physicallayer::FlatRadioBase::setBitrate().

◆ setHeaderLength()

virtual void inet::physicallayer::FlatTransmitterBase::setHeaderLength ( b headerLength )

inlinevirtual

39 { this->headerLength = headerLength; }

◆ setPower()

virtual void inet::physicallayer::FlatTransmitterBase::setPower ( W power )

inlinevirtual

46 { this->power = power; }

Referenced by inet::physicallayer::FlatRadioBase::setPower().

Member Data Documentation

◆ bitrate

bps inet::physicallayer::FlatTransmitterBase::bitrate

protected

Referenced by computeTransmissionDataBitrate(), computeTransmissionHeaderBitrate(), computeTransmissionPreambleBitrate(), initialize(), inet::physicallayer::Ieee80211TransmitterBase::initialize(), and printToStream().

◆ headerLength

b inet::physicallayer::FlatTransmitterBase::headerLength

protected

Referenced by inet::physicallayer::ApskScalarTransmitter::createTransmission(), inet::physicallayer::Ieee802154NarrowbandScalarTransmitter::createTransmission(), inet::physicallayer::Ieee80211ScalarTransmitter::createTransmission(), inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter::createTransmission(), inet::physicallayer::ApskDimensionalTransmitter::createTransmission(), inet::physicallayer::Ieee80211DimensionalTransmitter::createTransmission(), initialize(), and printToStream().

◆ power

W inet::physicallayer::FlatTransmitterBase::power

protected

Referenced by computeTransmissionPower(), initialize(), and printToStream().

◆ preambleDuration

simtime_t inet::physicallayer::FlatTransmitterBase::preambleDuration

protected

Referenced by inet::physicallayer::ApskScalarTransmitter::createTransmission(), inet::physicallayer::Ieee802154NarrowbandScalarTransmitter::createTransmission(), inet::physicallayer::Ieee80211ScalarTransmitter::createTransmission(), inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter::createTransmission(), inet::physicallayer::ApskDimensionalTransmitter::createTransmission(), inet::physicallayer::Ieee80211DimensionalTransmitter::createTransmission(), inet::physicallayer::Ieee80211UnitDiskTransmitter::createTransmission(), initialize(), and printToStream().

The documentation for this class was generated from the following files:
