#include <Ieee802154NarrowbandDimensionalTransmitter.h>

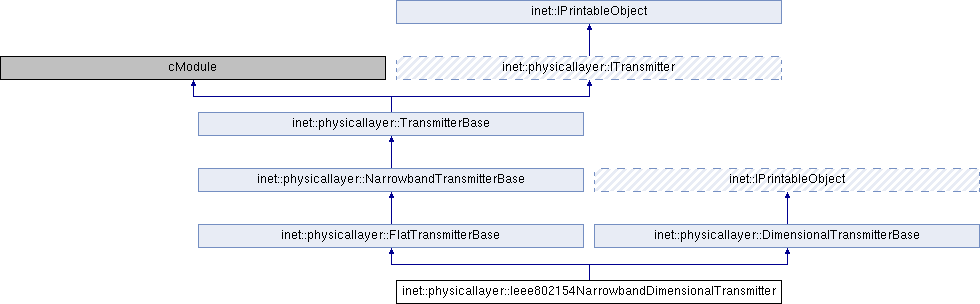

Inheritance diagram for inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter:

Public Member Functions
	Ieee802154NarrowbandDimensionalTransmitter ()

virtual void	initialize (int stage) override

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const ITransmission *	createTransmission (const IRadio radio, const Packet packet, const simtime_t startTime) const override
	Returns a transmission which describes the radio signal corresponding to the provided packet. More...

Public Member Functions inherited from inet::physicallayer::FlatTransmitterBase
	FlatTransmitterBase ()

virtual b	getHeaderLength () const

virtual void	setHeaderLength (b headerLength)

virtual bps	getBitrate () const

virtual void	setBitrate (bps bitrate)

virtual W	getMaxPower () const override
	Returns the maximum transmission power above which no transmission is ever transmitted. More...

virtual W	getPower () const

virtual void	setPower (W power)

Public Member Functions inherited from inet::physicallayer::NarrowbandTransmitterBase
	NarrowbandTransmitterBase ()

virtual const IModulation *	getModulation () const

virtual void	setModulation (const IModulation *modulation)

virtual Hz	getCenterFrequency () const

virtual void	setCenterFrequency (Hz centerFrequency)

virtual Hz	getBandwidth () const

virtual void	setBandwidth (Hz bandwidth)

Public Member Functions inherited from inet::physicallayer::TransmitterBase
virtual m	getMaxCommunicationRange () const override
	Returns the maximum communication range. More...

virtual m	getMaxInterferenceRange () const override
	Returns the maximum interference range. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Protected Member Functions inherited from inet::physicallayer::FlatTransmitterBase
virtual bps	computeTransmissionPreambleBitrate (const Packet *packet) const

virtual bps	computeTransmissionHeaderBitrate (const Packet *packet) const

virtual bps	computeTransmissionDataBitrate (const Packet *packet) const

virtual W	computeTransmissionPower (const Packet *packet) const

Protected Member Functions inherited from inet::physicallayer::NarrowbandTransmitterBase
virtual Hz	computeCenterFrequency (const Packet *packet) const

virtual Hz	computeBandwidth (const Packet *packet) const

Protected Member Functions inherited from inet::physicallayer::TransmitterBase
virtual int	numInitStages () const override

Protected Member Functions inherited from inet::physicallayer::DimensionalTransmitterBase
template<typename T >
std::vector< GainEntry< T > >	parseGains (const char *text) const

virtual void	parseTimeGains (const char *text)

virtual void	parseFrequencyGains (const char *text)

template<typename T >
const Ptr< const IFunction< double, Domain< T > > >	normalize (const Ptr< const IFunction< double, Domain< T >>> &function, const char *normalization) const

virtual Ptr< const IFunction< double, Domain< simsec, Hz > > >	createGainFunction (const simtime_t startTime, const simtime_t endTime, Hz centerFrequency, Hz bandwidth) const

virtual Ptr< const IFunction< WpHz, Domain< simsec, Hz > > >	createPowerFunction (const simtime_t startTime, const simtime_t endTime, Hz centerFrequency, Hz bandwidth, W power) const

Protected Attributes inherited from inet::physicallayer::FlatTransmitterBase
simtime_t	preambleDuration

b	headerLength

bps	bitrate

W	power

Protected Attributes inherited from inet::physicallayer::NarrowbandTransmitterBase
const IModulation *	modulation

Hz	centerFrequency

Hz	bandwidth

Protected Attributes inherited from inet::physicallayer::DimensionalTransmitterBase
const IInterpolator< simsec, double > *	firstTimeInterpolator = nullptr

const IInterpolator< Hz, double > *	firstFrequencyInterpolator = nullptr

std::vector< GainEntry< simsec > >	timeGains

std::vector< GainEntry< Hz > >	frequencyGains

const char *	timeGainsNormalization = nullptr

const char *	frequencyGainsNormalization = nullptr

int	gainFunctionCacheLimit = -1

std::map< std::tuple< simtime_t, Hz, Hz >, Ptr< const IFunction< double, Domain< simsec, Hz > > > >	gainFunctionCache

Constructor & Destructor Documentation

◆ Ieee802154NarrowbandDimensionalTransmitter()

inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter::Ieee802154NarrowbandDimensionalTransmitter ( )

                                                                                        :
     FlatTransmitterBase(),
     DimensionalTransmitterBase()
 {
 }

Member Function Documentation

◆ createTransmission()

const ITransmission * inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter::createTransmission	(	const IRadio *	transmitter,
		const Packet *	packet,
		const simtime_t	startTime
	)		const

overridevirtual

Returns a transmission which describes the radio signal corresponding to the provided packet.

This function never returns nullptr.

Implements inet::physicallayer::ITransmitter.

 {
     W transmissionPower = computeTransmissionPower(packet);
     bps transmissionBitrate = computeTransmissionDataBitrate(packet);
     const simtime_t headerDuration = b(headerLength).get() / bps(transmissionBitrate).get();
     const simtime_t dataDuration = b(packet->getTotalLength()).get() / bps(transmissionBitrate).get();
     const simtime_t duration = preambleDuration + headerDuration + dataDuration;
     const simtime_t endTime = startTime + duration;
     IMobility *mobility = transmitter->getAntenna()->getMobility();
     const Ptr<const IFunction<WpHz, Domain<simsec, Hz>>>& powerFunction = createPowerFunction(startTime, endTime, centerFrequency, bandwidth, transmissionPower);
     const Coord& startPosition = mobility->getCurrentPosition();
     const Coord& endPosition = mobility->getCurrentPosition();
     const Quaternion& startOrientation = mobility->getCurrentAngularPosition();
     const Quaternion& endOrientation = mobility->getCurrentAngularPosition();
     return new DimensionalTransmission(transmitter, packet, startTime, endTime, preambleDuration, headerDuration, dataDuration, startPosition, endPosition, startOrientation, endOrientation, modulation, headerLength, packet->getTotalLength(), centerFrequency, bandwidth, transmissionBitrate, powerFunction);
 }

◆ initialize()

void inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter::initialize ( int stage )

overridevirtual

Reimplemented from inet::physicallayer::DimensionalTransmitterBase.

 {
     FlatTransmitterBase::initialize(stage);
     DimensionalTransmitterBase::initialize(stage);
 }

◆ printToStream()

std::ostream & inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::DimensionalTransmitterBase.

 {
     stream << "Ieee802154NarrowbandDimensionalTransmitter";
     DimensionalTransmitterBase::printToStream(stream, level);
     return DimensionalTransmitterBase::printToStream(stream, level);
 }

The documentation for this class was generated from the following files:
