inet::math::IInterpolator< X, Y > Class Template Reference

This interface represents interpolation of values (y) between two points x1 and x2. More...

#include <IInterpolator.h>

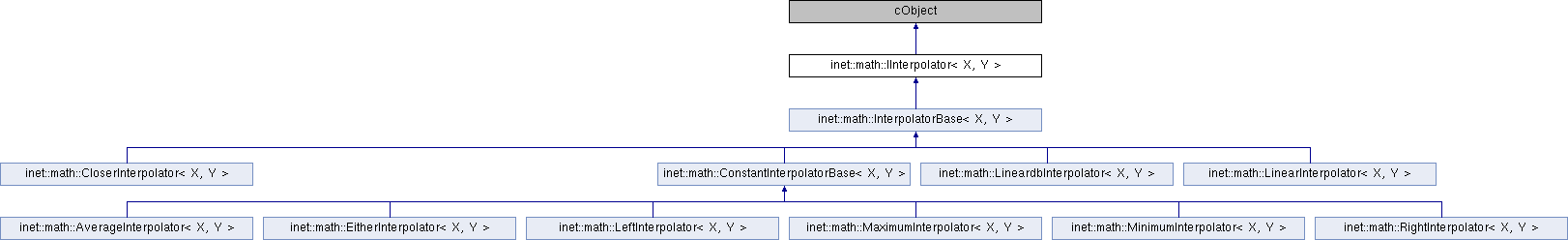

Inheritance diagram for inet::math::IInterpolator< X, Y >:

Public Member Functions
virtual	~IInterpolator ()
virtual Y	getValue (const X x1, const Y y1, const X x2, const Y y2, const X x) const =0
	Returns the interpolated value for the given x. More...
virtual Y	getMin (const X x1, const Y y1, const X x2, const Y y2) const =0
	Returns the minimum interpolated value in the closed interval of [x1, x2]. More...
virtual Y	getMax (const X x1, const Y y1, const X x2, const Y y2) const =0
	Returns the maximum interpolated value in the closed interval of [x1, x2]. More...
virtual Y	getMean (const X x1, const Y y1, const X x2, const Y y2) const =0
	Returns the mean interpolated value in the closed interval of [x1, x2]. More...

Detailed Description

template<typename X, typename Y>
class inet::math::IInterpolator< X, Y >

This interface represents interpolation of values (y) between two points x1 and x2.

The types X and Y represent scalar values (double, simtime_t, or some quantity with unit).

Constructor & Destructor Documentation

~IInterpolator()

template<typename X , typename Y >

virtual inet::math::IInterpolator< X, Y >::~IInterpolator ( )

inlinevirtual

{}

Member Function Documentation

getMax()

template<typename X , typename Y >

virtual Y inet::math::IInterpolator< X, Y >::getMax ( const X  x1, const Y  y1, const X  x2, const Y  y2  ) const

pure virtual

Returns the maximum interpolated value in the closed interval of [x1, x2].

Implemented in inet::math::InterpolatorBase< X, Y >.

getMean()

template<typename X , typename Y >

virtual Y inet::math::IInterpolator< X, Y >::getMean ( const X  x1, const Y  y1, const X  x2, const Y  y2  ) const

pure virtual

Returns the mean interpolated value in the closed interval of [x1, x2].

Implemented in inet::math::LineardbInterpolator< X, Y >, inet::math::LinearInterpolator< X, Y >, inet::math::CloserInterpolator< X, Y >, and inet::math::ConstantInterpolatorBase< X, Y >.

getMin()

template<typename X , typename Y >

virtual Y inet::math::IInterpolator< X, Y >::getMin ( const X  x1, const Y  y1, const X  x2, const Y  y2  ) const

pure virtual

Returns the minimum interpolated value in the closed interval of [x1, x2].

Implemented in inet::math::InterpolatorBase< X, Y >.

getValue()

template<typename X , typename Y >

virtual Y inet::math::IInterpolator< X, Y >::getValue ( const X  x1, const Y  y1, const X  x2, const Y  y2, const X  x  ) const

pure virtual

Returns the interpolated value for the given x.

The value of x must fall into the closed interval [x1, x2].

Implemented in inet::math::LineardbInterpolator< X, Y >, inet::math::LinearInterpolator< X, Y >, inet::math::CloserInterpolator< X, Y >, inet::math::MaximumInterpolator< X, Y >, inet::math::MinimumInterpolator< X, Y >, inet::math::AverageInterpolator< X, Y >, inet::math::RightInterpolator< X, Y >, inet::math::LeftInterpolator< X, Y >, and inet::math::EitherInterpolator< X, Y >.

Referenced by inet::math::ApproximatedFunction< R, D, DIMENSION, X >::getValue(), inet::math::PeriodicallyInterpolated1DFunction< R, X >::getValue(), inet::math::PeriodicallyInterpolated2DFunction< R, X, Y >::getValue(), inet::math::Interpolated1DFunction< R, X >::getValue(), inet::math::PeriodicallyInterpolated2DFunction< R, X, Y >::getValueInterpolatedAlongX(), and inet::math::Interpolated1DFunction< R, X >::partition().

---

The documentation for this class was generated from the following file:

• IInterpolator.h
