#include <NarrowbandTransmitterBase.h>

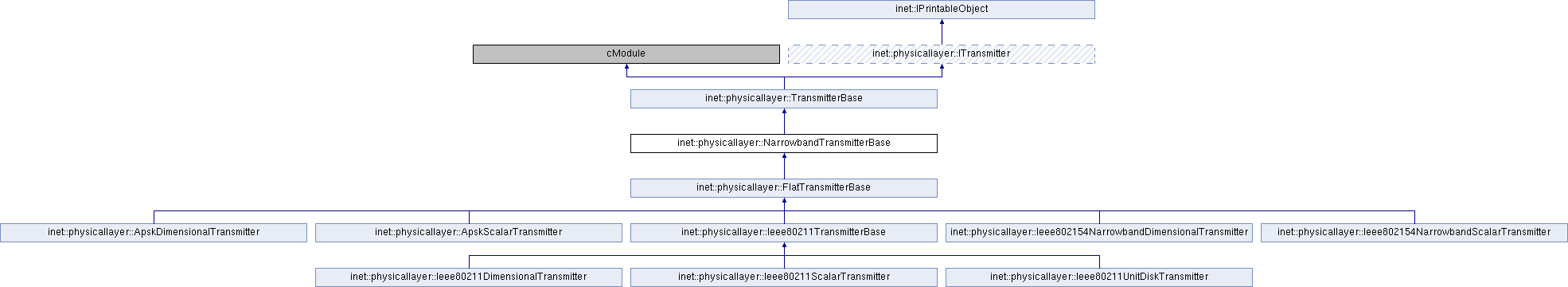

Inheritance diagram for inet::physicallayer::NarrowbandTransmitterBase:

Public Member Functions
	NarrowbandTransmitterBase ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const IModulation *	getModulation () const

virtual void	setModulation (const IModulation *modulation)

virtual Hz	getCenterFrequency () const

virtual void	setCenterFrequency (Hz centerFrequency)

virtual Hz	getBandwidth () const

virtual void	setBandwidth (Hz bandwidth)

Public Member Functions inherited from inet::physicallayer::TransmitterBase
virtual W	getMaxPower () const override
	Returns the maximum transmission power above which no transmission is ever transmitted. More...

virtual m	getMaxCommunicationRange () const override
	Returns the maximum communication range. More...

virtual m	getMaxInterferenceRange () const override
	Returns the maximum interference range. More...

Public Member Functions inherited from inet::physicallayer::ITransmitter
virtual const ITransmission *	createTransmission (const IRadio transmitter, const Packet packet, const simtime_t startTime) const =0
	Returns a transmission which describes the radio signal corresponding to the provided packet. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

virtual Hz	computeCenterFrequency (const Packet *packet) const

virtual Hz	computeBandwidth (const Packet *packet) const

Protected Member Functions inherited from inet::physicallayer::TransmitterBase
virtual int	numInitStages () const override

Protected Attributes
const IModulation *	modulation

Hz	centerFrequency

Hz	bandwidth

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ NarrowbandTransmitterBase()

inet::physicallayer::NarrowbandTransmitterBase::NarrowbandTransmitterBase ( )

                                                      :
     modulation(nullptr),
     centerFrequency(Hz(NaN)),
     bandwidth(Hz(NaN))
 {
 }

Member Function Documentation

◆ computeBandwidth()

Hz inet::physicallayer::NarrowbandTransmitterBase::computeBandwidth ( const Packet * packet ) const

protectedvirtual

 {
     const auto& signalBandReq = const_cast<Packet *>(packet)->findTag<SignalBandReq>();
     return signalBandReq != nullptr ? signalBandReq->getBandwidth() : bandwidth;
 }

Referenced by inet::physicallayer::ApskScalarTransmitter::createTransmission(), and inet::physicallayer::ApskDimensionalTransmitter::createTransmission().

◆ computeCenterFrequency()

Hz inet::physicallayer::NarrowbandTransmitterBase::computeCenterFrequency ( const Packet * packet ) const

protectedvirtual

 {
     const auto& signalBandReq = const_cast<Packet *>(packet)->findTag<SignalBandReq>();
     return signalBandReq != nullptr ? signalBandReq->getCenterFrequency() : centerFrequency;
 }

Referenced by inet::physicallayer::ApskScalarTransmitter::createTransmission(), and inet::physicallayer::ApskDimensionalTransmitter::createTransmission().

◆ getBandwidth()

virtual Hz inet::physicallayer::NarrowbandTransmitterBase::getBandwidth ( ) const

inlinevirtual

42 { return bandwidth; }

◆ getCenterFrequency()

virtual Hz inet::physicallayer::NarrowbandTransmitterBase::getCenterFrequency ( ) const

inlinevirtual

39 { return centerFrequency; }

◆ getModulation()

virtual const IModulation* inet::physicallayer::NarrowbandTransmitterBase::getModulation ( ) const

inlinevirtual

36 { return modulation; }

◆ initialize()

void inet::physicallayer::NarrowbandTransmitterBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented in inet::physicallayer::Ieee80211TransmitterBase, inet::physicallayer::FlatTransmitterBase, inet::physicallayer::Ieee80211UnitDiskTransmitter, inet::physicallayer::Ieee80211DimensionalTransmitter, inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter, and inet::physicallayer::ApskDimensionalTransmitter.

 {
     TransmitterBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         modulation = ApskModulationBase::findModulation(par("modulation"));
         centerFrequency = Hz(par("centerFrequency"));
         bandwidth = Hz(par("bandwidth"));
     }
 }

Referenced by inet::physicallayer::FlatTransmitterBase::initialize().

◆ printToStream()

std::ostream & inet::physicallayer::NarrowbandTransmitterBase::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::FlatTransmitterBase, inet::physicallayer::Ieee80211TransmitterBase, inet::physicallayer::Ieee80211UnitDiskTransmitter, inet::physicallayer::Ieee80211DimensionalTransmitter, inet::physicallayer::ApskDimensionalTransmitter, inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter, inet::physicallayer::ApskScalarTransmitter, inet::physicallayer::Ieee80211ScalarTransmitter, and inet::physicallayer::Ieee802154NarrowbandScalarTransmitter.

 {
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(modulation, printFieldToString(modulation, level + 1, evFlags))
                << EV_FIELD(centerFrequency)
                << EV_FIELD(bandwidth);
     return stream;
 }
