inet::physicallayer::ITransmitter Class Referenceabstract

This interface represents a physical device (a part of the radio) which converts packets into electric signals. More...

#include <ITransmitter.h>

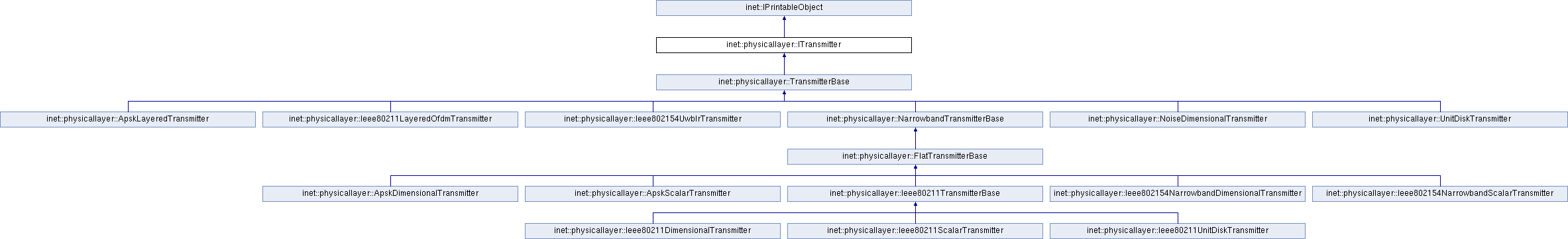

Inheritance diagram for inet::physicallayer::ITransmitter:
inet::IPrintableObject inet::physicallayer::TransmitterBase inet::physicallayer::ApskLayeredTransmitter inet::physicallayer::Ieee80211LayeredOfdmTransmitter inet::physicallayer::Ieee802154UwbIrTransmitter inet::physicallayer::NarrowbandTransmitterBase inet::physicallayer::NoiseDimensionalTransmitter inet::physicallayer::UnitDiskTransmitter inet::physicallayer::FlatTransmitterBase inet::physicallayer::ApskDimensionalTransmitter inet::physicallayer::ApskScalarTransmitter inet::physicallayer::Ieee80211TransmitterBase inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter inet::physicallayer::Ieee802154NarrowbandScalarTransmitter inet::physicallayer::Ieee80211DimensionalTransmitter inet::physicallayer::Ieee80211ScalarTransmitter inet::physicallayer::Ieee80211UnitDiskTransmitter

Public Member Functions

virtual W getMaxPower () const =0
 Returns the maximum transmission power above which no transmission is ever transmitted. More...

virtual m getMaxCommunicationRange () const =0
 Returns the maximum communication range. More...

virtual m getMaxInterferenceRange () const =0
 Returns the maximum interference range. More...

virtual const ITransmission * createTransmission (const IRadio *transmitter, const Packet *packet, const simtime_t startTime) const =0
 Returns a transmission which describes the radio signal corresponding to the provided packet. More...

- Public Member Functions inherited from inet::IPrintableObject
virtual ~IPrintableObject ()

virtual std::ostream & printToStream (std::ostream &stream, int level, int evFlags=0) const
 Prints this object to the provided output stream. More...

virtual std::string printToString () const

virtual std::string printToString (int level, int evFlags=0) const

virtual std::string getInfoStringRepresentation (int evFlags=0) const

virtual std::string getDetailStringRepresentation (int evFlags=0) const

virtual std::string getDebugStringRepresentation (int evFlags=0) const

virtual std::string getTraceStringRepresentation (int evFlags=0) const

virtual std::string getCompleteStringRepresentation (int evFlags=0) const


Additional Inherited Members

- Public Types inherited from inet::IPrintableObject
enum  PrintLevel {
  PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,
  PRINT_LEVEL_COMPLETE = INT_MIN
}

enum  PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }


Detailed Description

This interface represents a physical device (a part of the radio) which converts packets into electric signals.

Member Function Documentation

◆ createTransmission()

virtual const ITransmission* inet::physicallayer::ITransmitter::createTransmission ( const IRadio *  transmitter,
const Packet *  packet,
const simtime_t  startTime
) const
pure virtual

Returns a transmission which describes the radio signal corresponding to the provided packet.

This function never returns nullptr.

Implemented in inet::physicallayer::Ieee802154UwbIrTransmitter, inet::physicallayer::Ieee80211UnitDiskTransmitter, inet::physicallayer::NoiseDimensionalTransmitter, inet::physicallayer::Ieee80211DimensionalTransmitter, inet::physicallayer::Ieee80211ScalarTransmitter, inet::physicallayer::Ieee80211LayeredOfdmTransmitter, inet::physicallayer::ApskLayeredTransmitter, inet::physicallayer::UnitDiskTransmitter, inet::physicallayer::ApskDimensionalTransmitter, inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter, inet::physicallayer::ApskScalarTransmitter, and inet::physicallayer::Ieee802154NarrowbandScalarTransmitter.

Referenced by inet::L3NetworkConfiguratorBase::computeWirelessLinkWeight(), and inet::physicallayer::RadioMedium::createTransmitterSignal().

◆ getMaxCommunicationRange()

virtual m inet::physicallayer::ITransmitter::getMaxCommunicationRange ( ) const
pure virtual

Returns the maximum communication range.

Returns a value in the range [0, +infinity] or NaN if unspecified.

Implemented in inet::physicallayer::Ieee80211LayeredOfdmTransmitter, inet::physicallayer::ApskLayeredTransmitter, inet::physicallayer::UnitDiskTransmitter, inet::physicallayer::Ieee80211UnitDiskTransmitter, and inet::physicallayer::TransmitterBase.

Referenced by inet::physicallayer::MediumLimitCache::getMaxCommunicationRange().

◆ getMaxInterferenceRange()

virtual m inet::physicallayer::ITransmitter::getMaxInterferenceRange ( ) const
pure virtual

Returns the maximum interference range.

Returns a value in the range [0, +infinity] or NaN if unspecified.

Implemented in inet::physicallayer::Ieee80211LayeredOfdmTransmitter, inet::physicallayer::ApskLayeredTransmitter, inet::physicallayer::UnitDiskTransmitter, inet::physicallayer::Ieee80211UnitDiskTransmitter, and inet::physicallayer::TransmitterBase.

Referenced by inet::physicallayer::MediumLimitCache::getMaxInterferenceRange().

◆ getMaxPower()

virtual W inet::physicallayer::ITransmitter::getMaxPower ( ) const
pure virtual

Returns the maximum transmission power above which no transmission is ever transmitted.

Returns a value in the range [0, +infinity] or NaN if unspecified.

Implemented in inet::physicallayer::Ieee80211LayeredOfdmTransmitter, inet::physicallayer::ApskLayeredTransmitter, inet::physicallayer::FlatTransmitterBase, and inet::physicallayer::TransmitterBase.

Referenced by inet::physicallayer::MediumLimitCache::getMaxCommunicationRange(), and inet::physicallayer::MediumLimitCache::getMaxInterferenceRange().

The documentation for this class was generated from the following file:
