#include <Ieee80211ScalarTransmitter.h>

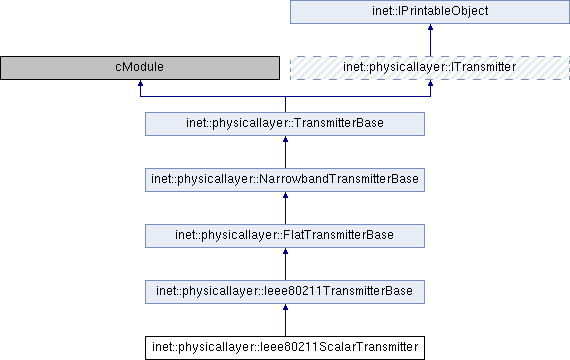

Inheritance diagram for inet::physicallayer::Ieee80211ScalarTransmitter:

Public Member Functions
	Ieee80211ScalarTransmitter ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const ITransmission *	createTransmission (const IRadio radio, const Packet packet, simtime_t startTime) const override
	Returns a transmission which describes the radio signal corresponding to the provided packet. More...

Public Member Functions inherited from inet::physicallayer::Ieee80211TransmitterBase
	Ieee80211TransmitterBase ()

virtual	~Ieee80211TransmitterBase ()

virtual const IIeee80211Mode *	computeTransmissionMode (const Packet *packet) const

virtual const Ieee80211Channel *	computeTransmissionChannel (const Packet *packet) const

virtual void	setModeSet (const Ieee80211ModeSet *modeSet)

virtual void	setMode (const IIeee80211Mode *mode)

virtual void	setBand (const IIeee80211Band *band)

virtual void	setChannel (const Ieee80211Channel *channel)

virtual void	setChannelNumber (int channelNumber)

Public Member Functions inherited from inet::physicallayer::FlatTransmitterBase
	FlatTransmitterBase ()

virtual b	getHeaderLength () const

virtual void	setHeaderLength (b headerLength)

virtual bps	getBitrate () const

virtual void	setBitrate (bps bitrate)

virtual W	getMaxPower () const override
	Returns the maximum transmission power above which no transmission is ever transmitted. More...

virtual W	getPower () const

virtual void	setPower (W power)

Public Member Functions inherited from inet::physicallayer::NarrowbandTransmitterBase
	NarrowbandTransmitterBase ()

virtual const IModulation *	getModulation () const

virtual void	setModulation (const IModulation *modulation)

virtual Hz	getCenterFrequency () const

virtual void	setCenterFrequency (Hz centerFrequency)

virtual Hz	getBandwidth () const

virtual void	setBandwidth (Hz bandwidth)

Public Member Functions inherited from inet::physicallayer::TransmitterBase
virtual m	getMaxCommunicationRange () const override
	Returns the maximum communication range. More...

virtual m	getMaxInterferenceRange () const override
	Returns the maximum interference range. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Protected Member Functions inherited from inet::physicallayer::Ieee80211TransmitterBase
virtual void	initialize (int stage) override

Protected Member Functions inherited from inet::physicallayer::FlatTransmitterBase
virtual bps	computeTransmissionPreambleBitrate (const Packet *packet) const

virtual bps	computeTransmissionHeaderBitrate (const Packet *packet) const

virtual bps	computeTransmissionDataBitrate (const Packet *packet) const

virtual W	computeTransmissionPower (const Packet *packet) const

Protected Member Functions inherited from inet::physicallayer::NarrowbandTransmitterBase
virtual Hz	computeCenterFrequency (const Packet *packet) const

virtual Hz	computeBandwidth (const Packet *packet) const

Protected Member Functions inherited from inet::physicallayer::TransmitterBase
virtual int	numInitStages () const override

Protected Attributes inherited from inet::physicallayer::Ieee80211TransmitterBase
const Ieee80211ModeSet *	modeSet

const IIeee80211Mode *	mode

const IIeee80211Band *	band

const Ieee80211Channel *	channel

Protected Attributes inherited from inet::physicallayer::FlatTransmitterBase
simtime_t	preambleDuration

b	headerLength

bps	bitrate

W	power

Protected Attributes inherited from inet::physicallayer::NarrowbandTransmitterBase
const IModulation *	modulation

Hz	centerFrequency

Hz	bandwidth

Constructor & Destructor Documentation

◆ Ieee80211ScalarTransmitter()

inet::physicallayer::Ieee80211ScalarTransmitter::Ieee80211ScalarTransmitter ( )

                                                        :
     Ieee80211TransmitterBase()
 {
 }

Member Function Documentation

◆ createTransmission()

const ITransmission * inet::physicallayer::Ieee80211ScalarTransmitter::createTransmission	(	const IRadio *	transmitter,
		const Packet *	packet,
		simtime_t	startTime
	)		const

overridevirtual

Returns a transmission which describes the radio signal corresponding to the provided packet.

This function never returns nullptr.

Implements inet::physicallayer::ITransmitter.

 {
     auto phyHeader = Ieee80211Radio::peekIeee80211PhyHeaderAtFront(packet);
     const IIeee80211Mode *transmissionMode = computeTransmissionMode(packet);
     const Ieee80211Channel *transmissionChannel = computeTransmissionChannel(packet);
     W transmissionPower = computeTransmissionPower(packet);
     Hz transmissionBandwidth = transmissionMode->getDataMode()->getBandwidth();
     bps transmissionBitrate = transmissionMode->getDataMode()->getNetBitrate();
     if (transmissionMode->getDataMode()->getNumberOfSpatialStreams() > transmitter->getAntenna()->getNumAntennas())
         throw cRuntimeError("Number of spatial streams is higher than the number of antennas");
     const simtime_t duration = transmissionMode->getDuration(B(phyHeader->getLengthField()));
     const simtime_t endTime = startTime + duration;
     IMobility *mobility = transmitter->getAntenna()->getMobility();
     const Coord& startPosition = mobility->getCurrentPosition();
     const Coord& endPosition = mobility->getCurrentPosition();
     const Quaternion& startOrientation = mobility->getCurrentAngularPosition();
     const Quaternion& endOrientation = mobility->getCurrentAngularPosition();
     auto headerLength = b(transmissionMode->getHeaderMode()->getLength());
     auto dataLength = b(transmissionMode->getDataMode()->getCompleteLength(B(phyHeader->getLengthField())));
     const simtime_t preambleDuration = transmissionMode->getPreambleMode()->getDuration();
     const simtime_t headerDuration = transmissionMode->getHeaderMode()->getDuration();
     const simtime_t dataDuration = duration - headerDuration - preambleDuration;
     return new Ieee80211ScalarTransmission(transmitter, packet, startTime, endTime, preambleDuration, headerDuration, dataDuration, startPosition, endPosition, startOrientation, endOrientation, modulation, headerLength, dataLength, centerFrequency, transmissionBandwidth, transmissionBitrate, transmissionPower, transmissionMode, transmissionChannel);
 }

◆ printToStream()

std::ostream & inet::physicallayer::Ieee80211ScalarTransmitter::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::Ieee80211TransmitterBase.

 {
     stream << "Ieee80211ScalarTransmitter";
     return Ieee80211TransmitterBase::printToStream(stream, level);
 }

The documentation for this class was generated from the following files:
