inet::physicallayer::IIeee80211Band Class Reference

#include <Ieee80211Band.h>

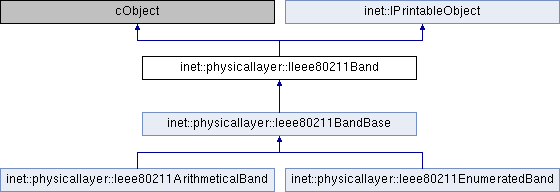

Inheritance diagram for inet::physicallayer::IIeee80211Band:

Public Member Functions
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const char *	getName () const override=0
virtual int	getNumChannels () const =0
virtual Hz	getCenterFrequency (int channelNumber) const =0
virtual Hz	getSpacing () const =0
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Member Function Documentation

getCenterFrequency()

virtual Hz inet::physicallayer::IIeee80211Band::getCenterFrequency ( int  channelNumber ) const

pure virtual

Implemented in inet::physicallayer::Ieee80211ArithmeticalBand, and inet::physicallayer::Ieee80211EnumeratedBand.

Referenced by inet::physicallayer::Ieee80211Channel::getCenterFrequency().

getName()

virtual const char* inet::physicallayer::IIeee80211Band::getName ( ) const

overridepure virtual

Implemented in inet::physicallayer::Ieee80211BandBase.

getNumChannels()

virtual int inet::physicallayer::IIeee80211Band::getNumChannels ( ) const

pure virtual

Implemented in inet::physicallayer::Ieee80211ArithmeticalBand, and inet::physicallayer::Ieee80211EnumeratedBand.

getSpacing()

virtual Hz inet::physicallayer::IIeee80211Band::getSpacing ( ) const

pure virtual

Implemented in inet::physicallayer::Ieee80211ArithmeticalBand, and inet::physicallayer::Ieee80211EnumeratedBand.

printToStream()

virtual std::ostream& inet::physicallayer::IIeee80211Band::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

inlineoverridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{ return stream << "Ieee80211Band, name = " << getName(); }

---

The documentation for this class was generated from the following file:

• Ieee80211Band.h
