inet::physicallayer::Ieee80211ArithmeticalBand Class Reference

#include <Ieee80211Band.h>

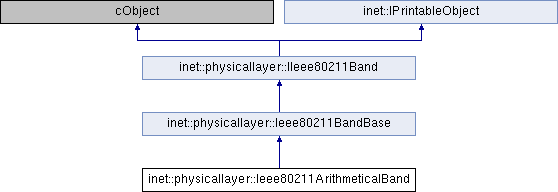

Inheritance diagram for inet::physicallayer::Ieee80211ArithmeticalBand:

Public Member Functions
	Ieee80211ArithmeticalBand (const char *name, Hz start, Hz spacing, int numChannels)
virtual int	getNumChannels () const override
virtual Hz	getCenterFrequency (int channelNumber) const override
virtual Hz	getSpacing () const override
Public Member Functions inherited from inet::physicallayer::Ieee80211BandBase
	Ieee80211BandBase (const char *name)
virtual const char *	getName () const override
Public Member Functions inherited from inet::physicallayer::IIeee80211Band
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
Hz	start
Hz	spacing
int	numChannels
Protected Attributes inherited from inet::physicallayer::Ieee80211BandBase
const char *	name

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Ieee80211ArithmeticalBand()

inet::physicallayer::Ieee80211ArithmeticalBand::Ieee80211ArithmeticalBand	(	const char *	name,
		Hz	start,
		Hz	spacing,
		int	numChannels
	)

                                                                                                            :
    Ieee80211BandBase(name),
    start(start),
    spacing(spacing),
    numChannels(numChannels)
{
}

Member Function Documentation

getCenterFrequency()

Hz inet::physicallayer::Ieee80211ArithmeticalBand::getCenterFrequency ( int  channelNumber ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Band.

{
    if (channelNumber < 0 || channelNumber >= numChannels)
        throw cRuntimeError("Invalid channel number: %d", channelNumber);
    return start + spacing / 2 + spacing * channelNumber;
}

getNumChannels()

virtual int inet::physicallayer::Ieee80211ArithmeticalBand::getNumChannels ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Band.

{ return numChannels; }

getSpacing()

virtual Hz inet::physicallayer::Ieee80211ArithmeticalBand::getSpacing ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Band.

{ return spacing; }

Member Data Documentation

numChannels

int inet::physicallayer::Ieee80211ArithmeticalBand::numChannels

protected

Referenced by getCenterFrequency().

spacing

Hz inet::physicallayer::Ieee80211ArithmeticalBand::spacing

protected

Referenced by getCenterFrequency().

start

Hz inet::physicallayer::Ieee80211ArithmeticalBand::start

protected

Referenced by getCenterFrequency().

---

The documentation for this class was generated from the following files:

• Ieee80211Band.h
• Ieee80211Band.cc
