inet::physicallayer::Ieee80211EnumeratedBand Class Reference

#include <Ieee80211Band.h>

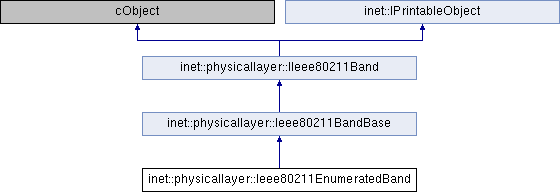

Inheritance diagram for inet::physicallayer::Ieee80211EnumeratedBand:

Public Member Functions
	Ieee80211EnumeratedBand (const char *name, const std::vector< Hz > centers)
virtual int	getNumChannels () const override
virtual Hz	getCenterFrequency (int channelNumber) const override
virtual Hz	getSpacing () const override
Public Member Functions inherited from inet::physicallayer::Ieee80211BandBase
	Ieee80211BandBase (const char *name)
virtual const char *	getName () const override
Public Member Functions inherited from inet::physicallayer::IIeee80211Band
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
std::vector< Hz >	centers
Protected Attributes inherited from inet::physicallayer::Ieee80211BandBase
const char *	name

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Ieee80211EnumeratedBand()

inet::physicallayer::Ieee80211EnumeratedBand::Ieee80211EnumeratedBand	(	const char *	name,
		const std::vector< Hz >	centers
	)

                                                                                              :
    Ieee80211BandBase(name),
    centers(centers)
{
}

Member Function Documentation

getCenterFrequency()

Hz inet::physicallayer::Ieee80211EnumeratedBand::getCenterFrequency ( int  channelNumber ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Band.

{
    if (channelNumber < 0 || channelNumber >= (int)centers.size())
        throw cRuntimeError("Invalid channel number: %d", channelNumber);
    return centers[channelNumber];
}

getNumChannels()

virtual int inet::physicallayer::Ieee80211EnumeratedBand::getNumChannels ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Band.

{ return centers.size(); }

getSpacing()

virtual Hz inet::physicallayer::Ieee80211EnumeratedBand::getSpacing ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Band.

{ return Hz(NaN); }

Member Data Documentation

centers

std::vector<Hz> inet::physicallayer::Ieee80211EnumeratedBand::centers

protected

Referenced by getCenterFrequency().

---

The documentation for this class was generated from the following files:

• Ieee80211Band.h
• Ieee80211Band.cc
