inet::physicallayer::Ieee80211Radio Class Reference

#include <Ieee80211Radio.h>

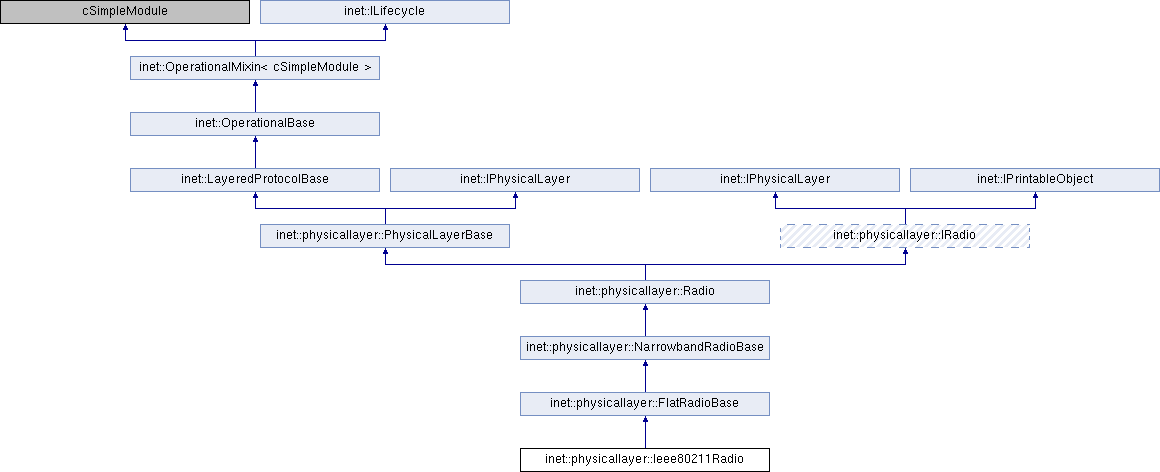

Inheritance diagram for inet::physicallayer::Ieee80211Radio:

Public Member Functions
	Ieee80211Radio ()
virtual void	setModeSet (const Ieee80211ModeSet *modeSet)
virtual void	setMode (const IIeee80211Mode *mode)
virtual void	setBand (const IIeee80211Band *band)
virtual void	setChannel (const Ieee80211Channel *channel)
virtual void	setChannelNumber (int newChannelNumber)
Public Member Functions inherited from inet::physicallayer::FlatRadioBase
	FlatRadioBase ()
virtual void	setPower (W newPower)
virtual void	setBitrate (bps newBitrate)
Public Member Functions inherited from inet::physicallayer::NarrowbandRadioBase
	NarrowbandRadioBase ()
virtual void	setModulation (const IModulation *newModulation)
virtual void	setCenterFrequency (Hz newCenterFrequency)
virtual void	setBandwidth (Hz newBandwidth)
Public Member Functions inherited from inet::physicallayer::Radio
	Radio ()
virtual	~Radio ()
virtual int	getId () const override
	Returns an identifier for this radio which is globally unique for the whole lifetime of the simulation among all radios. More...
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const IAntenna *	getAntenna () const override
	Returns the antenna used by the transceiver of this radio. More...
virtual const ITransmitter *	getTransmitter () const override
	Returns the transmitter part of this radio. More...
virtual const IReceiver *	getReceiver () const override
	Returns the receiver part of this radio. More...
virtual const IRadioMedium *	getMedium () const override
	Returns the radio medium where this radio is transmitting and receiving radio signals. More...
virtual const cGate *	getRadioGate () const override
	Returns the gate of the radio that receives incoming signals. More...
virtual RadioMode	getRadioMode () const override
	Returns the current radio mode, This is the same mode as the one emitted with the last radioModeChangedSignal. More...
virtual void	setRadioMode (RadioMode newRadioMode) override
	Changes the current radio mode. More...
virtual ReceptionState	getReceptionState () const override
	Returns the current radio reception state. More...
virtual TransmissionState	getTransmissionState () const override
	Returns the current radio transmission state. More...
virtual const ITransmission *	getTransmissionInProgress () const override
	Returns the ongoing transmission that the transmitter is currently transmitting or nullptr. More...
virtual const ITransmission *	getReceptionInProgress () const override
	Returns the ongoing reception that the receiver is currently receiving or nullptr. More...
virtual IRadioSignal::SignalPart	getTransmittedSignalPart () const override
	Returns the signal part of the ongoing transmission that the transmitter is currently transmitting or -1 if no transmission is in progress. More...
virtual IRadioSignal::SignalPart	getReceivedSignalPart () const override
	Returns the signal part of the ongoing reception that the receiver is currently receiving or -1 if no reception is in progress. More...
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Public Member Functions inherited from inet::IPhysicalLayer
virtual	~IPhysicalLayer ()
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Static Public Member Functions
static const Ptr< const Ieee80211PhyHeader >	popIeee80211PhyHeaderAtFront (Packet *packet, b length=b(-1), int flags=0)
static const Ptr< const Ieee80211PhyHeader >	peekIeee80211PhyHeaderAtFront (const Packet *packet, b length=b(-1), int flags=0)
Static Public Member Functions inherited from inet::physicallayer::IRadio
static const char *	getRadioModeName (RadioMode radioMode)
	Returns the name of the provided radio mode. More...
static const char *	getRadioReceptionStateName (ReceptionState receptionState)
	Returns the name of the provided radio reception state. More...
static const char *	getRadioTransmissionStateName (TransmissionState transmissionState)
	Returns the name of the provided radio transmission state. More...

Static Public Attributes
static simsignal_t	radioChannelChangedSignal = cComponent::registerSignal("radioChannelChanged")
	This signal is emitted every time the radio channel changes. More...
Static Public Attributes inherited from inet::physicallayer::IRadio
static simsignal_t	radioModeChangedSignal = cComponent::registerSignal("radioModeChanged")
	This signal is emitted when the radio mode of the radio is changed. More...
static simsignal_t	listeningChangedSignal = cComponent::registerSignal("listeningChanged")
	This signal is emitted when the radio listening of the radio is changed. More...
static simsignal_t	receptionStateChangedSignal = cComponent::registerSignal("receptionStateChanged")
	This signal is emitted when the radio reception state of the radio is changed. More...
static simsignal_t	transmissionStateChangedSignal = cComponent::registerSignal("transmissionStateChanged")
	This signal is emitted when the radio transmission state of the radio is changed. More...
static simsignal_t	receivedSignalPartChangedSignal = cComponent::registerSignal("receivedSignalPartChanged")
	This signal is emitted when the received part is changed by the radio. More...
static simsignal_t	transmittedSignalPartChangedSignal = cComponent::registerSignal("transmittedSignalPartChanged")
	This signal is emitted when the transmitted part is changed by the radio. More...

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	handleUpperCommand (cMessage *message) override
virtual void	insertCrc (const Ptr< Ieee80211PhyHeader > &phyHeader) const
virtual bool	verifyCrc (const Ptr< const Ieee80211PhyHeader > &phyHeader) const
virtual void	encapsulate (Packet *packet) const override
virtual void	decapsulate (Packet *packet) const override
Protected Member Functions inherited from inet::physicallayer::Radio
virtual void	initializeRadioMode ()
virtual void	handleMessageWhenDown (cMessage *message) override
virtual void	handleSelfMessage (cMessage *message) override
virtual void	handleSwitchTimer (cMessage *message)
virtual void	handleTransmissionTimer (cMessage *message)
virtual void	handleReceptionTimer (cMessage *message)
virtual void	handleLowerCommand (cMessage *command) override
virtual void	handleUpperPacket (Packet *packet) override
virtual void	handleSignal (WirelessSignal *signal) override
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
virtual void	startTransmission (Packet *macFrame, IRadioSignal::SignalPart part)
virtual void	continueTransmission ()
virtual void	endTransmission ()
virtual void	abortTransmission ()
virtual WirelessSignal *	createSignal (Packet *packet) const
virtual void	startReception (cMessage *timer, IRadioSignal::SignalPart part)
virtual void	continueReception (cMessage *timer)
virtual void	endReception (cMessage *timer)
virtual void	abortReception (cMessage *timer)
virtual void	captureReception (cMessage *timer)
virtual void	sendUp (Packet *macFrame)
virtual cMessage *	createReceptionTimer (WirelessSignal *signal) const
virtual bool	isReceptionTimer (const cMessage *message) const
virtual bool	isReceiverMode (IRadio::RadioMode radioMode) const
virtual bool	isTransmitterMode (IRadio::RadioMode radioMode) const
virtual bool	isListeningPossible () const
virtual void	updateTransceiverState ()
virtual void	updateTransceiverPart ()
Protected Member Functions inherited from inet::physicallayer::PhysicalLayerBase
virtual void	handleLowerMessage (cMessage *message) override
virtual void	sendUp (cMessage *message)
virtual bool	isUpperMessage (cMessage *message) const override
virtual bool	isLowerMessage (cMessage *message) const override
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
Protected Member Functions inherited from inet::LayeredProtocolBase
virtual void	handleMessageWhenUp (cMessage *message) override
virtual void	handleUpperMessage (cMessage *message)
virtual void	handleLowerPacket (Packet *packet)
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Protected Attributes
CrcMode	crcMode = CRC_MODE_UNDEFINED
Protected Attributes inherited from inet::physicallayer::Radio
const int	id = nextId++
	An identifier which is globally unique for the whole lifetime of the simulation among all radios. More...
const IAntenna *	antenna = nullptr
	The radio antenna model is never nullptr. More...
const ITransmitter *	transmitter = nullptr
	The transmitter model is never nullptr. More...
const IReceiver *	receiver = nullptr
	The receiver model is never nullptr. More...
ModuleRefByPar< IRadioMedium >	medium
	The radio medium model is never nullptr. More...
int	mediumModuleId = -1
	The module id of the medim model. More...
simtime_t	switchingTimes [RADIO_MODE_SWITCHING][RADIO_MODE_SWITCHING]
	Simulation time required to switch from one radio mode to another. More...
bool	sendRawBytes = false
	When true packets are serialized into a sequence of bytes before sending out. More...
bool	separateTransmissionParts = false
	Determines whether the transmission of the preamble, header and data part are simulated separately or not. More...
bool	separateReceptionParts = false
	Determines whether the reception of the preamble, header and data part are simulated separately or not. More...
cGate *	upperLayerOut = nullptr
	Gates. More...
cGate *	upperLayerIn = nullptr
cGate *	radioIn = nullptr
RadioMode	radioMode = RADIO_MODE_OFF
	State. More...
RadioMode	nextRadioMode = RADIO_MODE_OFF
	The radio is switching to this radio radio mode if a switch is in progress, otherwise this is the same as the current radio mode. More...
RadioMode	previousRadioMode = RADIO_MODE_OFF
	The radio is switching from this radio mode to another if a switch is in progress, otherwise this is the same as the current radio mode. More...
ReceptionState	receptionState = RECEPTION_STATE_UNDEFINED
	The current reception state. More...
TransmissionState	transmissionState = TRANSMISSION_STATE_UNDEFINED
	The current transmission state. More...
IRadioSignal::SignalPart	receivedSignalPart = IRadioSignal::SIGNAL_PART_NONE
	The current received signal part. More...
IRadioSignal::SignalPart	transmittedSignalPart = IRadioSignal::SIGNAL_PART_NONE
	The current transmitted signal part. More...
cMessage *	transmissionTimer = nullptr
	The timer that is scheduled to the end of the current transmission. More...
cMessage *	receptionTimer = nullptr
	The timer that is scheduled to the end of the current reception. More...
cMessage *	switchTimer = nullptr
	The timer that is scheduled to the end of the radio mode switch. More...
Protected Attributes inherited from inet::physicallayer::PhysicalLayerBase
int	upperLayerInGateId = -1
int	upperLayerOutGateId = -1
int	radioInGateId = -1
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Additional Inherited Members
Public Types inherited from inet::physicallayer::IRadio
enum	RadioMode {   RADIO_MODE_OFF, RADIO_MODE_SLEEP, RADIO_MODE_RECEIVER, RADIO_MODE_TRANSMITTER,   RADIO_MODE_TRANSCEIVER, RADIO_MODE_SWITCHING }
	This enumeration specifies the requested operational mode of the radio. More...
enum	ReceptionState { RECEPTION_STATE_UNDEFINED, RECEPTION_STATE_IDLE, RECEPTION_STATE_BUSY, RECEPTION_STATE_RECEIVING }
	This enumeration specifies the reception state of the radio. More...
enum	TransmissionState { TRANSMISSION_STATE_UNDEFINED, TRANSMISSION_STATE_IDLE, TRANSMISSION_STATE_TRANSMITTING }
	This enumeration specifies the transmission state of the radio. More...
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State
Static Protected Attributes inherited from inet::physicallayer::IRadio
static int	nextId = 0
static cEnum *	radioModeEnum = nullptr
	The enumeration registered for radio mode. More...
static cEnum *	receptionStateEnum = nullptr
	The enumeration registered for radio reception state. More...
static cEnum *	transmissionStateEnum = nullptr
	The enumeration registered for radio transmission state. More...

Constructor & Destructor Documentation

Ieee80211Radio()

inet::physicallayer::Ieee80211Radio::Ieee80211Radio

(

)

                               :
    FlatRadioBase()
{
}

Member Function Documentation

decapsulate()

void inet::physicallayer::Ieee80211Radio::decapsulate ( Packet *  packet ) const

overrideprotectedvirtual

Reimplemented from inet::physicallayer::Radio.

{
    auto mode = packet->getTag<Ieee80211ModeInd>()->getMode();
    const auto& phyHeader = popIeee80211PhyHeaderAtFront(packet, b(-1), Chunk::PF_ALLOW_INCORRECT | Chunk::PF_ALLOW_INCOMPLETE | Chunk::PF_ALLOW_IMPROPERLY_REPRESENTED);
    if (phyHeader->isIncorrect() || phyHeader->isIncomplete() || phyHeader->isImproperlyRepresented() || !verifyCrc(phyHeader))
        packet->setBitError(true);
    auto tailLength = dynamic_cast<const Ieee80211OfdmMode *>(mode) ? b(6) : b(0);
    auto paddingLength = mode->getDataMode()->getPaddingLength(B(phyHeader->getLengthField()));
    if (tailLength + paddingLength != b(0))
        packet->popAtBack(tailLength + paddingLength, Chunk::PF_ALLOW_INCORRECT);
    packet->getTagForUpdate<PacketProtocolTag>()->setProtocol(&Protocol::ieee80211Mac);
}

encapsulate()

void inet::physicallayer::Ieee80211Radio::encapsulate ( Packet *  packet ) const

overrideprotectedvirtual

Reimplemented from inet::physicallayer::Radio.

{
    auto ieee80211Transmitter = check_and_cast<const Ieee80211TransmitterBase *>(transmitter);
    auto mode = ieee80211Transmitter->computeTransmissionMode(packet);
    auto phyHeader = mode->getHeaderMode()->createHeader();
    phyHeader->setChunkLength(b(mode->getHeaderMode()->getLength()));
    phyHeader->setLengthField(B(packet->getTotalLength()));
    insertCrc(phyHeader);
    packet->insertAtFront(phyHeader);

    auto tailLength = dynamic_cast<const Ieee80211OfdmMode *>(mode) ? b(6) : b(0);
    auto paddingLength = mode->getDataMode()->getPaddingLength(B(phyHeader->getLengthField()));
    if (tailLength + paddingLength != b(0)) {
        const auto& phyTrailer = makeShared<BitCountChunk>(tailLength + paddingLength);
        packet->insertAtBack(phyTrailer);
    }
    const Protocol *protocol = nullptr;
    if (dynamic_cast<Ieee80211FhssPhyHeader *>(phyHeader.get()))
        protocol = &Protocol::ieee80211FhssPhy;
    else if (dynamic_cast<Ieee80211IrPhyHeader *>(phyHeader.get()))
        protocol = &Protocol::ieee80211IrPhy;
    else if (dynamic_cast<Ieee80211DsssPhyHeader *>(phyHeader.get()))
        protocol = &Protocol::ieee80211DsssPhy;
    else if (dynamic_cast<Ieee80211HrDsssPhyHeader *>(phyHeader.get()))
        protocol = &Protocol::ieee80211HrDsssPhy;
    else if (dynamic_cast<Ieee80211OfdmPhyHeader *>(phyHeader.get()))
        protocol = &Protocol::ieee80211OfdmPhy;
    else if (dynamic_cast<Ieee80211ErpOfdmPhyHeader *>(phyHeader.get()))
        protocol = &Protocol::ieee80211ErpOfdmPhy;
    else if (dynamic_cast<Ieee80211HtPhyHeader *>(phyHeader.get()))
        protocol = &Protocol::ieee80211HtPhy;
    else if (dynamic_cast<Ieee80211VhtPhyHeader *>(phyHeader.get()))
        protocol = &Protocol::ieee80211VhtPhy;
    else
        throw cRuntimeError("Invalid IEEE 802.11 PHY header type.");
    packet->getTagForUpdate<PacketProtocolTag>()->setProtocol(protocol);
}

handleUpperCommand()

void inet::physicallayer::Ieee80211Radio::handleUpperCommand ( cMessage *  message )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::FlatRadioBase.

{
    if (message->getKind() == RADIO_C_CONFIGURE) {
        Ieee80211ConfigureRadioCommand *configureCommand = dynamic_cast<Ieee80211ConfigureRadioCommand *>(message->getControlInfo());
        if (configureCommand != nullptr) {
            const char *opMode = configureCommand->getOpMode();
            if (*opMode)
                setModeSet(Ieee80211ModeSet::getModeSet(opMode));
            const Ieee80211ModeSet *modeSet = configureCommand->getModeSet();
            if (modeSet != nullptr)
                setModeSet(modeSet);
            const IIeee80211Mode *mode = configureCommand->getMode();
            if (mode != nullptr)
                setMode(mode);
            const IIeee80211Band *band = configureCommand->getBand();
            if (band != nullptr)
                setBand(band);
            const Ieee80211Channel *channel = configureCommand->getChannel();
            if (channel != nullptr)
                setChannel(channel);
            int newChannelNumber = configureCommand->getChannelNumber();
            if (newChannelNumber != -1)
                setChannelNumber(newChannelNumber);
        }
    }
    FlatRadioBase::handleUpperCommand(message);
}

initialize()

void inet::physicallayer::Ieee80211Radio::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::Radio.

{
    FlatRadioBase::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        const char *crcModeString = par("crcMode");
        crcMode = parseCrcMode(crcModeString, true);
    }
    if (stage == INITSTAGE_PHYSICAL_LAYER) {
        int channelNumber = par("channelNumber");
        if (channelNumber != -1)
            setChannelNumber(channelNumber);
    }
}

insertCrc()

void inet::physicallayer::Ieee80211Radio::insertCrc ( const Ptr< Ieee80211PhyHeader > &  phyHeader ) const

protectedvirtual

{
    if (auto header = dynamic_cast<Ieee80211FhssPhyHeader *>(phyHeader.get())) {
        header->setCrcMode(crcMode);
        switch (crcMode) {
            case CRC_COMPUTED:
                header->setCrc(0); // TODO calculate CRC
                break;
            case CRC_DECLARED_CORRECT:
                header->setCrc(0xC00D);
                break;
            case CRC_DECLARED_INCORRECT:
                header->setCrc(0xBAAD);
                break;
            default:
                throw cRuntimeError("Invalid CRC mode: %i", (int)crcMode);
        }
    }
    else if (auto header = dynamic_cast<Ieee80211IrPhyHeader *>(phyHeader.get())) {
        header->setCrcMode(crcMode);
        switch (crcMode) {
            case CRC_COMPUTED:
                header->setCrc(0); // TODO calculate CRC
                break;
            case CRC_DECLARED_CORRECT:
                header->setCrc(0xC00D);
                break;
            case CRC_DECLARED_INCORRECT:
                header->setCrc(0xBAAD);
                break;
            default:
                throw cRuntimeError("Invalid CRC mode: %i", (int)crcMode);
        }
    }
    else if (auto header = dynamic_cast<Ieee80211DsssPhyHeader *>(phyHeader.get())) {
        header->setCrcMode(crcMode);
        switch (crcMode) {
            case CRC_COMPUTED:
                header->setCrc(0); // TODO calculate CRC
                break;
            case CRC_DECLARED_CORRECT:
                header->setCrc(0xC00D);
                break;
            case CRC_DECLARED_INCORRECT:
                header->setCrc(0xBAAD);
                break;
            default:
                throw cRuntimeError("Invalid CRC mode: %i", (int)crcMode);
        }
    }
}

Referenced by encapsulate().

peekIeee80211PhyHeaderAtFront()

const Ptr< const Ieee80211PhyHeader > inet::physicallayer::Ieee80211Radio::peekIeee80211PhyHeaderAtFront ( const Packet *  packet, b  length = b(-1), int  flags = 0  )

static

{
    int id = packet->getTag<PacketProtocolTag>()->getProtocol()->getId();
    if (id == Protocol::ieee80211FhssPhy.getId())
        return packet->peekAtFront<Ieee80211FhssPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211IrPhy.getId())
        return packet->peekAtFront<Ieee80211IrPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211DsssPhy.getId())
        return packet->peekAtFront<Ieee80211DsssPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211HrDsssPhy.getId())
        return packet->peekAtFront<Ieee80211HrDsssPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211OfdmPhy.getId())
        return packet->peekAtFront<Ieee80211OfdmPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211ErpOfdmPhy.getId())
        return packet->peekAtFront<Ieee80211ErpOfdmPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211HtPhy.getId())
        return packet->peekAtFront<Ieee80211HtPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211VhtPhy.getId())
        return packet->peekAtFront<Ieee80211VhtPhyHeader>(length, flags);
    else
        throw cRuntimeError("Invalid IEEE 802.11 PHY protocol.");
}

Referenced by inet::physicallayer::Ieee80211ScalarTransmitter::createTransmission(), and inet::physicallayer::Ieee80211DimensionalTransmitter::createTransmission().

popIeee80211PhyHeaderAtFront()

const Ptr< const Ieee80211PhyHeader > inet::physicallayer::Ieee80211Radio::popIeee80211PhyHeaderAtFront ( Packet *  packet, b  length = b(-1), int  flags = 0  )

static

{
    int id = packet->getTag<PacketProtocolTag>()->getProtocol()->getId();
    if (id == Protocol::ieee80211FhssPhy.getId())
        return packet->popAtFront<Ieee80211FhssPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211IrPhy.getId())
        return packet->popAtFront<Ieee80211IrPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211DsssPhy.getId())
        return packet->popAtFront<Ieee80211DsssPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211HrDsssPhy.getId())
        return packet->popAtFront<Ieee80211HrDsssPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211OfdmPhy.getId())
        return packet->popAtFront<Ieee80211OfdmPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211ErpOfdmPhy.getId())
        return packet->popAtFront<Ieee80211ErpOfdmPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211HtPhy.getId())
        return packet->popAtFront<Ieee80211HtPhyHeader>(length, flags);
    else if (id == Protocol::ieee80211VhtPhy.getId())
        return packet->popAtFront<Ieee80211VhtPhyHeader>(length, flags);
    else
        throw cRuntimeError("Invalid IEEE 802.11 PHY protocol.");
}

Referenced by decapsulate(), and inet::Ieee80211PhyProtocolDissector::dissect().

setBand()

void inet::physicallayer::Ieee80211Radio::setBand ( const IIeee80211Band *  band )

virtual

{
    Ieee80211TransmitterBase *ieee80211Transmitter = const_cast<Ieee80211TransmitterBase *>(check_and_cast<const Ieee80211TransmitterBase *>(transmitter));
    Ieee80211ReceiverBase *ieee80211Receiver = const_cast<Ieee80211ReceiverBase *>(check_and_cast<const Ieee80211ReceiverBase *>(receiver));
    ieee80211Transmitter->setBand(band);
    ieee80211Receiver->setBand(band);
    EV << "Changing radio band to " << band << endl;
    receptionTimer = nullptr;
    emit(listeningChangedSignal, 0);
}

Referenced by handleUpperCommand().

setChannel()

void inet::physicallayer::Ieee80211Radio::setChannel ( const Ieee80211Channel *  channel )

virtual

{
    Ieee80211TransmitterBase *ieee80211Transmitter = const_cast<Ieee80211TransmitterBase *>(check_and_cast<const Ieee80211TransmitterBase *>(transmitter));
    Ieee80211ReceiverBase *ieee80211Receiver = const_cast<Ieee80211ReceiverBase *>(check_and_cast<const Ieee80211ReceiverBase *>(receiver));
    ieee80211Transmitter->setChannel(channel);
    ieee80211Receiver->setChannel(channel);
    EV << "Changing radio channel to " << channel->getChannelNumber() << endl;
    receptionTimer = nullptr;
    emit(radioChannelChangedSignal, channel->getChannelNumber());
    emit(listeningChangedSignal, 0);
}

Referenced by handleUpperCommand().

setChannelNumber()

void inet::physicallayer::Ieee80211Radio::setChannelNumber ( int  newChannelNumber )

virtual

{
    Ieee80211TransmitterBase *ieee80211Transmitter = const_cast<Ieee80211TransmitterBase *>(check_and_cast<const Ieee80211TransmitterBase *>(transmitter));
    Ieee80211ReceiverBase *ieee80211Receiver = const_cast<Ieee80211ReceiverBase *>(check_and_cast<const Ieee80211ReceiverBase *>(receiver));
    ieee80211Transmitter->setChannelNumber(newChannelNumber);
    ieee80211Receiver->setChannelNumber(newChannelNumber);
    EV << "Changing radio channel to " << newChannelNumber << ".\n";
    receptionTimer = nullptr;
    emit(radioChannelChangedSignal, newChannelNumber);
    emit(listeningChangedSignal, 0);
}

Referenced by handleUpperCommand(), and initialize().

setMode()

void inet::physicallayer::Ieee80211Radio::setMode ( const IIeee80211Mode *  mode )

virtual

{
    Ieee80211TransmitterBase *ieee80211Transmitter = const_cast<Ieee80211TransmitterBase *>(check_and_cast<const Ieee80211TransmitterBase *>(transmitter));
    ieee80211Transmitter->setMode(mode);
    EV << "Changing radio mode to " << mode << endl;
    receptionTimer = nullptr;
    emit(listeningChangedSignal, 0);
}

Referenced by handleUpperCommand().

setModeSet()

void inet::physicallayer::Ieee80211Radio::setModeSet ( const Ieee80211ModeSet *  modeSet )

virtual

{
    Ieee80211TransmitterBase *ieee80211Transmitter = const_cast<Ieee80211TransmitterBase *>(check_and_cast<const Ieee80211TransmitterBase *>(transmitter));
    Ieee80211ReceiverBase *ieee80211Receiver = const_cast<Ieee80211ReceiverBase *>(check_and_cast<const Ieee80211ReceiverBase *>(receiver));
    ieee80211Transmitter->setModeSet(modeSet);
    ieee80211Receiver->setModeSet(modeSet);
    EV << "Changing radio mode set to " << modeSet << endl;
    receptionTimer = nullptr;
    emit(listeningChangedSignal, 0);
}

Referenced by handleUpperCommand().

verifyCrc()

bool inet::physicallayer::Ieee80211Radio::verifyCrc ( const Ptr< const Ieee80211PhyHeader > &  phyHeader ) const

protectedvirtual

{
    if (auto header = dynamicPtrCast<const Ieee80211FhssPhyHeader>(phyHeader)) {
        switch (header->getCrcMode()) {
            case CRC_COMPUTED:
                return true; // TODO calculate and check CRC
            case CRC_DECLARED_CORRECT:
                return true;
            case CRC_DECLARED_INCORRECT:
                return false;
            default:
                throw cRuntimeError("Invalid CRC mode: %i", (int)crcMode);
        }
    }
    else if (auto header = dynamicPtrCast<const Ieee80211IrPhyHeader>(phyHeader)) {
        switch (header->getCrcMode()) {
            case CRC_COMPUTED:
                return true; // TODO calculate and check CRC
            case CRC_DECLARED_CORRECT:
                return true;
            case CRC_DECLARED_INCORRECT:
                return false;
            default:
                throw cRuntimeError("Invalid CRC mode: %i", (int)crcMode);
        }
    }
    else if (auto header = dynamicPtrCast<const Ieee80211DsssPhyHeader>(phyHeader)) {
        switch (header->getCrcMode()) {
            case CRC_COMPUTED:
                return true; // TODO calculate and check CRC
            case CRC_DECLARED_CORRECT:
                return true;
            case CRC_DECLARED_INCORRECT:
                return false;
            default:
                throw cRuntimeError("Invalid CRC mode: %i", (int)crcMode);
        }
    }
    else
        return true;
}

Referenced by decapsulate().

Member Data Documentation

crcMode

CrcMode inet::physicallayer::Ieee80211Radio::crcMode = CRC_MODE_UNDEFINED

protected

Referenced by initialize(), insertCrc(), and verifyCrc().

radioChannelChangedSignal

simsignal_t inet::physicallayer::Ieee80211Radio::radioChannelChangedSignal = cComponent::registerSignal("radioChannelChanged")

static

This signal is emitted every time the radio channel changes.

The signal value is the new radio channel.

Referenced by inet::ieee80211::Ieee80211MgmtAp::initialize(), inet::ieee80211::Ieee80211MgmtAp::receiveSignal(), setChannel(), and setChannelNumber().

---

The documentation for this class was generated from the following files:

• Ieee80211Radio.h
• Ieee80211Radio.cc
