inet::LayeredProtocolBase Class Reference

#include <LayeredProtocolBase.h>

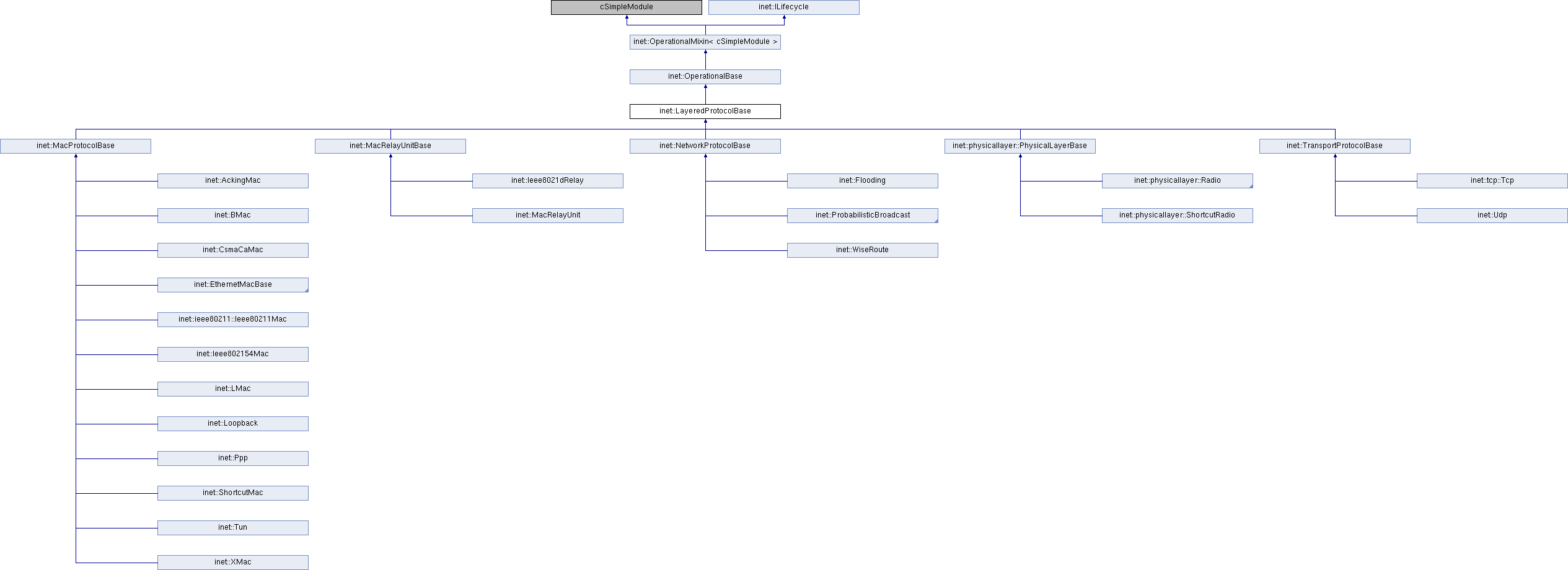

Inheritance diagram for inet::LayeredProtocolBase:

Protected Member Functions
virtual void	handleMessageWhenUp (cMessage *message) override
virtual void	handleSelfMessage (cMessage *message)
virtual void	handleUpperMessage (cMessage *message)
virtual void	handleLowerMessage (cMessage *message)
virtual void	handleUpperCommand (cMessage *message)
virtual void	handleLowerCommand (cMessage *message)
virtual void	handleUpperPacket (Packet *packet)
virtual void	handleLowerPacket (Packet *packet)
virtual bool	isUpperMessage (cMessage *message) const =0
virtual bool	isLowerMessage (cMessage *message) const =0
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual void	handleStartOperation (LifecycleOperation *operation)=0
virtual void	handleStopOperation (LifecycleOperation *operation)=0
virtual void	handleCrashOperation (LifecycleOperation *operation)=0
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual bool	isInitializeStage (int stage) const=0
virtual bool	isModuleStartStage (int stage) const=0
virtual bool	isModuleStopStage (int stage) const=0
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Additional Inherited Members
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Member Function Documentation

handleLowerCommand()

void inet::LayeredProtocolBase::handleLowerCommand ( cMessage *  message )

protectedvirtual

Reimplemented in inet::physicallayer::Radio.

{
    throw cRuntimeError("Lower command '%s' is not handled.", message->getName());
}

Referenced by handleLowerMessage(), and inet::physicallayer::PhysicalLayerBase::handleLowerMessage().

handleLowerMessage()

void inet::LayeredProtocolBase::handleLowerMessage ( cMessage *  message )

protectedvirtual

Reimplemented in inet::physicallayer::PhysicalLayerBase.

{
    if (!message->isPacket())
        handleLowerCommand(message);
    else {
        emit(packetReceivedFromLowerSignal, message);
        handleLowerPacket(check_and_cast<Packet *>(message));
    }
}

Referenced by handleMessageWhenUp().

handleLowerPacket()

void inet::LayeredProtocolBase::handleLowerPacket ( Packet *  packet )

protectedvirtual

Reimplemented in inet::WiseRoute, inet::tcp::Tcp, inet::CsmaCaMac, inet::Flooding, inet::LMac, inet::Ieee802154Mac, inet::ieee80211::Ieee80211Mac, inet::ProbabilisticBroadcast, inet::BMac, inet::Ppp, inet::AckingMac, inet::Ieee8021dRelay, inet::AdaptiveProbabilisticBroadcast, inet::ShortcutMac, inet::MacRelayUnit, inet::Udp, and inet::XMac.

{
    throw cRuntimeError("Lower packet '%s' is not handled.", packet->getName());
}

Referenced by handleLowerMessage().

handleMessageWhenUp()

void inet::LayeredProtocolBase::handleMessageWhenUp ( cMessage *  message )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

Reimplemented in inet::EthernetCsmaMac, inet::EthernetMac, inet::ieee80211::Ieee80211Mac, inet::Ppp, inet::physicallayer::ShortcutRadio, and inet::ShortcutMac.

{
    if (message->isSelfMessage())
        handleSelfMessage(message);
    else if (isUpperMessage(message))
        handleUpperMessage(message);
    else if (isLowerMessage(message))
        handleLowerMessage(message);
    else
        throw cRuntimeError("Message '%s' received on unexpected gate '%s'", message->getName(), message->getArrivalGate()->getFullName());
}

Referenced by inet::ShortcutMac::handleMessageWhenUp(), inet::physicallayer::ShortcutRadio::handleMessageWhenUp(), inet::Ppp::handleMessageWhenUp(), and inet::ieee80211::Ieee80211Mac::handleMessageWhenUp().

handleSelfMessage()

void inet::LayeredProtocolBase::handleSelfMessage ( cMessage *  message )

protectedvirtual

Reimplemented in inet::WiseRoute, inet::CsmaCaMac, inet::ProbabilisticBroadcast, inet::EthernetCsmaMac, inet::ieee80211::Ieee80211Mac, inet::EthernetMac, inet::AdaptiveProbabilisticBroadcast, inet::physicallayer::Radio, inet::tcp::Tcp, inet::Ppp, inet::AckingMac, inet::LMac, inet::Ieee802154Mac, inet::XMac, and inet::BMac.

{
    throw cRuntimeError("Self message '%s' is not handled.", message->getName());
}

Referenced by handleMessageWhenUp(), and inet::AckingMac::handleSelfMessage().

handleUpperCommand()

void inet::LayeredProtocolBase::handleUpperCommand ( cMessage *  message )

protectedvirtual

Reimplemented in inet::Udp, inet::ieee80211::Ieee80211Mac, inet::NetworkProtocolBase, inet::tcp::Tcp, inet::physicallayer::Ieee80211Radio, inet::Tun, inet::physicallayer::NarrowbandRadioBase, inet::physicallayer::FlatRadioBase, and inet::physicallayer::Radio.

{
    throw cRuntimeError("Upper command '%s' is not handled.", message->getName());
}

Referenced by inet::NetworkProtocolBase::handleUpperCommand(), and handleUpperMessage().

handleUpperMessage()

void inet::LayeredProtocolBase::handleUpperMessage ( cMessage *  message )

protectedvirtual

Reimplemented in inet::Tun.

{
    if (!message->isPacket())
        handleUpperCommand(message);
    else {
        emit(packetReceivedFromUpperSignal, message);
        handleUpperPacket(check_and_cast<Packet *>(message));
    }
}

Referenced by handleMessageWhenUp().

handleUpperPacket()

void inet::LayeredProtocolBase::handleUpperPacket ( Packet *  packet )

protectedvirtual

Reimplemented in inet::EthernetMac, inet::WiseRoute, inet::physicallayer::Radio, inet::tcp::Tcp, inet::CsmaCaMac, inet::Flooding, inet::LMac, inet::Ieee802154Mac, inet::ieee80211::Ieee80211Mac, inet::BMac, inet::ProbabilisticBroadcast, inet::Ppp, inet::AckingMac, inet::Ieee8021dRelay, inet::physicallayer::ShortcutRadio, inet::Loopback, inet::ShortcutMac, inet::physicallayer::ApskRadio, inet::Tun, inet::EthernetCsmaMac, inet::Udp, and inet::XMac.

{
    throw cRuntimeError("Upper packet '%s' is not handled.", packet->getName());
}

Referenced by handleUpperMessage().

isLowerMessage()

virtual bool inet::LayeredProtocolBase::isLowerMessage ( cMessage *  message ) const

protectedpure virtual

Implemented in inet::MacProtocolBase, inet::NetworkProtocolBase, inet::MacRelayUnitBase, inet::physicallayer::PhysicalLayerBase, and inet::TransportProtocolBase.

Referenced by handleMessageWhenUp().

isUpperMessage()

virtual bool inet::LayeredProtocolBase::isUpperMessage ( cMessage *  message ) const

protectedpure virtual

Implemented in inet::MacProtocolBase, inet::NetworkProtocolBase, inet::MacRelayUnitBase, inet::physicallayer::PhysicalLayerBase, and inet::TransportProtocolBase.

Referenced by handleMessageWhenUp().

---

The documentation for this class was generated from the following files:

• LayeredProtocolBase.h
• LayeredProtocolBase.cc
