#include <ApskRadio.h>

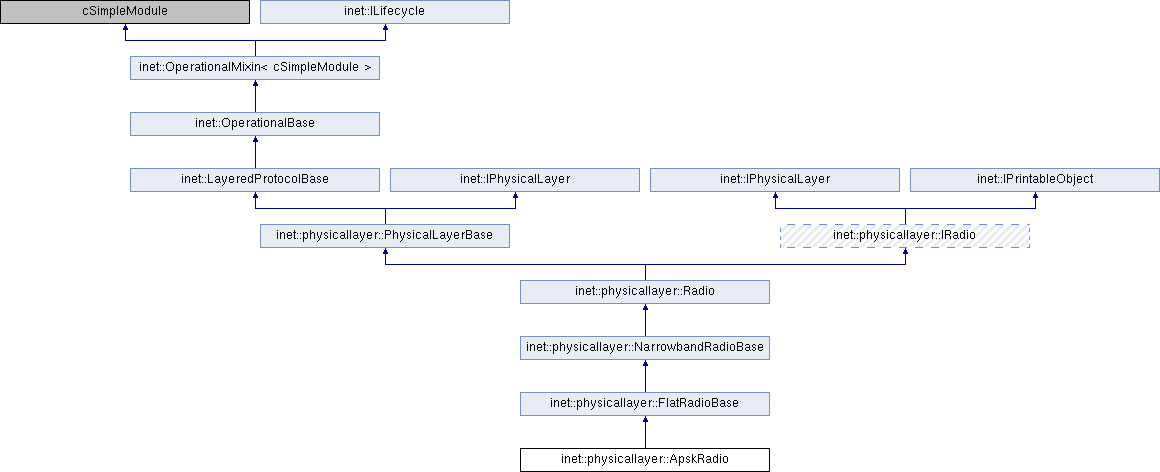

Inheritance diagram for inet::physicallayer::ApskRadio:

Public Member Functions
	ApskRadio ()

Public Member Functions inherited from inet::physicallayer::FlatRadioBase
	FlatRadioBase ()

virtual void	setPower (W newPower)

virtual void	setBitrate (bps newBitrate)

Public Member Functions inherited from inet::physicallayer::NarrowbandRadioBase
	NarrowbandRadioBase ()

virtual void	setModulation (const IModulation *newModulation)

virtual void	setCenterFrequency (Hz newCenterFrequency)

virtual void	setBandwidth (Hz newBandwidth)

Public Member Functions inherited from inet::physicallayer::Radio
	Radio ()

virtual	~Radio ()

virtual int	getId () const override
	Returns an identifier for this radio which is globally unique for the whole lifetime of the simulation among all radios. More...

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const IAntenna *	getAntenna () const override
	Returns the antenna used by the transceiver of this radio. More...

virtual const ITransmitter *	getTransmitter () const override
	Returns the transmitter part of this radio. More...

virtual const IReceiver *	getReceiver () const override
	Returns the receiver part of this radio. More...

virtual const IRadioMedium *	getMedium () const override
	Returns the radio medium where this radio is transmitting and receiving radio signals. More...

virtual const cGate *	getRadioGate () const override
	Returns the gate of the radio that receives incoming signals. More...

virtual RadioMode	getRadioMode () const override
	Returns the current radio mode, This is the same mode as the one emitted with the last radioModeChangedSignal. More...

virtual void	setRadioMode (RadioMode newRadioMode) override
	Changes the current radio mode. More...

virtual ReceptionState	getReceptionState () const override
	Returns the current radio reception state. More...

virtual TransmissionState	getTransmissionState () const override
	Returns the current radio transmission state. More...

virtual const ITransmission *	getTransmissionInProgress () const override
	Returns the ongoing transmission that the transmitter is currently transmitting or nullptr. More...

virtual const ITransmission *	getReceptionInProgress () const override
	Returns the ongoing reception that the receiver is currently receiving or nullptr. More...

virtual IRadioSignal::SignalPart	getTransmittedSignalPart () const override
	Returns the signal part of the ongoing transmission that the transmitter is currently transmitting or -1 if no transmission is in progress. More...

virtual IRadioSignal::SignalPart	getReceivedSignalPart () const override
	Returns the signal part of the ongoing reception that the receiver is currently receiving or -1 if no reception is in progress. More...

Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...

Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Public Member Functions inherited from inet::IPhysicalLayer
virtual	~IPhysicalLayer ()

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

virtual b	computePaddingLength (b length, const ConvolutionalCode forwardErrorCorrection, const ApskModulationBase modulation) const

virtual const ApskModulationBase *	getModulation () const

virtual void	handleUpperPacket (Packet *packet) override

virtual void	sendUp (Packet *packet) override

virtual void	encapsulate (Packet *packet) const override

virtual void	decapsulate (Packet *packet) const override

Protected Member Functions inherited from inet::physicallayer::FlatRadioBase
void	handleUpperCommand (cMessage *message) override

Protected Member Functions inherited from inet::physicallayer::NarrowbandRadioBase
void	handleUpperCommand (cMessage *message) override

Protected Member Functions inherited from inet::physicallayer::Radio
virtual void	initializeRadioMode ()

virtual void	handleMessageWhenDown (cMessage *message) override

virtual void	handleSelfMessage (cMessage *message) override

virtual void	handleSwitchTimer (cMessage *message)

virtual void	handleTransmissionTimer (cMessage *message)

virtual void	handleReceptionTimer (cMessage *message)

virtual void	handleLowerCommand (cMessage *command) override

virtual void	handleSignal (WirelessSignal *signal) override

virtual void	handleStartOperation (LifecycleOperation *operation) override

virtual void	handleStopOperation (LifecycleOperation *operation) override

virtual void	handleCrashOperation (LifecycleOperation *operation) override

virtual void	startTransmission (Packet *macFrame, IRadioSignal::SignalPart part)

virtual void	continueTransmission ()

virtual void	endTransmission ()

virtual void	abortTransmission ()

virtual WirelessSignal *	createSignal (Packet *packet) const

virtual void	startReception (cMessage *timer, IRadioSignal::SignalPart part)

virtual void	continueReception (cMessage *timer)

virtual void	endReception (cMessage *timer)

virtual void	abortReception (cMessage *timer)

virtual void	captureReception (cMessage *timer)

virtual cMessage *	createReceptionTimer (WirelessSignal *signal) const

virtual bool	isReceptionTimer (const cMessage *message) const

virtual bool	isReceiverMode (IRadio::RadioMode radioMode) const

virtual bool	isTransmitterMode (IRadio::RadioMode radioMode) const

virtual bool	isListeningPossible () const

virtual void	updateTransceiverState ()

virtual void	updateTransceiverPart ()

Protected Member Functions inherited from inet::physicallayer::PhysicalLayerBase
virtual void	handleLowerMessage (cMessage *message) override

virtual void	sendUp (cMessage *message)

virtual bool	isUpperMessage (cMessage *message) const override

virtual bool	isLowerMessage (cMessage *message) const override

virtual bool	isInitializeStage (int stage) const override

virtual bool	isModuleStartStage (int stage) const override

virtual bool	isModuleStopStage (int stage) const override

Protected Member Functions inherited from inet::LayeredProtocolBase
virtual void	handleMessageWhenUp (cMessage *message) override

virtual void	handleUpperMessage (cMessage *message)

virtual void	handleLowerPacket (Packet *packet)

Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handleMessage (cMessage *msg) override

virtual bool	handleOperationStage (LifecycleOperation operation, IDoneCallback doneCallback) override
	Perform one stage of a lifecycle operation. More...

virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...

virtual void	handleActiveOperationTimeout (cMessage *message)

virtual bool	isUp () const
	utility functions More...

virtual bool	isDown () const

virtual void	setOperationalState (State newState)

virtual void	scheduleOperationTimeout (simtime_t timeout)

virtual void	setupActiveOperation (LifecycleOperation operation, IDoneCallback doneCallback, State)

virtual void	delayActiveOperationFinish (simtime_t timeout)

virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)

virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)

virtual void	finishActiveOperation ()

Protected Attributes
const Protocol *	protocol = nullptr

Protected Attributes inherited from inet::physicallayer::Radio
const int	id = nextId++
	An identifier which is globally unique for the whole lifetime of the simulation among all radios. More...

const IAntenna *	antenna = nullptr
	The radio antenna model is never nullptr. More...

const ITransmitter *	transmitter = nullptr
	The transmitter model is never nullptr. More...

const IReceiver *	receiver = nullptr
	The receiver model is never nullptr. More...

ModuleRefByPar< IRadioMedium >	medium
	The radio medium model is never nullptr. More...

int	mediumModuleId = -1
	The module id of the medim model. More...

simtime_t	switchingTimes [RADIO_MODE_SWITCHING][RADIO_MODE_SWITCHING]
	Simulation time required to switch from one radio mode to another. More...

bool	sendRawBytes = false
	When true packets are serialized into a sequence of bytes before sending out. More...

bool	separateTransmissionParts = false
	Determines whether the transmission of the preamble, header and data part are simulated separately or not. More...

bool	separateReceptionParts = false
	Determines whether the reception of the preamble, header and data part are simulated separately or not. More...

cGate *	upperLayerOut = nullptr
	Gates. More...

cGate *	upperLayerIn = nullptr

cGate *	radioIn = nullptr

RadioMode	radioMode = RADIO_MODE_OFF
	State. More...

RadioMode	nextRadioMode = RADIO_MODE_OFF
	The radio is switching to this radio radio mode if a switch is in progress, otherwise this is the same as the current radio mode. More...

RadioMode	previousRadioMode = RADIO_MODE_OFF
	The radio is switching from this radio mode to another if a switch is in progress, otherwise this is the same as the current radio mode. More...

ReceptionState	receptionState = RECEPTION_STATE_UNDEFINED
	The current reception state. More...

TransmissionState	transmissionState = TRANSMISSION_STATE_UNDEFINED
	The current transmission state. More...

IRadioSignal::SignalPart	receivedSignalPart = IRadioSignal::SIGNAL_PART_NONE
	The current received signal part. More...

IRadioSignal::SignalPart	transmittedSignalPart = IRadioSignal::SIGNAL_PART_NONE
	The current transmitted signal part. More...

cMessage *	transmissionTimer = nullptr
	The timer that is scheduled to the end of the current transmission. More...

cMessage *	receptionTimer = nullptr
	The timer that is scheduled to the end of the current reception. More...

cMessage *	switchTimer = nullptr
	The timer that is scheduled to the end of the radio mode switch. More...

Protected Attributes inherited from inet::physicallayer::PhysicalLayerBase
int	upperLayerInGateId = -1

int	upperLayerOutGateId = -1

int	radioInGateId = -1

Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState

simtime_t	lastChange

Operation	activeOperation

cMessage *	activeOperationTimeout

cMessage *	activeOperationExtraTimer

Additional Inherited Members
Public Types inherited from inet::physicallayer::IRadio
enum	RadioMode { RADIO_MODE_OFF, RADIO_MODE_SLEEP, RADIO_MODE_RECEIVER, RADIO_MODE_TRANSMITTER, RADIO_MODE_TRANSCEIVER, RADIO_MODE_SWITCHING }
	This enumeration specifies the requested operational mode of the radio. More...

enum	ReceptionState { RECEPTION_STATE_UNDEFINED, RECEPTION_STATE_IDLE, RECEPTION_STATE_BUSY, RECEPTION_STATE_RECEIVING }
	This enumeration specifies the reception state of the radio. More...

enum	TransmissionState { TRANSMISSION_STATE_UNDEFINED, TRANSMISSION_STATE_IDLE, TRANSMISSION_STATE_TRANSMITTING }
	This enumeration specifies the transmission state of the radio. More...

Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Static Public Member Functions inherited from inet::physicallayer::IRadio
static const char *	getRadioModeName (RadioMode radioMode)
	Returns the name of the provided radio mode. More...

static const char *	getRadioReceptionStateName (ReceptionState receptionState)
	Returns the name of the provided radio reception state. More...

static const char *	getRadioTransmissionStateName (TransmissionState transmissionState)
	Returns the name of the provided radio transmission state. More...

Static Public Attributes inherited from inet::physicallayer::IRadio
static simsignal_t	radioModeChangedSignal = cComponent::registerSignal("radioModeChanged")
	This signal is emitted when the radio mode of the radio is changed. More...

static simsignal_t	listeningChangedSignal = cComponent::registerSignal("listeningChanged")
	This signal is emitted when the radio listening of the radio is changed. More...

static simsignal_t	receptionStateChangedSignal = cComponent::registerSignal("receptionStateChanged")
	This signal is emitted when the radio reception state of the radio is changed. More...

static simsignal_t	transmissionStateChangedSignal = cComponent::registerSignal("transmissionStateChanged")
	This signal is emitted when the radio transmission state of the radio is changed. More...

static simsignal_t	receivedSignalPartChangedSignal = cComponent::registerSignal("receivedSignalPartChanged")
	This signal is emitted when the received part is changed by the radio. More...

static simsignal_t	transmittedSignalPartChangedSignal = cComponent::registerSignal("transmittedSignalPartChanged")
	This signal is emitted when the transmitted part is changed by the radio. More...

Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Static Protected Attributes inherited from inet::physicallayer::IRadio
static int	nextId = 0

static cEnum *	radioModeEnum = nullptr
	The enumeration registered for radio mode. More...

static cEnum *	receptionStateEnum = nullptr
	The enumeration registered for radio reception state. More...

static cEnum *	transmissionStateEnum = nullptr
	The enumeration registered for radio transmission state. More...

Constructor & Destructor Documentation

◆ ApskRadio()

inet::physicallayer::ApskRadio::ApskRadio ( )

                      :
     FlatRadioBase()
 {
 }

Member Function Documentation

◆ computePaddingLength()

b inet::physicallayer::ApskRadio::computePaddingLength	(	b	length,
		const ConvolutionalCode *	forwardErrorCorrection,
		const ApskModulationBase *	modulation
	)		const

protectedvirtual

 {
     int modulationCodeWordSize = modulation->getCodeWordSize();
     int encodedCodeWordSize = forwardErrorCorrection == nullptr ? modulationCodeWordSize : modulationCodeWordSize *forwardErrorCorrection->getCodeRatePuncturingK();
     return b((encodedCodeWordSize - b(length).get() % encodedCodeWordSize) % encodedCodeWordSize);
 }

Referenced by decapsulate(), and encapsulate().

◆ decapsulate()

void inet::physicallayer::ApskRadio::decapsulate ( Packet * packet ) const

overrideprotectedvirtual

Reimplemented from inet::physicallayer::Radio.

 {
     const auto& phyHeader = packet->popAtFront<ApskPhyHeader>(b(-1), Chunk::PF_ALLOW_INCORRECT | Chunk::PF_ALLOW_INCOMPLETE | Chunk::PF_ALLOW_IMPROPERLY_REPRESENTED);
     if (phyHeader->isIncorrect() || phyHeader->isIncomplete() || phyHeader->isImproperlyRepresented())
         packet->setBitError(true);
     b headerLength = phyHeader->getChunkLength();

 #if 0
     if (auto flatTransmitter = dynamic_cast<const FlatTransmitterBase *>(transmitter)) {
         b definedHeaderLength = flatTransmitter->getHeaderLength();
         if (headerLength != definedHeaderLength)
             throw cRuntimeError("Incoming header length is incorrect");
     }
 #endif

     auto paddingLength = computePaddingLength(headerLength + phyHeader->getPayloadLengthField(), nullptr, getModulation());
     if (paddingLength > b(0)) {
         if (paddingLength <= packet->getDataLength())
             packet->popAtBack(paddingLength, Chunk::PF_ALLOW_INCORRECT);
         else
             packet->setBitError(true);
     }

     // KLUDGE? higher layers accepts only byte length packets started on byte position
     if (packet->getBitLength() % 8 != 0 || headerLength.get() % 8 != 0)
         packet->setBitError(true);

     if (phyHeader->getPayloadLengthField() > packet->getDataLength())
         packet->setBitError(true);

     packet->addTagIfAbsent<PacketProtocolTag>()->setProtocol(phyHeader->getPayloadProtocol());
 }

◆ encapsulate()

void inet::physicallayer::ApskRadio::encapsulate ( Packet * packet ) const

overrideprotectedvirtual

Reimplemented from inet::physicallayer::Radio.

 {
     auto phyHeader = makeShared<ApskPhyHeader>();
     phyHeader->setCrc(0);
     phyHeader->setCrcMode(CRC_DISABLED);
     phyHeader->setPayloadLengthField(packet->getDataLength());
     phyHeader->setPayloadProtocol(packet->getTag<PacketProtocolTag>()->getProtocol());
     b headerLength = phyHeader->getChunkLength();
     if (auto flatTransmitter = dynamic_cast<const FlatTransmitterBase *>(transmitter)) {
         headerLength = flatTransmitter->getHeaderLength();
         phyHeader->setChunkLength(headerLength);
     }
     phyHeader->setHeaderLengthField(headerLength);
     packet->insertAtFront(phyHeader);

     auto paddingLength = computePaddingLength(headerLength + phyHeader->getPayloadLengthField(), nullptr, getModulation());
     if (paddingLength != b(0))
         packet->insertAtBack(makeShared<BitCountChunk>(paddingLength));
     EV_DEBUG << "ApskRadio::encapsulate: packetLength=" << packet->getDataLength() << ", headerLength=" << headerLength << ", paddingLength=" << paddingLength << endl;
     packet->getTagForUpdate<PacketProtocolTag>()->setProtocol(&Protocol::apskPhy);
 }

◆ getModulation()

const ApskModulationBase * inet::physicallayer::ApskRadio::getModulation ( ) const

protectedvirtual

 {
     const ApskModulationBase *modulation = nullptr;
 //    const ConvolutionalCode *forwardErrorCorrection = nullptr; // TODO
     auto phyHeader = makeShared<ApskPhyHeader>();
     b headerLength = phyHeader->getChunkLength();

     // KLUDGE
     if (auto flatTransmitter = dynamic_cast<const FlatTransmitterBase *>(transmitter)) {
         headerLength = flatTransmitter->getHeaderLength();
         modulation = check_and_cast<const ApskModulationBase *>(flatTransmitter->getModulation());
     }
     // KLUDGE
     else if (auto layeredTransmitter = dynamic_cast<const ApskLayeredTransmitter *>(transmitter)) {
         auto encoder = layeredTransmitter->getEncoder();
         if (encoder != nullptr) {
 //            const ApskEncoder *apskEncoder = check_and_cast<const ApskEncoder *>(encoder);
 //            forwardErrorCorrection = apskEncoder->getCode()->getConvolutionalCode(); // TODO
         }
         modulation = check_and_cast<const ApskModulationBase *>(layeredTransmitter->getModulator()->getModulation());
     }
     // FIXME when uses OFDM, ofdm modulator can not cast to apsk modulator, see /examples/wireless/layered80211/ -f omnetpp.ini -c LayeredCompliant80211Ping
     ASSERT(modulation != nullptr);
     return modulation;
 }

Referenced by decapsulate(), and encapsulate().

◆ handleUpperPacket()

void inet::physicallayer::ApskRadio::handleUpperPacket ( Packet * packet )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::Radio.

 {
     if (protocol != nullptr && protocol != packet->getTag<PacketProtocolTag>()->getProtocol())
         throw cRuntimeError("Packet received with incorrect protocol");
     else
         FlatRadioBase::handleUpperPacket(packet);
 }

◆ initialize()

void inet::physicallayer::ApskRadio::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::Radio.

 {
     Radio::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         const char *protocolName = par("protocol");
         if (*protocolName != '\0')
             protocol = Protocol::getProtocol(protocolName);
     }
 }

◆ sendUp()

void inet::physicallayer::ApskRadio::sendUp ( Packet * packet )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::Radio.

 {
     if (protocol != nullptr && protocol != packet->getTag<PacketProtocolTag>()->getProtocol()) {
         PacketDropDetails details;
         details.setReason(PacketDropReason::OTHER_PACKET_DROP);
         emit(packetDroppedSignal, packet, &details);
         delete packet;
     }
     else
         FlatRadioBase::sendUp(packet);
 }

Member Data Documentation

◆ protocol

const Protocol* inet::physicallayer::ApskRadio::protocol = nullptr

protected

Referenced by handleUpperPacket(), initialize(), and sendUp().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ ApskRadio()

Member Function Documentation

◆ computePaddingLength()

◆ decapsulate()

◆ encapsulate()

◆ getModulation()

◆ handleUpperPacket()

◆ initialize()

◆ sendUp()

Member Data Documentation

◆ protocol
