inet::physicallayer::PhysicalLayerBase Class Reference

#include <PhysicalLayerBase.h>

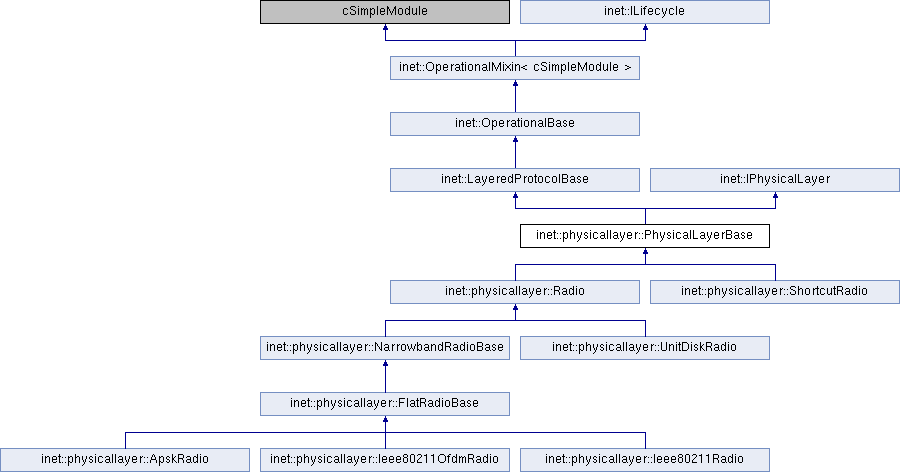

Inheritance diagram for inet::physicallayer::PhysicalLayerBase:

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	handleSignal (WirelessSignal *signal)
virtual void	handleLowerMessage (cMessage *message) override
virtual void	sendUp (cMessage *message)
virtual bool	isUpperMessage (cMessage *message) const override
virtual bool	isLowerMessage (cMessage *message) const override
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
Protected Member Functions inherited from inet::LayeredProtocolBase
virtual void	handleMessageWhenUp (cMessage *message) override
virtual void	handleSelfMessage (cMessage *message)
virtual void	handleUpperMessage (cMessage *message)
virtual void	handleUpperCommand (cMessage *message)
virtual void	handleLowerCommand (cMessage *message)
virtual void	handleUpperPacket (Packet *packet)
virtual void	handleLowerPacket (Packet *packet)
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual void	handleStartOperation (LifecycleOperation *operation)=0
virtual void	handleStopOperation (LifecycleOperation *operation)=0
virtual void	handleCrashOperation (LifecycleOperation *operation)=0
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Protected Attributes
int	upperLayerInGateId = -1
int	upperLayerOutGateId = -1
int	radioInGateId = -1
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Additional Inherited Members
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Public Member Functions inherited from inet::IPhysicalLayer
virtual	~IPhysicalLayer ()
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Member Function Documentation

handleLowerMessage()

void inet::physicallayer::PhysicalLayerBase::handleLowerMessage ( cMessage *  message )

overrideprotectedvirtual

Reimplemented from inet::LayeredProtocolBase.

{
    if (!message->isPacket())
        handleLowerCommand(message);
    else {
        emit(packetReceivedFromLowerSignal, message);
        handleSignal(check_and_cast<WirelessSignal *>(message));
    }
}

handleSignal()

void inet::physicallayer::PhysicalLayerBase::handleSignal ( WirelessSignal *  signal )

protectedvirtual

Reimplemented in inet::physicallayer::Radio.

{
    throw cRuntimeError("Signal '%s' is not handled.", signal->getName());
}

Referenced by handleLowerMessage().

initialize()

void inet::physicallayer::PhysicalLayerBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

Reimplemented in inet::physicallayer::Radio, inet::physicallayer::Ieee80211Radio, inet::physicallayer::ShortcutRadio, and inet::physicallayer::ApskRadio.

{
    LayeredProtocolBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        upperLayerInGateId = findGate("upperLayerIn");
        upperLayerOutGateId = findGate("upperLayerOut");
        radioInGateId = findGate("radioIn");
    }
}

Referenced by inet::physicallayer::ShortcutRadio::initialize(), and inet::physicallayer::Radio::initialize().

isInitializeStage()

virtual bool inet::physicallayer::PhysicalLayerBase::isInitializeStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == INITSTAGE_PHYSICAL_LAYER; }

isLowerMessage()

bool inet::physicallayer::PhysicalLayerBase::isLowerMessage ( cMessage *  message ) const

overrideprotectedvirtual

Implements inet::LayeredProtocolBase.

{
    return message->getArrivalGateId() == radioInGateId;
}

isModuleStartStage()

virtual bool inet::physicallayer::PhysicalLayerBase::isModuleStartStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == ModuleStartOperation::STAGE_PHYSICAL_LAYER; }

isModuleStopStage()

virtual bool inet::physicallayer::PhysicalLayerBase::isModuleStopStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == ModuleStopOperation::STAGE_PHYSICAL_LAYER; }

isUpperMessage()

bool inet::physicallayer::PhysicalLayerBase::isUpperMessage ( cMessage *  message ) const

overrideprotectedvirtual

Implements inet::LayeredProtocolBase.

{
    return message->getArrivalGateId() == upperLayerInGateId;
}

sendUp()

void inet::physicallayer::PhysicalLayerBase::sendUp ( cMessage *  message )

protectedvirtual

{
    if (message->isPacket())
        emit(packetSentToUpperSignal, message);
    send(message, upperLayerOutGateId);
}

Member Data Documentation

radioInGateId

int inet::physicallayer::PhysicalLayerBase::radioInGateId = -1

protected

Referenced by initialize(), and isLowerMessage().

upperLayerInGateId

int inet::physicallayer::PhysicalLayerBase::upperLayerInGateId = -1

protected

Referenced by initialize(), and isUpperMessage().

upperLayerOutGateId

int inet::physicallayer::PhysicalLayerBase::upperLayerOutGateId = -1

protected

Referenced by initialize(), and sendUp().

---

The documentation for this class was generated from the following files:

• PhysicalLayerBase.h
• PhysicalLayerBase.cc
