inet::ModuleStopOperation Class Reference

This operation represents the process of orderly stopping down a module. More...

#include <ModuleOperations.h>

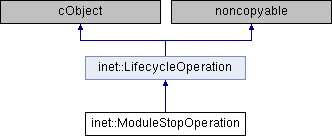

Inheritance diagram for inet::ModuleStopOperation:

Public Types
enum	Stage {   STAGE_LOCAL, STAGE_APPLICATION_LAYER, STAGE_ROUTING_PROTOCOLS, STAGE_TRANSPORT_LAYER,   STAGE_NETWORK_LAYER, STAGE_LINK_LAYER, STAGE_PHYSICAL_LAYER, STAGE_LAST }
Public Types inherited from inet::LifecycleOperation
typedef std::map< std::string, std::string >	StringMap

Public Member Functions
virtual int	getNumStages () const override
	Returns the number of stages required by this operation. More...
Public Member Functions inherited from inet::LifecycleOperation
	LifecycleOperation ()
virtual void	initialize (cModule *module, StringMap &params)
	Initialize the operation using the parameters provided in the string map. More...
cModule *	getRootModule () const
	Returns the module the operation is initiated on. More...
int	getCurrentStage () const
	Returns the current stage, an integer in 0..numStages-1. More...

Detailed Description

This operation represents the process of orderly stopping down a module.

Operation stages are organized top-down similarly to the OSI network layers.

Member Enumeration Documentation

Stage

enum inet::ModuleStopOperation::Stage

Enumerator
STAGE_LOCAL
STAGE_APPLICATION_LAYER
STAGE_ROUTING_PROTOCOLS
STAGE_TRANSPORT_LAYER
STAGE_NETWORK_LAYER
STAGE_LINK_LAYER
STAGE_PHYSICAL_LAYER
STAGE_LAST

               {
        STAGE_LOCAL, // for changes that don't depend on other modules
        STAGE_APPLICATION_LAYER,
        STAGE_ROUTING_PROTOCOLS,
        STAGE_TRANSPORT_LAYER,
        STAGE_NETWORK_LAYER,
        STAGE_LINK_LAYER,
        STAGE_PHYSICAL_LAYER,
        STAGE_LAST // for changes that others shouldn't depend on
    };

Member Function Documentation

getNumStages()

virtual int inet::ModuleStopOperation::getNumStages ( ) const

inlineoverridevirtual

Returns the number of stages required by this operation.

Implements inet::LifecycleOperation.

{ return STAGE_LAST + 1; }

---

The documentation for this class was generated from the following file:

• ModuleOperations.h
