This interface represents a physical device (a part of the radio) which converts electric signals into radio waves, and vice versa. More...
#include <IAntenna.h>
Public Member Functions | |
| virtual IMobility * | getMobility () const =0 |
| Returns the mobility of this antenna that describes its position and orientation over time. More... | |
| virtual bool | isDirectional () const =0 |
| Returns true if the antenna has directional selectivity (i.e. More... | |
| virtual Ptr< const IAntennaGain > | getGain () const =0 |
| Returns the antenna's gain calculator for directional selectivity. More... | |
| virtual int | getNumAntennas () const =0 |
| Returns the number of antennas in the array. More... | |
 Public Member Functions inherited from inet::IPrintableObject | |
| virtual | ~IPrintableObject () |
| virtual std::ostream & | printToStream (std::ostream &stream, int level, int evFlags=0) const |
| Prints this object to the provided output stream. More... | |
| virtual std::string | printToString () const |
| virtual std::string | printToString (int level, int evFlags=0) const |
| virtual std::string | getInfoStringRepresentation (int evFlags=0) const |
| virtual std::string | getDetailStringRepresentation (int evFlags=0) const |
| virtual std::string | getDebugStringRepresentation (int evFlags=0) const |
| virtual std::string | getTraceStringRepresentation (int evFlags=0) const |
| virtual std::string | getCompleteStringRepresentation (int evFlags=0) const |
Additional Inherited Members | |
| Public Types inherited from inet::IPrintableObject | |
| enum | PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN } |
| enum | PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) } |
Detailed Description
This interface represents a physical device (a part of the radio) which converts electric signals into radio waves, and vice versa.
Member Function Documentation
◆ getGain()
|
pure virtual |
Returns the antenna's gain calculator for directional selectivity.
This object may be copied as needed, i.e. IAntennaGain objects are expected to have no reference to other objects.

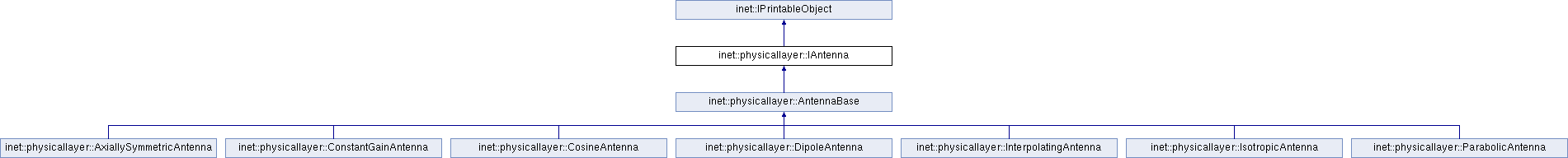

Implemented in inet::physicallayer::InterpolatingAntenna, inet::physicallayer::AxiallySymmetricAntenna, inet::physicallayer::ParabolicAntenna, inet::physicallayer::CosineAntenna, inet::physicallayer::DipoleAntenna, inet::physicallayer::ConstantGainAntenna, and inet::physicallayer::IsotropicAntenna.
Referenced by inet::physicallayer::DimensionalAnalogModelBase::computeReceptionPower(), inet::physicallayer::ScalarAnalogModelBase::computeReceptionPower(), and inet::visualizer::RadioCanvasVisualizer::refreshAntennaLobe().
◆ getMobility()
|
pure virtual |
Returns the mobility of this antenna that describes its position and orientation over time.
Implemented in inet::physicallayer::AntennaBase.
Referenced by inet::physicallayer::GridNeighborCache::addRadio(), inet::physicallayer::QuadTreeNeighborCache::addRadio(), inet::physicallayer::RadioMedium::addRadio(), inet::L3NetworkConfiguratorBase::computeWirelessLinkWeight(), inet::physicallayer::ApskScalarTransmitter::createTransmission(), inet::physicallayer::Ieee802154NarrowbandScalarTransmitter::createTransmission(), inet::physicallayer::Ieee80211ScalarTransmitter::createTransmission(), inet::physicallayer::Ieee802154NarrowbandDimensionalTransmitter::createTransmission(), inet::physicallayer::ApskDimensionalTransmitter::createTransmission(), inet::physicallayer::Ieee80211DimensionalTransmitter::createTransmission(), inet::physicallayer::NoiseDimensionalTransmitter::createTransmission(), inet::physicallayer::Ieee80211UnitDiskTransmitter::createTransmission(), inet::physicallayer::UnitDiskTransmitter::createTransmission(), inet::physicallayer::Ieee802154UwbIrTransmitter::createTransmission(), inet::physicallayer::ApskLayeredTransmitter::createTransmission(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createTransmission(), inet::physicallayer::GridNeighborCache::fillCubeVector(), inet::physicallayer::Radio::isListeningPossible(), inet::visualizer::RadioCanvasVisualizer::refreshAntennaLobe(), inet::physicallayer::GridNeighborCache::sendToNeighbors(), inet::physicallayer::QuadTreeNeighborCache::sendToNeighbors(), and inet::physicallayer::NeighborListNeighborCache::updateNeighborList().
◆ getNumAntennas()
|
pure virtual |
Returns the number of antennas in the array.
Implemented in inet::physicallayer::AntennaBase.
Referenced by inet::physicallayer::Ieee80211ScalarTransmitter::createTransmission(), inet::physicallayer::Ieee80211DimensionalTransmitter::createTransmission(), and inet::physicallayer::Ieee80211UnitDiskTransmitter::createTransmission().
◆ isDirectional()
|
pure virtual |
Returns true if the antenna has directional selectivity (i.e.
the gain is not always 1).
Implemented in inet::physicallayer::AntennaBase.
The documentation for this class was generated from the following file:
