This interface represents the directional selectivity of an antenna. More...

#include <IAntennaGain.h>

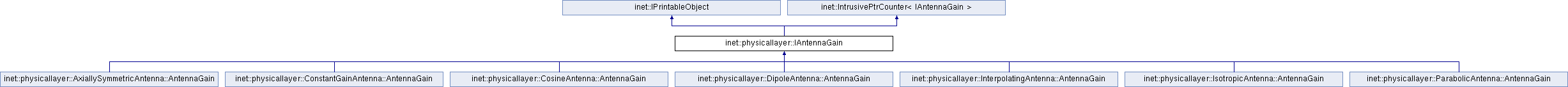

Inheritance diagram for inet::physicallayer::IAntennaGain:

Public Member Functions
virtual double	getMinGain () const =0
	Returns the minimum possible antenna gain independent of any direction. More...

virtual double	getMaxGain () const =0
	Returns the maximum possible antenna gain independent of any direction. More...

virtual double	computeGain (const Quaternion &direction) const =0
	Returns the antenna gain in the provided direction. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Public Member Functions inherited from inet::IntrusivePtrCounter< IAntennaGain >
INET_ALWAYS_INLINE	IntrusivePtrCounter () noexcept

INET_ALWAYS_INLINE	IntrusivePtrCounter (IntrusivePtrCounter const &) noexcept

INET_ALWAYS_INLINE unsigned int	use_count () const noexcept

INET_ALWAYS_INLINE IntrusivePtrCounter &	operator= (IntrusivePtrCounter const &) noexcept

INET_ALWAYS_INLINE IntrusivePtr< IAntennaGain >	shared_from_this ()

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Protected Member Functions inherited from inet::IntrusivePtrCounter< IAntennaGain >
INET_ALWAYS_INLINE	~IntrusivePtrCounter ()=default

Detailed Description

This interface represents the directional selectivity of an antenna.

Member Function Documentation

◆ computeGain()

virtual double inet::physicallayer::IAntennaGain::computeGain ( const Quaternion & direction ) const

pure virtual

Returns the antenna gain in the provided direction.

The direction is determined by rotating the X axis using the given quaternion. The direction is to be interpreted in the local coordinate system of the radiation pattern. This way the gain depends only on the antenna radion pattern characteristics, and not on the antenna orientation determined by the antenna's mobility model.

For transmissions, it determines how well the antenna converts input power into radio waves headed in the specified direction. For receptions, it determines how well the antenna converts radio waves arriving from the specified direction.

Implemented in inet::physicallayer::InterpolatingAntenna::AntennaGain, inet::physicallayer::AxiallySymmetricAntenna::AntennaGain, inet::physicallayer::DipoleAntenna::AntennaGain, inet::physicallayer::CosineAntenna::AntennaGain, inet::physicallayer::ConstantGainAntenna::AntennaGain, inet::physicallayer::ParabolicAntenna::AntennaGain, and inet::physicallayer::IsotropicAntenna::AntennaGain.

Referenced by inet::physicallayer::AnalogModelBase::computeAntennaGain(), and inet::physicallayer::AntennaGainFunction::getValue().
