#include <AnalogModelBase.h>

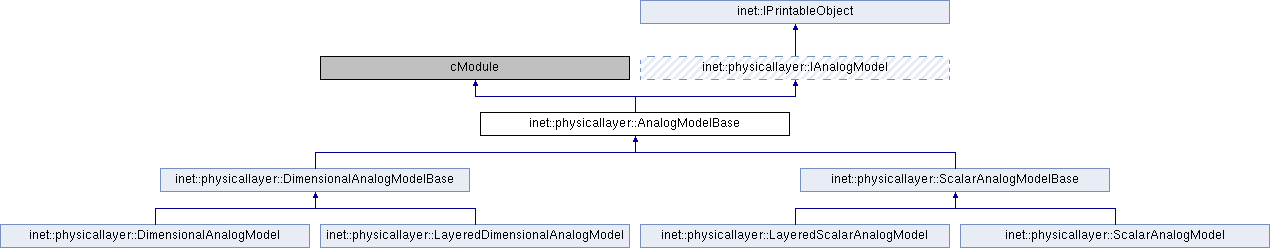

Inheritance diagram for inet::physicallayer::AnalogModelBase:

Protected Member Functions
virtual double	computeAntennaGain (const IAntennaGain *antenna, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Public Member Functions inherited from inet::physicallayer::IAnalogModel
virtual const IReception *	computeReception (const IRadio receiver, const ITransmission transmission, const IArrival *arrival) const =0
	Returns the reception for the provided transmission at the receiver. More...

virtual const INoise *	computeNoise (const IListening listening, const IInterference interference) const =0
	Returns the total noise summing up all the interfering receptions and noises. More...

virtual const INoise *	computeNoise (const IReception reception, const INoise noise) const =0
	Returns the total noise summing up all the reception and the noise. More...

virtual const ISnir *	computeSNIR (const IReception reception, const INoise noise) const =0
	Returns the signal to noise and interference ratio. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Member Function Documentation

◆ computeAntennaGain()

double inet::physicallayer::AnalogModelBase::computeAntennaGain	(	const IAntennaGain *	antenna,
		const Coord &	startPosition,
		const Coord &	endPosition,
		const Quaternion &	startOrientation
	)		const

protectedvirtual

 {
     if (antennaGain->getMinGain() == antennaGain->getMaxGain())
         return antennaGain->getMinGain();
     else {
         auto direction = Quaternion::rotationFromTo(Coord::X_AXIS, endPosition - startPosition);
         auto antennaLocalDirection = Quaternion(startOrientation).inverse() * direction;
         return antennaGain->computeGain(antennaLocalDirection);
     }
 }

Referenced by inet::physicallayer::DimensionalAnalogModelBase::computeReceptionPower(), and inet::physicallayer::ScalarAnalogModelBase::computeReceptionPower().

The documentation for this class was generated from the following files:
