inet::physicallayer::ISnir Class Reference

#include <ISnir.h>

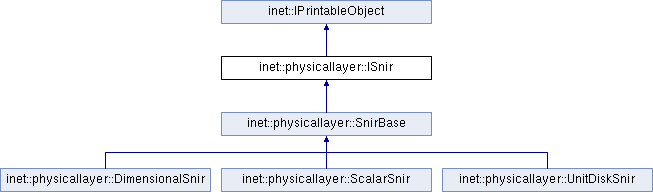

Inheritance diagram for inet::physicallayer::ISnir:

Public Member Functions
virtual const IReception *	getReception () const =0
virtual const INoise *	getNoise () const =0
virtual double	getMin () const =0
virtual double	getMax () const =0
virtual double	getMean () const =0
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Member Function Documentation

getMax()

virtual double inet::physicallayer::ISnir::getMax ( ) const

pure virtual

Implemented in inet::physicallayer::DimensionalSnir, inet::physicallayer::ScalarSnir, and inet::physicallayer::UnitDiskSnir.

Referenced by inet::physicallayer::ReceiverBase::computeReceptionResult(), inet::physicallayer::ApskLayeredReceiver::computeReceptionResult(), and inet::physicallayer::Ieee80211LayeredOfdmReceiver::computeReceptionResult().

getMean()

virtual double inet::physicallayer::ISnir::getMean ( ) const

pure virtual

Implemented in inet::physicallayer::DimensionalSnir, inet::physicallayer::ScalarSnir, and inet::physicallayer::UnitDiskSnir.

Referenced by inet::physicallayer::SnirReceiverBase::computeIsReceptionSuccessful(), inet::physicallayer::ReceiverBase::computeReceptionResult(), inet::physicallayer::ApskLayeredReceiver::computeReceptionResult(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::computeReceptionResult(), and inet::physicallayer::ErrorModelBase::getScalarSnir().

getMin()

virtual double inet::physicallayer::ISnir::getMin ( ) const

pure virtual

Implemented in inet::physicallayer::DimensionalSnir, inet::physicallayer::ScalarSnir, and inet::physicallayer::UnitDiskSnir.

Referenced by inet::physicallayer::ApskLayeredErrorModel::computeBitModel(), inet::physicallayer::SnirReceiverBase::computeIsReceptionSuccessful(), inet::physicallayer::ApskLayeredErrorModel::computePacketModel(), inet::physicallayer::ReceiverBase::computeReceptionResult(), inet::physicallayer::ApskLayeredReceiver::computeReceptionResult(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::computeReceptionResult(), inet::physicallayer::ApskLayeredErrorModel::computeSymbolModel(), and inet::physicallayer::ErrorModelBase::getScalarSnir().

getNoise()

virtual const INoise* inet::physicallayer::ISnir::getNoise ( ) const

pure virtual

Implemented in inet::physicallayer::SnirBase.

Referenced by inet::physicallayer::UnitDiskReceiver::computeReceptionResult(), and inet::physicallayer::ReceiverBase::computeSignalPower().

getReception()

virtual const IReception* inet::physicallayer::ISnir::getReception ( ) const

pure virtual

Implemented in inet::physicallayer::SnirBase.

Referenced by inet::physicallayer::ApskErrorModel::computeBitErrorRate(), inet::physicallayer::ErrorModelBase::computeCorruptedPacket(), inet::physicallayer::ApskErrorModel::computePacketErrorRate(), inet::physicallayer::Ieee80211BerTableErrorModel::computePacketErrorRate(), inet::physicallayer::StochasticErrorModel::computePacketErrorRate(), inet::physicallayer::Ieee80211ErrorModelBase::computePacketErrorRate(), inet::physicallayer::ReceiverBase::computeReceivedPacket(), inet::physicallayer::ReceiverBase::computeSignalPower(), and inet::physicallayer::ApskErrorModel::computeSymbolErrorRate().

---

The documentation for this class was generated from the following file:

• ISnir.h
