Implements the UnitDiskReceiver model, see the NED file for details. More...

#include <UnitDiskReceiver.h>

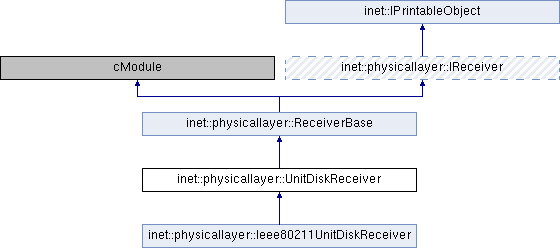

Inheritance diagram for inet::physicallayer::UnitDiskReceiver:

Public Member Functions
	UnitDiskReceiver ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual bool	computeIsReceptionPossible (const IListening listening, const IReception reception, IRadioSignal::SignalPart part) const override
	Returns whether the reception of the provided part is possible or not. More...

virtual bool	computeIsReceptionSuccessful (const IListening listening, const IReception reception, IRadioSignal::SignalPart part, const IInterference interference, const ISnir snir) const override
	Returns whether the reception of the provided part is actually successful or failed by the receiver. More...

virtual const IListening *	createListening (const IRadio *radio, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition) const override
	Returns a description of how the receiver is listening on the medium. More...

virtual const IListeningDecision *	computeListeningDecision (const IListening listening, const IInterference interference) const override
	Returns the result of the listening process specifying the reception state of the receiver. More...

virtual const IReceptionResult *	computeReceptionResult (const IListening listening, const IReception reception, const IInterference interference, const ISnir snir, const std::vector< const IReceptionDecision * > *decisions) const override
	Returns the complete result of the reception process for the provided reception. More...

Public Member Functions inherited from inet::physicallayer::ReceiverBase
	ReceiverBase ()

virtual W	getMinInterferencePower () const override
	Returns the minimum interference power below which receptions are to be ignored while computing the interference. More...

virtual W	getMinReceptionPower () const override
	Returns the minimum reception power below which successful reception is definitely not possible. More...

virtual bool	computeIsReceptionPossible (const IListening listening, const ITransmission transmission) const override
	Returns whether the reception of the provided transmission is possible or not independently of the reception conditions. More...

virtual bool	computeIsReceptionAttempted (const IListening listening, const IReception reception, IRadioSignal::SignalPart part, const IInterference *interference) const override
	Returns whether the reception of the provided part is actually attempted or ignored by the receiver. More...

virtual const IReceptionDecision *	computeReceptionDecision (const IListening listening, const IReception reception, IRadioSignal::SignalPart part, const IInterference interference, const ISnir snir) const override
	Returns the reception decision for the transmission part that specifies whether the reception is possible, attempted, and successful. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

Protected Member Functions inherited from inet::physicallayer::ReceiverBase
virtual int	numInitStages () const override

virtual W	computeSignalPower (const IListening listening, const ISnir snir, const IInterference *interference) const

virtual Packet *	computeReceivedPacket (const ISnir *snir, bool isReceptionSuccessful) const

Protected Attributes
bool	ignoreInterference

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Implements the UnitDiskReceiver model, see the NED file for details.

Constructor & Destructor Documentation

◆ UnitDiskReceiver()

inet::physicallayer::UnitDiskReceiver::UnitDiskReceiver ( )

                                    :
     ReceiverBase(),
     ignoreInterference(false)
 {
 }

Member Function Documentation

◆ computeIsReceptionPossible()

bool inet::physicallayer::UnitDiskReceiver::computeIsReceptionPossible	(	const IListening *	listening,
		const IReception *	reception,
		IRadioSignal::SignalPart	part
	)		const

overridevirtual

Returns whether the reception of the provided part is possible or not.

For example, it might check if the reception power is above sensitivity.

This function may be called before the reception actually starts at the receiver, thus it must be purely functional and support optimistic parallel computation.

Reimplemented from inet::physicallayer::ReceiverBase.

Reimplemented in inet::physicallayer::Ieee80211UnitDiskReceiver.

 {
     auto power = check_and_cast<const UnitDiskReception *>(reception)->getPower();
     return power == UnitDiskReception::POWER_RECEIVABLE;
 }

Referenced by inet::physicallayer::Ieee80211UnitDiskReceiver::computeIsReceptionPossible().

◆ computeIsReceptionSuccessful()

bool inet::physicallayer::UnitDiskReceiver::computeIsReceptionSuccessful	(	const IListening *	listening,
		const IReception *	reception,
		IRadioSignal::SignalPart	part,
		const IInterference *	interference,
		const ISnir *	snir
	)		const

overridevirtual

Returns whether the reception of the provided part is actually successful or failed by the receiver.

For example, it might compute the error rate and draw a random number to make the decision.

This function may be called before the reception actually starts at the receiver, thus it must be purely functional and support optimistic parallel computation.

Implements inet::physicallayer::IReceiver.

 {
     auto power = check_and_cast<const UnitDiskReception *>(reception)->getPower();
     if (power == UnitDiskReception::POWER_RECEIVABLE) {
         if (ignoreInterference)
             return true;
         else {
             auto startTime = reception->getStartTime(part);
             auto endTime = reception->getEndTime(part);
             auto interferingReceptions = interference->getInterferingReceptions();
             for (auto interferingReception : *interferingReceptions) {
                 auto interferingPower = check_and_cast<const UnitDiskReception *>(interferingReception)->getPower();
                 if (interferingPower >= UnitDiskReception::POWER_INTERFERING && startTime <= interferingReception->getEndTime() && endTime >= interferingReception->getStartTime())
                     return false;
             }
             return true;
         }
     }
     else
         return false;
 }

◆ computeListeningDecision()

const IListeningDecision * inet::physicallayer::UnitDiskReceiver::computeListeningDecision	(	const IListening *	listening,
		const IInterference *	interference
	)		const

overridevirtual

Returns the result of the listening process specifying the reception state of the receiver.

This function must be purely functional and support optimistic parallel computation.

Implements inet::physicallayer::IReceiver.

 {
     auto interferingReceptions = interference->getInterferingReceptions();
     for (auto interferingReception : *interferingReceptions) {
         auto interferingPower = check_and_cast<const UnitDiskReception *>(interferingReception)->getPower();
         if (interferingPower != UnitDiskReception::POWER_UNDETECTABLE)
             return new ListeningDecision(listening, true);
     }
     return new ListeningDecision(listening, false);
 }

◆ computeReceptionResult()

const IReceptionResult * inet::physicallayer::UnitDiskReceiver::computeReceptionResult	(	const IListening *	listening,
		const IReception *	reception,
		const IInterference *	interference,
		const ISnir *	snir,
		const std::vector< const IReceptionDecision * > *	decisions
	)		const

overridevirtual

Returns the complete result of the reception process for the provided reception.

This function may be called before the reception actually starts at the receiver, thus it must be purely functional and support optimistic parallel computation.

Reimplemented from inet::physicallayer::ReceiverBase.

Reimplemented in inet::physicallayer::Ieee80211UnitDiskReceiver.

 {
     auto noise = check_and_cast_nullable<const UnitDiskNoise *>(snir->getNoise());
     double errorRate = check_and_cast<const UnitDiskReception *>(reception)->getPower() == UnitDiskReception::POWER_RECEIVABLE && (noise == nullptr || !noise->isInterfering()) ? 0 : 1;
     auto receptionResult = ReceiverBase::computeReceptionResult(listening, reception, interference, snir, decisions);
     auto errorRateInd = const_cast<Packet *>(receptionResult->getPacket())->addTagIfAbsent<ErrorRateInd>();
     errorRateInd->setSymbolErrorRate(errorRate);
     errorRateInd->setBitErrorRate(errorRate);
     errorRateInd->setPacketErrorRate(errorRate);
     return receptionResult;
 }

Referenced by inet::physicallayer::Ieee80211UnitDiskReceiver::computeReceptionResult().

◆ createListening()

const IListening * inet::physicallayer::UnitDiskReceiver::createListening	(	const IRadio *	radio,
		const simtime_t	startTime,
		const simtime_t	endTime,
		const Coord &	startPosition,
		const Coord &	endPosition
	)		const

overridevirtual

Returns a description of how the receiver is listening on the medium.

Implements inet::physicallayer::IReceiver.

 {
     return new UnitDiskListening(radio, startTime, endTime, startPosition, endPosition);
 }

◆ initialize()

void inet::physicallayer::UnitDiskReceiver::initialize ( int stage )

overrideprotectedvirtual

Reimplemented in inet::physicallayer::Ieee80211UnitDiskReceiver.

 {
     ReceiverBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL)
         ignoreInterference = par("ignoreInterference");
 }

◆ printToStream()

std::ostream & inet::physicallayer::UnitDiskReceiver::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::Ieee80211UnitDiskReceiver.

 {
     stream << "UnitDiskReceiver";
     if (level <= PRINT_LEVEL_INFO)
         stream << (ignoreInterference ? ", ignoring interference" : ", considering interference");
     return stream;
 }

Referenced by inet::physicallayer::Ieee80211UnitDiskReceiver::printToStream().

Member Data Documentation

◆ ignoreInterference

bool inet::physicallayer::UnitDiskReceiver::ignoreInterference

protected

Referenced by computeIsReceptionSuccessful(), initialize(), and printToStream().

The documentation for this class was generated from the following files:
