#include <SnirReceiverBase.h>

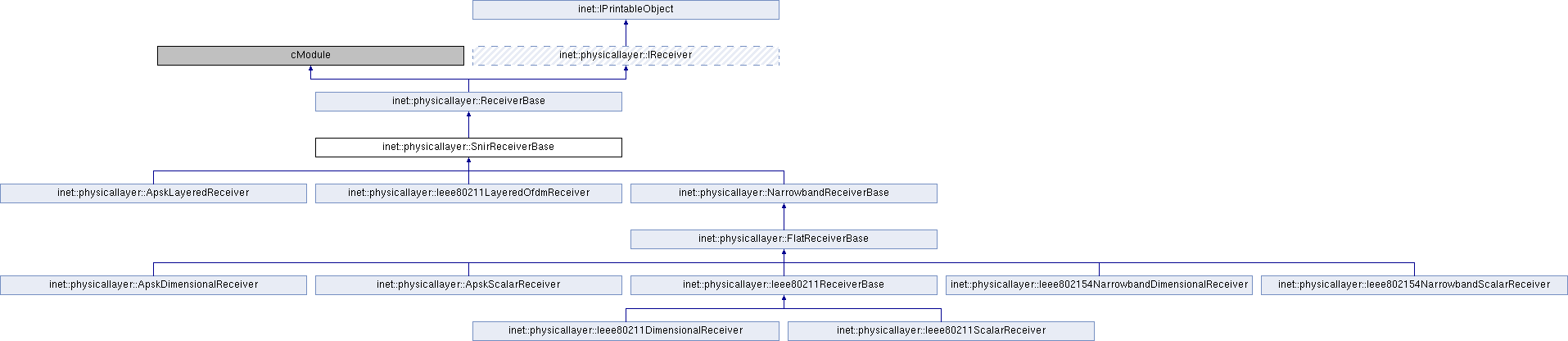

Inheritance diagram for inet::physicallayer::SnirReceiverBase:

Public Member Functions
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual double	getSNIRThreshold () const

virtual bool	computeIsReceptionSuccessful (const IListening listening, const IReception reception, IRadioSignal::SignalPart part, const IInterference interference, const ISnir snir) const override
	Returns whether the reception of the provided part is actually successful or failed by the receiver. More...

Public Member Functions inherited from inet::physicallayer::ReceiverBase
	ReceiverBase ()

virtual W	getMinInterferencePower () const override
	Returns the minimum interference power below which receptions are to be ignored while computing the interference. More...

virtual W	getMinReceptionPower () const override
	Returns the minimum reception power below which successful reception is definitely not possible. More...

virtual bool	computeIsReceptionPossible (const IListening listening, const ITransmission transmission) const override
	Returns whether the reception of the provided transmission is possible or not independently of the reception conditions. More...

virtual bool	computeIsReceptionPossible (const IListening listening, const IReception reception, IRadioSignal::SignalPart part) const override
	Returns whether the reception of the provided part is possible or not. More...

virtual bool	computeIsReceptionAttempted (const IListening listening, const IReception reception, IRadioSignal::SignalPart part, const IInterference *interference) const override
	Returns whether the reception of the provided part is actually attempted or ignored by the receiver. More...

virtual const IReceptionDecision *	computeReceptionDecision (const IListening listening, const IReception reception, IRadioSignal::SignalPart part, const IInterference interference, const ISnir snir) const override
	Returns the reception decision for the transmission part that specifies whether the reception is possible, attempted, and successful. More...

virtual const IReceptionResult *	computeReceptionResult (const IListening listening, const IReception reception, const IInterference interference, const ISnir snir, const std::vector< const IReceptionDecision * > *decisions) const override
	Returns the complete result of the reception process for the provided reception. More...

Public Member Functions inherited from inet::physicallayer::IReceiver
virtual const IListening *	createListening (const IRadio *radio, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition) const =0
	Returns a description of how the receiver is listening on the medium. More...

virtual const IListeningDecision *	computeListeningDecision (const IListening listening, const IInterference interference) const =0
	Returns the result of the listening process specifying the reception state of the receiver. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Types
enum	SnirThresholdMode { SnirThresholdMode::STM_UNDEFINED = -1, SnirThresholdMode::STM_MIN, SnirThresholdMode::STM_MEAN }

Protected Member Functions
virtual void	initialize (int stage) override

Protected Member Functions inherited from inet::physicallayer::ReceiverBase
virtual int	numInitStages () const override

virtual W	computeSignalPower (const IListening listening, const ISnir snir, const IInterference *interference) const

virtual Packet *	computeReceivedPacket (const ISnir *snir, bool isReceptionSuccessful) const

Protected Attributes
double	snirThreshold = NaN

SnirThresholdMode	snirThresholdMode = SnirThresholdMode::STM_UNDEFINED

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Member Enumeration Documentation

◆ SnirThresholdMode

enum inet::physicallayer::SnirReceiverBase::SnirThresholdMode

strongprotected

Enumerator
STM_UNDEFINED
STM_MIN
STM_MEAN

                                  {
         STM_UNDEFINED = -1,
         STM_MIN,
         STM_MEAN
     };

Member Function Documentation

◆ computeIsReceptionSuccessful()

bool inet::physicallayer::SnirReceiverBase::computeIsReceptionSuccessful	(	const IListening *	listening,
		const IReception *	reception,
		IRadioSignal::SignalPart	part,
		const IInterference *	interference,
		const ISnir *	snir
	)		const

overridevirtual

Returns whether the reception of the provided part is actually successful or failed by the receiver.

For example, it might compute the error rate and draw a random number to make the decision.

This function may be called before the reception actually starts at the receiver, thus it must be purely functional and support optimistic parallel computation.

Implements inet::physicallayer::IReceiver.

Reimplemented in inet::physicallayer::FlatReceiverBase.

 {
     if (snirThresholdMode == SnirThresholdMode::STM_MIN) {
         double minSnir = snir->getMin();
         ASSERT(0.0 <= minSnir);
         return minSnir > snirThreshold;
     }
     else if (snirThresholdMode == SnirThresholdMode::STM_MEAN) {
         double meanSnir = snir->getMean();
         ASSERT(0.0 <= meanSnir);
         return meanSnir > snirThreshold;
     }
     else
         throw cRuntimeError("Unknown SNIR threshold mode: '%d'", snirThresholdMode);
 }

Referenced by inet::physicallayer::FlatReceiverBase::computeIsReceptionSuccessful().

◆ getSNIRThreshold()

virtual double inet::physicallayer::SnirReceiverBase::getSNIRThreshold ( ) const

inlinevirtual

36 { return snirThreshold; }

◆ initialize()

void inet::physicallayer::SnirReceiverBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented in inet::physicallayer::Ieee80211LayeredOfdmReceiver, inet::physicallayer::ApskLayeredReceiver, inet::physicallayer::NarrowbandReceiverBase, inet::physicallayer::Ieee80211ReceiverBase, inet::physicallayer::FlatReceiverBase, inet::physicallayer::Ieee802154NarrowbandDimensionalReceiver, and inet::physicallayer::Ieee802154NarrowbandScalarReceiver.

 {
     ReceiverBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         snirThreshold = math::dB2fraction(par("snirThreshold"));
         const char *snirThresholdModeString = par("snirThresholdMode");
         if (!strcmp("min", snirThresholdModeString))
             snirThresholdMode = SnirThresholdMode::STM_MIN;
         else if (!strcmp("mean", snirThresholdModeString))
             snirThresholdMode = SnirThresholdMode::STM_MEAN;
         else
             throw cRuntimeError("Unknown SNIR threshold mode: '%s'", snirThresholdModeString);
     }
 }

Referenced by inet::physicallayer::NarrowbandReceiverBase::initialize(), inet::physicallayer::ApskLayeredReceiver::initialize(), and inet::physicallayer::Ieee80211LayeredOfdmReceiver::initialize().

◆ printToStream()

std::ostream & inet::physicallayer::SnirReceiverBase::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::Ieee80211LayeredOfdmReceiver, inet::physicallayer::ApskLayeredReceiver, inet::physicallayer::FlatReceiverBase, inet::physicallayer::Ieee80211ReceiverBase, inet::physicallayer::NarrowbandReceiverBase, inet::physicallayer::ApskDimensionalReceiver, inet::physicallayer::ApskScalarReceiver, inet::physicallayer::Ieee80211DimensionalReceiver, inet::physicallayer::Ieee80211ScalarReceiver, inet::physicallayer::Ieee802154NarrowbandDimensionalReceiver, and inet::physicallayer::Ieee802154NarrowbandScalarReceiver.

 {
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(snirThreshold);
     return stream;
 }

Referenced by inet::physicallayer::NarrowbandReceiverBase::printToStream().

Member Data Documentation

◆ snirThreshold

double inet::physicallayer::SnirReceiverBase::snirThreshold = NaN

protected

Referenced by computeIsReceptionSuccessful(), initialize(), and printToStream().

◆ snirThresholdMode

SnirThresholdMode inet::physicallayer::SnirReceiverBase::snirThresholdMode = SnirThresholdMode::STM_UNDEFINED

protected

Referenced by computeIsReceptionSuccessful(), and initialize().

The documentation for this class was generated from the following files:
