inet::physicallayer::FlatReceiverBase Class Reference

#include <FlatReceiverBase.h>

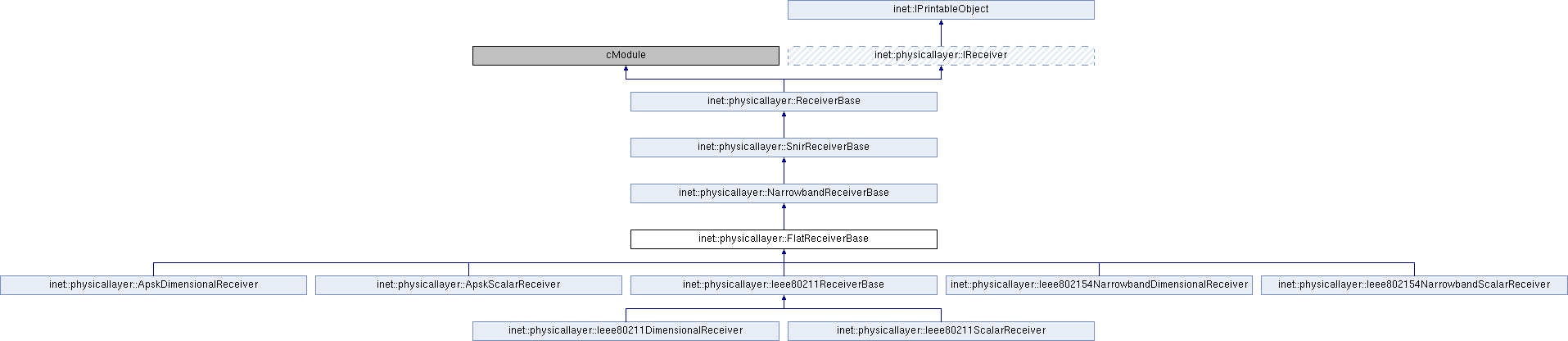

Inheritance diagram for inet::physicallayer::FlatReceiverBase:

Public Member Functions
	FlatReceiverBase ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual W	getMinReceptionPower () const override
	Returns the minimum reception power below which successful reception is definitely not possible. More...
virtual const IListeningDecision *	computeListeningDecision (const IListening *listening, const IInterference *interference) const override
	Returns the result of the listening process specifying the reception state of the receiver. More...
virtual const IReceptionResult *	computeReceptionResult (const IListening *listening, const IReception *reception, const IInterference *interference, const ISnir *snir, const std::vector< const IReceptionDecision * > *decisions) const override
	Returns the complete result of the reception process for the provided reception. More...
virtual const IErrorModel *	getErrorModel () const
virtual W	getEnergyDetection () const
virtual void	setEnergyDetection (W energyDetection)
virtual W	getSensitivity () const
virtual void	setSensitivity (W sensitivity)
Public Member Functions inherited from inet::physicallayer::NarrowbandReceiverBase
	NarrowbandReceiverBase ()
virtual const IListening *	createListening (const IRadio *radio, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition) const override
	Returns a description of how the receiver is listening on the medium. More...
virtual bool	computeIsReceptionPossible (const IListening *listening, const ITransmission *transmission) const override
	Returns whether the reception of the provided transmission is possible or not independently of the reception conditions. More...
virtual const IReceptionDecision *	computeReceptionDecision (const IListening *listening, const IReception *reception, IRadioSignal::SignalPart part, const IInterference *interference, const ISnir *snir) const override
	Returns the reception decision for the transmission part that specifies whether the reception is possible, attempted, and successful. More...
virtual const IModulation *	getModulation () const
virtual void	setModulation (const IModulation *modulation)
virtual Hz	getCenterFrequency () const
virtual void	setCenterFrequency (Hz centerFrequency)
virtual Hz	getBandwidth () const
virtual void	setBandwidth (Hz bandwidth)
Public Member Functions inherited from inet::physicallayer::SnirReceiverBase
virtual double	getSNIRThreshold () const
Public Member Functions inherited from inet::physicallayer::ReceiverBase
	ReceiverBase ()
virtual W	getMinInterferencePower () const override
	Returns the minimum interference power below which receptions are to be ignored while computing the interference. More...
virtual bool	computeIsReceptionAttempted (const IListening *listening, const IReception *reception, IRadioSignal::SignalPart part, const IInterference *interference) const override
	Returns whether the reception of the provided part is actually attempted or ignored by the receiver. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override
virtual bool	computeIsReceptionPossible (const IListening *listening, const IReception *reception, IRadioSignal::SignalPart part) const override
	Returns whether the reception of the provided part is possible or not. More...
virtual bool	computeIsReceptionSuccessful (const IListening *listening, const IReception *reception, IRadioSignal::SignalPart part, const IInterference *interference, const ISnir *snir) const override
	Returns whether the reception of the provided part is actually successful or failed by the receiver. More...
virtual Packet *	computeReceivedPacket (const ISnir *snir, bool isReceptionSuccessful) const override
virtual bool	computeIsReceptionPossible (const IListening *listening, const ITransmission *transmission) const override
virtual bool	computeIsReceptionPossible (const IListening *listening, const IReception *reception, IRadioSignal::SignalPart part) const override
Protected Member Functions inherited from inet::physicallayer::ReceiverBase
virtual int	numInitStages () const override
virtual W	computeSignalPower (const IListening *listening, const ISnir *snir, const IInterference *interference) const

Protected Attributes
const IErrorModel *	errorModel
W	energyDetection
W	sensitivity
Protected Attributes inherited from inet::physicallayer::NarrowbandReceiverBase
const IModulation *	modulation
Hz	centerFrequency
Hz	bandwidth
Protected Attributes inherited from inet::physicallayer::SnirReceiverBase
double	snirThreshold = NaN
SnirThresholdMode	snirThresholdMode = SnirThresholdMode::STM_UNDEFINED

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Types inherited from inet::physicallayer::SnirReceiverBase
enum	SnirThresholdMode { SnirThresholdMode::STM_UNDEFINED = -1, SnirThresholdMode::STM_MIN, SnirThresholdMode::STM_MEAN }

Constructor & Destructor Documentation

FlatReceiverBase()

inet::physicallayer::FlatReceiverBase::FlatReceiverBase

(

)

                                   :
    NarrowbandReceiverBase(),
    errorModel(nullptr),
    energyDetection(W(NaN)),
    sensitivity(W(NaN))
{
}

Member Function Documentation

computeIsReceptionPossible() [1/3]

bool inet::physicallayer::NarrowbandReceiverBase::computeIsReceptionPossible

overrideprotected

{
    const BandListening *bandListening = check_and_cast<const BandListening *>(listening);
    const NarrowbandReceptionBase *narrowbandReception = check_and_cast<const NarrowbandReceptionBase *>(reception);
    if (bandListening->getCenterFrequency() != narrowbandReception->getCenterFrequency() || bandListening->getBandwidth() < narrowbandReception->getBandwidth()) {
        EV_DEBUG << "Computing whether reception is possible: listening and reception bands are different -> reception is impossible" << endl;
        return false;
    }
    else
        return true;
}

computeIsReceptionPossible() [2/3]

bool inet::physicallayer::FlatReceiverBase::computeIsReceptionPossible ( const IListening *  listening, const IReception *  reception, IRadioSignal::SignalPart  part  ) const

overrideprotectedvirtual

Returns whether the reception of the provided part is possible or not.

For example, it might check if the reception power is above sensitivity.

This function may be called before the reception actually starts at the receiver, thus it must be purely functional and support optimistic parallel computation.

Reimplemented from inet::physicallayer::NarrowbandReceiverBase.

Reimplemented in inet::physicallayer::ApskDimensionalReceiver, inet::physicallayer::ApskScalarReceiver, inet::physicallayer::Ieee80211DimensionalReceiver, and inet::physicallayer::Ieee80211ScalarReceiver.

{
    if (!NarrowbandReceiverBase::computeIsReceptionPossible(listening, reception, part))
        return false;
    else {
        const FlatReceptionBase *flatReception = check_and_cast<const FlatReceptionBase *>(reception);
        W minReceptionPower = flatReception->computeMinPower(reception->getStartTime(part), reception->getEndTime(part));
        ASSERT(W(0.0) <= minReceptionPower);
        bool isReceptionPossible = minReceptionPower >= sensitivity;
        EV_DEBUG << "Computing whether reception is possible" << EV_FIELD(minReceptionPower) << EV_FIELD(sensitivity) << " -> reception is " << (isReceptionPossible ? "possible" : "impossible") << endl;
        return isReceptionPossible;
    }
}

Referenced by inet::physicallayer::Ieee80211DimensionalReceiver::computeIsReceptionPossible(), inet::physicallayer::Ieee80211ScalarReceiver::computeIsReceptionPossible(), inet::physicallayer::ApskDimensionalReceiver::computeIsReceptionPossible(), and inet::physicallayer::ApskScalarReceiver::computeIsReceptionPossible().

computeIsReceptionPossible() [3/3]

bool inet::physicallayer::NarrowbandReceiverBase::computeIsReceptionPossible

overrideprotected

{
    // TODO check if modulation matches?
    const NarrowbandTransmissionBase *narrowbandTransmission = check_and_cast<const NarrowbandTransmissionBase *>(transmission);
    return centerFrequency == narrowbandTransmission->getCenterFrequency() && bandwidth >= narrowbandTransmission->getBandwidth();
}

computeIsReceptionSuccessful()

bool inet::physicallayer::FlatReceiverBase::computeIsReceptionSuccessful ( const IListening *  listening, const IReception *  reception, IRadioSignal::SignalPart  part, const IInterference *  interference, const ISnir *  snir  ) const

overrideprotectedvirtual

Returns whether the reception of the provided part is actually successful or failed by the receiver.

For example, it might compute the error rate and draw a random number to make the decision.

This function may be called before the reception actually starts at the receiver, thus it must be purely functional and support optimistic parallel computation.

Reimplemented from inet::physicallayer::SnirReceiverBase.

{
    if (!SnirReceiverBase::computeIsReceptionSuccessful(listening, reception, part, interference, snir))
        return false;
    else if (!errorModel)
        return true;
    else {
        double packetErrorRate = errorModel->computePacketErrorRate(snir, part);
        if (packetErrorRate == 0.0)
            return true;
        else if (packetErrorRate == 1.0)
            return false;
        else {
            ASSERT(0.0 < packetErrorRate && packetErrorRate <= 1.0);
            return dblrand() > packetErrorRate;
        }
    }
}

computeListeningDecision()

const IListeningDecision * inet::physicallayer::FlatReceiverBase::computeListeningDecision ( const IListening *  listening, const IInterference *  interference  ) const

overridevirtual

Returns the result of the listening process specifying the reception state of the receiver.

This function must be purely functional and support optimistic parallel computation.

Implements inet::physicallayer::IReceiver.

{
    const IRadio *receiver = listening->getReceiver();
    const IRadioMedium *radioMedium = receiver->getMedium();
    const IAnalogModel *analogModel = radioMedium->getAnalogModel();
    const INoise *noise = analogModel->computeNoise(listening, interference);
    const NarrowbandNoiseBase *narrowbandNoise = check_and_cast<const NarrowbandNoiseBase *>(noise);
    W maxPower = narrowbandNoise->computeMaxPower(listening->getStartTime(), listening->getEndTime());
    bool isListeningPossible = maxPower >= energyDetection;
    delete noise;
    EV_DEBUG << "Computing whether listening is possible: maximum power = " << maxPower << ", energy detection = " << energyDetection << " -> listening is " << (isListeningPossible ? "possible" : "impossible") << endl;
    return new ListeningDecision(listening, isListeningPossible);
}

computeReceivedPacket()

Packet * inet::physicallayer::FlatReceiverBase::computeReceivedPacket ( const ISnir *  snir, bool  isReceptionSuccessful  ) const

overrideprotectedvirtual

Reimplemented from inet::physicallayer::ReceiverBase.

{
    if (errorModel == nullptr || isReceptionSuccessful)
        return ReceiverBase::computeReceivedPacket(snir, isReceptionSuccessful);
    else
        return errorModel->computeCorruptedPacket(snir);
}

computeReceptionResult()

const IReceptionResult * inet::physicallayer::FlatReceiverBase::computeReceptionResult ( const IListening *  listening, const IReception *  reception, const IInterference *  interference, const ISnir *  snir, const std::vector< const IReceptionDecision * > *  decisions  ) const

overridevirtual

Returns the complete result of the reception process for the provided reception.

This function may be called before the reception actually starts at the receiver, thus it must be purely functional and support optimistic parallel computation.

Reimplemented from inet::physicallayer::ReceiverBase.

Reimplemented in inet::physicallayer::Ieee80211ReceiverBase.

{
    auto receptionResult = NarrowbandReceiverBase::computeReceptionResult(listening, reception, interference, snir, decisions);
    auto errorRateInd = const_cast<Packet *>(receptionResult->getPacket())->addTagIfAbsent<ErrorRateInd>();
    errorRateInd->setPacketErrorRate(errorModel ? errorModel->computePacketErrorRate(snir, IRadioSignal::SIGNAL_PART_WHOLE) : 0.0);
    errorRateInd->setBitErrorRate(errorModel ? errorModel->computeBitErrorRate(snir, IRadioSignal::SIGNAL_PART_WHOLE) : 0.0);
    errorRateInd->setSymbolErrorRate(errorModel ? errorModel->computeSymbolErrorRate(snir, IRadioSignal::SIGNAL_PART_WHOLE) : 0.0);
    return receptionResult;
}

Referenced by inet::physicallayer::Ieee80211ReceiverBase::computeReceptionResult().

getEnergyDetection()

virtual W inet::physicallayer::FlatReceiverBase::getEnergyDetection ( ) const

inlinevirtual

{ return energyDetection; }

getErrorModel()

virtual const IErrorModel* inet::physicallayer::FlatReceiverBase::getErrorModel ( ) const

inlinevirtual

{ return errorModel; }

getMinReceptionPower()

virtual W inet::physicallayer::FlatReceiverBase::getMinReceptionPower ( ) const

inlineoverridevirtual

Returns the minimum reception power below which successful reception is definitely not possible.

Returns a value in the range [0, +infinity) or NaN if unspecified.

Reimplemented from inet::physicallayer::ReceiverBase.

{ return sensitivity; }

getSensitivity()

virtual W inet::physicallayer::FlatReceiverBase::getSensitivity ( ) const

inlinevirtual

{ return sensitivity; }

initialize()

void inet::physicallayer::FlatReceiverBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::NarrowbandReceiverBase.

Reimplemented in inet::physicallayer::Ieee80211ReceiverBase, inet::physicallayer::Ieee802154NarrowbandDimensionalReceiver, and inet::physicallayer::Ieee802154NarrowbandScalarReceiver.

{
    NarrowbandReceiverBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        errorModel = dynamic_cast<IErrorModel *>(getSubmodule("errorModel"));
        energyDetection = mW(math::dBmW2mW(par("energyDetection")));
        sensitivity = mW(math::dBmW2mW(par("sensitivity")));
    }
}

Referenced by inet::physicallayer::Ieee802154NarrowbandDimensionalReceiver::initialize(), inet::physicallayer::Ieee802154NarrowbandScalarReceiver::initialize(), and inet::physicallayer::Ieee80211ReceiverBase::initialize().

printToStream()

std::ostream & inet::physicallayer::FlatReceiverBase::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::NarrowbandReceiverBase.

Reimplemented in inet::physicallayer::Ieee80211ReceiverBase, inet::physicallayer::ApskDimensionalReceiver, inet::physicallayer::ApskScalarReceiver, inet::physicallayer::Ieee80211DimensionalReceiver, inet::physicallayer::Ieee80211ScalarReceiver, inet::physicallayer::Ieee802154NarrowbandDimensionalReceiver, and inet::physicallayer::Ieee802154NarrowbandScalarReceiver.

{
    if (level <= PRINT_LEVEL_TRACE)
        stream << EV_FIELD(errorModel, printFieldToString(errorModel, level + 1, evFlags));
    if (level <= PRINT_LEVEL_INFO)
        stream << EV_FIELD(energyDetection)
               << EV_FIELD(sensitivity);
    return NarrowbandReceiverBase::printToStream(stream, level);
}

Referenced by inet::physicallayer::ApskDimensionalReceiver::printToStream(), inet::physicallayer::Ieee802154NarrowbandScalarReceiver::printToStream(), inet::physicallayer::Ieee802154NarrowbandDimensionalReceiver::printToStream(), inet::physicallayer::ApskScalarReceiver::printToStream(), and inet::physicallayer::Ieee80211ReceiverBase::printToStream().

setEnergyDetection()

virtual void inet::physicallayer::FlatReceiverBase::setEnergyDetection ( W  energyDetection )

inlinevirtual

{ this->energyDetection = energyDetection; }

setSensitivity()

virtual void inet::physicallayer::FlatReceiverBase::setSensitivity ( W  sensitivity )

inlinevirtual

{ this->sensitivity = sensitivity; }

Member Data Documentation

energyDetection

W inet::physicallayer::FlatReceiverBase::energyDetection

protected

Referenced by computeListeningDecision(), initialize(), and printToStream().

errorModel

const IErrorModel* inet::physicallayer::FlatReceiverBase::errorModel

protected

Referenced by computeIsReceptionSuccessful(), computeReceivedPacket(), computeReceptionResult(), initialize(), and printToStream().

sensitivity

W inet::physicallayer::FlatReceiverBase::sensitivity

protected

Referenced by computeIsReceptionPossible(), initialize(), and printToStream().

---

The documentation for this class was generated from the following files:

• FlatReceiverBase.h
• FlatReceiverBase.cc
