inet::physicallayer::NarrowbandReceiverBase Class Reference

#include <NarrowbandReceiverBase.h>

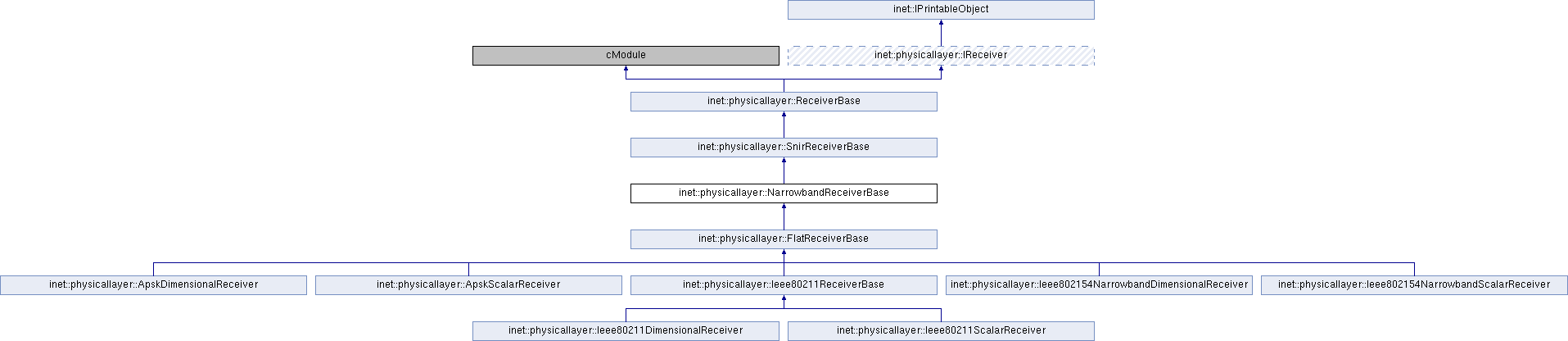

Inheritance diagram for inet::physicallayer::NarrowbandReceiverBase:

Public Member Functions
	NarrowbandReceiverBase ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const IListening *	createListening (const IRadio *radio, const simtime_t startTime, const simtime_t endTime, const Coord &startPosition, const Coord &endPosition) const override
	Returns a description of how the receiver is listening on the medium. More...
virtual bool	computeIsReceptionPossible (const IListening *listening, const ITransmission *transmission) const override
	Returns whether the reception of the provided transmission is possible or not independently of the reception conditions. More...
virtual bool	computeIsReceptionPossible (const IListening *listening, const IReception *reception, IRadioSignal::SignalPart part) const override
	Returns whether the reception of the provided part is possible or not. More...
virtual const IReceptionDecision *	computeReceptionDecision (const IListening *listening, const IReception *reception, IRadioSignal::SignalPart part, const IInterference *interference, const ISnir *snir) const override
	Returns the reception decision for the transmission part that specifies whether the reception is possible, attempted, and successful. More...
virtual const IModulation *	getModulation () const
virtual void	setModulation (const IModulation *modulation)
virtual Hz	getCenterFrequency () const
virtual void	setCenterFrequency (Hz centerFrequency)
virtual Hz	getBandwidth () const
virtual void	setBandwidth (Hz bandwidth)
Public Member Functions inherited from inet::physicallayer::SnirReceiverBase
virtual double	getSNIRThreshold () const
virtual bool	computeIsReceptionSuccessful (const IListening *listening, const IReception *reception, IRadioSignal::SignalPart part, const IInterference *interference, const ISnir *snir) const override
	Returns whether the reception of the provided part is actually successful or failed by the receiver. More...
Public Member Functions inherited from inet::physicallayer::ReceiverBase
	ReceiverBase ()
virtual W	getMinInterferencePower () const override
	Returns the minimum interference power below which receptions are to be ignored while computing the interference. More...
virtual W	getMinReceptionPower () const override
	Returns the minimum reception power below which successful reception is definitely not possible. More...
virtual bool	computeIsReceptionAttempted (const IListening *listening, const IReception *reception, IRadioSignal::SignalPart part, const IInterference *interference) const override
	Returns whether the reception of the provided part is actually attempted or ignored by the receiver. More...
virtual const IReceptionResult *	computeReceptionResult (const IListening *listening, const IReception *reception, const IInterference *interference, const ISnir *snir, const std::vector< const IReceptionDecision * > *decisions) const override
	Returns the complete result of the reception process for the provided reception. More...
Public Member Functions inherited from inet::physicallayer::IReceiver
virtual const IListeningDecision *	computeListeningDecision (const IListening *listening, const IInterference *interference) const =0
	Returns the result of the listening process specifying the reception state of the receiver. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override
Protected Member Functions inherited from inet::physicallayer::ReceiverBase
virtual int	numInitStages () const override
virtual W	computeSignalPower (const IListening *listening, const ISnir *snir, const IInterference *interference) const
virtual Packet *	computeReceivedPacket (const ISnir *snir, bool isReceptionSuccessful) const

Protected Attributes
const IModulation *	modulation
Hz	centerFrequency
Hz	bandwidth
Protected Attributes inherited from inet::physicallayer::SnirReceiverBase
double	snirThreshold = NaN
SnirThresholdMode	snirThresholdMode = SnirThresholdMode::STM_UNDEFINED

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Types inherited from inet::physicallayer::SnirReceiverBase
enum	SnirThresholdMode { SnirThresholdMode::STM_UNDEFINED = -1, SnirThresholdMode::STM_MIN, SnirThresholdMode::STM_MEAN }

Constructor & Destructor Documentation

NarrowbandReceiverBase()

inet::physicallayer::NarrowbandReceiverBase::NarrowbandReceiverBase

(

)

                                               :
    SnirReceiverBase(),
    modulation(nullptr),
    centerFrequency(Hz(NaN)),
    bandwidth(Hz(NaN))
{
}

Member Function Documentation

computeIsReceptionPossible() [1/2]

bool inet::physicallayer::NarrowbandReceiverBase::computeIsReceptionPossible ( const IListening *  listening, const IReception *  reception, IRadioSignal::SignalPart  part  ) const

overridevirtual

Returns whether the reception of the provided part is possible or not.

For example, it might check if the reception power is above sensitivity.

This function may be called before the reception actually starts at the receiver, thus it must be purely functional and support optimistic parallel computation.

Reimplemented from inet::physicallayer::ReceiverBase.

Reimplemented in inet::physicallayer::FlatReceiverBase, inet::physicallayer::ApskDimensionalReceiver, inet::physicallayer::ApskScalarReceiver, inet::physicallayer::Ieee80211DimensionalReceiver, and inet::physicallayer::Ieee80211ScalarReceiver.

{
    const BandListening *bandListening = check_and_cast<const BandListening *>(listening);
    const NarrowbandReceptionBase *narrowbandReception = check_and_cast<const NarrowbandReceptionBase *>(reception);
    if (bandListening->getCenterFrequency() != narrowbandReception->getCenterFrequency() || bandListening->getBandwidth() < narrowbandReception->getBandwidth()) {
        EV_DEBUG << "Computing whether reception is possible: listening and reception bands are different -> reception is impossible" << endl;
        return false;
    }
    else
        return true;
}

computeIsReceptionPossible() [2/2]

bool inet::physicallayer::NarrowbandReceiverBase::computeIsReceptionPossible ( const IListening *  listening, const ITransmission *  transmission  ) const

overridevirtual

Returns whether the reception of the provided transmission is possible or not independently of the reception conditions.

For example, it might check if the carrier frequency and the modulation of the transmission matches how the receiver is listening on the medium.

This function may be called before the reception actually starts at the receiver, thus it must be purely functional and support optimistic parallel computation.

Reimplemented from inet::physicallayer::ReceiverBase.

Reimplemented in inet::physicallayer::ApskDimensionalReceiver, inet::physicallayer::ApskScalarReceiver, inet::physicallayer::Ieee80211DimensionalReceiver, and inet::physicallayer::Ieee80211ScalarReceiver.

{
    // TODO check if modulation matches?
    const NarrowbandTransmissionBase *narrowbandTransmission = check_and_cast<const NarrowbandTransmissionBase *>(transmission);
    return centerFrequency == narrowbandTransmission->getCenterFrequency() && bandwidth >= narrowbandTransmission->getBandwidth();
}

Referenced by inet::physicallayer::ApskDimensionalReceiver::computeIsReceptionPossible(), inet::physicallayer::Ieee80211ScalarReceiver::computeIsReceptionPossible(), inet::physicallayer::ApskScalarReceiver::computeIsReceptionPossible(), and inet::physicallayer::FlatReceiverBase::computeIsReceptionPossible().

computeReceptionDecision()

const IReceptionDecision * inet::physicallayer::NarrowbandReceiverBase::computeReceptionDecision ( const IListening *  listening, const IReception *  reception, IRadioSignal::SignalPart  part, const IInterference *  interference, const ISnir *  snir  ) const

overridevirtual

Returns the reception decision for the transmission part that specifies whether the reception is possible, attempted, and successful.

This function may be called before the reception actually starts at the receiver, thus it must be purely functional and support optimistic parallel computation.

Reimplemented from inet::physicallayer::ReceiverBase.

{
    const BandListening *bandListening = check_and_cast<const BandListening *>(listening);
    const NarrowbandReceptionBase *narrowbandReception = check_and_cast<const NarrowbandReceptionBase *>(reception);
    if (bandListening->getCenterFrequency() == narrowbandReception->getCenterFrequency() && bandListening->getBandwidth() >= narrowbandReception->getBandwidth())
        return SnirReceiverBase::computeReceptionDecision(listening, reception, part, interference, snir);
    else
        return new ReceptionDecision(reception, part, false, false, false);
}

createListening()

const IListening * inet::physicallayer::NarrowbandReceiverBase::createListening ( const IRadio *  radio, const simtime_t  startTime, const simtime_t  endTime, const Coord &  startPosition, const Coord &  endPosition  ) const

overridevirtual

Returns a description of how the receiver is listening on the medium.

Implements inet::physicallayer::IReceiver.

{
    return new BandListening(radio, startTime, endTime, startPosition, endPosition, centerFrequency, bandwidth);
}

getBandwidth()

virtual Hz inet::physicallayer::NarrowbandReceiverBase::getBandwidth ( ) const

inlinevirtual

{ return bandwidth; }

getCenterFrequency()

virtual Hz inet::physicallayer::NarrowbandReceiverBase::getCenterFrequency ( ) const

inlinevirtual

{ return centerFrequency; }

getModulation()

virtual const IModulation* inet::physicallayer::NarrowbandReceiverBase::getModulation ( ) const

inlinevirtual

{ return modulation; }

initialize()

void inet::physicallayer::NarrowbandReceiverBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::SnirReceiverBase.

Reimplemented in inet::physicallayer::Ieee80211ReceiverBase, inet::physicallayer::FlatReceiverBase, inet::physicallayer::Ieee802154NarrowbandDimensionalReceiver, and inet::physicallayer::Ieee802154NarrowbandScalarReceiver.

{
    SnirReceiverBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        modulation = ApskModulationBase::findModulation(par("modulation"));
        centerFrequency = Hz(par("centerFrequency"));
        bandwidth = Hz(par("bandwidth"));
    }
}

Referenced by inet::physicallayer::FlatReceiverBase::initialize().

printToStream()

std::ostream & inet::physicallayer::NarrowbandReceiverBase::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::SnirReceiverBase.

Reimplemented in inet::physicallayer::FlatReceiverBase, inet::physicallayer::Ieee80211ReceiverBase, inet::physicallayer::ApskDimensionalReceiver, inet::physicallayer::ApskScalarReceiver, inet::physicallayer::Ieee80211DimensionalReceiver, inet::physicallayer::Ieee80211ScalarReceiver, inet::physicallayer::Ieee802154NarrowbandDimensionalReceiver, and inet::physicallayer::Ieee802154NarrowbandScalarReceiver.

{
    if (level <= PRINT_LEVEL_TRACE)
        stream << EV_FIELD(modulation, printFieldToString(modulation, level + 1, evFlags))
               << EV_FIELD(centerFrequency)
               << EV_FIELD(bandwidth);
    return SnirReceiverBase::printToStream(stream, level);
}

Referenced by inet::physicallayer::FlatReceiverBase::printToStream().

setBandwidth()

virtual void inet::physicallayer::NarrowbandReceiverBase::setBandwidth ( Hz  bandwidth )

inlinevirtual

{ this->bandwidth = bandwidth; }

Referenced by inet::physicallayer::NarrowbandRadioBase::setBandwidth().

setCenterFrequency()

virtual void inet::physicallayer::NarrowbandReceiverBase::setCenterFrequency ( Hz  centerFrequency )

inlinevirtual

{ this->centerFrequency = centerFrequency; }

Referenced by inet::physicallayer::NarrowbandRadioBase::setCenterFrequency(), and inet::physicallayer::Ieee80211ReceiverBase::setChannel().

setModulation()

virtual void inet::physicallayer::NarrowbandReceiverBase::setModulation ( const IModulation *  modulation )

inlinevirtual

{ this->modulation = modulation; }

Referenced by inet::physicallayer::NarrowbandRadioBase::setModulation().

Member Data Documentation

bandwidth

Hz inet::physicallayer::NarrowbandReceiverBase::bandwidth

protected

Referenced by computeIsReceptionPossible(), createListening(), initialize(), and printToStream().

centerFrequency

Hz inet::physicallayer::NarrowbandReceiverBase::centerFrequency

protected

Referenced by computeIsReceptionPossible(), createListening(), initialize(), and printToStream().

modulation

const IModulation* inet::physicallayer::NarrowbandReceiverBase::modulation

protected

Referenced by initialize(), and printToStream().

---

The documentation for this class was generated from the following files:

• NarrowbandReceiverBase.h
• NarrowbandReceiverBase.cc
