#include <ScalarAnalogModelBase.h>

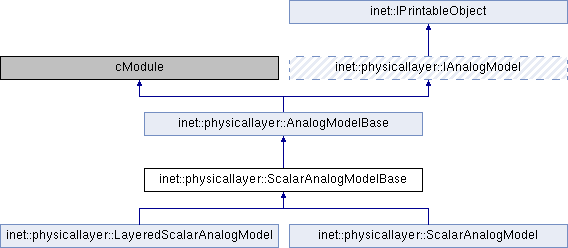

Inheritance diagram for inet::physicallayer::ScalarAnalogModelBase:

Public Member Functions
virtual W	computeReceptionPower (const IRadio radio, const ITransmission transmission, const IArrival *arrival) const

virtual const INoise *	computeNoise (const IListening listening, const IInterference interference) const override
	Returns the total noise summing up all the interfering receptions and noises. More...

virtual const INoise *	computeNoise (const IReception reception, const INoise noise) const override
	Returns the total noise summing up all the reception and the noise. More...

virtual const ISnir *	computeSNIR (const IReception reception, const INoise noise) const override
	Returns the signal to noise and interference ratio. More...

Public Member Functions inherited from inet::physicallayer::IAnalogModel
virtual const IReception *	computeReception (const IRadio receiver, const ITransmission transmission, const IArrival *arrival) const =0
	Returns the reception for the provided transmission at the receiver. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual int	numInitStages () const override

virtual void	initialize (int stage) override

virtual bool	areOverlappingBands (Hz centerFrequency1, Hz bandwidth1, Hz centerFrequency2, Hz bandwidth2) const

virtual void	addReception (const IReception reception, simtime_t &noiseStartTime, simtime_t &noiseEndTime, std::map< simtime_t, W > powerChanges) const

virtual void	addNoise (const ScalarNoise noise, simtime_t &noiseStartTime, simtime_t &noiseEndTime, std::map< simtime_t, W > powerChanges) const

Protected Member Functions inherited from inet::physicallayer::AnalogModelBase
virtual double	computeAntennaGain (const IAntennaGain *antenna, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation) const

Protected Attributes
bool	ignorePartialInterference

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Member Function Documentation

◆ addNoise()

void inet::physicallayer::ScalarAnalogModelBase::addNoise	(	const ScalarNoise *	noise,
		simtime_t &	noiseStartTime,
		simtime_t &	noiseEndTime,
		std::map< simtime_t, W > *	powerChanges
	)		const

protectedvirtual

 {
     const std::map<simtime_t, W> *noisePowerChanges = noise->getPowerChanges();
     for (const auto& noisePowerChange : *noisePowerChanges) {
         auto jt = powerChanges->find(noisePowerChange.first);
         if (jt != powerChanges->end())
             jt->second += noisePowerChange.second;
         else
             powerChanges->insert(std::pair<simtime_t, W>(noisePowerChange.first, noisePowerChange.second));
     }
     if (noise->getStartTime() < noiseStartTime)
         noiseStartTime = noise->getStartTime();
     if (noise->getEndTime() > noiseEndTime)
         noiseEndTime = noise->getEndTime();
 }

Referenced by computeNoise().

◆ addReception()

void inet::physicallayer::ScalarAnalogModelBase::addReception	(	const IReception *	reception,
		simtime_t &	noiseStartTime,
		simtime_t &	noiseEndTime,
		std::map< simtime_t, W > *	powerChanges
	)		const

protectedvirtual

 {
     W power = check_and_cast<const IScalarSignal *>(reception->getAnalogModel())->getPower();
     simtime_t startTime = reception->getStartTime();
     simtime_t endTime = reception->getEndTime();
     auto itStartTime = powerChanges->find(startTime);
     if (itStartTime != powerChanges->end())
         itStartTime->second += power;
     else
         powerChanges->insert(std::pair<simtime_t, W>(startTime, power));
     auto itEndTime = powerChanges->find(endTime);
     if (itEndTime != powerChanges->end())
         itEndTime->second -= power;
     else
         powerChanges->insert(std::pair<simtime_t, W>(endTime, -power));
     if (reception->getStartTime() < noiseStartTime)
         noiseStartTime = reception->getStartTime();
     if (reception->getEndTime() > noiseEndTime)
         noiseEndTime = reception->getEndTime();
 }

Referenced by computeNoise().

◆ areOverlappingBands()

bool inet::physicallayer::ScalarAnalogModelBase::areOverlappingBands	(	Hz	centerFrequency1,
		Hz	bandwidth1,
		Hz	centerFrequency2,
		Hz	bandwidth2
	)		const

protectedvirtual

 {
     return centerFrequency1 + bandwidth1 / 2 >= centerFrequency2 - bandwidth2 / 2 &&
            centerFrequency1 - bandwidth1 / 2 <= centerFrequency2 + bandwidth2 / 2;
 }

Referenced by computeNoise().

◆ computeNoise() [1/2]

const INoise * inet::physicallayer::ScalarAnalogModelBase::computeNoise	(	const IListening *	listening,
		const IInterference *	interference
	)		const

overridevirtual

Returns the total noise summing up all the interfering receptions and noises.

This function never returns nullptr.

Implements inet::physicallayer::IAnalogModel.

 {
     const BandListening *bandListening = check_and_cast<const BandListening *>(listening);
     Hz commonCenterFrequency = bandListening->getCenterFrequency();
     Hz commonBandwidth = bandListening->getBandwidth();
     simtime_t noiseStartTime = SimTime::getMaxTime();
     simtime_t noiseEndTime = 0;
     std::map<simtime_t, W> *powerChanges = new std::map<simtime_t, W>();
     const std::vector<const IReception *> *interferingReceptions = interference->getInterferingReceptions();
     for (auto reception : *interferingReceptions) {
         const ISignalAnalogModel *signalAnalogModel = reception->getAnalogModel();
         const INarrowbandSignal *narrowbandSignalAnalogModel = check_and_cast<const INarrowbandSignal *>(signalAnalogModel);
         Hz signalCenterFrequency = narrowbandSignalAnalogModel->getCenterFrequency();
         Hz signalBandwidth = narrowbandSignalAnalogModel->getBandwidth();
         if (commonCenterFrequency == signalCenterFrequency && commonBandwidth >= signalBandwidth)
             addReception(reception, noiseStartTime, noiseEndTime, powerChanges);
         else if (!ignorePartialInterference && areOverlappingBands(commonCenterFrequency, commonBandwidth, narrowbandSignalAnalogModel->getCenterFrequency(), narrowbandSignalAnalogModel->getBandwidth()))
             throw cRuntimeError("Partially interfering signals are not supported by ScalarAnalogModel, enable ignorePartialInterference to avoid this error!");
     }
     const ScalarNoise *scalarBackgroundNoise = dynamic_cast<const ScalarNoise *>(interference->getBackgroundNoise());
     if (scalarBackgroundNoise) {
         if (commonCenterFrequency == scalarBackgroundNoise->getCenterFrequency() && commonBandwidth >= scalarBackgroundNoise->getBandwidth())
             addNoise(scalarBackgroundNoise, noiseStartTime, noiseEndTime, powerChanges);
         else if (!ignorePartialInterference && areOverlappingBands(commonCenterFrequency, commonBandwidth, scalarBackgroundNoise->getCenterFrequency(), scalarBackgroundNoise->getBandwidth()))
             throw cRuntimeError("Partially interfering background noise is not supported by ScalarAnalogModel, enable ignorePartialInterference to avoid this error!");
     }
     EV_TRACE << "Noise power begin " << endl;
     W noise = W(0);
     for (std::map<simtime_t, W>::const_iterator it = powerChanges->begin(); it != powerChanges->end(); it++) {
         noise += it->second;
         EV_TRACE << "Noise at " << it->first << " = " << noise << endl;
     }
     EV_TRACE << "Noise power end" << endl;
     return new ScalarNoise(noiseStartTime, noiseEndTime, commonCenterFrequency, commonBandwidth, powerChanges);
 }

◆ computeNoise() [2/2]

const INoise * inet::physicallayer::ScalarAnalogModelBase::computeNoise	(	const IReception *	reception,
		const INoise *	noise
	)		const

overridevirtual

Returns the total noise summing up all the reception and the noise.

This function never returns nullptr.

Implements inet::physicallayer::IAnalogModel.

 {
     auto scalarNoise = check_and_cast<const ScalarNoise *>(noise);
     simtime_t noiseStartTime = SimTime::getMaxTime();
     simtime_t noiseEndTime = 0;
     std::map<simtime_t, W> *powerChanges = new std::map<simtime_t, W>();
     addReception(reception, noiseStartTime, noiseEndTime, powerChanges);
     addNoise(scalarNoise, noiseStartTime, noiseEndTime, powerChanges);
     return new ScalarNoise(noiseStartTime, noiseEndTime, scalarNoise->getCenterFrequency(), scalarNoise->getBandwidth(), powerChanges);
 }

◆ computeReceptionPower()

W inet::physicallayer::ScalarAnalogModelBase::computeReceptionPower	(	const IRadio *	radio,
		const ITransmission *	transmission,
		const IArrival *	arrival
	)		const

virtual

 {
     const IRadioMedium *radioMedium = receiverRadio->getMedium();
     const INarrowbandSignal *narrowbandSignalAnalogModel = check_and_cast<const INarrowbandSignal *>(transmission->getAnalogModel());
     const IScalarSignal *scalarSignalAnalogModel = check_and_cast<const IScalarSignal *>(transmission->getAnalogModel());
     const Coord& receptionStartPosition = arrival->getStartPosition();
     // TODO could be used for doppler shift? const Coord& receptionEndPosition = arrival->getEndPosition();
     double transmitterAntennaGain = computeAntennaGain(transmission->getTransmitterAntennaGain(), transmission->getStartPosition(), arrival->getStartPosition(), transmission->getStartOrientation());
     double receiverAntennaGain = computeAntennaGain(receiverRadio->getAntenna()->getGain().get(), arrival->getStartPosition(), transmission->getStartPosition(), arrival->getStartOrientation());
     double pathLoss = radioMedium->getPathLoss()->computePathLoss(transmission, arrival);
     double obstacleLoss = radioMedium->getObstacleLoss() ? radioMedium->getObstacleLoss()->computeObstacleLoss(narrowbandSignalAnalogModel->getCenterFrequency(), transmission->getStartPosition(), receptionStartPosition) : 1;
     W transmissionPower = scalarSignalAnalogModel->getPower();
     ASSERT(!std::isnan(transmissionPower.get()));
     double gain = transmitterAntennaGain * receiverAntennaGain * pathLoss * obstacleLoss;
     ASSERT(!std::isnan(gain));
     if (gain > 1.0) {
         EV_WARN << "Signal power attenuation is zero.\n";
         gain = 1.0;
     }
     return transmissionPower * gain;
 }

Referenced by inet::physicallayer::ScalarAnalogModel::computeReception(), and inet::physicallayer::LayeredScalarAnalogModel::computeReception().

◆ computeSNIR()

const ISnir * inet::physicallayer::ScalarAnalogModelBase::computeSNIR	(	const IReception *	reception,
		const INoise *	noise
	)		const

overridevirtual

Returns the signal to noise and interference ratio.

This function never returns nullptr.

Implements inet::physicallayer::IAnalogModel.

 {
     return new ScalarSnir(reception, noise);
 }

◆ initialize()

void inet::physicallayer::ScalarAnalogModelBase::initialize ( int stage )

overrideprotectedvirtual

 {
     AnalogModelBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         ignorePartialInterference = par("ignorePartialInterference");
     }
 }

◆ numInitStages()

virtual int inet::physicallayer::ScalarAnalogModelBase::numInitStages ( ) const

inlineoverrideprotectedvirtual

25 { return NUM_INIT_STAGES; }

Member Data Documentation

◆ ignorePartialInterference

bool inet::physicallayer::ScalarAnalogModelBase::ignorePartialInterference

protected

Referenced by computeNoise(), and initialize().

The documentation for this class was generated from the following files:
