#include <LayeredScalarAnalogModel.h>

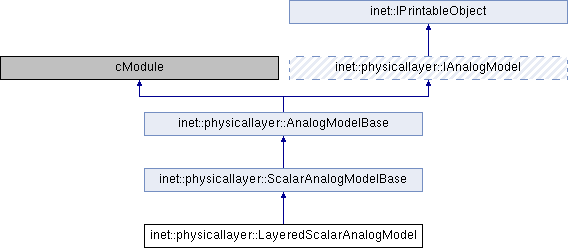

Inheritance diagram for inet::physicallayer::LayeredScalarAnalogModel:

Public Member Functions
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const IReception *	computeReception (const IRadio radio, const ITransmission transmission, const IArrival *arrival) const override
	Returns the reception for the provided transmission at the receiver. More...

Public Member Functions inherited from inet::physicallayer::ScalarAnalogModelBase
virtual W	computeReceptionPower (const IRadio radio, const ITransmission transmission, const IArrival *arrival) const

virtual const INoise *	computeNoise (const IListening listening, const IInterference interference) const override
	Returns the total noise summing up all the interfering receptions and noises. More...

virtual const INoise *	computeNoise (const IReception reception, const INoise noise) const override
	Returns the total noise summing up all the reception and the noise. More...

virtual const ISnir *	computeSNIR (const IReception reception, const INoise noise) const override
	Returns the signal to noise and interference ratio. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Protected Member Functions inherited from inet::physicallayer::ScalarAnalogModelBase
virtual int	numInitStages () const override

virtual void	initialize (int stage) override

virtual bool	areOverlappingBands (Hz centerFrequency1, Hz bandwidth1, Hz centerFrequency2, Hz bandwidth2) const

virtual void	addReception (const IReception reception, simtime_t &noiseStartTime, simtime_t &noiseEndTime, std::map< simtime_t, W > powerChanges) const

virtual void	addNoise (const ScalarNoise noise, simtime_t &noiseStartTime, simtime_t &noiseEndTime, std::map< simtime_t, W > powerChanges) const

Protected Member Functions inherited from inet::physicallayer::AnalogModelBase
virtual double	computeAntennaGain (const IAntennaGain *antenna, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation) const

Protected Attributes inherited from inet::physicallayer::ScalarAnalogModelBase
bool	ignorePartialInterference

Member Function Documentation

◆ computeReception()

const IReception * inet::physicallayer::LayeredScalarAnalogModel::computeReception	(	const IRadio *	receiver,
		const ITransmission *	transmission,
		const IArrival *	arrival
	)		const

overridevirtual

Returns the reception for the provided transmission at the receiver.

The result incorporates all modeled attenuation. This function never returns nullptr.

Implements inet::physicallayer::IAnalogModel.

 {
     const simtime_t receptionStartTime = arrival->getStartTime();
     const simtime_t receptionEndTime = arrival->getEndTime();
     const Quaternion& receptionStartOrientation = arrival->getStartOrientation();
     const Quaternion& receptionEndOrientation = arrival->getEndOrientation();
     const Coord& receptionStartPosition = arrival->getStartPosition();
     const Coord& receptionEndPosition = arrival->getEndPosition();
     const LayeredTransmission *layeredTransmission = check_and_cast<const LayeredTransmission *>(transmission);
     const ScalarTransmissionSignalAnalogModel *transmissionSignalAnalogModel = check_and_cast<const ScalarTransmissionSignalAnalogModel *>(layeredTransmission->getAnalogModel());
     const W receptionPower = computeReceptionPower(receiverRadio, transmission, arrival);
     const ScalarReceptionSignalAnalogModel *receptionSignalAnalogModel = new ScalarReceptionSignalAnalogModel(transmissionSignalAnalogModel->getDuration(), transmissionSignalAnalogModel->getCenterFrequency(), transmissionSignalAnalogModel->getBandwidth(), receptionPower);
     return new LayeredReception(receptionSignalAnalogModel, receiverRadio, transmission, receptionStartTime, receptionEndTime, receptionStartPosition, receptionEndPosition, receptionStartOrientation, receptionEndOrientation);
 }

◆ printToStream()

std::ostream & inet::physicallayer::LayeredScalarAnalogModel::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

 {
     return stream << "LayeredScalarAnalogModel";
 }

The documentation for this class was generated from the following files:
