#include <Ieee80211UnitDiskTransmitter.h>

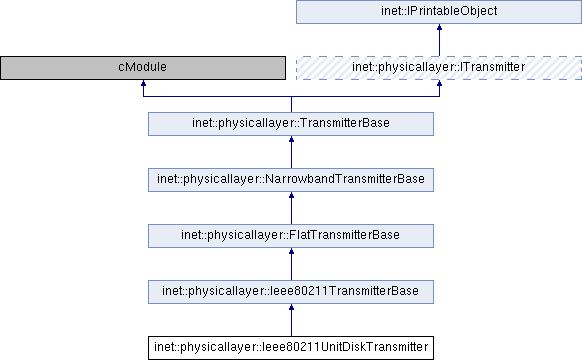

Inheritance diagram for inet::physicallayer::Ieee80211UnitDiskTransmitter:

Public Member Functions
	Ieee80211UnitDiskTransmitter ()

virtual m	getMaxCommunicationRange () const override
	Returns the maximum communication range. More...

virtual m	getMaxInterferenceRange () const override
	Returns the maximum interference range. More...

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const ITransmission *	createTransmission (const IRadio radio, const Packet packet, simtime_t startTime) const override
	Returns a transmission which describes the radio signal corresponding to the provided packet. More...

Public Member Functions inherited from inet::physicallayer::Ieee80211TransmitterBase
	Ieee80211TransmitterBase ()

virtual	~Ieee80211TransmitterBase ()

virtual const IIeee80211Mode *	computeTransmissionMode (const Packet *packet) const

virtual const Ieee80211Channel *	computeTransmissionChannel (const Packet *packet) const

virtual void	setModeSet (const Ieee80211ModeSet *modeSet)

virtual void	setMode (const IIeee80211Mode *mode)

virtual void	setBand (const IIeee80211Band *band)

virtual void	setChannel (const Ieee80211Channel *channel)

virtual void	setChannelNumber (int channelNumber)

Public Member Functions inherited from inet::physicallayer::FlatTransmitterBase
	FlatTransmitterBase ()

virtual b	getHeaderLength () const

virtual void	setHeaderLength (b headerLength)

virtual bps	getBitrate () const

virtual void	setBitrate (bps bitrate)

virtual W	getMaxPower () const override
	Returns the maximum transmission power above which no transmission is ever transmitted. More...

virtual W	getPower () const

virtual void	setPower (W power)

Public Member Functions inherited from inet::physicallayer::NarrowbandTransmitterBase
	NarrowbandTransmitterBase ()

virtual const IModulation *	getModulation () const

virtual void	setModulation (const IModulation *modulation)

virtual Hz	getCenterFrequency () const

virtual void	setCenterFrequency (Hz centerFrequency)

virtual Hz	getBandwidth () const

virtual void	setBandwidth (Hz bandwidth)

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

Protected Member Functions inherited from inet::physicallayer::FlatTransmitterBase
virtual bps	computeTransmissionPreambleBitrate (const Packet *packet) const

virtual bps	computeTransmissionHeaderBitrate (const Packet *packet) const

virtual bps	computeTransmissionDataBitrate (const Packet *packet) const

virtual W	computeTransmissionPower (const Packet *packet) const

Protected Member Functions inherited from inet::physicallayer::NarrowbandTransmitterBase
virtual Hz	computeCenterFrequency (const Packet *packet) const

virtual Hz	computeBandwidth (const Packet *packet) const

Protected Member Functions inherited from inet::physicallayer::TransmitterBase
virtual int	numInitStages () const override

Protected Attributes
m	communicationRange = m(NaN)

m	interferenceRange = m(NaN)

m	detectionRange = m(NaN)

Protected Attributes inherited from inet::physicallayer::Ieee80211TransmitterBase
const Ieee80211ModeSet *	modeSet

const IIeee80211Mode *	mode

const IIeee80211Band *	band

const Ieee80211Channel *	channel

Protected Attributes inherited from inet::physicallayer::FlatTransmitterBase
simtime_t	preambleDuration

b	headerLength

bps	bitrate

W	power

Protected Attributes inherited from inet::physicallayer::NarrowbandTransmitterBase
const IModulation *	modulation

Hz	centerFrequency

Hz	bandwidth

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ Ieee80211UnitDiskTransmitter()

inet::physicallayer::Ieee80211UnitDiskTransmitter::Ieee80211UnitDiskTransmitter ( )

                                                            :
     Ieee80211TransmitterBase()
 {
 }

Member Function Documentation

◆ createTransmission()

const ITransmission * inet::physicallayer::Ieee80211UnitDiskTransmitter::createTransmission	(	const IRadio *	transmitter,
		const Packet *	packet,
		simtime_t	startTime
	)		const

overridevirtual

Returns a transmission which describes the radio signal corresponding to the provided packet.

This function never returns nullptr.

Implements inet::physicallayer::ITransmitter.

 {
     const IIeee80211Mode *transmissionMode = computeTransmissionMode(packet);
     if (transmissionMode->getDataMode()->getNumberOfSpatialStreams() > transmitter->getAntenna()->getNumAntennas())
         throw cRuntimeError("Number of spatial streams is higher than the number of antennas");
     const simtime_t duration = transmissionMode->getDuration(packet->getDataLength());
     const simtime_t endTime = startTime + duration;
     IMobility *mobility = transmitter->getAntenna()->getMobility();
     const Coord& startPosition = mobility->getCurrentPosition();
     const Coord& endPosition = mobility->getCurrentPosition();
     const Quaternion& startOrientation = mobility->getCurrentAngularPosition();
     const Quaternion& endOrientation = mobility->getCurrentAngularPosition();
     const simtime_t preambleDuration = transmissionMode->getPreambleMode()->getDuration();
     const simtime_t headerDuration = transmissionMode->getHeaderMode()->getDuration();
     const simtime_t dataDuration = duration - headerDuration - preambleDuration;
     return new Ieee80211UnitDiskTransmission(transmitter, packet, startTime, endTime, preambleDuration, headerDuration, dataDuration, startPosition, endPosition, startOrientation, endOrientation, communicationRange, interferenceRange, detectionRange, transmissionMode, channel);
 }

◆ getMaxCommunicationRange()

virtual m inet::physicallayer::Ieee80211UnitDiskTransmitter::getMaxCommunicationRange ( ) const

inlineoverridevirtual

Returns the maximum communication range.

Returns a value in the range [0, +infinity] or NaN if unspecified.

Reimplemented from inet::physicallayer::TransmitterBase.

29 { return communicationRange; }

◆ getMaxInterferenceRange()

virtual m inet::physicallayer::Ieee80211UnitDiskTransmitter::getMaxInterferenceRange ( ) const

inlineoverridevirtual

Returns the maximum interference range.

Returns a value in the range [0, +infinity] or NaN if unspecified.

Reimplemented from inet::physicallayer::TransmitterBase.

30 { return interferenceRange; }

◆ initialize()

void inet::physicallayer::Ieee80211UnitDiskTransmitter::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::Ieee80211TransmitterBase.

 {
     Ieee80211TransmitterBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         communicationRange = m(par("communicationRange"));
         interferenceRange = m(par("interferenceRange"));
         detectionRange = m(par("detectionRange"));
     }
 }

◆ printToStream()

std::ostream & inet::physicallayer::Ieee80211UnitDiskTransmitter::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::Ieee80211TransmitterBase.

 {
     stream << "Ieee80211UnitDiskTransmitter";
     if (level <= PRINT_LEVEL_INFO)
         stream << EV_FIELD(communicationRange);
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(interferenceRange)
                << EV_FIELD(detectionRange);
     return Ieee80211TransmitterBase::printToStream(stream, level);
 }

Member Data Documentation

◆ communicationRange

m inet::physicallayer::Ieee80211UnitDiskTransmitter::communicationRange = m(NaN)

protected

Referenced by createTransmission(), initialize(), and printToStream().

◆ detectionRange

m inet::physicallayer::Ieee80211UnitDiskTransmitter::detectionRange = m(NaN)

protected

Referenced by createTransmission(), initialize(), and printToStream().

◆ interferenceRange

m inet::physicallayer::Ieee80211UnitDiskTransmitter::interferenceRange = m(NaN)

protected

Referenced by createTransmission(), initialize(), and printToStream().

The documentation for this class was generated from the following files:
