#include <ConstantGainAntenna.h>

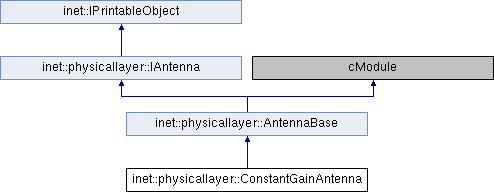

Inheritance diagram for inet::physicallayer::ConstantGainAntenna:

Classes
class	AntennaGain

Public Member Functions
	ConstantGainAntenna ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual Ptr< const IAntennaGain >	getGain () const override
	Returns the antenna's gain calculator for directional selectivity. More...

Public Member Functions inherited from inet::physicallayer::AntennaBase
	AntennaBase ()

virtual bool	isDirectional () const override
	Returns true if the antenna has directional selectivity (i.e. More...

virtual IMobility *	getMobility () const override
	Returns the mobility of this antenna that describes its position and orientation over time. More...

virtual int	getNumAntennas () const override
	Returns the number of antennas in the array. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

Protected Attributes
Ptr< AntennaGain >	gain

Protected Attributes inherited from inet::physicallayer::AntennaBase
opp_component_ptr< IMobility >	mobility

int	numAntennas

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ ConstantGainAntenna()

inet::physicallayer::ConstantGainAntenna::ConstantGainAntenna ( )

                                          :
     AntennaBase()
 {
 }

Member Function Documentation

◆ getGain()

virtual Ptr<const IAntennaGain> inet::physicallayer::ConstantGainAntenna::getGain ( ) const

inlineoverridevirtual

Returns the antenna's gain calculator for directional selectivity.

This object may be copied as needed, i.e. IAntennaGain objects are expected to have no reference to other objects.

Implements inet::physicallayer::IAntenna.

39 { return gain; }

◆ initialize()

void inet::physicallayer::ConstantGainAntenna::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::AntennaBase.

 {
     AntennaBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL)
         gain = makeShared<AntennaGain>(math::dB2fraction(par("gain")));
 }

◆ printToStream()

std::ostream & inet::physicallayer::ConstantGainAntenna::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::AntennaBase.

 {
     stream << "ConstantGainAntenna";
     if (level <= PRINT_LEVEL_DETAIL)
         stream << EV_FIELD(gain, gain->getMaxGain());
     return AntennaBase::printToStream(stream, level);
 }

Member Data Documentation

◆ gain

Ptr<AntennaGain> inet::physicallayer::ConstantGainAntenna::gain

protected

Referenced by initialize(), and printToStream().

The documentation for this class was generated from the following files:
