inet::physicallayer::AntennaBase Class Reference

#include <AntennaBase.h>

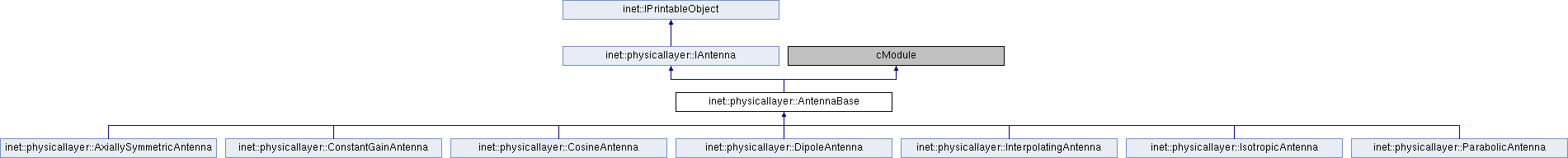

Inheritance diagram for inet::physicallayer::AntennaBase:

Public Member Functions
	AntennaBase ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual bool	isDirectional () const override
	Returns true if the antenna has directional selectivity (i.e. More...
virtual IMobility *	getMobility () const override
	Returns the mobility of this antenna that describes its position and orientation over time. More...
virtual int	getNumAntennas () const override
	Returns the number of antennas in the array. More...
Public Member Functions inherited from inet::physicallayer::IAntenna
virtual Ptr< const IAntennaGain >	getGain () const =0
	Returns the antenna's gain calculator for directional selectivity. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

Protected Attributes
opp_component_ptr< IMobility >	mobility
int	numAntennas

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

AntennaBase()

inet::physicallayer::AntennaBase::AntennaBase

(

)

                         :
    mobility(nullptr),
    numAntennas(-1)
{
}

Member Function Documentation

getMobility()

virtual IMobility* inet::physicallayer::AntennaBase::getMobility ( ) const

inlineoverridevirtual

Returns the mobility of this antenna that describes its position and orientation over time.

Implements inet::physicallayer::IAntenna.

{ return mobility; }

getNumAntennas()

virtual int inet::physicallayer::AntennaBase::getNumAntennas ( ) const

inlineoverridevirtual

Returns the number of antennas in the array.

Implements inet::physicallayer::IAntenna.

{ return numAntennas; }

initialize()

void inet::physicallayer::AntennaBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented in inet::physicallayer::InterpolatingAntenna, inet::physicallayer::AxiallySymmetricAntenna, inet::physicallayer::ParabolicAntenna, inet::physicallayer::ConstantGainAntenna, inet::physicallayer::CosineAntenna, and inet::physicallayer::DipoleAntenna.

{
    if (stage == INITSTAGE_LOCAL) {
        mobility = check_and_cast_nullable<IMobility *>(getSubmodule("mobility"));
        if (mobility == nullptr)
            mobility = getModuleFromPar<IMobility>(par("mobilityModule"), this);
        numAntennas = par("numAntennas");
    }
}

Referenced by inet::physicallayer::ConstantGainAntenna::initialize(), inet::physicallayer::DipoleAntenna::initialize(), inet::physicallayer::CosineAntenna::initialize(), inet::physicallayer::ParabolicAntenna::initialize(), inet::physicallayer::AxiallySymmetricAntenna::initialize(), and inet::physicallayer::InterpolatingAntenna::initialize().

isDirectional()

virtual bool inet::physicallayer::AntennaBase::isDirectional ( ) const

inlineoverridevirtual

Returns true if the antenna has directional selectivity (i.e.

the gain is not always 1).

Implements inet::physicallayer::IAntenna.

{ return getGain()->getMinGain() != 1 || getGain()->getMaxGain() != 1; }

printToStream()

std::ostream & inet::physicallayer::AntennaBase::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::InterpolatingAntenna, inet::physicallayer::AxiallySymmetricAntenna, inet::physicallayer::ParabolicAntenna, inet::physicallayer::CosineAntenna, inet::physicallayer::DipoleAntenna, inet::physicallayer::ConstantGainAntenna, and inet::physicallayer::IsotropicAntenna.

{
    return stream;
}

Referenced by inet::physicallayer::IsotropicAntenna::printToStream(), inet::physicallayer::ConstantGainAntenna::printToStream(), inet::physicallayer::DipoleAntenna::printToStream(), inet::physicallayer::CosineAntenna::printToStream(), inet::physicallayer::ParabolicAntenna::printToStream(), inet::physicallayer::AxiallySymmetricAntenna::printToStream(), and inet::physicallayer::InterpolatingAntenna::printToStream().

Member Data Documentation

mobility

opp_component_ptr<IMobility> inet::physicallayer::AntennaBase::mobility

protected

Referenced by initialize().

numAntennas

int inet::physicallayer::AntennaBase::numAntennas

protected

Referenced by initialize().

---

The documentation for this class was generated from the following files:

• AntennaBase.h
• AntennaBase.cc
