inet::physicallayer::NoiseDimensionalTransmitter Class Reference

#include <NoiseDimensionalTransmitter.h>

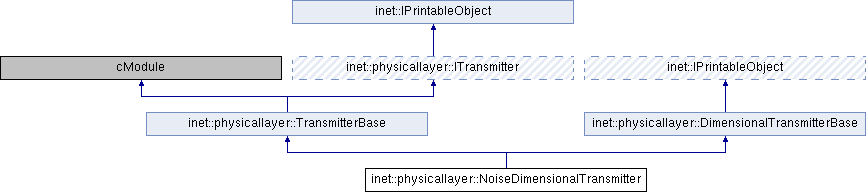

Inheritance diagram for inet::physicallayer::NoiseDimensionalTransmitter:

Public Member Functions
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const ITransmission *	createTransmission (const IRadio *radio, const Packet *packet, simtime_t startTime) const override
	Returns a transmission which describes the radio signal corresponding to the provided packet. More...
Public Member Functions inherited from inet::physicallayer::TransmitterBase
virtual W	getMaxPower () const override
	Returns the maximum transmission power above which no transmission is ever transmitted. More...
virtual m	getMaxCommunicationRange () const override
	Returns the maximum communication range. More...
virtual m	getMaxInterferenceRange () const override
	Returns the maximum interference range. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override
Protected Member Functions inherited from inet::physicallayer::TransmitterBase
virtual int	numInitStages () const override
Protected Member Functions inherited from inet::physicallayer::DimensionalTransmitterBase
template<typename T >
std::vector< GainEntry< T > >	parseGains (const char *text) const
virtual void	parseTimeGains (const char *text)
virtual void	parseFrequencyGains (const char *text)
template<typename T >
const Ptr< const IFunction< double, Domain< T > > >	normalize (const Ptr< const IFunction< double, Domain< T >>> &function, const char *normalization) const
virtual Ptr< const IFunction< double, Domain< simsec, Hz > > >	createGainFunction (const simtime_t startTime, const simtime_t endTime, Hz centerFrequency, Hz bandwidth) const
virtual Ptr< const IFunction< WpHz, Domain< simsec, Hz > > >	createPowerFunction (const simtime_t startTime, const simtime_t endTime, Hz centerFrequency, Hz bandwidth, W power) const

Protected Attributes
cPar *	durationParameter = nullptr
cPar *	centerFrequencyParameter = nullptr
cPar *	bandwidthParameter = nullptr
cPar *	powerParameter = nullptr
Protected Attributes inherited from inet::physicallayer::DimensionalTransmitterBase
const IInterpolator< simsec, double > *	firstTimeInterpolator = nullptr
const IInterpolator< Hz, double > *	firstFrequencyInterpolator = nullptr
std::vector< GainEntry< simsec > >	timeGains
std::vector< GainEntry< Hz > >	frequencyGains
const char *	timeGainsNormalization = nullptr
const char *	frequencyGainsNormalization = nullptr
int	gainFunctionCacheLimit = -1
std::map< std::tuple< simtime_t, Hz, Hz >, Ptr< const IFunction< double, Domain< simsec, Hz > > > >	gainFunctionCache

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Member Function Documentation

createTransmission()

const ITransmission * inet::physicallayer::NoiseDimensionalTransmitter::createTransmission ( const IRadio *  transmitter, const Packet *  packet, simtime_t  startTime  ) const

overridevirtual

Returns a transmission which describes the radio signal corresponding to the provided packet.

This function never returns nullptr.

Implements inet::physicallayer::ITransmitter.

{
    Hz centerFrequency = Hz(centerFrequencyParameter->doubleValue());
    Hz bandwidth = Hz(bandwidthParameter->doubleValue());
    W power = W(powerParameter->doubleValue());
    const simtime_t duration = durationParameter->doubleValue();
    const simtime_t endTime = startTime + duration;
    IMobility *mobility = transmitter->getAntenna()->getMobility();
    const Coord& startPosition = mobility->getCurrentPosition();
    const Coord& endPosition = mobility->getCurrentPosition();
    const Quaternion& startOrientation = mobility->getCurrentAngularPosition();
    const Quaternion& endOrientation = mobility->getCurrentAngularPosition();
    const Ptr<const IFunction<WpHz, Domain<simsec, Hz>>>& powerFunction = createPowerFunction(startTime, endTime, centerFrequency, bandwidth, power);
    return new DimensionalTransmission(transmitter, nullptr, startTime, endTime, 0, 0, duration, startPosition, endPosition, startOrientation, endOrientation, nullptr, b(-1), b(-1), centerFrequency, bandwidth, bps(NaN), powerFunction);
}

initialize()

void inet::physicallayer::NoiseDimensionalTransmitter::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::DimensionalTransmitterBase.

{
    TransmitterBase::initialize(stage);
    DimensionalTransmitterBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        durationParameter = &par("duration");
        centerFrequencyParameter = &par("centerFrequency");
        bandwidthParameter = &par("bandwidth");
        powerParameter = &par("power");
    }
}

printToStream()

std::ostream & inet::physicallayer::NoiseDimensionalTransmitter::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::DimensionalTransmitterBase.

{
    stream << "NoiseDimensionalTransmitter";
    TransmitterBase::printToStream(stream, level);
    return DimensionalTransmitterBase::printToStream(stream, level);
}

Member Data Documentation

bandwidthParameter

cPar* inet::physicallayer::NoiseDimensionalTransmitter::bandwidthParameter = nullptr

protected

Referenced by createTransmission(), and initialize().

centerFrequencyParameter

cPar* inet::physicallayer::NoiseDimensionalTransmitter::centerFrequencyParameter = nullptr

protected

Referenced by createTransmission(), and initialize().

durationParameter

cPar* inet::physicallayer::NoiseDimensionalTransmitter::durationParameter = nullptr

protected

Referenced by createTransmission(), and initialize().

powerParameter

cPar* inet::physicallayer::NoiseDimensionalTransmitter::powerParameter = nullptr

protected

Referenced by createTransmission(), and initialize().

---

The documentation for this class was generated from the following files:

• NoiseDimensionalTransmitter.h
• NoiseDimensionalTransmitter.cc
