A simplified version of EthernetCsmaMac. More...

#include <EthernetMac.h>

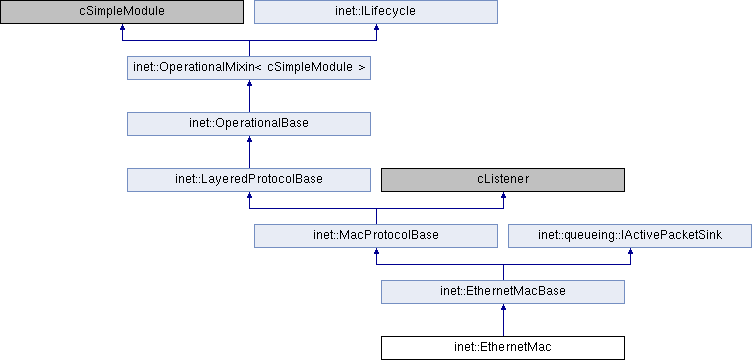

Inheritance diagram for inet::EthernetMac:

Public Member Functions
	EthernetMac ()

virtual void	handleCanPullPacketChanged (cGate *gate) override
	Notifies about a change in the possibility of pulling some packet from the passive packet source at the given gate. More...

Public Member Functions inherited from inet::EthernetMacBase
	EthernetMacBase ()

virtual	~EthernetMacBase ()

virtual MacAddress	getMacAddress ()

double	getTxRate ()

bool	isActive ()

MacTransmitState	getTransmitState ()

MacReceiveState	getReceiveState ()

virtual void	handleStartOperation (LifecycleOperation *operation) override

virtual void	handleStopOperation (LifecycleOperation *operation) override

virtual void	handleCrashOperation (LifecycleOperation *operation) override

virtual void	processAtHandleMessageFinished ()

void	addPaddingAndSetFcs (Packet *packet, B requiredMinByteLength=MIN_ETHERNET_FRAME_BYTES) const
	Inserts padding in front of FCS and calculate FCS. More...

virtual queueing::IPassivePacketSource *	getProvider (cGate *gate) override
	Returns the passive packet source from where packets are pulled or nullptr if the connected module doesn't implement the interface. More...

virtual void	handlePullPacketProcessed (Packet packet, cGate gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pulled earlier independently whether the packet is passed or streamed. More...

Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...

Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Public Member Functions inherited from inet::queueing::IActivePacketSink
virtual	~IActivePacketSink ()

Protected Member Functions
virtual int	numInitStages () const override

virtual void	initialize (int stage) override

virtual void	initializeStatistics () override

virtual void	initializeFlags () override

virtual void	handleMessageWhenUp (cMessage *msg) override

virtual void	finish () override

virtual void	handleEndIFGPeriod ()

virtual void	handleEndTxPeriod ()

virtual void	handleEndPausePeriod ()

virtual void	handleSelfMessage (cMessage *msg) override

virtual void	startFrameTransmission ()

virtual void	handleUpperPacket (Packet *pk) override

virtual void	processMsgFromNetwork (EthernetSignalBase *signal)

virtual void	processReceivedDataFrame (Packet *packet, const Ptr< const EthernetMacHeader > &frame)

virtual void	processPauseCommand (int pauseUnits)

virtual void	scheduleEndIFGPeriod ()

virtual void	scheduleEndPausePeriod (int pauseUnits)

virtual void	beginSendFrames ()

Protected Member Functions inherited from inet::EthernetMacBase
virtual bool	dropFrameNotForUs (Packet *packet, const Ptr< const EthernetMacHeader > &frame)
	Checks destination address and drops the frame when frame is not for us; returns true if frame is dropped. More...

virtual void	readChannelParameters (bool errorWhenAsymmetric)
	Calculates datarates, etc. More...

virtual void	printParameters ()

virtual void	processConnectDisconnect ()

virtual void	encapsulate (Packet *packet)

virtual void	decapsulate (Packet *packet)

bool	verifyCrcAndLength (Packet *packet)
	Verify ethernet packet: check FCS and payload length. More...

virtual void	configureNetworkInterface () override

virtual void	refreshDisplay () const override

virtual void	receiveSignal (cComponent src, simsignal_t signalId, cObject obj, cObject *details) override

virtual void	refreshConnection ()

void	changeTransmissionState (MacTransmitState newState)

void	changeReceptionState (MacReceiveState newState)

virtual void	cutEthernetSignalEnd (EthernetSignalBase *signal, simtime_t duration)

virtual void	txFinished ()

Protected Member Functions inherited from inet::MacProtocolBase
	MacProtocolBase ()

virtual	~MacProtocolBase ()

virtual void	registerInterface ()

virtual MacAddress	parseMacAddressParameter (const char *addrstr)

virtual void	deleteCurrentTxFrame ()

virtual void	dropCurrentTxFrame (PacketDropDetails &details)

virtual void	handleMessageWhenDown (cMessage *msg) override

virtual void	sendUp (cMessage *message)

virtual void	sendDown (cMessage *message)

virtual bool	isUpperMessage (cMessage *message) const override

virtual bool	isLowerMessage (cMessage *message) const override

virtual bool	isInitializeStage (int stage) const override

virtual bool	isModuleStartStage (int stage) const override

virtual bool	isModuleStopStage (int stage) const override

virtual void	flushQueue (PacketDropDetails &details)
	should clear queue and emit signal "packetDropped" with entire packets More...

virtual void	clearQueue ()
	should clear queue silently More...

queueing::IPacketQueue *	getQueue (cGate *gate) const

virtual bool	canDequeuePacket () const

virtual Packet *	dequeuePacket ()

Protected Member Functions inherited from inet::LayeredProtocolBase
virtual void	handleUpperMessage (cMessage *message)

virtual void	handleLowerMessage (cMessage *message)

virtual void	handleUpperCommand (cMessage *message)

virtual void	handleLowerCommand (cMessage *message)

virtual void	handleLowerPacket (Packet *packet)

Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handleMessage (cMessage *msg) override

virtual bool	handleOperationStage (LifecycleOperation operation, IDoneCallback doneCallback) override
	Perform one stage of a lifecycle operation. More...

virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...

virtual void	handleActiveOperationTimeout (cMessage *message)

virtual bool	isUp () const
	utility functions More...

virtual bool	isDown () const

virtual void	setOperationalState (State newState)

virtual void	scheduleOperationTimeout (simtime_t timeout)

virtual void	setupActiveOperation (LifecycleOperation operation, IDoneCallback doneCallback, State)

virtual void	delayActiveOperationFinish (simtime_t timeout)

virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)

virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)

virtual void	finishActiveOperation ()

Protected Attributes
simtime_t	totalSuccessfulRxTime

Protected Attributes inherited from inet::EthernetMacBase
const char *	displayStringTextFormat = nullptr

bool	sendRawBytes = false

FcsMode	fcsMode = FCS_MODE_UNDEFINED

const EtherDescr *	curEtherDescr = nullptr

bool	connected = false

bool	promiscuous = false

bool	duplexMode = false

bool	frameBursting = false

cChannel *	transmissionChannel = nullptr

cGate *	physInGate = nullptr

cGate *	physOutGate = nullptr

bool	channelsDiffer = false

MacTransmitState	transmitState = static_cast<MacTransmitState>(-1)

MacReceiveState	receiveState = static_cast<MacReceiveState>(-1)

simtime_t	lastTxFinishTime

int	pauseUnitsRequested = 0

cMessage *	endTxTimer = nullptr

cMessage *	endIfgTimer = nullptr

cMessage *	endPauseTimer = nullptr

EthernetSignalBase *	curTxSignal = nullptr

unsigned long	numFramesSent = 0

unsigned long	numFramesReceivedOK = 0

unsigned long	numBytesSent = 0

unsigned long	numBytesReceivedOK = 0

unsigned long	numFramesFromHL = 0

unsigned long	numDroppedPkFromHLIfaceDown = 0

unsigned long	numDroppedIfaceDown = 0

unsigned long	numDroppedBitError = 0

unsigned long	numDroppedNotForUs = 0

unsigned long	numFramesPassedToHL = 0

unsigned long	numPauseFramesRcvd = 0

unsigned long	numPauseFramesSent = 0

Protected Attributes inherited from inet::MacProtocolBase
int	upperLayerInGateId = -1
	Gate ids. More...

int	upperLayerOutGateId = -1

int	lowerLayerInGateId = -1

int	lowerLayerOutGateId = -1

opp_component_ptr< NetworkInterface >	networkInterface

opp_component_ptr< cModule >	hostModule

Packet *	currentTxFrame = nullptr
	Currently transmitted frame if any. More...

opp_component_ptr< queueing::IPacketQueue >	txQueue
	Messages received from upper layer and to be transmitted later. More...

Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState

simtime_t	lastChange

Operation	activeOperation

cMessage *	activeOperationTimeout

cMessage *	activeOperationExtraTimer

Additional Inherited Members
Public Types inherited from inet::EthernetMacBase
enum	MacTransmitState { TX_IDLE_STATE = 1, WAIT_IFG_STATE, SEND_IFG_STATE, TRANSMITTING_STATE, JAMMING_STATE, BACKOFF_STATE, PAUSE_STATE }

enum	MacReceiveState { RX_IDLE_STATE = 1, RECEIVING_STATE, RX_COLLISION_STATE, RX_RECONNECT_STATE }

Static Public Attributes inherited from inet::EthernetMacBase
static const double	SPEED_OF_LIGHT_IN_CABLE = 200000000.0

Protected Types inherited from inet::EthernetMacBase
enum	SelfMsgKindValues { ENDIFG = 100, ENDRECEPTION, ENDBACKOFF, ENDTRANSMISSION, ENDJAMMING, ENDPAUSE }

enum	{ NUM_OF_ETHERDESCRS = 11 }

Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Static Protected Attributes inherited from inet::EthernetMacBase
static const EtherDescr	etherDescrs [NUM_OF_ETHERDESCRS]

static const EtherDescr	nullEtherDescr

static simsignal_t	rxPkOkSignal = registerSignal("rxPkOk")

static simsignal_t	txPausePkUnitsSignal = registerSignal("txPausePkUnits")

static simsignal_t	rxPausePkUnitsSignal = registerSignal("rxPausePkUnits")

static simsignal_t	transmissionStateChangedSignal = registerSignal("transmissionStateChanged")

static simsignal_t	receptionStateChangedSignal = registerSignal("receptionStateChanged")

Detailed Description

A simplified version of EthernetCsmaMac.

Since modern Ethernets typically operate over duplex links where's no contention, the original CSMA/CD algorithm is no longer needed. This simplified implementation doesn't contain CSMA/CD, frames are just simply queued up and sent out one by one.

Constructor & Destructor Documentation

◆ EthernetMac()

inet::EthernetMac::EthernetMac ( )

28 {

29 }

Member Function Documentation

◆ beginSendFrames()

void inet::EthernetMac::beginSendFrames ( )

protectedvirtual

 {
     if (currentTxFrame) {
         // Other frames are queued, transmit next frame
         EV_DETAIL << "Transmit next frame in output queue\n";
         startFrameTransmission();
     }
     else {
         // No more frames set transmitter to idle
         changeTransmissionState(TX_IDLE_STATE);
         EV_DETAIL << "No more frames to send, transmitter set to idle\n";
     }
 }

Referenced by initialize().

◆ finish()

void inet::EthernetMac::finish ( )

overrideprotectedvirtual

Reimplemented from inet::EthernetMacBase.

 {
     EthernetMacBase::finish();

     simtime_t t = simTime();
     simtime_t totalRxChannelIdleTime = t - totalSuccessfulRxTime;
     recordScalar("rx channel idle (%)", 100 * (totalRxChannelIdleTime / t));
     recordScalar("rx channel utilization (%)", 100 * (totalSuccessfulRxTime / t));
 }

◆ handleCanPullPacketChanged()

void inet::EthernetMac::handleCanPullPacketChanged ( cGate * gate )

overridevirtual

Notifies about a change in the possibility of pulling some packet from the passive packet source at the given gate.

This method is called, for example, when a new packet is inserted into a queue. It allows the sink to pull a new packet from the queue.

The gate parameter must be a valid gate of this module.

Implements inet::queueing::IActivePacketSink.

 {
     Enter_Method("handleCanPullPacketChanged");
     if (currentTxFrame == nullptr && transmitState == TX_IDLE_STATE && canDequeuePacket()) {
         Packet *packet = dequeuePacket();
         handleUpperPacket(packet);
     }
 }

◆ handleEndIFGPeriod()

void inet::EthernetMac::handleEndIFGPeriod ( )

protectedvirtual

 {
     ASSERT(nullptr == currentTxFrame);
     if (transmitState != WAIT_IFG_STATE)
         throw cRuntimeError("Not in WAIT_IFG_STATE at the end of IFG period");

     // End of IFG period, okay to transmit
     EV_DETAIL << "IFG elapsed" << endl;
     changeTransmissionState(TX_IDLE_STATE);

     if (canDequeuePacket()) {
         Packet *packet = dequeuePacket();
         handleUpperPacket(packet);
     }
 }

Referenced by handleSelfMessage().

◆ handleEndPausePeriod()

void inet::EthernetMac::handleEndPausePeriod ( )

protectedvirtual

 {
     ASSERT(nullptr == currentTxFrame);
     if (transmitState != PAUSE_STATE)
         throw cRuntimeError("End of PAUSE event occurred when not in PAUSE_STATE!");

     EV_DETAIL << "Pause finished, resuming transmissions\n";
     changeTransmissionState(TX_IDLE_STATE);

     if (canDequeuePacket()) {
         Packet *packet = dequeuePacket();
         handleUpperPacket(packet);
     }
 }

Referenced by handleSelfMessage().

◆ handleEndTxPeriod()

void inet::EthernetMac::handleEndTxPeriod ( )

protectedvirtual

 {
     // we only get here if transmission has finished successfully
     if (transmitState != TRANSMITTING_STATE)
         throw cRuntimeError("Model error: End of transmission, and incorrect state detected");

     if (nullptr == currentTxFrame)
         throw cRuntimeError("Model error: Frame under transmission cannot be found");

     numFramesSent++;
     numBytesSent += currentTxFrame->getByteLength();
     emit(packetSentToLowerSignal, currentTxFrame); // consider: emit with start time of frame

     emit(transmissionEndedSignal, curTxSignal);
     txFinished();

     const auto& header = currentTxFrame->peekAtFront<EthernetMacHeader>();
     if (header->getTypeOrLength() == ETHERTYPE_FLOW_CONTROL) {
         const auto& controlFrame = currentTxFrame->peekDataAt<EthernetControlFrameBase>(header->getChunkLength(), b(-1));
         if (controlFrame->getOpCode() == ETHERNET_CONTROL_PAUSE) {
             const auto& pauseFrame = CHK(dynamicPtrCast<const EthernetPauseFrame>(controlFrame));
             numPauseFramesSent++;
             emit(txPausePkUnitsSignal, pauseFrame->getPauseTime());
         }
     }

     EV_INFO << "Transmission of " << currentTxFrame << " successfully completed.\n";
     deleteCurrentTxFrame();
     lastTxFinishTime = simTime();

     if (pauseUnitsRequested > 0) {
         // if we received a PAUSE frame recently, go into PAUSE state
         EV_DETAIL << "Going to PAUSE mode for " << pauseUnitsRequested << " time units\n";

         scheduleEndPausePeriod(pauseUnitsRequested);
         pauseUnitsRequested = 0;
     }
     else {
         EV_DETAIL << "Start IFG period\n";
         scheduleEndIFGPeriod();
     }
 }

Referenced by handleSelfMessage().

◆ handleMessageWhenUp()

void inet::EthernetMac::handleMessageWhenUp ( cMessage * msg )

overrideprotectedvirtual

Reimplemented from inet::LayeredProtocolBase.

 {
     if (channelsDiffer)
         readChannelParameters(true);

     if (msg->isSelfMessage())
         handleSelfMessage(msg);
     else if (msg->getArrivalGateId() == upperLayerInGateId)
         handleUpperPacket(check_and_cast<Packet *>(msg));
     else if (msg->getArrivalGate() == physInGate)
         processMsgFromNetwork(check_and_cast<EthernetSignalBase *>(msg));
     else
         throw cRuntimeError("Message received from unknown gate!");
     processAtHandleMessageFinished();
 }

◆ handleSelfMessage()

void inet::EthernetMac::handleSelfMessage ( cMessage * msg )

overrideprotectedvirtual

Reimplemented from inet::LayeredProtocolBase.

 {
     EV_TRACE << "Self-message " << msg << " received\n";

     if (msg == endTxTimer)
         handleEndTxPeriod();
     else if (msg == endIfgTimer)
         handleEndIFGPeriod();
     else if (msg == endPauseTimer)
         handleEndPausePeriod();
     else
         throw cRuntimeError("Unknown self message received!");
 }

Referenced by handleMessageWhenUp().

◆ handleUpperPacket()

void inet::EthernetMac::handleUpperPacket ( Packet * pk )

overrideprotectedvirtual

Reimplemented from inet::LayeredProtocolBase.

 {
     //ASSERT2(false, "using EthernetMac");
     EV_INFO << "Received " << packet << " from upper layer." << endl;

     numFramesFromHL++;
     emit(packetReceivedFromUpperSignal, packet);

     auto frame = packet->peekAtFront<EthernetMacHeader>();
     if (frame->getDest().equals(getMacAddress())) {
         throw cRuntimeError("logic error: frame %s from higher layer has local MAC address as dest (%s)",
                 packet->getFullName(), frame->getDest().str().c_str());
     }

     if (packet->getDataLength() > MAX_ETHERNET_FRAME_BYTES) { // FIXME two MAX FRAME BYTES in specif...
         throw cRuntimeError("packet from higher layer (%s) exceeds maximum Ethernet frame size (%s)",
                 B(packet->getByteLength()).str().c_str(), MAX_ETHERNET_FRAME_BYTES.str().c_str());
     }

     if (!connected) {
         EV_WARN << "Interface is not connected -- dropping packet " << packet << endl;
         PacketDropDetails details;
         details.setReason(INTERFACE_DOWN);
         emit(packetDroppedSignal, packet, &details);
         numDroppedPkFromHLIfaceDown++;
         delete packet;

         return;
     }

     // fill in src address if not set
     if (frame->getSrc().isUnspecified()) {
         frame = nullptr; // drop shared ptr
         auto newFrame = packet->removeAtFront<EthernetMacHeader>();
         newFrame->setSrc(getMacAddress());
         packet->insertAtFront(newFrame);
         frame = newFrame;
     }

     if (transmitState != TX_IDLE_STATE)
         throw cRuntimeError("EthernetMac not in TX_IDLE_STATE when packet arrived from upper layer");
     if (currentTxFrame != nullptr)
         throw cRuntimeError("EthernetMac already has a transmit packet when packet arrived from upper layer");
     addPaddingAndSetFcs(packet, MIN_ETHERNET_FRAME_BYTES);
     currentTxFrame = packet;
     startFrameTransmission();
 }

Referenced by handleCanPullPacketChanged(), handleEndIFGPeriod(), handleEndPausePeriod(), and handleMessageWhenUp().

◆ initialize()

void inet::EthernetMac::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::EthernetMacBase.

 {
     EthernetMacBase::initialize(stage);

     if (stage == INITSTAGE_LOCAL) {
         if (!par("duplexMode"))
             throw cRuntimeError("Half duplex operation is not supported by EthernetMac, use the EthernetCsmaMac module for that! (Please enable csmacdSupport on EthernetInterface)");
     }
     else if (stage == INITSTAGE_LINK_LAYER) {
         beginSendFrames(); // FIXME choose an another stage for it
     }
 }

◆ initializeFlags()

void inet::EthernetMac::initializeFlags ( )

overrideprotectedvirtual

Reimplemented from inet::EthernetMacBase.

 {
     EthernetMacBase::initializeFlags();

     duplexMode = true;
     physInGate->setDeliverImmediately(false);
 }

◆ initializeStatistics()

void inet::EthernetMac::initializeStatistics ( )

overrideprotectedvirtual

Reimplemented from inet::EthernetMacBase.

 {
     EthernetMacBase::initializeStatistics();

     // initialize statistics
     totalSuccessfulRxTime = 0.0;
 }

◆ numInitStages()

virtual int inet::EthernetMac::numInitStages ( ) const

inlineoverrideprotectedvirtual

Reimplemented from inet::EthernetMacBase.

30 { return NUM_INIT_STAGES; }

◆ processMsgFromNetwork()

void inet::EthernetMac::processMsgFromNetwork ( EthernetSignalBase * signal )

protectedvirtual

 {
     EV_INFO << signal << " received." << endl;

     if (!connected) {
         EV_WARN << "Interface is not connected -- dropping signal " << signal << endl;
         if (dynamic_cast<EthernetSignal *>(signal)) { // do not count JAM and IFG packets
             auto packet = check_and_cast<Packet *>(signal->decapsulate());
             delete signal;
             decapsulate(packet);
             PacketDropDetails details;
             details.setReason(INTERFACE_DOWN);
             emit(packetDroppedSignal, packet, &details);
             delete packet;
             numDroppedIfaceDown++;
         }
         else
             delete signal;

         return;
     }

     emit(receptionEndedSignal, signal);

     totalSuccessfulRxTime += signal->getDuration();

     if (signal->getSrcMacFullDuplex() != duplexMode)
         throw cRuntimeError("Ethernet misconfiguration: MACs on the same link must be all in full duplex mode, or all in half-duplex mode");

     if (dynamic_cast<EthernetFilledIfgSignal *>(signal))
         throw cRuntimeError("There is no burst mode in full-duplex operation: EtherFilledIfg is unexpected");

     if (dynamic_cast<EthernetJamSignal *>(signal))
         throw cRuntimeError("There is no JAM signal in full-duplex operation: EthernetJamSignal is unexpected");

     bool hasBitError = signal->hasBitError();
     auto packet = check_and_cast<Packet *>(signal->decapsulate());
     delete signal;
     decapsulate(packet);
     emit(packetReceivedFromLowerSignal, packet);

     if (hasBitError || !verifyCrcAndLength(packet)) {
         EV_WARN << "Bit error/CRC error in incoming packet -- dropping packet " << EV_FIELD(packet) << EV_ENDL;
         numDroppedBitError++;
         PacketDropDetails details;
         details.setReason(INCORRECTLY_RECEIVED);
         emit(packetDroppedSignal, packet, &details);
         delete packet;
         return;
     }

     const auto& frame = packet->peekAtFront<EthernetMacHeader>();
     if (dropFrameNotForUs(packet, frame))
         return;

     if (frame->getTypeOrLength() == ETHERTYPE_FLOW_CONTROL) {
         const auto& controlFrame = currentTxFrame->peekDataAt<EthernetControlFrameBase>(frame->getChunkLength(), b(-1));
         if (controlFrame->getOpCode() == ETHERNET_CONTROL_PAUSE) {
             auto pauseFrame = check_and_cast<const EthernetPauseFrame *>(controlFrame.get());
             int pauseUnits = pauseFrame->getPauseTime();
             EV_INFO << "Reception of PAUSE frame " << packet << " successfully completed." << endl;
             delete packet;
             numPauseFramesRcvd++;
             emit(rxPausePkUnitsSignal, pauseUnits);
             processPauseCommand(pauseUnits);
         }
         else {
             EV_INFO << "Received unknown ethernet flow control frame " << EV_FIELD(packet) << ", dropped." << endl;
             delete packet;
         }
     }
     else {
         EV_INFO << "Reception of " << EV_FIELD(packet) << " successfully completed." << endl;
         processReceivedDataFrame(packet, frame);
     }
 }

Referenced by handleMessageWhenUp().

◆ processPauseCommand()

void inet::EthernetMac::processPauseCommand ( int pauseUnits )

protectedvirtual

 {
     if (transmitState == TX_IDLE_STATE) {
         EV_DETAIL << "PAUSE frame received, pausing for " << pauseUnitsRequested << " time units\n";
         if (pauseUnits > 0)
             scheduleEndPausePeriod(pauseUnits);
     }
     else if (transmitState == PAUSE_STATE) {
         EV_DETAIL << "PAUSE frame received, pausing for " << pauseUnitsRequested
                   << " more time units from now\n";
         cancelEvent(endPauseTimer);

         // Terminate PAUSE if pauseUnits == 0; Extend PAUSE if pauseUnits > 0
         scheduleEndPausePeriod(pauseUnits);
     }
     else {
         // transmitter busy -- wait until it finishes with current frame (endTx)
         // and then it'll go to PAUSE state
         EV_DETAIL << "PAUSE frame received, storing pause request\n";
         pauseUnitsRequested = pauseUnits;
     }
 }

Referenced by processMsgFromNetwork().

◆ processReceivedDataFrame()

void inet::EthernetMac::processReceivedDataFrame	(	Packet *	packet,
		const Ptr< const EthernetMacHeader > &	frame
	)

protectedvirtual

 {
     // statistics
     unsigned long curBytes = packet->getByteLength();
     numFramesReceivedOK++;
     numBytesReceivedOK += curBytes;
     emit(rxPkOkSignal, packet);

     const auto macAddressInd = packet->addTagIfAbsent<MacAddressInd>();
     macAddressInd->setSrcAddress(frame->getSrc());
     macAddressInd->setDestAddress(frame->getDest());
     packet->addTagIfAbsent<DispatchProtocolReq>()->setProtocol(&Protocol::ethernetMac);
     packet->addTagIfAbsent<PacketProtocolTag>()->setProtocol(&Protocol::ethernetMac);
     if (networkInterface)
         packet->addTagIfAbsent<InterfaceInd>()->setInterfaceId(networkInterface->getInterfaceId());

     numFramesPassedToHL++;
     emit(packetSentToUpperSignal, packet);
     // pass up to upper layer
     EV_INFO << "Sending " << packet << " to upper layer.\n";
     send(packet, upperLayerOutGateId);
 }

Referenced by processMsgFromNetwork().

◆ scheduleEndIFGPeriod()

void inet::EthernetMac::scheduleEndIFGPeriod ( )

protectedvirtual

 {
     ASSERT(nullptr == currentTxFrame);
     changeTransmissionState(WAIT_IFG_STATE);
     simtime_t endIFGTime = simTime() + (b(INTERFRAME_GAP_BITS).get() / curEtherDescr->txrate);
     scheduleAt(endIFGTime, endIfgTimer);
 }

Referenced by handleEndTxPeriod().

◆ scheduleEndPausePeriod()

void inet::EthernetMac::scheduleEndPausePeriod ( int pauseUnits )

protectedvirtual

 {
     ASSERT(nullptr == currentTxFrame);
     // length is interpreted as 512-bit-time units
     simtime_t pausePeriod = ((pauseUnits * PAUSE_UNIT_BITS) / curEtherDescr->txrate);
     scheduleAfter(pausePeriod, endPauseTimer);
     changeTransmissionState(PAUSE_STATE);
 }

Referenced by handleEndTxPeriod(), and processPauseCommand().

◆ startFrameTransmission()

void inet::EthernetMac::startFrameTransmission ( )

protectedvirtual

 {
     ASSERT(currentTxFrame);
     EV_DETAIL << "Transmitting a copy of frame " << currentTxFrame << endl;

     Packet *frame = currentTxFrame->dup(); // note: we need to duplicate the frame because we emit a signal with it in endTxPeriod()
     const auto& hdr = frame->peekAtFront<EthernetMacHeader>(); // note: we need to duplicate the frame because we emit a signal with it in endTxPeriod()
     ASSERT(hdr);
     ASSERT(!hdr->getSrc().isUnspecified());

     // add preamble and SFD (Starting Frame Delimiter), then send out
     encapsulate(frame);

     // send
     auto& oldPacketProtocolTag = frame->removeTag<PacketProtocolTag>();
     frame->clearTags();
     auto newPacketProtocolTag = frame->addTag<PacketProtocolTag>();
     *newPacketProtocolTag = *oldPacketProtocolTag;
     EV_INFO << "Transmission of " << frame << " started.\n";
     auto signal = new EthernetSignal(frame->getName());
     signal->setSrcMacFullDuplex(duplexMode);
     signal->setBitrate(curEtherDescr->txrate);
     if (sendRawBytes) {
         auto bytes = frame->peekDataAsBytes();
         frame->eraseAll();
         frame->insertAtFront(bytes);
     }
     signal->encapsulate(frame);
     ASSERT(curTxSignal == nullptr);
     curTxSignal = signal->dup();
     emit(transmissionStartedSignal, signal);
     send(signal, physOutGate);

     scheduleAt(transmissionChannel->getTransmissionFinishTime(), endTxTimer);
     changeTransmissionState(TRANSMITTING_STATE);
 }

Referenced by beginSendFrames(), and handleUpperPacket().

Member Data Documentation

◆ totalSuccessfulRxTime

simtime_t inet::EthernetMac::totalSuccessfulRxTime

protected

Referenced by finish(), initializeStatistics(), and processMsgFromNetwork().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EthernetMac()

Member Function Documentation

◆ beginSendFrames()

◆ finish()

◆ handleCanPullPacketChanged()

◆ handleEndIFGPeriod()

◆ handleEndPausePeriod()

◆ handleEndTxPeriod()

◆ handleMessageWhenUp()

◆ handleSelfMessage()

◆ handleUpperPacket()

◆ initialize()

◆ initializeFlags()

◆ initializeStatistics()

◆ numInitStages()

◆ processMsgFromNetwork()

◆ processPauseCommand()

◆ processReceivedDataFrame()

◆ scheduleEndIFGPeriod()

◆ scheduleEndPausePeriod()

◆ startFrameTransmission()

Member Data Documentation

◆ totalSuccessfulRxTime
