Base class for Ethernet MAC implementations. More...

#include <EthernetMacBase.h>

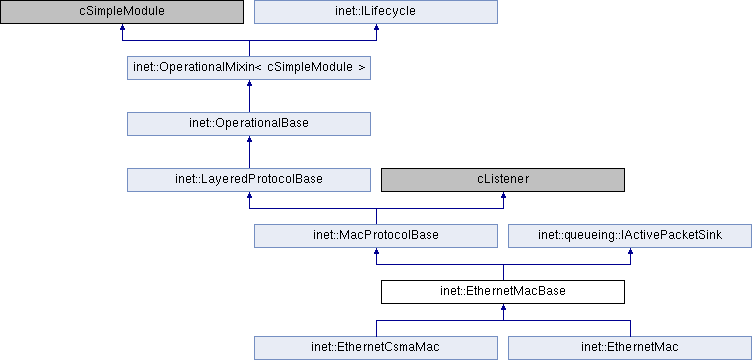

Inheritance diagram for inet::EthernetMacBase:

Classes
struct	EtherDescr

Public Types
enum	MacTransmitState { TX_IDLE_STATE = 1, WAIT_IFG_STATE, SEND_IFG_STATE, TRANSMITTING_STATE, JAMMING_STATE, BACKOFF_STATE, PAUSE_STATE }

enum	MacReceiveState { RX_IDLE_STATE = 1, RECEIVING_STATE, RX_COLLISION_STATE, RX_RECONNECT_STATE }

Public Member Functions
	EthernetMacBase ()

virtual	~EthernetMacBase ()

virtual MacAddress	getMacAddress ()

double	getTxRate ()

bool	isActive ()

MacTransmitState	getTransmitState ()

MacReceiveState	getReceiveState ()

virtual void	handleStartOperation (LifecycleOperation *operation) override

virtual void	handleStopOperation (LifecycleOperation *operation) override

virtual void	handleCrashOperation (LifecycleOperation *operation) override

virtual void	processAtHandleMessageFinished ()

void	addPaddingAndSetFcs (Packet *packet, B requiredMinByteLength=MIN_ETHERNET_FRAME_BYTES) const
	Inserts padding in front of FCS and calculate FCS. More...

virtual queueing::IPassivePacketSource *	getProvider (cGate *gate) override
	Returns the passive packet source from where packets are pulled or nullptr if the connected module doesn't implement the interface. More...

virtual void	handlePullPacketProcessed (Packet packet, cGate gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pulled earlier independently whether the packet is passed or streamed. More...

Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...

Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Public Member Functions inherited from inet::queueing::IActivePacketSink
virtual	~IActivePacketSink ()

virtual void	handleCanPullPacketChanged (cGate *gate)=0
	Notifies about a change in the possibility of pulling some packet from the passive packet source at the given gate. More...

Static Public Attributes
static const double	SPEED_OF_LIGHT_IN_CABLE = 200000000.0

Protected Types
enum	SelfMsgKindValues { ENDIFG = 100, ENDRECEPTION, ENDBACKOFF, ENDTRANSMISSION, ENDJAMMING, ENDPAUSE }

enum	{ NUM_OF_ETHERDESCRS = 11 }

Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Protected Member Functions
virtual void	initialize (int stage) override

virtual int	numInitStages () const override

virtual void	initializeFlags ()

virtual void	initializeStatistics ()

virtual void	finish () override

virtual bool	dropFrameNotForUs (Packet *packet, const Ptr< const EthernetMacHeader > &frame)
	Checks destination address and drops the frame when frame is not for us; returns true if frame is dropped. More...

virtual void	readChannelParameters (bool errorWhenAsymmetric)
	Calculates datarates, etc. More...

virtual void	printParameters ()

virtual void	processConnectDisconnect ()

virtual void	encapsulate (Packet *packet)

virtual void	decapsulate (Packet *packet)

bool	verifyCrcAndLength (Packet *packet)
	Verify ethernet packet: check FCS and payload length. More...

virtual void	configureNetworkInterface () override

virtual void	refreshDisplay () const override

virtual void	receiveSignal (cComponent src, simsignal_t signalId, cObject obj, cObject *details) override

virtual void	refreshConnection ()

void	changeTransmissionState (MacTransmitState newState)

void	changeReceptionState (MacReceiveState newState)

virtual void	cutEthernetSignalEnd (EthernetSignalBase *signal, simtime_t duration)

virtual void	txFinished ()

Protected Member Functions inherited from inet::MacProtocolBase
	MacProtocolBase ()

virtual	~MacProtocolBase ()

virtual void	registerInterface ()

virtual MacAddress	parseMacAddressParameter (const char *addrstr)

virtual void	deleteCurrentTxFrame ()

virtual void	dropCurrentTxFrame (PacketDropDetails &details)

virtual void	handleMessageWhenDown (cMessage *msg) override

virtual void	sendUp (cMessage *message)

virtual void	sendDown (cMessage *message)

virtual bool	isUpperMessage (cMessage *message) const override

virtual bool	isLowerMessage (cMessage *message) const override

virtual bool	isInitializeStage (int stage) const override

virtual bool	isModuleStartStage (int stage) const override

virtual bool	isModuleStopStage (int stage) const override

virtual void	flushQueue (PacketDropDetails &details)
	should clear queue and emit signal "packetDropped" with entire packets More...

virtual void	clearQueue ()
	should clear queue silently More...

queueing::IPacketQueue *	getQueue (cGate *gate) const

virtual bool	canDequeuePacket () const

virtual Packet *	dequeuePacket ()

Protected Member Functions inherited from inet::LayeredProtocolBase
virtual void	handleMessageWhenUp (cMessage *message) override

virtual void	handleSelfMessage (cMessage *message)

virtual void	handleUpperMessage (cMessage *message)

virtual void	handleLowerMessage (cMessage *message)

virtual void	handleUpperCommand (cMessage *message)

virtual void	handleLowerCommand (cMessage *message)

virtual void	handleUpperPacket (Packet *packet)

virtual void	handleLowerPacket (Packet *packet)

Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handleMessage (cMessage *msg) override

virtual bool	handleOperationStage (LifecycleOperation operation, IDoneCallback doneCallback) override
	Perform one stage of a lifecycle operation. More...

virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...

virtual void	handleActiveOperationTimeout (cMessage *message)

virtual bool	isUp () const
	utility functions More...

virtual bool	isDown () const

virtual void	setOperationalState (State newState)

virtual void	scheduleOperationTimeout (simtime_t timeout)

virtual void	setupActiveOperation (LifecycleOperation operation, IDoneCallback doneCallback, State)

virtual void	delayActiveOperationFinish (simtime_t timeout)

virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)

virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)

virtual void	finishActiveOperation ()

Protected Attributes
const char *	displayStringTextFormat = nullptr

bool	sendRawBytes = false

FcsMode	fcsMode = FCS_MODE_UNDEFINED

const EtherDescr *	curEtherDescr = nullptr

bool	connected = false

bool	promiscuous = false

bool	duplexMode = false

bool	frameBursting = false

cChannel *	transmissionChannel = nullptr

cGate *	physInGate = nullptr

cGate *	physOutGate = nullptr

bool	channelsDiffer = false

MacTransmitState	transmitState = static_cast<MacTransmitState>(-1)

MacReceiveState	receiveState = static_cast<MacReceiveState>(-1)

simtime_t	lastTxFinishTime

int	pauseUnitsRequested = 0

cMessage *	endTxTimer = nullptr

cMessage *	endIfgTimer = nullptr

cMessage *	endPauseTimer = nullptr

EthernetSignalBase *	curTxSignal = nullptr

unsigned long	numFramesSent = 0

unsigned long	numFramesReceivedOK = 0

unsigned long	numBytesSent = 0

unsigned long	numBytesReceivedOK = 0

unsigned long	numFramesFromHL = 0

unsigned long	numDroppedPkFromHLIfaceDown = 0

unsigned long	numDroppedIfaceDown = 0

unsigned long	numDroppedBitError = 0

unsigned long	numDroppedNotForUs = 0

unsigned long	numFramesPassedToHL = 0

unsigned long	numPauseFramesRcvd = 0

unsigned long	numPauseFramesSent = 0

Protected Attributes inherited from inet::MacProtocolBase
int	upperLayerInGateId = -1
	Gate ids. More...

int	upperLayerOutGateId = -1

int	lowerLayerInGateId = -1

int	lowerLayerOutGateId = -1

opp_component_ptr< NetworkInterface >	networkInterface

opp_component_ptr< cModule >	hostModule

Packet *	currentTxFrame = nullptr
	Currently transmitted frame if any. More...

opp_component_ptr< queueing::IPacketQueue >	txQueue
	Messages received from upper layer and to be transmitted later. More...

Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState

simtime_t	lastChange

Operation	activeOperation

cMessage *	activeOperationTimeout

cMessage *	activeOperationExtraTimer

Static Protected Attributes
static const EtherDescr	etherDescrs [NUM_OF_ETHERDESCRS]

static const EtherDescr	nullEtherDescr

static simsignal_t	rxPkOkSignal = registerSignal("rxPkOk")

static simsignal_t	txPausePkUnitsSignal = registerSignal("txPausePkUnits")

static simsignal_t	rxPausePkUnitsSignal = registerSignal("rxPausePkUnits")

static simsignal_t	transmissionStateChangedSignal = registerSignal("transmissionStateChanged")

static simsignal_t	receptionStateChangedSignal = registerSignal("receptionStateChanged")

Detailed Description

Base class for Ethernet MAC implementations.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

protected

Enumerator
NUM_OF_ETHERDESCRS

          {
         NUM_OF_ETHERDESCRS = 11
     };

◆ MacReceiveState

enum inet::EthernetMacBase::MacReceiveState

Enumerator
RX_IDLE_STATE
RECEIVING_STATE
RX_COLLISION_STATE
RX_RECONNECT_STATE

                          {
         RX_IDLE_STATE = 1,
         RECEIVING_STATE,
         RX_COLLISION_STATE,
         RX_RECONNECT_STATE
         // FIXME add RX_OFF_STATE
     };

◆ MacTransmitState

enum inet::EthernetMacBase::MacTransmitState

Enumerator
TX_IDLE_STATE
WAIT_IFG_STATE
SEND_IFG_STATE
TRANSMITTING_STATE
JAMMING_STATE
BACKOFF_STATE
PAUSE_STATE

                           {
         TX_IDLE_STATE = 1,
         WAIT_IFG_STATE,
         SEND_IFG_STATE,
         TRANSMITTING_STATE,
         JAMMING_STATE,
         BACKOFF_STATE,
         PAUSE_STATE
         // FIXME add TX_OFF_STATE
     };

◆ SelfMsgKindValues

enum inet::EthernetMacBase::SelfMsgKindValues

protected

Enumerator
ENDIFG
ENDRECEPTION
ENDBACKOFF
ENDTRANSMISSION
ENDJAMMING
ENDPAUSE

                            {
         ENDIFG = 100,
         ENDRECEPTION,
         ENDBACKOFF,
         ENDTRANSMISSION,
         ENDJAMMING,
         ENDPAUSE
     };

Constructor & Destructor Documentation

◆ EthernetMacBase()

inet::EthernetMacBase::EthernetMacBase ( )

 {
     lastTxFinishTime = -1.0; // never equals to current simtime
     curEtherDescr = &nullEtherDescr;
 }

◆ ~EthernetMacBase()

inet::EthernetMacBase::~EthernetMacBase ( )

virtual

 {
     delete curTxSignal;
     cancelAndDelete(endTxTimer);
     cancelAndDelete(endIfgTimer);
     cancelAndDelete(endPauseTimer);
 }

Member Function Documentation

◆ addPaddingAndSetFcs()

void inet::EthernetMacBase::addPaddingAndSetFcs	(	Packet *	packet,
		B	requiredMinByteLength = `MIN_ETHERNET_FRAME_BYTES`
	)		const

Inserts padding in front of FCS and calculate FCS.

 {
     auto ethFcs = packet->removeAtBack<EthernetFcs>(ETHER_FCS_BYTES);
     ethFcs->setFcsMode(fcsMode);

     B paddingLength = requiredMinBytes - ETHER_FCS_BYTES - B(packet->getByteLength());
     if (paddingLength > B(0)) {
         const auto& ethPadding = makeShared<EthernetPadding>();
         ethPadding->setChunkLength(paddingLength);
         packet->insertAtBack(ethPadding);
     }

     switch (ethFcs->getFcsMode()) {
         case FCS_DECLARED_CORRECT:
             ethFcs->setFcs(0xC00DC00DL);
             break;
         case FCS_DECLARED_INCORRECT:
             ethFcs->setFcs(0xBAADBAADL);
             break;
         case FCS_COMPUTED: { // calculate FCS
             auto ethBytes = packet->peekDataAsBytes();
             auto bufferLength = B(ethBytes->getChunkLength()).get();
             auto buffer = new uint8_t[bufferLength];
             // 1. fill in the data
             ethBytes->copyToBuffer(buffer, bufferLength);
             // 2. compute the FCS
             auto computedFcs = ethernetCRC(buffer, bufferLength);
             delete[] buffer;
             ethFcs->setFcs(computedFcs);
             break;
         }
         default:
             throw cRuntimeError("Unknown FCS mode: %d", (int)(ethFcs->getFcsMode()));
     }

     packet->insertAtBack(ethFcs);
 }

Referenced by inet::EthernetMac::handleUpperPacket(), and inet::EthernetCsmaMac::handleUpperPacket().

◆ changeReceptionState()

void inet::EthernetMacBase::changeReceptionState ( MacReceiveState newState )

protected

 {
     receiveState = newState;
     emit(receptionStateChangedSignal, newState);
 }

Referenced by inet::EthernetCsmaMac::handleEndRxPeriod(), inet::EthernetCsmaMac::processConnectDisconnect(), processConnectDisconnect(), inet::EthernetCsmaMac::processDetectedCollision(), and inet::EthernetCsmaMac::processMsgFromNetwork().

◆ changeTransmissionState()

void inet::EthernetMacBase::changeTransmissionState ( MacTransmitState newState )

protected

◆ configureNetworkInterface()

void inet::EthernetMacBase::configureNetworkInterface ( )

overrideprotectedvirtual

Implements inet::MacProtocolBase.

 {

     // MTU: typical values are 576 (Internet de facto), 1500 (Ethernet-friendly),
     // 4000 (on some point-to-point links), 4470 (Cisco routers default, FDDI compatible)
     networkInterface->setMtu(par("mtu"));

     // capabilities
     networkInterface->setMulticast(true);
     networkInterface->setBroadcast(true);
 }

◆ cutEthernetSignalEnd()

void inet::EthernetMacBase::cutEthernetSignalEnd	(	EthernetSignalBase *	signal,
		simtime_t	duration
	)

protectedvirtual

 {
     ASSERT(duration <= signal->getDuration());
     if (duration == signal->getDuration())
         return;
     int64_t newBitLength = duration.dbl() * signal->getBitrate();
     if (auto packet = check_and_cast_nullable<Packet *>(signal->decapsulate())) {
         // TODO removed length calculation based on the PHY layer (parallel bits, bit order, etc.)
         if (newBitLength < packet->getBitLength()) {
             packet->trimFront();
             packet->setBackOffset(B(newBitLength / 8)); //TODO rounded down to byte align instead of b(newBitLength)
             packet->trimBack();
             packet->setBitError(true);
         }
         signal->encapsulate(packet);
     }
     signal->setBitError(true);
     signal->setBitLength(newBitLength);
     signal->setDuration(duration);
 }

Referenced by inet::EthernetCsmaMac::sendJamSignal().

◆ decapsulate()

void inet::EthernetMacBase::decapsulate ( Packet * packet )

protectedvirtual

 {
     auto phyHeader = packet->popAtFront<EthernetPhyHeader>();
     ASSERT(packet->getDataLength() >= MIN_ETHERNET_FRAME_BYTES);
     packet->addTagIfAbsent<PacketProtocolTag>()->setProtocol(&Protocol::ethernetMac);
 }

Referenced by inet::EthernetCsmaMac::frameReceptionComplete(), inet::EthernetCsmaMac::handleSignalFromNetwork(), and inet::EthernetMac::processMsgFromNetwork().

◆ dropFrameNotForUs()

bool inet::EthernetMacBase::dropFrameNotForUs	(	Packet *	packet,
		const Ptr< const EthernetMacHeader > &	frame
	)

protectedvirtual

Checks destination address and drops the frame when frame is not for us; returns true if frame is dropped.

 {
     // Current ethernet mac implementation does not support the configuration of multicast
     // ethernet address groups. We rather accept all multicast frames (just like they were
     // broadcasts) and pass it up to the higher layer where they will be dropped
     // if not needed.
     //
     // PAUSE frames must be handled a bit differently because they are processed at
     // this level. Multicast PAUSE frames should not be processed unless they have a
     // destination of MULTICAST_PAUSE_ADDRESS. We drop all PAUSE frames that have a
     // different muticast destination. (Note: Would the multicast ethernet addressing
     // implemented, we could also process the PAUSE frames destined to any of our
     // multicast adresses)
     // All NON-PAUSE frames must be passed to the upper layer if the interface is
     // in promiscuous mode.

     if (frame->getDest().equals(getMacAddress()))
         return false;

     if (frame->getDest().isBroadcast())
         return false;

     bool isPause = (frame->getTypeOrLength() == ETHERTYPE_FLOW_CONTROL);

     if (!isPause && (promiscuous || frame->getDest().isMulticast()))
         return false;

     if (isPause && frame->getDest().equals(MacAddress::MULTICAST_PAUSE_ADDRESS))
         return false;

     EV_WARN << "Frame `" << packet->getName() << "' not destined to us, discarding\n";
     numDroppedNotForUs++;
     PacketDropDetails details;
     details.setReason(NOT_ADDRESSED_TO_US);
     emit(packetDroppedSignal, packet, &details);
     delete packet;
     return true;
 }

Referenced by inet::EthernetCsmaMac::frameReceptionComplete(), and inet::EthernetMac::processMsgFromNetwork().

◆ encapsulate()

void inet::EthernetMacBase::encapsulate ( Packet * packet )

protectedvirtual

 {
     auto phyHeader = makeShared<EthernetPhyHeader>();
     frame->insertAtFront(phyHeader);
     frame->addTagIfAbsent<PacketProtocolTag>()->setProtocol(&Protocol::ethernetPhy);
 }

Referenced by inet::EthernetMac::startFrameTransmission(), and inet::EthernetCsmaMac::startFrameTransmission().

◆ finish()

void inet::EthernetMacBase::finish ( )

overrideprotectedvirtual

Reimplemented in inet::EthernetCsmaMac, and inet::EthernetMac.

 {
     {
         simtime_t t = simTime();
         recordScalar("simulated time", t);
         recordScalar("full-duplex", duplexMode);

         if (t > 0) {
             recordScalar("frames/sec sent", numFramesSent / t);
             recordScalar("frames/sec rcvd", numFramesReceivedOK / t);
             recordScalar("bits/sec sent", (8.0 * numBytesSent) / t);
             recordScalar("bits/sec rcvd", (8.0 * numBytesReceivedOK) / t);
         }
     }
 }

Referenced by inet::EthernetCsmaMac::finish(), and inet::EthernetMac::finish().

◆ getMacAddress()

virtual MacAddress inet::EthernetMacBase::getMacAddress ( )

inlinevirtual

142 { return networkInterface ? networkInterface->getMacAddress() : MacAddress::UNSPECIFIED_ADDRESS; }

Referenced by dropFrameNotForUs(), inet::EthernetMac::handleUpperPacket(), inet::EthernetCsmaMac::handleUpperPacket(), and printParameters().

◆ getProvider()

queueing::IPassivePacketSource * inet::EthernetMacBase::getProvider ( cGate * gate )

overridevirtual

Returns the passive packet source from where packets are pulled or nullptr if the connected module doesn't implement the interface.

The gate parameter must be a valid gate of this module.

Implements inet::queueing::IActivePacketSink.

 {
     return (gate->getId() == upperLayerInGateId) ? txQueue.get() : nullptr;
 }

◆ getReceiveState()

MacReceiveState inet::EthernetMacBase::getReceiveState ( )

inline

148 { return receiveState; }

◆ getTransmitState()

MacTransmitState inet::EthernetMacBase::getTransmitState ( )

inline

147 { return transmitState; }

◆ getTxRate()

double inet::EthernetMacBase::getTxRate ( )

inline

144 { return curEtherDescr->txrate; }

◆ handleCrashOperation()

void inet::EthernetMacBase::handleCrashOperation ( LifecycleOperation * operation )

overridevirtual

Reimplemented from inet::MacProtocolBase.

 {
 //    clearQueue();
     connected = false;
     networkInterface->setCarrier(false);
     processConnectDisconnect();
     networkInterface->setState(NetworkInterface::State::DOWN);
 }

◆ handlePullPacketProcessed()

void inet::EthernetMacBase::handlePullPacketProcessed	(	Packet *	packet,
		cGate *	gate,
		bool	successful
	)

overridevirtual

Notifies about the completion of the packet processing for a packet that was pulled earlier independently whether the packet is passed or streamed.

This method is called, for example, when a previously pulled packet is failed to be processed successfully. It allows the sink to retry the operation.

The gate parameter must be a valid gate of this module. The packet must not be nullptr.

Implements inet::queueing::IActivePacketSink.

 {
     Enter_Method("handlePullPacketProcessed");
     throw cRuntimeError("Not supported callback");
 }

◆ handleStartOperation()

void inet::EthernetMacBase::handleStartOperation ( LifecycleOperation * operation )

overridevirtual

Reimplemented from inet::MacProtocolBase.

 {
     networkInterface->setState(NetworkInterface::State::UP);
     initializeFlags();
     readChannelParameters(true);
 }

◆ handleStopOperation()

void inet::EthernetMacBase::handleStopOperation ( LifecycleOperation * operation )

overridevirtual

Reimplemented from inet::MacProtocolBase.

 {
     if (currentTxFrame != nullptr || !txQueue->isEmpty()) {
         networkInterface->setState(NetworkInterface::State::GOING_DOWN);
         delayActiveOperationFinish(par("stopOperationTimeout"));
     }
     else {
         networkInterface->setCarrier(false);
         networkInterface->setState(NetworkInterface::State::DOWN);
         startActiveOperationExtraTimeOrFinish(par("stopOperationExtraTime"));
     }
 }

◆ initialize()

void inet::EthernetMacBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::MacProtocolBase.

Reimplemented in inet::EthernetCsmaMac, and inet::EthernetMac.

 {
     MacProtocolBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         fcsMode = parseFcsMode(par("fcsMode"));
         physInGate = gate("phys$i");
         physOutGate = gate("phys$o");
         lowerLayerInGateId = physInGate->getId();
         lowerLayerOutGateId = physOutGate->getId();
         transmissionChannel = nullptr;
         txQueue = getQueue(gate(upperLayerInGateId));

         initializeFlags();

         initializeStatistics();

         lastTxFinishTime = -1.0; // not equals with current simtime.

         // initialize self messages
         endTxTimer = new cMessage("EndTransmission", ENDTRANSMISSION);
         endIfgTimer = new cMessage("EndIFG", ENDIFG);
         endPauseTimer = new cMessage("EndPause", ENDPAUSE);

         // initialize states
         transmitState = TX_IDLE_STATE;
         receiveState = RX_IDLE_STATE;

         // initialize pause
         pauseUnitsRequested = 0;

         subscribe(POST_MODEL_CHANGE, this);

         WATCH(transmitState);
         WATCH(receiveState);
         WATCH(connected);
         WATCH(frameBursting);
         WATCH(promiscuous);
         WATCH(pauseUnitsRequested);
     }
 }

Referenced by inet::EthernetMac::initialize(), and inet::EthernetCsmaMac::initialize().

◆ initializeFlags()

void inet::EthernetMacBase::initializeFlags ( )

protectedvirtual

Reimplemented in inet::EthernetCsmaMac, and inet::EthernetMac.

 {
     displayStringTextFormat = par("displayStringTextFormat");
     sendRawBytes = par("sendRawBytes");
     duplexMode = true;

     // initialize connected flag
     connected = physOutGate->getPathEndGate()->isConnected() && physInGate->getPathStartGate()->isConnected();

     if (!connected)
         EV_WARN << "MAC not connected to a network.\n";

     // initialize promiscuous flag
     promiscuous = par("promiscuous");

     frameBursting = false;
 }

Referenced by handleStartOperation(), initialize(), inet::EthernetMac::initializeFlags(), and inet::EthernetCsmaMac::initializeFlags().

◆ initializeStatistics()

void inet::EthernetMacBase::initializeStatistics ( )

protectedvirtual

Reimplemented in inet::EthernetCsmaMac, and inet::EthernetMac.

 {
     numFramesSent = numFramesReceivedOK = numBytesSent = numBytesReceivedOK = 0;
     numFramesPassedToHL = numDroppedBitError = numDroppedNotForUs = 0;
     numFramesFromHL = numDroppedIfaceDown = numDroppedPkFromHLIfaceDown = 0;
     numPauseFramesRcvd = numPauseFramesSent = 0;

     WATCH(numFramesSent);
     WATCH(numFramesReceivedOK);
     WATCH(numBytesSent);
     WATCH(numBytesReceivedOK);
     WATCH(numFramesFromHL);
     WATCH(numDroppedPkFromHLIfaceDown);
     WATCH(numDroppedIfaceDown);
     WATCH(numDroppedBitError);
     WATCH(numDroppedNotForUs);
     WATCH(numFramesPassedToHL);
     WATCH(numPauseFramesRcvd);
     WATCH(numPauseFramesSent);
 }

Referenced by initialize(), inet::EthernetMac::initializeStatistics(), and inet::EthernetCsmaMac::initializeStatistics().

◆ isActive()

bool inet::EthernetMacBase::isActive ( )

inline

145 { return connected; }

◆ numInitStages()

virtual int inet::EthernetMacBase::numInitStages ( ) const

inlineoverrideprotectedvirtual

Reimplemented in inet::EthernetCsmaMac, and inet::EthernetMac.

167 { return NUM_INIT_STAGES; }

◆ printParameters()

void inet::EthernetMacBase::printParameters ( )

protectedvirtual

 {
     // Dump parameters
     EV_DETAIL << "MAC address: " << getMacAddress() << (promiscuous ? ", promiscuous mode" : "") << endl
               << "txrate: " << curEtherDescr->txrate << " bps, "
               << (duplexMode ? "full-duplex" : "half-duplex") << endl
               << "bitTime: " << 1e9 / curEtherDescr->txrate << " ns" << endl
               << "frameBursting: " << (frameBursting ? "on" : "off") << endl
               << "slotTime: " << curEtherDescr->slotTime << endl
               << "interFrameGap: " << INTERFRAME_GAP_BITS / curEtherDescr->txrate << endl
               << endl;
 }

◆ processAtHandleMessageFinished()

void inet::EthernetMacBase::processAtHandleMessageFinished ( )

virtual

 {
     if (operationalState == State::STOPPING_OPERATION) {
         if (currentTxFrame == nullptr && txQueue->isEmpty()) {
             EV << "Ethernet Queue is empty, MAC stopped\n";
             connected = false;
             networkInterface->setCarrier(false);
             processConnectDisconnect();
             networkInterface->setState(NetworkInterface::State::DOWN);
             startActiveOperationExtraTimeOrFinish(par("stopOperationExtraTime"));
         }
     }
 }

Referenced by inet::EthernetMac::handleMessageWhenUp(), and inet::EthernetCsmaMac::handleMessageWhenUp().

◆ processConnectDisconnect()

void inet::EthernetMacBase::processConnectDisconnect ( )

protectedvirtual

Reimplemented in inet::EthernetCsmaMac.

 {
     if (!connected) {
         cancelEvent(endTxTimer);
         cancelEvent(endIfgTimer);
         cancelEvent(endPauseTimer);

         if (currentTxFrame) {
             EV_DETAIL << "Interface is not connected, dropping packet " << currentTxFrame << endl;
             numDroppedPkFromHLIfaceDown++;
             PacketDropDetails details;
             details.setReason(INTERFACE_DOWN);
             dropCurrentTxFrame(details);
             lastTxFinishTime = -1.0; // so that it never equals to the current simtime, used for Burst mode detection.
         }

         // Clear queue
         while (canDequeuePacket()) {
             Packet *msg = dequeuePacket();
             EV_DETAIL << "Interface is not connected, dropping packet " << msg << endl;
             numDroppedPkFromHLIfaceDown++;
             PacketDropDetails details;
             details.setReason(INTERFACE_DOWN);
             emit(packetDroppedSignal, msg, &details);
             delete msg;
         }

         changeTransmissionState(TX_IDLE_STATE); // FIXME replace status to OFF
         changeReceptionState(RX_IDLE_STATE);
     }
     // FIXME when connect, set statuses to RECONNECT or IDLE
 }

Referenced by handleCrashOperation(), processAtHandleMessageFinished(), inet::EthernetCsmaMac::processConnectDisconnect(), and refreshConnection().

◆ readChannelParameters()

void inet::EthernetMacBase::readChannelParameters ( bool errorWhenAsymmetric )

protectedvirtual

Calculates datarates, etc.

Verifies the datarates on the incoming/outgoing channels, and throws error when they differ and the parameter errorWhenAsymmetric is true.

Reimplemented in inet::EthernetCsmaMac.

 {
     // When the connected channels change at runtime, we'll receive
     // two separate notifications (one for the rx channel and one for the tx one),
     // so we cannot immediately raise an error when they differ. Rather, we'll need
     // to verify at the next opportunity (event) that the two channels have eventually
     // been set to the same value.

     cDatarateChannel *outTrChannel = check_and_cast_nullable<cDatarateChannel *>(physOutGate->findTransmissionChannel());
     cDatarateChannel *inTrChannel = check_and_cast_nullable<cDatarateChannel *>(physInGate->findIncomingTransmissionChannel());

     connected = physOutGate->getPathEndGate()->isConnected() && physInGate->getPathStartGate()->isConnected();

     if (connected && ((!outTrChannel) || (!inTrChannel)))
         throw cRuntimeError("Ethernet phys gate must be connected using a transmission channel");

     double txRate = outTrChannel ? outTrChannel->getNominalDatarate() : 0.0;
     double rxRate = inTrChannel ? inTrChannel->getNominalDatarate() : 0.0;

     bool rxDisabled = !inTrChannel || inTrChannel->isDisabled();
     bool txDisabled = !outTrChannel || outTrChannel->isDisabled();

     if (errorWhenAsymmetric && (rxDisabled != txDisabled))
         throw cRuntimeError("The enablements of the input/output channels differ (rx=%s vs tx=%s)", rxDisabled ? "off" : "on", txDisabled ? "off" : "on");

     if (txDisabled)
         connected = false;

     bool dataratesDiffer;
     if (!connected) {
         curEtherDescr = &nullEtherDescr;
         dataratesDiffer = false;
         if (!outTrChannel)
             transmissionChannel = nullptr;
         if (networkInterface) {
             networkInterface->setCarrier(false);
             networkInterface->setDatarate(0);
         }
     }
     else {
         if (outTrChannel && !transmissionChannel)
             outTrChannel->subscribe(POST_MODEL_CHANGE, this);
         transmissionChannel = outTrChannel;
         dataratesDiffer = (txRate != rxRate);
     }

     channelsDiffer = dataratesDiffer || (rxDisabled != txDisabled);

     if (errorWhenAsymmetric && dataratesDiffer)
         throw cRuntimeError("The input/output datarates differ (rx=%g bps vs tx=%g bps)", rxRate, txRate);

     if (connected) {
         // Check valid speeds
         for (auto& etherDescr : etherDescrs) {
             if (txRate == etherDescr.txrate) {
                 curEtherDescr = &(etherDescr);
                 if (networkInterface) {
                     networkInterface->setCarrier(true);
                     networkInterface->setDatarate(txRate);
                 }
                 return;
             }
         }
         throw cRuntimeError("Invalid transmission rate %g bps on channel %s at module %s",
                 txRate, transmissionChannel->getFullPath().c_str(), getFullPath().c_str());
     }
 }

Referenced by inet::EthernetMac::handleMessageWhenUp(), handleStartOperation(), inet::EthernetCsmaMac::readChannelParameters(), and refreshConnection().

◆ receiveSignal()

void inet::EthernetMacBase::receiveSignal	(	cComponent *	src,
		simsignal_t	signalId,
		cObject *	obj,
		cObject *	details
	)

overrideprotectedvirtual

Reimplemented from inet::MacProtocolBase.

 {
     Enter_Method("%s", cComponent::getSignalName(signalID));

     MacProtocolBase::receiveSignal(source, signalID, obj, details);

     if (signalID == POST_MODEL_CHANGE) {
         if (auto gcobj = dynamic_cast<cPostPathCreateNotification *>(obj)) {
             if ((physOutGate == gcobj->pathStartGate) || (physInGate == gcobj->pathEndGate))
                 refreshConnection();
         }
         else if (auto gcobj = dynamic_cast<cPostPathCutNotification *>(obj)) {
             if ((physOutGate == gcobj->pathStartGate) || (physInGate == gcobj->pathEndGate))
                 refreshConnection();
         }
         else if (transmissionChannel && dynamic_cast<cPostParameterChangeNotification *>(obj)) { // note: we are subscribed to the channel object too
             cPostParameterChangeNotification *gcobj = static_cast<cPostParameterChangeNotification *>(obj);
             if (transmissionChannel == gcobj->par->getOwner())
                 refreshConnection();
         }
     }
 }

◆ refreshConnection()

void inet::EthernetMacBase::refreshConnection ( )

protectedvirtual

 {
     Enter_Method("refreshConnection");

     bool oldConn = connected;
     readChannelParameters(false);

     if (oldConn != connected)
         processConnectDisconnect();
 }

Referenced by receiveSignal().

◆ refreshDisplay()

void inet::EthernetMacBase::refreshDisplay ( ) const

overrideprotectedvirtual

 {
     MacProtocolBase::refreshDisplay();

     // icon coloring
     const char *color;

     if (receiveState == RX_COLLISION_STATE)
         color = "red";
     else if (transmitState == TRANSMITTING_STATE)
         color = "yellow";
     else if (transmitState == JAMMING_STATE)
         color = "red";
     else if (receiveState == RECEIVING_STATE)
         color = "#4040ff";
     else if (transmitState == BACKOFF_STATE)
         color = "white";
     else if (transmitState == PAUSE_STATE)
         color = "gray";
     else
         color = "";

     getDisplayString().setTagArg("i", 1, color);

     if (!strcmp(getParentModule()->getNedTypeName(), "inet.linklayer.ethernet.EthernetInterface"))
         getParentModule()->getDisplayString().setTagArg("i", 1, color);

     auto text = StringFormat::formatString(displayStringTextFormat, [&] (char directive) {
         static std::string result;
         switch (directive) {
             case 's':
                 result = std::to_string(numFramesSent);
                 break;
             case 'r':
                 result = std::to_string(numFramesReceivedOK);
                 break;
             case 'd':
                 result = std::to_string(numDroppedPkFromHLIfaceDown + numDroppedIfaceDown + numDroppedBitError + numDroppedNotForUs);
                 break;
             case 'q':
                 result = txQueue != nullptr ? std::to_string(txQueue->getNumPackets()) : "";
                 break;
             case 'b':
                 if (transmissionChannel == nullptr)
                     result = "not connected";
                 else {
                     char datarateText[40];
                     double datarate = transmissionChannel->getNominalDatarate();
                     if (datarate >= 1e9)
                         sprintf(datarateText, "%gGbps", datarate / 1e9);
                     else if (datarate >= 1e6)
                         sprintf(datarateText, "%gMbps", datarate / 1e6);
                     else if (datarate >= 1e3)
                         sprintf(datarateText, "%gkbps", datarate / 1e3);
                     else
                         sprintf(datarateText, "%gbps", datarate);
                     result = datarateText;
                 }
                 break;
             default:
                 throw cRuntimeError("Unknown directive: %c", directive);
         }
         return result.c_str();
     });
     getDisplayString().setTagArg("t", 0, text);
 }

◆ txFinished()

void inet::EthernetMacBase::txFinished ( )

protectedvirtual

 {
     ASSERT(curTxSignal != nullptr);
     delete curTxSignal;
     curTxSignal = nullptr;
 }

Referenced by inet::EthernetCsmaMac::handleEndIFGPeriod(), inet::EthernetCsmaMac::handleEndJammingPeriod(), inet::EthernetMac::handleEndTxPeriod(), and inet::EthernetCsmaMac::handleEndTxPeriod().

◆ verifyCrcAndLength()

bool inet::EthernetMacBase::verifyCrcAndLength ( Packet * packet )

protected

Verify ethernet packet: check FCS and payload length.

 {
     EV_STATICCONTEXT;

     auto ethHeader = packet->peekAtFront<EthernetMacHeader>(); // FIXME can I use any flags?
     const auto& ethTrailer = packet->peekAtBack<EthernetFcs>(ETHER_FCS_BYTES); // FIXME can I use any flags?

     switch (ethTrailer->getFcsMode()) {
         case FCS_DECLARED_CORRECT:
             break;
         case FCS_DECLARED_INCORRECT:
             EV_ERROR << "incorrect FCS in ethernet frame\n";
             return false;
         case FCS_COMPUTED: {
             bool isFcsBad = false;
             // check the FCS
             auto ethBytes = packet->peekDataAt<BytesChunk>(B(0), packet->getDataLength() - ethTrailer->getChunkLength());
             auto bufferLength = B(ethBytes->getChunkLength()).get();
             auto buffer = new uint8_t[bufferLength];
             // 1. fill in the data
             ethBytes->copyToBuffer(buffer, bufferLength);
             // 2. compute the FCS
             auto computedFcs = ethernetCRC(buffer, bufferLength);
             delete[] buffer;
             isFcsBad = (computedFcs != ethTrailer->getFcs()); // FIXME how to check fcs?
             if (isFcsBad)
                 return false;
             break;
         }
         default:
             throw cRuntimeError("invalid FCS mode in ethernet frame");
     }
     if (isIeee8023Header(*ethHeader)) {
         b payloadLength = B(ethHeader->getTypeOrLength());

         return payloadLength <= packet->getDataLength() - (ethHeader->getChunkLength() + ethTrailer->getChunkLength());
     }
     return true;
 }

Referenced by inet::EthernetCsmaMac::frameReceptionComplete(), and inet::EthernetMac::processMsgFromNetwork().

Member Data Documentation

◆ channelsDiffer

bool inet::EthernetMacBase::channelsDiffer = false

protected

Referenced by inet::EthernetMac::handleMessageWhenUp(), inet::EthernetCsmaMac::handleMessageWhenUp(), and readChannelParameters().

◆ connected

bool inet::EthernetMacBase::connected = false

protected

Referenced by handleCrashOperation(), inet::EthernetCsmaMac::handleSignalFromNetwork(), inet::EthernetMac::handleUpperPacket(), inet::EthernetCsmaMac::handleUpperPacket(), initialize(), initializeFlags(), processAtHandleMessageFinished(), inet::EthernetCsmaMac::processConnectDisconnect(), processConnectDisconnect(), inet::EthernetMac::processMsgFromNetwork(), inet::EthernetCsmaMac::readChannelParameters(), readChannelParameters(), and refreshConnection().

◆ curEtherDescr

const EtherDescr* inet::EthernetMacBase::curEtherDescr = nullptr

protected

◆ curTxSignal

EthernetSignalBase* inet::EthernetMacBase::curTxSignal = nullptr

protected

Referenced by inet::EthernetCsmaMac::dropCurrentTxFrame(), inet::EthernetCsmaMac::handleEndIFGPeriod(), inet::EthernetCsmaMac::handleEndJammingPeriod(), inet::EthernetMac::handleEndTxPeriod(), inet::EthernetCsmaMac::handleEndTxPeriod(), inet::EthernetCsmaMac::sendJamSignal(), inet::EthernetCsmaMac::sendSignal(), inet::EthernetMac::startFrameTransmission(), txFinished(), and ~EthernetMacBase().

◆ displayStringTextFormat

const char* inet::EthernetMacBase::displayStringTextFormat = nullptr

protected

Referenced by initializeFlags(), and refreshDisplay().

◆ duplexMode

bool inet::EthernetMacBase::duplexMode = false

protected

◆ endIfgTimer

cMessage* inet::EthernetMacBase::endIfgTimer = nullptr

protected

Referenced by inet::EthernetCsmaMac::fillIFGInBurst(), inet::EthernetMac::handleSelfMessage(), initialize(), processConnectDisconnect(), inet::EthernetCsmaMac::processMsgFromNetwork(), inet::EthernetMac::scheduleEndIFGPeriod(), inet::EthernetCsmaMac::scheduleEndIFGPeriod(), and ~EthernetMacBase().

◆ endPauseTimer

cMessage* inet::EthernetMacBase::endPauseTimer = nullptr

protected

Referenced by inet::EthernetMac::handleSelfMessage(), initialize(), processConnectDisconnect(), inet::EthernetMac::processPauseCommand(), inet::EthernetCsmaMac::processReceivedControlFrame(), inet::EthernetMac::scheduleEndPausePeriod(), inet::EthernetCsmaMac::scheduleEndPausePeriod(), and ~EthernetMacBase().

◆ endTxTimer

cMessage* inet::EthernetMacBase::endTxTimer = nullptr

protected

Referenced by inet::EthernetMac::handleSelfMessage(), initialize(), processConnectDisconnect(), inet::EthernetCsmaMac::processMsgFromNetwork(), inet::EthernetMac::startFrameTransmission(), inet::EthernetCsmaMac::startFrameTransmission(), and ~EthernetMacBase().

◆ etherDescrs

const EthernetMacBase::EtherDescr inet::EthernetMacBase::etherDescrs

staticprotected

Referenced by readChannelParameters().

◆ fcsMode

FcsMode inet::EthernetMacBase::fcsMode = FCS_MODE_UNDEFINED

protected

Referenced by addPaddingAndSetFcs(), and initialize().

◆ frameBursting

bool inet::EthernetMacBase::frameBursting = false

protected

Referenced by inet::EthernetCsmaMac::calculateMinFrameLength(), inet::EthernetCsmaMac::canContinueBurst(), initialize(), inet::EthernetCsmaMac::initializeFlags(), initializeFlags(), printParameters(), and inet::EthernetCsmaMac::startFrameTransmission().

◆ lastTxFinishTime

simtime_t inet::EthernetMacBase::lastTxFinishTime

protected

Referenced by EthernetMacBase(), inet::EthernetMac::handleEndTxPeriod(), inet::EthernetCsmaMac::handleEndTxPeriod(), initialize(), and processConnectDisconnect().

◆ nullEtherDescr

const EthernetMacBase::EtherDescr inet::EthernetMacBase::nullEtherDescr

staticprotected

Initial value:

= {
    0.0,
    0.0,
    0,
    B(0),
    B(0),
    B(0),
    0.0,
    0.0
}

Referenced by EthernetMacBase(), and readChannelParameters().

◆ numBytesReceivedOK

unsigned long inet::EthernetMacBase::numBytesReceivedOK = 0

protected

Referenced by finish(), initializeStatistics(), inet::EthernetMac::processReceivedDataFrame(), and inet::EthernetCsmaMac::processReceivedDataFrame().

◆ numBytesSent

unsigned long inet::EthernetMacBase::numBytesSent = 0

protected

Referenced by finish(), inet::EthernetMac::handleEndTxPeriod(), inet::EthernetCsmaMac::handleEndTxPeriod(), and initializeStatistics().

◆ numDroppedBitError

unsigned long inet::EthernetMacBase::numDroppedBitError = 0

protected

Referenced by inet::EthernetCsmaMac::frameReceptionComplete(), initializeStatistics(), inet::EthernetMac::processMsgFromNetwork(), and refreshDisplay().

◆ numDroppedIfaceDown

unsigned long inet::EthernetMacBase::numDroppedIfaceDown = 0

protected

Referenced by inet::EthernetCsmaMac::handleSignalFromNetwork(), initializeStatistics(), inet::EthernetMac::processMsgFromNetwork(), and refreshDisplay().

◆ numDroppedNotForUs

unsigned long inet::EthernetMacBase::numDroppedNotForUs = 0

protected

Referenced by dropFrameNotForUs(), initializeStatistics(), and refreshDisplay().

◆ numDroppedPkFromHLIfaceDown

unsigned long inet::EthernetMacBase::numDroppedPkFromHLIfaceDown = 0

protected

Referenced by inet::EthernetMac::handleUpperPacket(), inet::EthernetCsmaMac::handleUpperPacket(), initializeStatistics(), processConnectDisconnect(), and refreshDisplay().

◆ numFramesFromHL

unsigned long inet::EthernetMacBase::numFramesFromHL = 0

protected

Referenced by inet::EthernetMac::handleUpperPacket(), inet::EthernetCsmaMac::handleUpperPacket(), and initializeStatistics().

◆ numFramesPassedToHL

unsigned long inet::EthernetMacBase::numFramesPassedToHL = 0

protected

Referenced by initializeStatistics(), inet::EthernetMac::processReceivedDataFrame(), and inet::EthernetCsmaMac::processReceivedDataFrame().

◆ numFramesReceivedOK

unsigned long inet::EthernetMacBase::numFramesReceivedOK = 0

protected

Referenced by finish(), initializeStatistics(), inet::EthernetMac::processReceivedDataFrame(), inet::EthernetCsmaMac::processReceivedDataFrame(), and refreshDisplay().

◆ numFramesSent

unsigned long inet::EthernetMacBase::numFramesSent = 0

protected

Referenced by finish(), inet::EthernetMac::handleEndTxPeriod(), inet::EthernetCsmaMac::handleEndTxPeriod(), initializeStatistics(), and refreshDisplay().

◆ numPauseFramesRcvd

unsigned long inet::EthernetMacBase::numPauseFramesRcvd = 0

protected

Referenced by initializeStatistics(), inet::EthernetMac::processMsgFromNetwork(), and inet::EthernetCsmaMac::processReceivedControlFrame().

◆ numPauseFramesSent

unsigned long inet::EthernetMacBase::numPauseFramesSent = 0

protected

Referenced by inet::EthernetMac::handleEndTxPeriod(), inet::EthernetCsmaMac::handleEndTxPeriod(), and initializeStatistics().

◆ pauseUnitsRequested

int inet::EthernetMacBase::pauseUnitsRequested = 0

protected

Referenced by inet::EthernetMac::handleEndTxPeriod(), inet::EthernetCsmaMac::handleEndTxPeriod(), initialize(), inet::EthernetMac::processPauseCommand(), and inet::EthernetCsmaMac::processReceivedControlFrame().

◆ physInGate

cGate* inet::EthernetMacBase::physInGate = nullptr

protected

Referenced by inet::EthernetMac::handleMessageWhenUp(), inet::EthernetCsmaMac::handleMessageWhenUp(), initialize(), inet::EthernetMac::initializeFlags(), inet::EthernetCsmaMac::initializeFlags(), initializeFlags(), readChannelParameters(), and receiveSignal().

◆ physOutGate

cGate* inet::EthernetMacBase::physOutGate = nullptr

protected

Referenced by initialize(), initializeFlags(), readChannelParameters(), receiveSignal(), inet::EthernetCsmaMac::sendJamSignal(), inet::EthernetCsmaMac::sendSignal(), and inet::EthernetMac::startFrameTransmission().

◆ promiscuous

bool inet::EthernetMacBase::promiscuous = false

protected

Referenced by dropFrameNotForUs(), initialize(), initializeFlags(), and printParameters().

◆ receiveState

MacReceiveState inet::EthernetMacBase::receiveState = static_cast<MacReceiveState>(-1)

protected

Referenced by changeReceptionState(), inet::EthernetCsmaMac::handleCanPullPacketChanged(), inet::EthernetCsmaMac::handleEndBackoffPeriod(), inet::EthernetCsmaMac::handleEndRxPeriod(), inet::EthernetCsmaMac::handleEndTxPeriod(), inet::EthernetCsmaMac::handleMessageWhenUp(), initialize(), inet::EthernetCsmaMac::printState(), inet::EthernetCsmaMac::processDetectedCollision(), inet::EthernetCsmaMac::processMsgFromNetwork(), refreshDisplay(), and inet::EthernetCsmaMac::startFrameTransmission().

◆ receptionStateChangedSignal

simsignal_t inet::EthernetMacBase::receptionStateChangedSignal = registerSignal("receptionStateChanged")

staticprotected

Referenced by changeReceptionState().

◆ rxPausePkUnitsSignal

simsignal_t inet::EthernetMacBase::rxPausePkUnitsSignal = registerSignal("rxPausePkUnits")

staticprotected

Referenced by inet::EthernetMac::processMsgFromNetwork(), and inet::EthernetCsmaMac::processReceivedControlFrame().

◆ rxPkOkSignal

simsignal_t inet::EthernetMacBase::rxPkOkSignal = registerSignal("rxPkOk")

staticprotected

Referenced by inet::EthernetMac::processReceivedDataFrame(), and inet::EthernetCsmaMac::processReceivedDataFrame().

◆ sendRawBytes

bool inet::EthernetMacBase::sendRawBytes = false

protected

Referenced by initializeFlags(), inet::EthernetMac::startFrameTransmission(), and inet::EthernetCsmaMac::startFrameTransmission().

◆ SPEED_OF_LIGHT_IN_CABLE

const double inet::EthernetMacBase::SPEED_OF_LIGHT_IN_CABLE = 200000000.0

static

Referenced by inet::EthernetCsmaMac::handleSignalFromNetwork().

◆ transmissionChannel

cChannel* inet::EthernetMacBase::transmissionChannel = nullptr

protected

Referenced by initialize(), readChannelParameters(), receiveSignal(), refreshDisplay(), and inet::EthernetMac::startFrameTransmission().

◆ transmissionStateChangedSignal

simsignal_t inet::EthernetMacBase::transmissionStateChangedSignal = registerSignal("transmissionStateChanged")

staticprotected

Referenced by changeTransmissionState().

◆ transmitState

MacTransmitState inet::EthernetMacBase::transmitState = static_cast<MacTransmitState>(-1)

protected

◆ txPausePkUnitsSignal

simsignal_t inet::EthernetMacBase::txPausePkUnitsSignal = registerSignal("txPausePkUnits")

staticprotected

Referenced by inet::EthernetMac::handleEndTxPeriod(), and inet::EthernetCsmaMac::handleEndTxPeriod().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

◆ MacReceiveState

◆ MacTransmitState

◆ SelfMsgKindValues

Constructor & Destructor Documentation

◆ EthernetMacBase()

◆ ~EthernetMacBase()

Member Function Documentation

◆ addPaddingAndSetFcs()

◆ changeReceptionState()

◆ changeTransmissionState()

◆ configureNetworkInterface()

◆ cutEthernetSignalEnd()

◆ decapsulate()

◆ dropFrameNotForUs()

◆ encapsulate()

◆ finish()

◆ getMacAddress()

◆ getProvider()

◆ getReceiveState()

◆ getTransmitState()

◆ getTxRate()

◆ handleCrashOperation()

◆ handlePullPacketProcessed()

◆ handleStartOperation()

◆ handleStopOperation()

◆ initialize()

◆ initializeFlags()

◆ initializeStatistics()

◆ isActive()

◆ numInitStages()

◆ printParameters()

◆ processAtHandleMessageFinished()

◆ processConnectDisconnect()

◆ readChannelParameters()

◆ receiveSignal()

◆ refreshConnection()

◆ refreshDisplay()

◆ txFinished()

◆ verifyCrcAndLength()

Member Data Documentation

◆ channelsDiffer

◆ connected

◆ curEtherDescr

◆ curTxSignal

◆ displayStringTextFormat

◆ duplexMode

◆ endIfgTimer

◆ endPauseTimer

◆ endTxTimer

◆ etherDescrs

◆ fcsMode

◆ frameBursting

◆ lastTxFinishTime

◆ nullEtherDescr

◆ numBytesReceivedOK

◆ numBytesSent

◆ numDroppedBitError

◆ numDroppedIfaceDown

◆ numDroppedNotForUs

◆ numDroppedPkFromHLIfaceDown

◆ numFramesFromHL

◆ numFramesPassedToHL

◆ numFramesReceivedOK

◆ numFramesSent

◆ numPauseFramesRcvd

◆ numPauseFramesSent

◆ pauseUnitsRequested

◆ physInGate

◆ physOutGate
