inet::MacProtocolBase Class Reference

#include <MacProtocolBase.h>

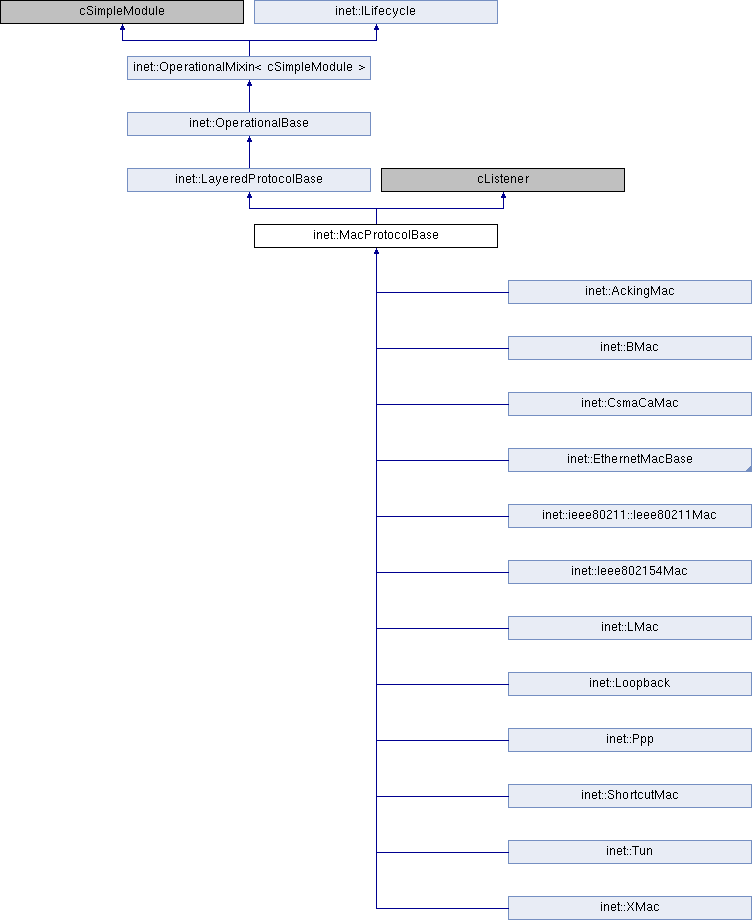

Inheritance diagram for inet::MacProtocolBase:

Protected Member Functions
	MacProtocolBase ()
virtual	~MacProtocolBase ()
virtual void	initialize (int stage) override
virtual void	registerInterface ()
virtual void	configureNetworkInterface ()=0
virtual MacAddress	parseMacAddressParameter (const char *addrstr)
virtual void	deleteCurrentTxFrame ()
virtual void	dropCurrentTxFrame (PacketDropDetails &details)
virtual void	handleMessageWhenDown (cMessage *msg) override
virtual void	sendUp (cMessage *message)
virtual void	sendDown (cMessage *message)
virtual bool	isUpperMessage (cMessage *message) const override
virtual bool	isLowerMessage (cMessage *message) const override
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
virtual void	flushQueue (PacketDropDetails &details)
	should clear queue and emit signal "packetDropped" with entire packets More...
virtual void	clearQueue ()
	should clear queue silently More...
virtual void	receiveSignal (cComponent *source, simsignal_t signalID, cObject *obj, cObject *details) override
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
queueing::IPacketQueue *	getQueue (cGate *gate) const
virtual bool	canDequeuePacket () const
virtual Packet *	dequeuePacket ()
Protected Member Functions inherited from inet::LayeredProtocolBase
virtual void	handleMessageWhenUp (cMessage *message) override
virtual void	handleSelfMessage (cMessage *message)
virtual void	handleUpperMessage (cMessage *message)
virtual void	handleLowerMessage (cMessage *message)
virtual void	handleUpperCommand (cMessage *message)
virtual void	handleLowerCommand (cMessage *message)
virtual void	handleUpperPacket (Packet *packet)
virtual void	handleLowerPacket (Packet *packet)
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Protected Attributes
int	upperLayerInGateId = -1
	Gate ids. More...
int	upperLayerOutGateId = -1
int	lowerLayerInGateId = -1
int	lowerLayerOutGateId = -1
opp_component_ptr< NetworkInterface >	networkInterface
opp_component_ptr< cModule >	hostModule
Packet *	currentTxFrame = nullptr
	Currently transmitted frame if any. More...
opp_component_ptr< queueing::IPacketQueue >	txQueue
	Messages received from upper layer and to be transmitted later. More...
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Additional Inherited Members
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Constructor & Destructor Documentation

MacProtocolBase()

inet::MacProtocolBase::MacProtocolBase ( )

protected

{
}

~MacProtocolBase()

inet::MacProtocolBase::~MacProtocolBase ( )

protectedvirtual

{
    delete currentTxFrame;
}

Member Function Documentation

canDequeuePacket()

bool inet::MacProtocolBase::canDequeuePacket ( ) const

protectedvirtual

{
    return txQueue && txQueue->canPullSomePacket(gate(upperLayerInGateId)->getPathStartGate());
}

Referenced by clearQueue(), flushQueue(), inet::EthernetMac::handleCanPullPacketChanged(), inet::EthernetCsmaMac::handleCanPullPacketChanged(), inet::Ppp::handleCanPullPacketChanged(), inet::EthernetMac::handleEndIFGPeriod(), inet::EthernetCsmaMac::handleEndIFGPeriod(), inet::EthernetMac::handleEndPausePeriod(), inet::EthernetCsmaMac::handleRetransmission(), inet::Ppp::handleSelfMessage(), inet::EthernetMacBase::processConnectDisconnect(), and inet::Ppp::refreshOutGateConnection().

clearQueue()

void inet::MacProtocolBase::clearQueue ( )

protectedvirtual

should clear queue silently

{
    if (txQueue)
        while (canDequeuePacket())
            delete dequeuePacket();
}

Referenced by handleCrashOperation().

configureNetworkInterface()

virtual void inet::MacProtocolBase::configureNetworkInterface ( )

protectedpure virtual

Implemented in inet::Ieee802154Mac, inet::EthernetMacBase, inet::BMac, inet::LMac, inet::CsmaCaMac, inet::XMac, inet::ieee80211::Ieee80211Mac, inet::Ppp, inet::AckingMac, inet::ShortcutMac, inet::Loopback, and inet::Tun.

Referenced by registerInterface().

deleteCurrentTxFrame()

void inet::MacProtocolBase::deleteCurrentTxFrame ( )

protectedvirtual

{
    delete currentTxFrame;
    currentTxFrame = nullptr;
}

Referenced by handleCrashOperation(), inet::EthernetMac::handleEndTxPeriod(), inet::EthernetCsmaMac::handleEndTxPeriod(), and inet::Ppp::handleSelfMessage().

dequeuePacket()

Packet * inet::MacProtocolBase::dequeuePacket ( )

protectedvirtual

{
    Packet *packet = txQueue->dequeuePacket();
    take(packet);
    packet->setArrival(getId(), upperLayerInGateId, simTime());
    return packet;
}

Referenced by clearQueue(), flushQueue(), inet::EthernetMac::handleCanPullPacketChanged(), inet::EthernetCsmaMac::handleCanPullPacketChanged(), inet::EthernetMac::handleEndIFGPeriod(), inet::EthernetCsmaMac::handleEndIFGPeriod(), inet::EthernetMac::handleEndPausePeriod(), inet::EthernetCsmaMac::handleRetransmission(), inet::EthernetMacBase::processConnectDisconnect(), and inet::Ppp::processUpperPacket().

dropCurrentTxFrame()

void inet::MacProtocolBase::dropCurrentTxFrame ( PacketDropDetails &  details )

protectedvirtual

Reimplemented in inet::EthernetCsmaMac.

{
    emit(packetDroppedSignal, currentTxFrame, &details);
    delete currentTxFrame;
    currentTxFrame = nullptr;
}

Referenced by inet::EthernetCsmaMac::dropCurrentTxFrame(), handleStopOperation(), and inet::EthernetMacBase::processConnectDisconnect().

flushQueue()

void inet::MacProtocolBase::flushQueue ( PacketDropDetails &  details )

protectedvirtual

should clear queue and emit signal "packetDropped" with entire packets

{
    // code would look slightly nicer with a pop() function that returns nullptr if empty
    if (txQueue)
        while (canDequeuePacket()) {
            auto packet = dequeuePacket();
            emit(packetDroppedSignal, packet, &details); // FIXME this signal lumps together packets from the network and packets from higher layers! separate them
            delete packet;
        }
}

Referenced by handleStopOperation(), and inet::Ppp::refreshOutGateConnection().

getQueue()

queueing::IPacketQueue * inet::MacProtocolBase::getQueue ( cGate *  gate ) const

protected

{
    // TODO use findConnectedModule() when the function is updated
    for (auto g = gate->getPreviousGate(); g != nullptr; g = g->getPreviousGate()) {
        if (g->getType() == cGate::OUTPUT) {
            auto m = dynamic_cast<queueing::IPacketQueue *>(g->getOwnerModule());
            if (m)
                return m;
        }
    }
    throw cRuntimeError("Gate %s is not connected to a module of type queueing::IPacketQueue", gate->getFullPath().c_str());
}

Referenced by inet::Ppp::initialize(), and inet::EthernetMacBase::initialize().

handleCrashOperation()

void inet::MacProtocolBase::handleCrashOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

Reimplemented in inet::Ieee802154Mac, inet::CsmaCaMac, inet::EthernetMacBase, inet::ieee80211::Ieee80211Mac, and inet::AckingMac.

{
    deleteCurrentTxFrame();
    clearQueue();

    networkInterface->setCarrier(false);
    networkInterface->setState(NetworkInterface::State::DOWN);
}

Referenced by inet::AckingMac::handleCrashOperation(), inet::CsmaCaMac::handleCrashOperation(), and inet::Ieee802154Mac::handleCrashOperation().

handleMessageWhenDown()

void inet::MacProtocolBase::handleMessageWhenDown ( cMessage *  msg )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

{
    if (!msg->isSelfMessage() && msg->getArrivalGateId() == lowerLayerInGateId) {
        EV << "Interface is turned off, dropping packet\n";
        delete msg;
    }
    else
        LayeredProtocolBase::handleMessageWhenDown(msg);
}

handleStartOperation()

void inet::MacProtocolBase::handleStartOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

Reimplemented in inet::Ieee802154Mac, inet::EthernetMacBase, inet::ieee80211::Ieee80211Mac, and inet::AckingMac.

{
    networkInterface->setState(NetworkInterface::State::UP);
    networkInterface->setCarrier(true);
}

Referenced by inet::Ieee802154Mac::handleStartOperation().

handleStopOperation()

void inet::MacProtocolBase::handleStopOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

Reimplemented in inet::Ieee802154Mac, inet::CsmaCaMac, inet::EthernetMacBase, inet::ieee80211::Ieee80211Mac, inet::Ppp, and inet::AckingMac.

{
    PacketDropDetails details;
    details.setReason(INTERFACE_DOWN);
    if (currentTxFrame)
        dropCurrentTxFrame(details);
    flushQueue(details);

    networkInterface->setCarrier(false);
    networkInterface->setState(NetworkInterface::State::DOWN);
}

Referenced by inet::AckingMac::handleStopOperation(), inet::CsmaCaMac::handleStopOperation(), and inet::Ieee802154Mac::handleStopOperation().

initialize()

void inet::MacProtocolBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

Reimplemented in inet::LMac, inet::Ieee802154Mac, inet::XMac, inet::BMac, inet::ieee80211::Ieee80211Mac, inet::EthernetMacBase, inet::CsmaCaMac, inet::AckingMac, inet::Ppp, inet::Loopback, inet::EthernetCsmaMac, inet::ShortcutMac, inet::EthernetMac, and inet::Tun.

{
    LayeredProtocolBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        upperLayerInGateId = findGate("upperLayerIn");
        upperLayerOutGateId = findGate("upperLayerOut");
        lowerLayerInGateId = findGate("lowerLayerIn");
        lowerLayerOutGateId = findGate("lowerLayerOut");
        currentTxFrame = nullptr;
        hostModule = findContainingNode(this);
    }
    else if (stage == INITSTAGE_NETWORK_INTERFACE_CONFIGURATION)
        registerInterface();
}

Referenced by inet::Tun::initialize(), inet::ShortcutMac::initialize(), inet::Loopback::initialize(), inet::ieee80211::Ieee80211Mac::initialize(), inet::BMac::initialize(), inet::Ppp::initialize(), inet::AckingMac::initialize(), inet::XMac::initialize(), inet::Ieee802154Mac::initialize(), inet::LMac::initialize(), inet::CsmaCaMac::initialize(), and inet::EthernetMacBase::initialize().

isInitializeStage()

virtual bool inet::MacProtocolBase::isInitializeStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == INITSTAGE_LINK_LAYER; }

isLowerMessage()

bool inet::MacProtocolBase::isLowerMessage ( cMessage *  message ) const

overrideprotectedvirtual

Implements inet::LayeredProtocolBase.

{
    return message->getArrivalGateId() == lowerLayerInGateId;
}

isModuleStartStage()

virtual bool inet::MacProtocolBase::isModuleStartStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == ModuleStartOperation::STAGE_LINK_LAYER; }

isModuleStopStage()

virtual bool inet::MacProtocolBase::isModuleStopStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == ModuleStopOperation::STAGE_LINK_LAYER; }

isUpperMessage()

bool inet::MacProtocolBase::isUpperMessage ( cMessage *  message ) const

overrideprotectedvirtual

Implements inet::LayeredProtocolBase.

{
    return message->getArrivalGateId() == upperLayerInGateId;
}

parseMacAddressParameter()

MacAddress inet::MacProtocolBase::parseMacAddressParameter ( const char *  addrstr )

protectedvirtual

{
    MacAddress address;

    if (!strcmp(addrstr, "auto"))
        // assign automatic address
        address = MacAddress::generateAutoAddress();
    else
        address.setAddress(addrstr);

    return address;
}

Referenced by inet::ShortcutMac::configureNetworkInterface().

receiveSignal()

void inet::MacProtocolBase::receiveSignal ( cComponent *  source, simsignal_t  signalID, cObject *  obj, cObject *  details  )

overrideprotectedvirtual

Reimplemented in inet::EthernetMacBase, and inet::Ppp.

{
    Enter_Method("%s", cComponent::getSignalName(signalID));
}

Referenced by inet::Ppp::receiveSignal(), and inet::EthernetMacBase::receiveSignal().

registerInterface()

void inet::MacProtocolBase::registerInterface ( )

protectedvirtual

{
    ASSERT(networkInterface == nullptr);
    networkInterface = getContainingNicModule(this);
    configureNetworkInterface();
}

Referenced by initialize().

sendDown()

void inet::MacProtocolBase::sendDown ( cMessage *  message )

protectedvirtual

{
    if (message->isPacket())
        emit(packetSentToLowerSignal, message);
    send(message, lowerLayerOutGateId);
}

sendUp()

void inet::MacProtocolBase::sendUp ( cMessage *  message )

protectedvirtual

Reimplemented in inet::ieee80211::Ieee80211Mac.

{
    if (message->isPacket())
        emit(packetSentToUpperSignal, message);
    send(message, upperLayerOutGateId);
}

Referenced by inet::ShortcutMac::receiveFromPeer(), and inet::ieee80211::Ieee80211Mac::sendUp().

Member Data Documentation

currentTxFrame

Packet* inet::MacProtocolBase::currentTxFrame = nullptr

protected

Currently transmitted frame if any.

Referenced by inet::EthernetMac::beginSendFrames(), inet::EthernetCsmaMac::beginSendFrames(), deleteCurrentTxFrame(), dropCurrentTxFrame(), inet::EthernetMac::handleCanPullPacketChanged(), inet::EthernetCsmaMac::handleCanPullPacketChanged(), inet::Ppp::handleCanPullPacketChanged(), inet::EthernetCsmaMac::handleEndBackoffPeriod(), inet::EthernetMac::handleEndIFGPeriod(), inet::EthernetCsmaMac::handleEndIFGPeriod(), inet::EthernetMac::handleEndPausePeriod(), inet::EthernetMac::handleEndTxPeriod(), inet::EthernetCsmaMac::handleEndTxPeriod(), handleStopOperation(), inet::EthernetMacBase::handleStopOperation(), inet::EthernetMac::handleUpperPacket(), inet::Ppp::handleUpperPacket(), inet::EthernetCsmaMac::handleUpperPacket(), initialize(), inet::EthernetMacBase::processAtHandleMessageFinished(), inet::EthernetMacBase::processConnectDisconnect(), inet::EthernetMac::processMsgFromNetwork(), inet::Ppp::refreshOutGateConnection(), inet::EthernetMac::scheduleEndIFGPeriod(), inet::EthernetMac::scheduleEndPausePeriod(), inet::EthernetMac::startFrameTransmission(), inet::EthernetCsmaMac::startFrameTransmission(), inet::Ppp::startTransmitting(), and ~MacProtocolBase().

hostModule

opp_component_ptr<cModule> inet::MacProtocolBase::hostModule

protected

Referenced by initialize().

lowerLayerInGateId

int inet::MacProtocolBase::lowerLayerInGateId = -1

protected

Referenced by handleMessageWhenDown(), inet::Tun::initialize(), inet::Loopback::initialize(), initialize(), inet::Ppp::initialize(), inet::EthernetMacBase::initialize(), and isLowerMessage().

lowerLayerOutGateId

int inet::MacProtocolBase::lowerLayerOutGateId = -1

protected

Referenced by inet::Tun::initialize(), inet::Loopback::initialize(), initialize(), inet::Ppp::initialize(), inet::EthernetMacBase::initialize(), and sendDown().

networkInterface

opp_component_ptr<NetworkInterface> inet::MacProtocolBase::networkInterface

protected

Referenced by inet::Tun::configureNetworkInterface(), inet::Loopback::configureNetworkInterface(), inet::ShortcutMac::configureNetworkInterface(), inet::Ppp::configureNetworkInterface(), inet::EthernetMacBase::configureNetworkInterface(), inet::Ppp::decapsulate(), handleCrashOperation(), inet::EthernetMacBase::handleCrashOperation(), inet::Ppp::handleMessageWhenUp(), handleStartOperation(), inet::EthernetMacBase::handleStartOperation(), inet::Ppp::handleStopOperation(), handleStopOperation(), inet::EthernetMacBase::handleStopOperation(), inet::Tun::handleUpperPacket(), inet::Loopback::handleUpperPacket(), inet::EthernetMacBase::processAtHandleMessageFinished(), inet::EthernetMac::processReceivedDataFrame(), inet::EthernetCsmaMac::processReceivedDataFrame(), inet::EthernetMacBase::readChannelParameters(), inet::ShortcutMac::receiveFromPeer(), inet::Ppp::refreshOutGateConnection(), and registerInterface().

txQueue

opp_component_ptr<queueing::IPacketQueue> inet::MacProtocolBase::txQueue

protected

Messages received from upper layer and to be transmitted later.

Referenced by inet::EthernetCsmaMac::canContinueBurst(), canDequeuePacket(), clearQueue(), dequeuePacket(), flushQueue(), inet::Ppp::getProvider(), inet::EthernetMacBase::getProvider(), inet::Ppp::handleMessageWhenUp(), inet::Ppp::handleStopOperation(), inet::EthernetMacBase::handleStopOperation(), inet::Ppp::initialize(), inet::EthernetMacBase::initialize(), inet::EthernetCsmaMac::printState(), inet::EthernetMacBase::processAtHandleMessageFinished(), inet::Ppp::refreshDisplay(), and inet::EthernetMacBase::refreshDisplay().

upperLayerInGateId

int inet::MacProtocolBase::upperLayerInGateId = -1

protected

Gate ids.

Referenced by inet::EthernetCsmaMac::canContinueBurst(), canDequeuePacket(), dequeuePacket(), inet::Ppp::getProvider(), inet::EthernetMacBase::getProvider(), inet::EthernetMac::handleMessageWhenUp(), inet::EthernetCsmaMac::handleMessageWhenUp(), initialize(), inet::Ppp::initialize(), inet::EthernetMacBase::initialize(), and isUpperMessage().

upperLayerOutGateId

int inet::MacProtocolBase::upperLayerOutGateId = -1

protected

Referenced by inet::Loopback::handleUpperPacket(), initialize(), inet::EthernetMac::processReceivedDataFrame(), and sendUp().

---

The documentation for this class was generated from the following files:

• MacProtocolBase.h
• MacProtocolBase.cc
