inet::PacketTransmitterBase Class Reference

#include <PacketTransmitterBase.h>

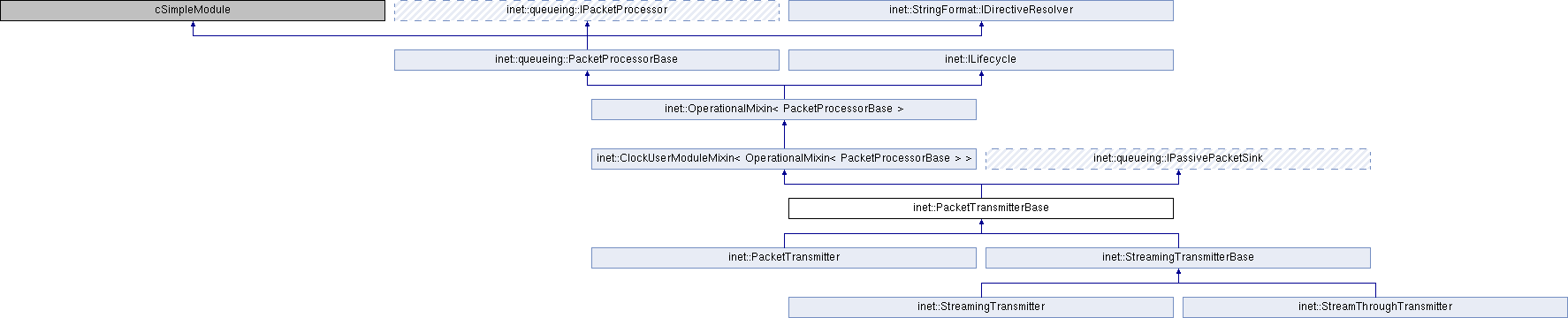

Inheritance diagram for inet::PacketTransmitterBase:

Public Member Functions
virtual	~PacketTransmitterBase ()
virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...
virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...
virtual bool	canPushSomePacket (cGate *gate) const override
	Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error. More...
virtual bool	canPushPacket (Packet *packet, cGate *gate) const override
	Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error. More...
virtual void	pushPacketStart (Packet *packet, cGate *gate, bps datarate) override
	Starts pushing the packet into the packet sink at the given gate. More...
virtual void	pushPacketEnd (Packet *packet, cGate *gate) override
	Ends pushing the packet into the packet sink at the given gate. More...
virtual void	pushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength=b(0)) override
	Progresses pushing the packet into the packet sink at the given gate. More...
Public Member Functions inherited from inet::ClockUserModuleMixin< OperationalMixin< PacketProcessorBase > >
virtual void	scheduleClockEventAt (clocktime_t time, ClockEvent *msg)
virtual void	scheduleClockEventAfter (clocktime_t delay, ClockEvent *msg)
virtual cMessage *	cancelClockEvent (ClockEvent *msg)
virtual void	cancelAndDeleteClockEvent (ClockEvent *msg)
virtual void	rescheduleClockEventAt (clocktime_t time, ClockEvent *msg)
virtual void	rescheduleClockEventAfter (clocktime_t time, ClockEvent *msg)
virtual clocktime_t	computeClockTimeFromSimTime (simtime_t time) const
virtual simtime_t	computeSimTimeFromClockTime (clocktime_t time) const
virtual clocktime_t	getClockTime () const
virtual clocktime_t	getArrivalClockTime (ClockEvent *msg) const
Public Member Functions inherited from inet::OperationalMixin< PacketProcessorBase >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...
virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...
virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...
virtual const char *	resolveDirective (char directive) const override
Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Public Member Functions inherited from inet::queueing::IPassivePacketSink
virtual	~IPassivePacketSink ()
virtual void	pushPacket (Packet *packet, cGate *gate)=0
	Pushes the packet into the packet sink at the given gate. More...

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	finish () override
virtual void	handleMessageWhenUp (cMessage *message) override
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual Signal *	encodePacket (Packet *packet)
virtual void	prepareSignal (Signal *signal)
virtual void	sendSignalStart (Signal *signal, int transmissionId)
virtual void	sendSignalProgress (Signal *signal, int transmissionId, b bitPosition, clocktime_t timePosition)
virtual void	sendSignalEnd (Signal *signal, int transmissionId)
virtual clocktime_t	calculateClockTimeDuration (const Packet *packet) const
virtual simtime_t	calculateDuration (clocktime_t clockTimeDuration) const
virtual bool	isTransmitting () const
Protected Member Functions inherited from inet::OperationalMixin< PacketProcessorBase >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual void	handleStopOperation (LifecycleOperation *operation)=0
virtual void	handleCrashOperation (LifecycleOperation *operation)=0
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()
Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handlePacketProcessed (Packet *packet)
virtual void	checkPacketOperationSupport (cGate *gate) const
virtual void	checkPacketOperationSupport (cGate *startGate, cGate *endGate) const
virtual void	animate (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacket (Packet *packet, cGate *gate, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, long transmissionId, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const
virtual void	pushOrSendPacket (Packet *packet, cGate *gate, IPassivePacketSink *consumer)
virtual void	pushOrSendPacketStart (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)
virtual void	pushOrSendPacketEnd (Packet *packet, cGate *gate, IPassivePacketSink *consumer, int transmissionId)
virtual void	pushOrSendPacketProgress (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)
virtual void	animatePush (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacket (Packet *packet, cGate *gate) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	animatePull (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacket (Packet *packet, cGate *gate) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)
virtual void	updateDisplayString () const

Protected Attributes
cPar *	dataratePar = nullptr
cGate *	inputGate = nullptr
cGate *	outputGate = nullptr
ModuleRef< IActivePacketSource >	producer
bps	txDatarate = bps(NaN)
Signal *	txSignal = nullptr
ClockEvent *	txEndTimer = nullptr
simtime_t	txStartTime = -1
clocktime_t	txStartClockTime = -1
clocktime_t	txDurationClockTime = -1
Protected Attributes inherited from inet::OperationalMixin< PacketProcessorBase >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer
Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr
int	numProcessedPackets = -1
b	processedTotalLength = b(-1)

Additional Inherited Members
Protected Types inherited from inet::OperationalMixin< PacketProcessorBase >
enum	State
Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Constructor & Destructor Documentation

~PacketTransmitterBase()

inet::PacketTransmitterBase::~PacketTransmitterBase ( )

virtual

{
    cancelAndDeleteClockEvent(txEndTimer);
    txEndTimer = nullptr;
    delete txSignal;
    txSignal = nullptr;
}

Member Function Documentation

calculateClockTimeDuration()

clocktime_t inet::PacketTransmitterBase::calculateClockTimeDuration ( const Packet *  packet ) const

protectedvirtual

{
    s duration = packet->getTotalLength() / txDatarate;
    EV_TRACE << "Calculating signal duration" << EV_FIELD(packet) << EV_FIELD(duration, simsec(duration)) << EV_ENDL;
    return duration.get();
}

Referenced by encodePacket().

calculateDuration()

simtime_t inet::PacketTransmitterBase::calculateDuration ( clocktime_t  clockTimeDuration ) const

protectedvirtual

{
    return computeSimTimeFromClockTime(txStartClockTime + clockTimeDuration) - txStartTime;
}

Referenced by encodePacket().

canPushPacket()

virtual bool inet::PacketTransmitterBase::canPushPacket ( Packet *  packet, cGate *  gate  ) const

inlineoverridevirtual

Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error.

The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing packets.

Implements inet::queueing::IPassivePacketSink.

{ return canPushSomePacket(gate); }

canPushSomePacket()

virtual bool inet::PacketTransmitterBase::canPushSomePacket ( cGate *  gate ) const

inlineoverridevirtual

Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error.

The gate must be a valid gate of this module and it must support pushing packets.

Implements inet::queueing::IPassivePacketSink.

Reimplemented in inet::StreamingTransmitterBase.

{ return !txEndTimer->isScheduled(); } // TODO: add hasCarrier

Referenced by inet::StreamingTransmitterBase::canPushSomePacket().

encodePacket()

Signal * inet::PacketTransmitterBase::encodePacket ( Packet *  packet )

protectedvirtual

{
    txDurationClockTime = calculateClockTimeDuration(packet);
    // TODO: this is just a weak approximation which ignores the past and future drift and drift rate changes of the clock
    simtime_t packetTransmissionTime = CLOCKTIME_AS_SIMTIME(txDurationClockTime);
    simtime_t bitTransmissionTime = packet->getBitLength() != 0 ? CLOCKTIME_AS_SIMTIME(txDurationClockTime / packet->getBitLength()) : 0;
    auto packetEvent = new PacketTransmittedEvent();
    packetEvent->setDatarate(packet->getTotalLength() / s(txDurationClockTime.dbl()));
    insertPacketEvent(this, packet, PEK_TRANSMITTED, bitTransmissionTime, packetEvent);
    increaseTimeTag<TransmissionTimeTag>(packet, bitTransmissionTime, packetTransmissionTime);
    if (auto channel = dynamic_cast<cDatarateChannel *>(outputGate->findTransmissionChannel())) {
        insertPacketEvent(this, packet, PEK_PROPAGATED, channel->getDelay());
        increaseTimeTag<PropagationTimeTag>(packet, channel->getDelay(), channel->getDelay());
    }
    auto signal = new Signal(packet->getName());
    signal->encapsulate(packet);
    signal->setDuration(calculateDuration(txDurationClockTime));
    return signal;
}

Referenced by inet::StreamingTransmitter::abortTx(), inet::StreamThroughTransmitter::abortTx(), inet::StreamThroughTransmitter::progressTx(), inet::StreamingTransmitter::startTx(), inet::PacketTransmitter::startTx(), and inet::StreamThroughTransmitter::startTx().

finish()

void inet::PacketTransmitterBase::finish ( )

overrideprotectedvirtual

{
    if (auto channel = dynamic_cast<cDatarateChannel *>(outputGate->findTransmissionChannel()))
        recordScalar("propagationTime", channel->getDelay());
}

handleMessageWhenUp()

void inet::PacketTransmitterBase::handleMessageWhenUp ( cMessage *  message )

overrideprotectedvirtual

Implements inet::OperationalMixin< PacketProcessorBase >.

Reimplemented in inet::StreamThroughTransmitter, inet::PacketTransmitter, and inet::StreamingTransmitter.

{
    auto packet = check_and_cast<Packet *>(message);
    pushPacket(packet, packet->getArrivalGate());
}

Referenced by inet::PacketTransmitter::handleMessageWhenUp(), inet::StreamingTransmitter::handleMessageWhenUp(), and inet::StreamThroughTransmitter::handleMessageWhenUp().

handleStartOperation()

void inet::PacketTransmitterBase::handleStartOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< PacketProcessorBase >.

{
    if (producer != nullptr)
        producer->handleCanPushPacketChanged(inputGate->getPathStartGate());
}

initialize()

void inet::PacketTransmitterBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< PacketProcessorBase >.

Reimplemented in inet::StreamThroughTransmitter, and inet::StreamingTransmitterBase.

{
    ClockUserModuleMixin::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        dataratePar = &par("datarate");
        txDatarate = bps(*dataratePar);
        inputGate = gate("in");
        outputGate = gate("out");
        producer.reference(inputGate, false);
        txEndTimer = new ClockEvent("TxEndTimer");
    }
    else if (stage == INITSTAGE_QUEUEING) {
        checkPacketOperationSupport(inputGate);
        if (producer != nullptr)
            producer->handleCanPushPacketChanged(inputGate->getPathStartGate());
    }
}

Referenced by inet::StreamingTransmitterBase::initialize().

isInitializeStage()

virtual bool inet::PacketTransmitterBase::isInitializeStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< PacketProcessorBase >.

{ return stage == INITSTAGE_LINK_LAYER; }

isModuleStartStage()

virtual bool inet::PacketTransmitterBase::isModuleStartStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< PacketProcessorBase >.

{ return stage == ModuleStartOperation::STAGE_LINK_LAYER; }

isModuleStopStage()

virtual bool inet::PacketTransmitterBase::isModuleStopStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< PacketProcessorBase >.

{ return stage == ModuleStopOperation::STAGE_LINK_LAYER; }

isTransmitting()

virtual bool inet::PacketTransmitterBase::isTransmitting ( ) const

inlineprotectedvirtual

{ return txSignal != nullptr; }

Referenced by inet::StreamingTransmitter::abortTx(), inet::StreamThroughTransmitter::abortTx(), inet::PacketTransmitter::endTx(), inet::StreamingTransmitter::endTx(), inet::StreamThroughTransmitter::endTx(), inet::PacketTransmitter::handleCrashOperation(), inet::StreamingTransmitter::handleCrashOperation(), inet::StreamThroughTransmitter::handleCrashOperation(), inet::PacketTransmitter::handleStopOperation(), inet::StreamingTransmitter::handleStopOperation(), inet::StreamThroughTransmitter::handleStopOperation(), inet::StreamThroughTransmitter::progressTx(), inet::StreamThroughTransmitter::pushPacketProgress(), inet::StreamingTransmitterBase::receiveSignal(), inet::StreamingTransmitter::startTx(), inet::PacketTransmitter::startTx(), and inet::StreamThroughTransmitter::startTx().

prepareSignal()

void inet::PacketTransmitterBase::prepareSignal ( Signal *  signal )

protectedvirtual

{
    auto packet = check_and_cast<Packet *>(signal->getEncapsulatedPacket());
    auto oldPacketProtocolTag = packet->removeTagIfPresent<PacketProtocolTag>();
    packet->clearTags();
    if (oldPacketProtocolTag != nullptr) {
        auto newPacketProtocolTag = packet->addTag<PacketProtocolTag>();
        *newPacketProtocolTag = *oldPacketProtocolTag;
    }
}

Referenced by sendSignalEnd(), sendSignalProgress(), sendSignalStart(), and inet::PacketTransmitter::startTx().

pushPacketEnd()

virtual void inet::PacketTransmitterBase::pushPacketEnd ( Packet *  packet, cGate *  gate  )

inlineoverridevirtual

Ends pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, when a preemption supporting server module ends streaming a packet to the sink.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Implements inet::queueing::IPassivePacketSink.

Reimplemented in inet::StreamThroughTransmitter.

{ throw cRuntimeError("Invalid operation"); }

pushPacketProgress()

virtual void inet::PacketTransmitterBase::pushPacketProgress ( Packet *  packet, cGate *  gate, bps  datarate, b  position, b  extraProcessableLength = b(0)  )

inlineoverridevirtual

Progresses pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The position specifies where the packet streaming is at the moment. The extra length parameter partially fixes the future of the packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, to notify the sink about a change in the packet data when a preemption occurs.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Implements inet::queueing::IPassivePacketSink.

Reimplemented in inet::StreamThroughTransmitter, and inet::PacketTransmitter.

{ throw cRuntimeError("Invalid operation"); }

pushPacketStart()

virtual void inet::PacketTransmitterBase::pushPacketStart ( Packet *  packet, cGate *  gate, bps  datarate  )

inlineoverridevirtual

Starts pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, when a preemption supporting server module starts streaming a packet to the sink.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Implements inet::queueing::IPassivePacketSink.

Reimplemented in inet::StreamThroughTransmitter.

{ throw cRuntimeError("Invalid operation"); }

sendSignalEnd()

void inet::PacketTransmitterBase::sendSignalEnd ( Signal *  signal, int  transmissionId  )

protectedvirtual

{
    EV_INFO << "Transmitting signal end to channel" << EV_FIELD(signal) << EV_FIELD(transmissionId) << EV_ENDL;
    prepareSignal(signal);
    send(signal, SendOptions().duration(signal->getDuration()).finishTx(transmissionId), outputGate);
}

Referenced by inet::StreamingTransmitter::abortTx(), inet::StreamThroughTransmitter::abortTx(), inet::StreamingTransmitter::endTx(), and inet::StreamThroughTransmitter::endTx().

sendSignalProgress()

void inet::PacketTransmitterBase::sendSignalProgress ( Signal *  signal, int  transmissionId, b  bitPosition, clocktime_t  timePosition  )

protectedvirtual

{
    simtime_t remainingDuration = signal->getDuration() - CLOCKTIME_AS_SIMTIME(timePosition);
    EV_INFO << "Transmitting signal progress to channel" << EV_FIELD(signal) << EV_FIELD(transmissionId) << EV_FIELD(remainingDuration, simsec(remainingDuration)) << EV_ENDL;
    prepareSignal(signal);
    send(signal, SendOptions().duration(signal->getDuration()).updateTx(transmissionId, remainingDuration), outputGate);
}

Referenced by inet::StreamThroughTransmitter::progressTx(), and inet::StreamingTransmitterBase::scheduleAt().

sendSignalStart()

void inet::PacketTransmitterBase::sendSignalStart ( Signal *  signal, int  transmissionId  )

protectedvirtual

{
    EV_INFO << "Transmitting signal start to channel" << EV_FIELD(signal) << EV_ENDL;
    prepareSignal(signal);
    send(signal, SendOptions().duration(signal->getDuration()).transmissionId(transmissionId), outputGate);
}

Referenced by inet::StreamingTransmitter::startTx(), and inet::StreamThroughTransmitter::startTx().

supportsPacketPulling()

virtual bool inet::PacketTransmitterBase::supportsPacketPulling ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports pulling packets at the given gate.

Pulling a packet is a synchronous operation that is initiated by the sink module. A pulled packet can be passed as a whole using pullPacket(), or it can be streamed from the source to the sink using pullPacketStart(), pullPacketEnd(), and pullPacketProgress().

For output gates, true means that the connected module can pull packets from this module. For input gates, true means that this module can pull packets from the connected module. For example, a packet server module can pull packets from a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(pull) in the NED file.

Implements inet::queueing::IPacketProcessor.

{ return false; }

supportsPacketPushing()

virtual bool inet::PacketTransmitterBase::supportsPacketPushing ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports pushing packets at the given gate.

Pushing a packet is a synchronous operation that is initiated by the source module. A pushed packet can be passed as a whole using pushPacket(), or it can be streamed from the source to the sink using pushPacketStart(), pushPacketEnd(), and pushPacketProgress().

For output gates, true means that this module can push packets into the connected module. For input gates, true means that the connected module can push packets into this module. For example, a packet generator module can push packets into a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(push) in the NED file.

Implements inet::queueing::IPacketProcessor.

{ return inputGate == gate; }

Member Data Documentation

dataratePar

cPar* inet::PacketTransmitterBase::dataratePar = nullptr

protected

Referenced by initialize(), inet::PacketTransmitter::startTx(), inet::StreamingTransmitter::startTx(), and inet::StreamThroughTransmitter::startTx().

inputGate

cGate* inet::PacketTransmitterBase::inputGate = nullptr

protected

Referenced by inet::StreamingTransmitter::abortTx(), inet::StreamThroughTransmitter::abortTx(), inet::PacketTransmitter::endTx(), inet::StreamingTransmitter::endTx(), inet::StreamThroughTransmitter::endTx(), handleStartOperation(), initialize(), and inet::StreamingTransmitterBase::receiveSignal().

outputGate

cGate* inet::PacketTransmitterBase::outputGate = nullptr

protected

Referenced by encodePacket(), finish(), inet::StreamingTransmitterBase::initialize(), initialize(), inet::StreamingTransmitterBase::receiveSignal(), sendSignalEnd(), sendSignalProgress(), sendSignalStart(), and inet::PacketTransmitter::startTx().

producer

ModuleRef<IActivePacketSource> inet::PacketTransmitterBase::producer

protected

Referenced by inet::StreamingTransmitter::abortTx(), inet::StreamThroughTransmitter::abortTx(), inet::PacketTransmitter::endTx(), inet::StreamingTransmitter::endTx(), inet::StreamThroughTransmitter::endTx(), handleStartOperation(), initialize(), and inet::StreamingTransmitterBase::receiveSignal().

txDatarate

bps inet::PacketTransmitterBase::txDatarate = bps(NaN)

protected

Referenced by inet::StreamingTransmitter::abortTx(), inet::StreamThroughTransmitter::abortTx(), calculateClockTimeDuration(), inet::StreamingTransmitter::endTx(), inet::StreamThroughTransmitter::endTx(), initialize(), inet::StreamThroughTransmitter::progressTx(), inet::StreamingTransmitterBase::scheduleAt(), inet::StreamThroughTransmitter::scheduleBufferUnderrunTimer(), inet::StreamingTransmitter::startTx(), inet::PacketTransmitter::startTx(), and inet::StreamThroughTransmitter::startTx().

txDurationClockTime

clocktime_t inet::PacketTransmitterBase::txDurationClockTime = -1

protected

Referenced by encodePacket(), and inet::StreamingTransmitterBase::scheduleTxEndTimer().

txEndTimer

ClockEvent* inet::PacketTransmitterBase::txEndTimer = nullptr

protected

Referenced by inet::PacketTransmitter::handleMessageWhenUp(), inet::StreamingTransmitter::handleMessageWhenUp(), inet::StreamThroughTransmitter::handleMessageWhenUp(), initialize(), inet::StreamingTransmitterBase::scheduleAt(), inet::PacketTransmitter::scheduleTxEndTimer(), inet::StreamingTransmitterBase::scheduleTxEndTimer(), and ~PacketTransmitterBase().

txSignal

Signal* inet::PacketTransmitterBase::txSignal = nullptr

protected

Referenced by inet::StreamingTransmitter::abortTx(), inet::StreamThroughTransmitter::abortTx(), inet::StreamingTransmitter::endTx(), inet::PacketTransmitter::endTx(), inet::StreamThroughTransmitter::endTx(), inet::StreamThroughTransmitter::progressTx(), inet::StreamThroughTransmitter::pushPacketEnd(), inet::StreamingTransmitterBase::scheduleAt(), inet::PacketTransmitter::startTx(), inet::StreamingTransmitter::startTx(), inet::StreamThroughTransmitter::startTx(), and ~PacketTransmitterBase().

txStartClockTime

clocktime_t inet::PacketTransmitterBase::txStartClockTime = -1

protected

Referenced by inet::StreamingTransmitter::abortTx(), inet::StreamThroughTransmitter::abortTx(), calculateDuration(), inet::StreamingTransmitter::endTx(), inet::PacketTransmitter::endTx(), inet::StreamThroughTransmitter::endTx(), inet::StreamThroughTransmitter::progressTx(), inet::StreamingTransmitterBase::scheduleAt(), inet::StreamingTransmitterBase::scheduleTxEndTimer(), inet::StreamingTransmitter::startTx(), inet::PacketTransmitter::startTx(), and inet::StreamThroughTransmitter::startTx().

txStartTime

simtime_t inet::PacketTransmitterBase::txStartTime = -1

protected

Referenced by inet::StreamingTransmitter::abortTx(), inet::StreamThroughTransmitter::abortTx(), calculateDuration(), inet::StreamingTransmitter::endTx(), inet::PacketTransmitter::endTx(), inet::StreamThroughTransmitter::endTx(), inet::StreamingTransmitterBase::scheduleAt(), inet::StreamingTransmitter::startTx(), inet::PacketTransmitter::startTx(), and inet::StreamThroughTransmitter::startTx().

---

The documentation for this class was generated from the following files:

• PacketTransmitterBase.h
• PacketTransmitterBase.cc
