inet::queueing::PacketPusherBase Class Reference

#include <PacketPusherBase.h>

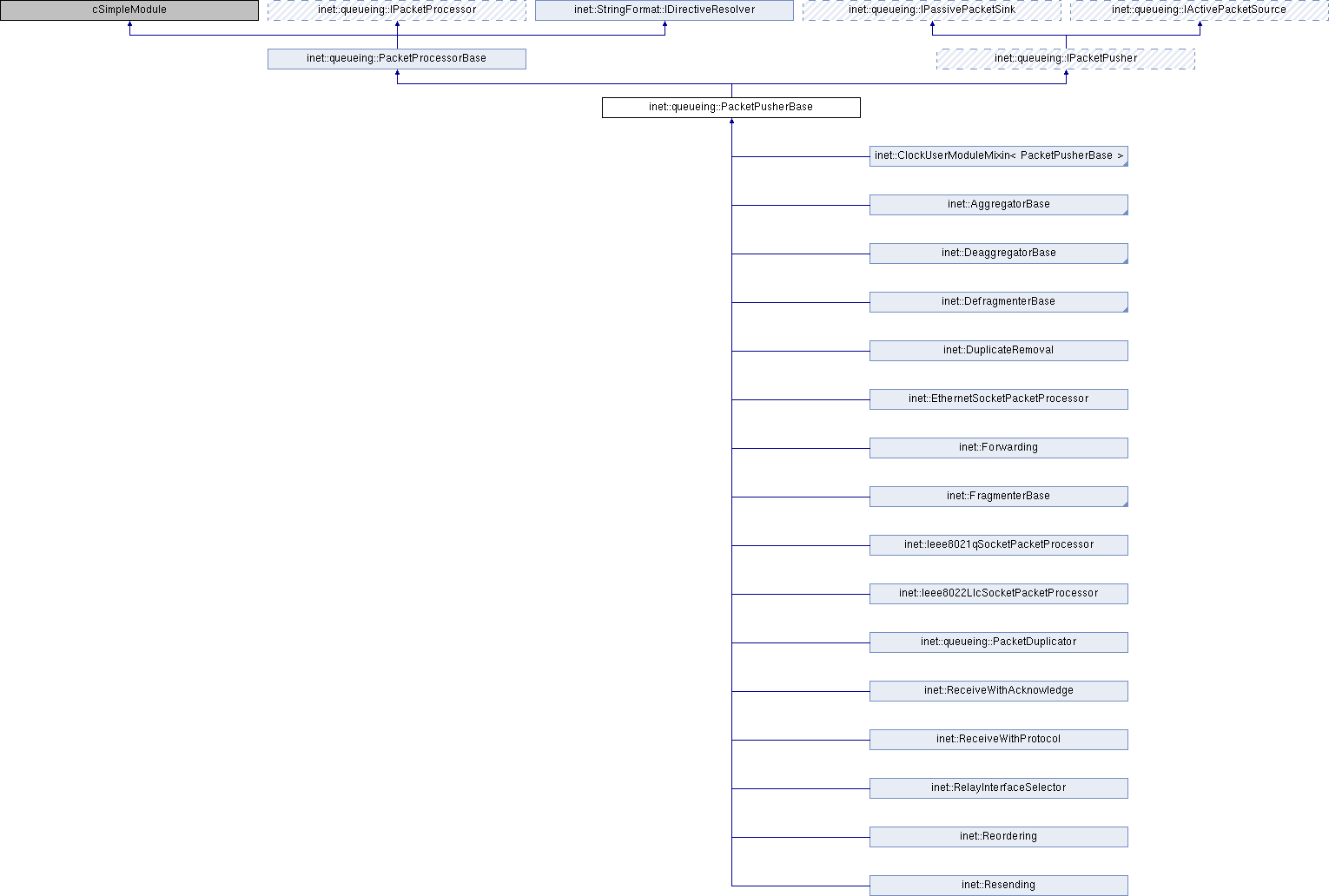

Inheritance diagram for inet::queueing::PacketPusherBase:

Public Member Functions
virtual IPassivePacketSink *	getConsumer (cGate *gate) override
	Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface. More...
virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...
virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...
virtual bool	canPushSomePacket (cGate *gate) const override
	Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error. More...
virtual bool	canPushPacket (Packet *packet, cGate *gate) const override
	Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error. More...
virtual void	pushPacket (Packet *packet, cGate *gate) override
	Pushes the packet into the packet sink at the given gate. More...
virtual void	pushPacketStart (Packet *packet, cGate *gate, bps datarate) override
	Starts pushing the packet into the packet sink at the given gate. More...
virtual void	pushPacketEnd (Packet *packet, cGate *gate) override
	Ends pushing the packet into the packet sink at the given gate. More...
virtual void	pushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength=b(0)) override
	Progresses pushing the packet into the packet sink at the given gate. More...
virtual void	handleCanPushPacketChanged (cGate *gate) override
	Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate. More...
virtual void	handlePushPacketProcessed (Packet *packet, cGate *gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed. More...
Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...
virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...
virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...
virtual const char *	resolveDirective (char directive) const override
Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()
Public Member Functions inherited from inet::queueing::IPassivePacketSink
virtual	~IPassivePacketSink ()
Public Member Functions inherited from inet::queueing::IActivePacketSource
virtual	~IActivePacketSource ()

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *message) override
Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handlePacketProcessed (Packet *packet)
virtual void	checkPacketOperationSupport (cGate *gate) const
virtual void	checkPacketOperationSupport (cGate *startGate, cGate *endGate) const
virtual void	animate (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacket (Packet *packet, cGate *gate, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, long transmissionId, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const
virtual void	pushOrSendPacket (Packet *packet, cGate *gate, IPassivePacketSink *consumer)
virtual void	pushOrSendPacketStart (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)
virtual void	pushOrSendPacketEnd (Packet *packet, cGate *gate, IPassivePacketSink *consumer, int transmissionId)
virtual void	pushOrSendPacketProgress (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)
virtual void	animatePush (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacket (Packet *packet, cGate *gate) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	animatePull (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacket (Packet *packet, cGate *gate) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)
virtual void	updateDisplayString () const

Protected Attributes
cGate *	inputGate = nullptr
IActivePacketSource *	producer = nullptr
cGate *	outputGate = nullptr
IPassivePacketSink *	consumer = nullptr
Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr
int	numProcessedPackets = -1
b	processedTotalLength = b(-1)

Additional Inherited Members
Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Member Function Documentation

canPushPacket()

bool inet::queueing::PacketPusherBase::canPushPacket ( Packet *  packet, cGate *  gate  ) const

overridevirtual

Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error.

The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing packets.

Implements inet::queueing::IPassivePacketSink.

Reimplemented in inet::InterpacketGapInserter, and inet::Resending.

{
    return consumer->canPushPacket(packet, outputGate->getPathEndGate());
}

canPushSomePacket()

bool inet::queueing::PacketPusherBase::canPushSomePacket ( cGate *  gate ) const

overridevirtual

Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error.

The gate must be a valid gate of this module and it must support pushing packets.

Implements inet::queueing::IPassivePacketSink.

Reimplemented in inet::InterpacketGapInserter, and inet::Resending.

{
    return consumer->canPushSomePacket(outputGate->getPathEndGate());
}

getConsumer()

virtual IPassivePacketSink* inet::queueing::PacketPusherBase::getConsumer ( cGate *  gate )

inlineoverridevirtual

Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface.

The gate parameter must be a valid gate of this module.

Implements inet::queueing::IActivePacketSource.

Reimplemented in inet::InterpacketGapInserter.

{ return this; }

handleCanPushPacketChanged()

void inet::queueing::PacketPusherBase::handleCanPushPacketChanged ( cGate *  gate )

overridevirtual

Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate.

This method is called, for example, when a new packet can be inserted into a queue. It allows the source to push a new packet into the queue.

The gate parameter must be a valid gate of this module.

Implements inet::queueing::IActivePacketSource.

Reimplemented in inet::InterpacketGapInserter, inet::queueing::PacketDelayer, and inet::queueing::PacketDuplicator.

{
    Enter_Method("handleCanPushPacketChanged");
    if (producer != nullptr)
        producer->handleCanPushPacketChanged(inputGate->getPathStartGate());
}

handleMessage()

void inet::queueing::PacketPusherBase::handleMessage ( cMessage *  message )

overrideprotectedvirtual

Reimplemented in inet::InterpacketGapInserter, inet::Resending, and inet::queueing::PacketDelayer.

{
    auto packet = check_and_cast<Packet *>(message);
    pushPacket(packet, packet->getArrivalGate());
}

Referenced by inet::queueing::PacketDelayer::handleMessage().

handlePushPacketProcessed()

void inet::queueing::PacketPusherBase::handlePushPacketProcessed ( Packet *  packet, cGate *  gate, bool  successful  )

overridevirtual

Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed.

This method is called, for example, when a previously pushed packet is failed to be processed successfully. It allows the source to retry the operation.

The gate parameter must be a valid gate of this module. The packet must not be nullptr.

Implements inet::queueing::IActivePacketSource.

Reimplemented in inet::InterpacketGapInserter, inet::Resending, inet::queueing::PacketDelayer, and inet::queueing::PacketDuplicator.

{
    Enter_Method("handlePushPacketProcessed");
    if (producer != nullptr)
        producer->handlePushPacketProcessed(packet, inputGate->getPathStartGate(), successful);
}

initialize()

void inet::queueing::PacketPusherBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::queueing::PacketProcessorBase.

Reimplemented in inet::RelayInterfaceSelector, inet::InterpacketGapInserter, inet::AggregatorBase, inet::Resending, inet::DefragmenterBase, inet::FragmenterBase, inet::EthernetSocketPacketProcessor, inet::Ieee8021qSocketPacketProcessor, inet::Ieee8022LlcSocketPacketProcessor, inet::Forwarding, inet::FragmentNumberHeaderBasedDefragmenter, inet::FragmentNumberHeaderBasedFragmenter, inet::Reordering, inet::DeaggregatorBase, inet::DuplicateRemoval, inet::ReceiveWithAcknowledge, and inet::SubpacketLengthHeaderBasedDeaggregator.

{
    PacketProcessorBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        inputGate = gate("in");
        outputGate = gate("out");
        producer = findConnectedModule<IActivePacketSource>(inputGate);
        consumer = findConnectedModule<IPassivePacketSink>(outputGate);
    }
    else if (stage == INITSTAGE_QUEUEING) {
        checkPacketOperationSupport(inputGate);
        checkPacketOperationSupport(outputGate);
    }
}

Referenced by inet::ReceiveWithAcknowledge::initialize(), inet::DeaggregatorBase::initialize(), inet::DuplicateRemoval::initialize(), inet::Ieee8021qSocketPacketProcessor::initialize(), inet::Ieee8022LlcSocketPacketProcessor::initialize(), inet::EthernetSocketPacketProcessor::initialize(), inet::Forwarding::initialize(), inet::Reordering::initialize(), inet::FragmenterBase::initialize(), inet::DefragmenterBase::initialize(), inet::Resending::initialize(), inet::AggregatorBase::initialize(), and inet::RelayInterfaceSelector::initialize().

pushPacket()

void inet::queueing::PacketPusherBase::pushPacket ( Packet *  packet, cGate *  gate  )

overridevirtual

Pushes the packet into the packet sink at the given gate.

This operation pushes the packet as a whole. The onwership of the packet is transferred to the sink.

This method is called, for example, when a packet source module pushes a packet into a queue module.

The sink must not be full at the gate. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and passing packets.

Implements inet::queueing::IPassivePacketSink.

Reimplemented in inet::InterpacketGapInserter, inet::AggregatorBase, inet::Resending, inet::RelayInterfaceSelector, inet::FragmenterBase, inet::Ieee8021qSocketPacketProcessor, inet::Ieee8022LlcSocketPacketProcessor, inet::Forwarding, inet::EthernetSocketPacketProcessor, inet::Reordering, inet::DuplicateRemoval, inet::queueing::PacketDelayer, inet::ReceiveWithAcknowledge, inet::ReceiveWithProtocol, inet::queueing::PacketDuplicator, inet::FragmentNumberHeaderBasedDefragmenter, inet::FragmentTagBasedDefragmenter, and inet::DeaggregatorBase.

{
    throw cRuntimeError("Invalid operation");
}

Referenced by handleMessage().

pushPacketEnd()

void inet::queueing::PacketPusherBase::pushPacketEnd ( Packet *  packet, cGate *  gate  )

overridevirtual

Ends pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, when a preemption supporting server module ends streaming a packet to the sink.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Implements inet::queueing::IPassivePacketSink.

Reimplemented in inet::InterpacketGapInserter.

{
    throw cRuntimeError("Invalid operation");
}

pushPacketProgress()

void inet::queueing::PacketPusherBase::pushPacketProgress ( Packet *  packet, cGate *  gate, bps  datarate, b  position, b  extraProcessableLength = b(0)  )

overridevirtual

Progresses pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The position specifies where the packet streaming is at the moment. The extra length parameter partially fixes the future of the packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, to notify the sink about a change in the packet data when a preemption occurs.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Implements inet::queueing::IPassivePacketSink.

Reimplemented in inet::InterpacketGapInserter.

{
    throw cRuntimeError("Invalid operation");
}

pushPacketStart()

void inet::queueing::PacketPusherBase::pushPacketStart ( Packet *  packet, cGate *  gate, bps  datarate  )

overridevirtual

Starts pushing the packet into the packet sink at the given gate.

This is a packet streaming operation. The onwership of the packet is transferred to the sink.

Packet streaming can be started with any of the streaming operations, and ends when the streaming position plus the extra processable packet length equals to the total packet length.

This method is called, for example, when a preemption supporting server module starts streaming a packet to the sink.

The sink must not be full at the gate and no other packet streaming can be in progress. The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing and streaming packets.

Implements inet::queueing::IPassivePacketSink.

Reimplemented in inet::InterpacketGapInserter.

{
    throw cRuntimeError("Invalid operation");
}

supportsPacketPulling()

virtual bool inet::queueing::PacketPusherBase::supportsPacketPulling ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports pulling packets at the given gate.

Pulling a packet is a synchronous operation that is initiated by the sink module. A pulled packet can be passed as a whole using pullPacket(), or it can be streamed from the source to the sink using pullPacketStart(), pullPacketEnd(), and pullPacketProgress().

For output gates, true means that the connected module can pull packets from this module. For input gates, true means that this module can pull packets from the connected module. For example, a packet server module can pull packets from a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(pull) in the NED file.

Implements inet::queueing::IPacketProcessor.

Reimplemented in inet::InterpacketGapInserter.

{ return false; }

supportsPacketPushing()

virtual bool inet::queueing::PacketPusherBase::supportsPacketPushing ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports pushing packets at the given gate.

Pushing a packet is a synchronous operation that is initiated by the source module. A pushed packet can be passed as a whole using pushPacket(), or it can be streamed from the source to the sink using pushPacketStart(), pushPacketEnd(), and pushPacketProgress().

For output gates, true means that this module can push packets into the connected module. For input gates, true means that the connected module can push packets into this module. For example, a packet generator module can push packets into a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(push) in the NED file.

Implements inet::queueing::IPacketProcessor.

Reimplemented in inet::InterpacketGapInserter.

{ return true; }

Member Data Documentation

consumer

IPassivePacketSink* inet::queueing::PacketPusherBase::consumer = nullptr

protected

Referenced by canPushPacket(), inet::InterpacketGapInserter::canPushPacket(), canPushSomePacket(), inet::InterpacketGapInserter::canPushSomePacket(), inet::DefragmenterBase::defragmentPacket(), inet::queueing::PacketDelayer::handleMessage(), inet::Resending::handleMessage(), inet::InterpacketGapInserter::handleMessage(), inet::Resending::handlePushPacketProcessed(), initialize(), inet::InterpacketGapInserter::pushOrSendOrSchedulePacketProgress(), inet::queueing::PacketDuplicator::pushPacket(), inet::DuplicateRemoval::pushPacket(), inet::DeaggregatorBase::pushPacket(), inet::EthernetSocketPacketProcessor::pushPacket(), inet::Reordering::pushPacket(), inet::Ieee8021qSocketPacketProcessor::pushPacket(), inet::Forwarding::pushPacket(), inet::FragmenterBase::pushPacket(), inet::AggregatorBase::pushPacket(), inet::InterpacketGapInserter::pushPacket(), inet::InterpacketGapInserter::receivePacketEnd(), inet::InterpacketGapInserter::receivePacketProgress(), inet::InterpacketGapInserter::receivePacketStart(), and inet::RelayInterfaceSelector::sendPacket().

inputGate

cGate* inet::queueing::PacketPusherBase::inputGate = nullptr

protected

Referenced by inet::queueing::PacketDelayer::getRegistrationForwardingGate(), inet::Ieee8021qSocketPacketProcessor::getRegistrationForwardingGate(), inet::Ieee8022LlcSocketPacketProcessor::getRegistrationForwardingGate(), inet::EthernetSocketPacketProcessor::getRegistrationForwardingGate(), inet::RelayInterfaceSelector::getRegistrationForwardingGate(), inet::queueing::PacketDuplicator::handleCanPushPacketChanged(), inet::queueing::PacketDelayer::handleCanPushPacketChanged(), handleCanPushPacketChanged(), inet::InterpacketGapInserter::handleCanPushPacketChanged(), inet::InterpacketGapInserter::handleMessage(), inet::Resending::handlePushPacketProcessed(), handlePushPacketProcessed(), inet::InterpacketGapInserter::handlePushPacketProcessed(), inet::ReceiveWithAcknowledge::initialize(), inet::SubpacketLengthHeaderBasedDeaggregator::initialize(), inet::DuplicateRemoval::initialize(), inet::Reordering::initialize(), inet::FragmentNumberHeaderBasedDefragmenter::initialize(), inet::Forwarding::initialize(), and initialize().

outputGate

cGate* inet::queueing::PacketPusherBase::outputGate = nullptr

protected

Referenced by canPushPacket(), inet::InterpacketGapInserter::canPushPacket(), canPushSomePacket(), inet::InterpacketGapInserter::canPushSomePacket(), inet::DefragmenterBase::defragmentPacket(), inet::queueing::PacketDelayer::getRegistrationForwardingGate(), inet::Ieee8021qSocketPacketProcessor::getRegistrationForwardingGate(), inet::Ieee8022LlcSocketPacketProcessor::getRegistrationForwardingGate(), inet::EthernetSocketPacketProcessor::getRegistrationForwardingGate(), inet::RelayInterfaceSelector::getRegistrationForwardingGate(), inet::queueing::PacketDelayer::handleMessage(), inet::Resending::handleMessage(), inet::InterpacketGapInserter::handleMessage(), inet::Resending::handlePushPacketProcessed(), inet::SubpacketLengthHeaderBasedDeaggregator::initialize(), inet::ReceiveWithAcknowledge::initialize(), inet::DuplicateRemoval::initialize(), inet::Forwarding::initialize(), inet::FragmentNumberHeaderBasedDefragmenter::initialize(), inet::Reordering::initialize(), initialize(), inet::InterpacketGapInserter::pushOrSendOrSchedulePacketProgress(), inet::queueing::PacketDuplicator::pushPacket(), inet::DuplicateRemoval::pushPacket(), inet::DeaggregatorBase::pushPacket(), inet::Reordering::pushPacket(), inet::EthernetSocketPacketProcessor::pushPacket(), inet::Ieee8021qSocketPacketProcessor::pushPacket(), inet::Forwarding::pushPacket(), inet::FragmenterBase::pushPacket(), inet::AggregatorBase::pushPacket(), inet::InterpacketGapInserter::pushPacket(), inet::InterpacketGapInserter::receivePacketEnd(), inet::InterpacketGapInserter::receivePacketProgress(), inet::InterpacketGapInserter::receivePacketStart(), and inet::RelayInterfaceSelector::sendPacket().

producer

IActivePacketSource* inet::queueing::PacketPusherBase::producer = nullptr

protected

Referenced by inet::queueing::PacketDuplicator::handleCanPushPacketChanged(), inet::queueing::PacketDelayer::handleCanPushPacketChanged(), handleCanPushPacketChanged(), inet::InterpacketGapInserter::handleCanPushPacketChanged(), inet::InterpacketGapInserter::handleMessage(), inet::queueing::PacketDuplicator::handlePushPacketProcessed(), inet::queueing::PacketDelayer::handlePushPacketProcessed(), handlePushPacketProcessed(), inet::InterpacketGapInserter::handlePushPacketProcessed(), and initialize().

---

The documentation for this class was generated from the following files:

• PacketPusherBase.h
• PacketPusherBase.cc
